Product Introduction

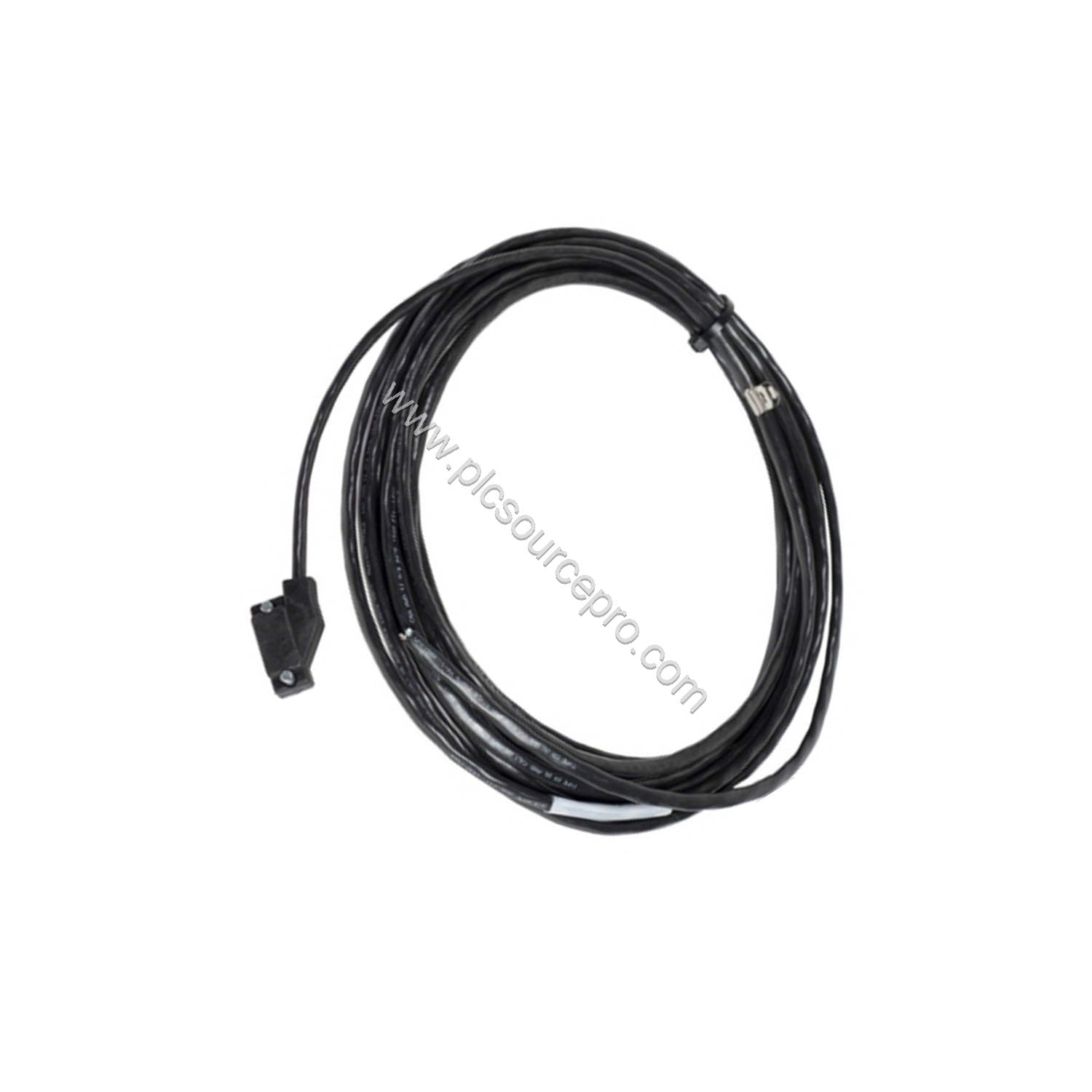

When network connectivity issues arise in harsh industrial environments, the Schneider 990NAD21130 drop cable delivers reliable performance. This 6-meter cable is designed for Modicon Quantum automation platforms, featuring a single male connector and free cable end for flexible integration. It operates flawlessly in temperatures from 0°C to 60°C and humidity up to 80% non-condensing, making it ideal for demanding applications.
Technical Specifications Breakdown
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Part Number |
990NAD21130 |
| Product Line |
Modicon Quantum |
| Cable Length |
6 m (19.7 ft) |
| Electrical Connection |

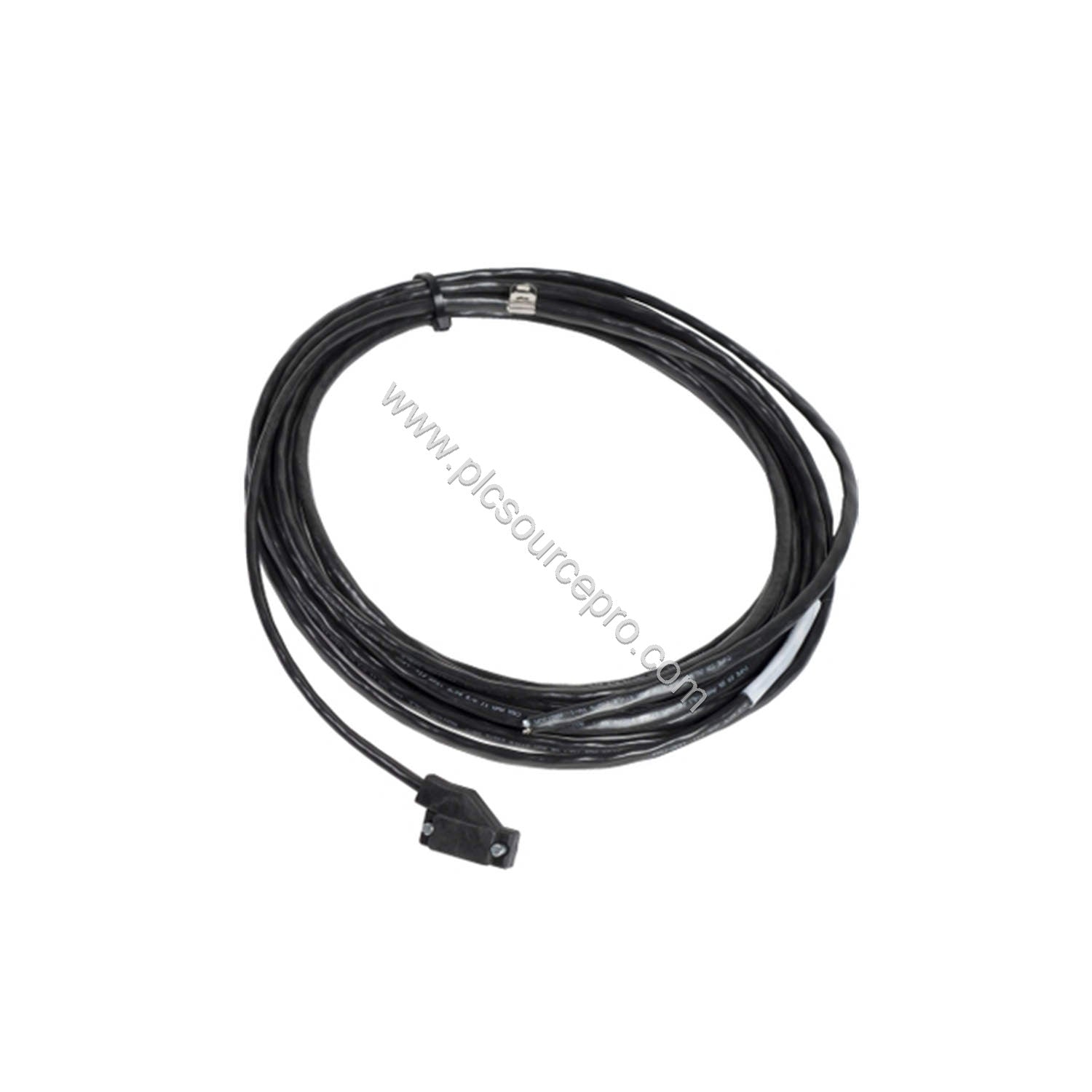

1 male connector SUB-D 9 on communication module side; free end on local tap side |
| Maximum Ambient Temperature |
60 °C |
| Minimum Ambient Temperature |
0 °C |
| Operating Humidity |
Up to 80% (non-condensing) |
| Storage Humidity |
Up to 80% (non-condensing) |
| Maximum Operating Altitude |
1000 m |
| Net Weight |
0.53 kg (1.17 lb) |

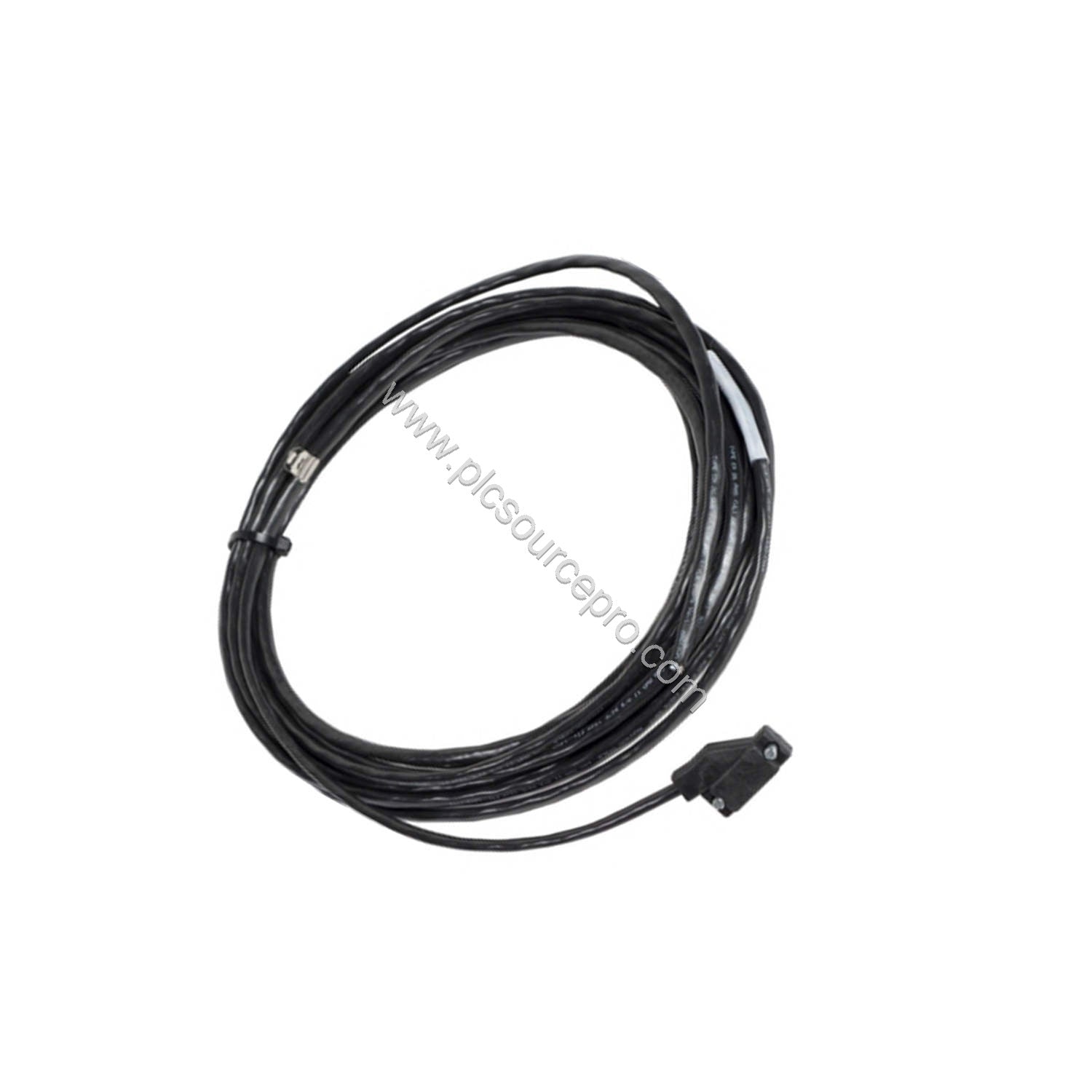

The Schneider 990NAD21130 is built to withstand temperature extremes and high humidity, reducing the risk of connection failures in factory floors and outdoor installations. Its robust design ensures signal integrity over the 6-meter run, critical for Modbus Plus networks.
Industry Applications
This drop cable is essential for connecting remote I/O modules, drives, and sensors within Modicon Quantum, Premium, and Momentum automation platforms. Use it in conveyor systems, packaging lines, and process control to maintain reliable data transmission. The wide temperature range makes it suitable for both heated manufacturing areas and cold storage facilities.
Installation & Setup Guidance
Install the Schneider 990NAD21130 by connecting the male SUB-D 9 connector to the communication module port. Route the cable away from high-voltage lines to avoid electromagnetic interference. Secure the free end using cable ties or conduit to prevent mechanical strain. Ensure the cable is not bent beyond its rated radius (industry standard minimum bend radius applies).
Compatibility & Integration
The 990NAD21130 is designed for Modbus Plus networks and is compatible with multiple controllers and I/O systems. It works seamlessly with Schneider Electric platforms including Modicon Quantum, Modicon Premium, Modicon Momentum, Advantys STB, and Lexium 15 drives. Verified compatible products include 990NAD23020, 990NAD23000, 490NRP25300, STBNMP2212, and many others. This ensures easy integration into existing architectures.
Selection Guide & Purchasing Advice
Before ordering, confirm your network requires a 6-meter drop cable with a male SUB-D connector and free end. The Schneider 990NAD21130 is the exact replacement for numerous Modbus Plus drop cable applications. For reliable sourcing, purchase from PLC Source PRO (store: ubest101.myshopify.com), your trusted partner for industrial automation spares. Always verify part number and compatibility with your system to avoid downtime.
