Product Introduction

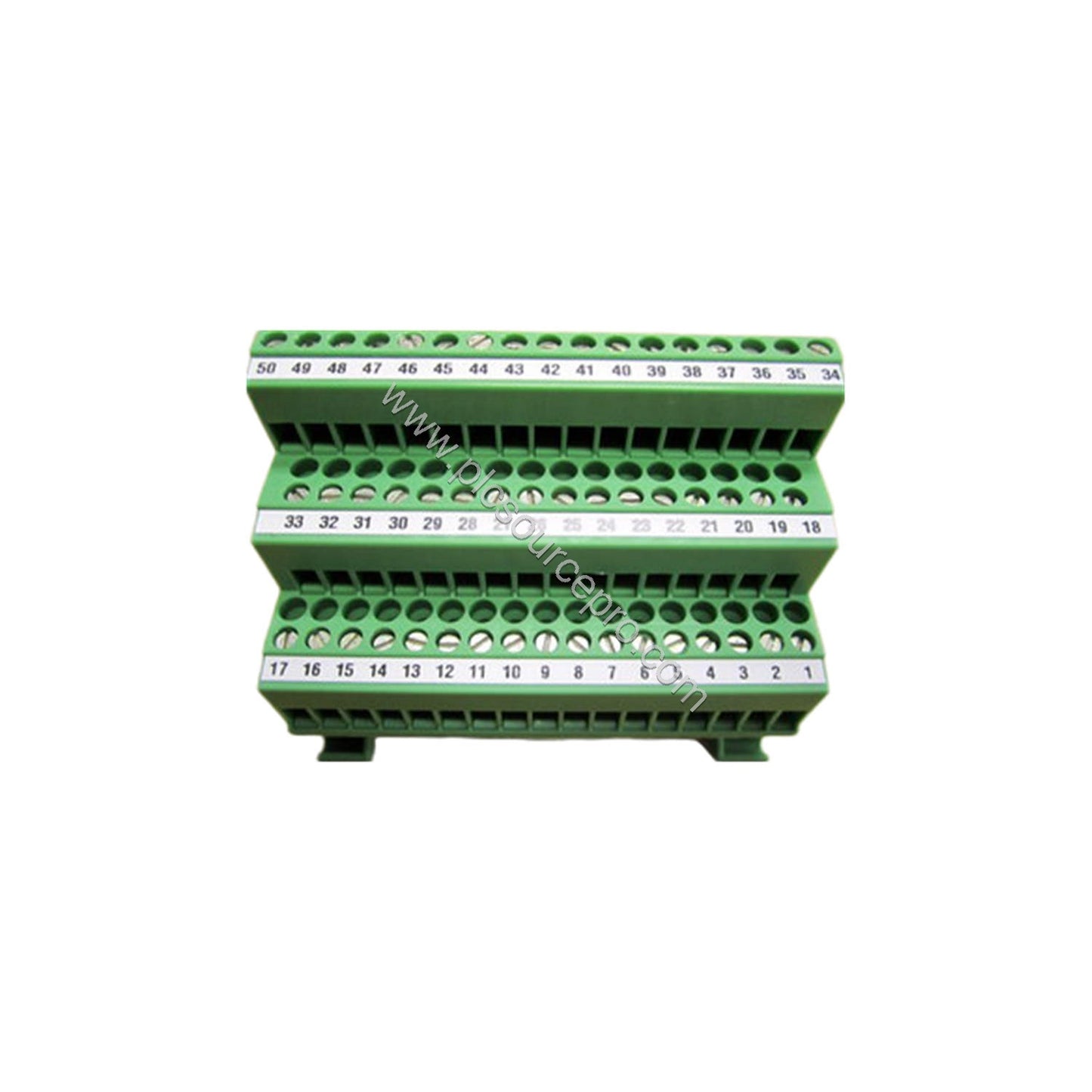

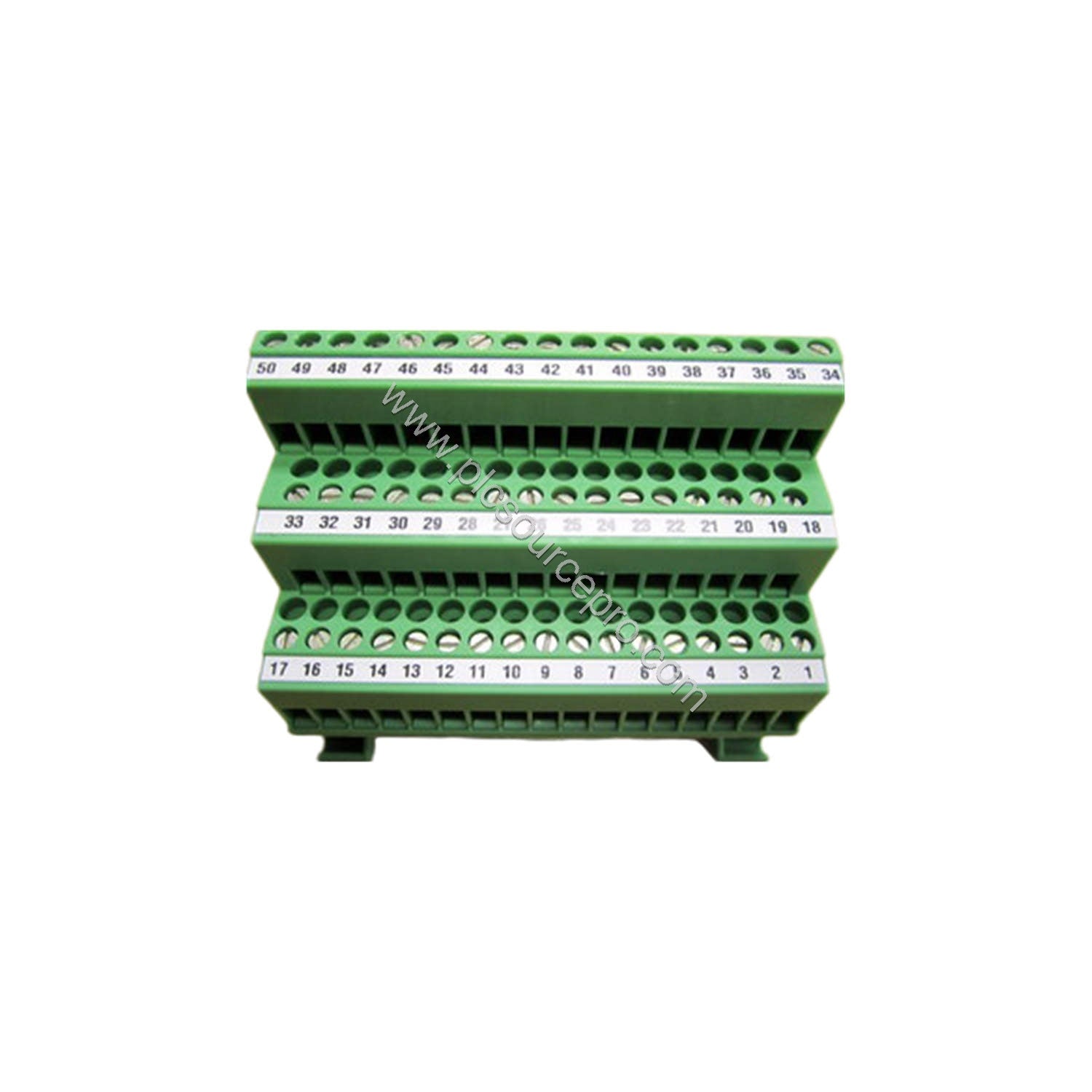

When process reliability is critical, the Schneider 690MCI00006 ensures continuous operation. This high-performance industrial automation module from the Modicon series handles demanding electrical applications. It supports a rated voltage of 600V AC/DC and a rated current of 10.00 A, making it a versatile choice for harsh environments.
Technical Specifications Breakdown
The Schneider 690MCI00006 delivers robust performance with key parameters that matter for industrial control:
-
Rated Voltage: 600V AC/DC – suitable for a wide range of power systems.
-
Rated Current: 10.00 A – ensures consistent load handling.
-
Nominal Power: 4.5 kW – drives medium-power equipment effectively.
-
Overload Capacity: 120% for 30 minutes – provides resilience under temporary stress.
-
Operating Temperature Range: -10°C to +60°C – reliable in varied industrial settings.
-
Vibration Resistance: 1g (10-55 Hz) – withstands typical machinery vibrations.
Industry Applications
The Schneider 690MCI00006 excels in real-world scenarios where uptime matters. In a conveyor system, its 4.5 kW nominal power drives motors while the 120% overload capacity handles brief surges without tripping. For automated assembly lines, the 600V AC/DC rating and DIN rail mounting simplify integration into existing panels. This module also suits HVAC control, where wide temperature tolerance ensures stable operation in outdoor or unconditioned spaces.
Installation & Setup Guidance
Mount the Schneider 690MCI00006 securely on a standard DIN rail using the integrated clip. Connect the multi-core, shielded copper cable (3 meters long) to the push-in terminal block for quick, tool-free wiring. Ensure the cable diameter does not exceed 8 mm. The IP20 protection means install the module inside a clean, dry enclosure. Verify that the supply voltage and current stay within rated limits to avoid damage.
Maintenance & Reliability
Periodically inspect the Schneider 690MCI00006 for dust accumulation or loose connections. The IP20 rating requires a sheltered environment, so clean the housing with a soft brush. Check the push-in terminals for signs of corrosion or thermal stress. The module’s overload capacity reduces the risk of unexpected shutdowns, directly lowering maintenance costs and improving overall equipment effectiveness (OEE).
Selection Guide & Purchasing Advice
Before ordering, confirm that the Schneider 690MCI00006 matches your system’s voltage (600V AC/DC) and current requirements (10 A). Verify DIN rail compatibility and available space in your panel. For bulk or urgent needs, contact PLC Source PRO at our online store ubest101.myshopify.com for fast fulfillment and competitive pricing on genuine Schneider automation spares.
