Product Overview

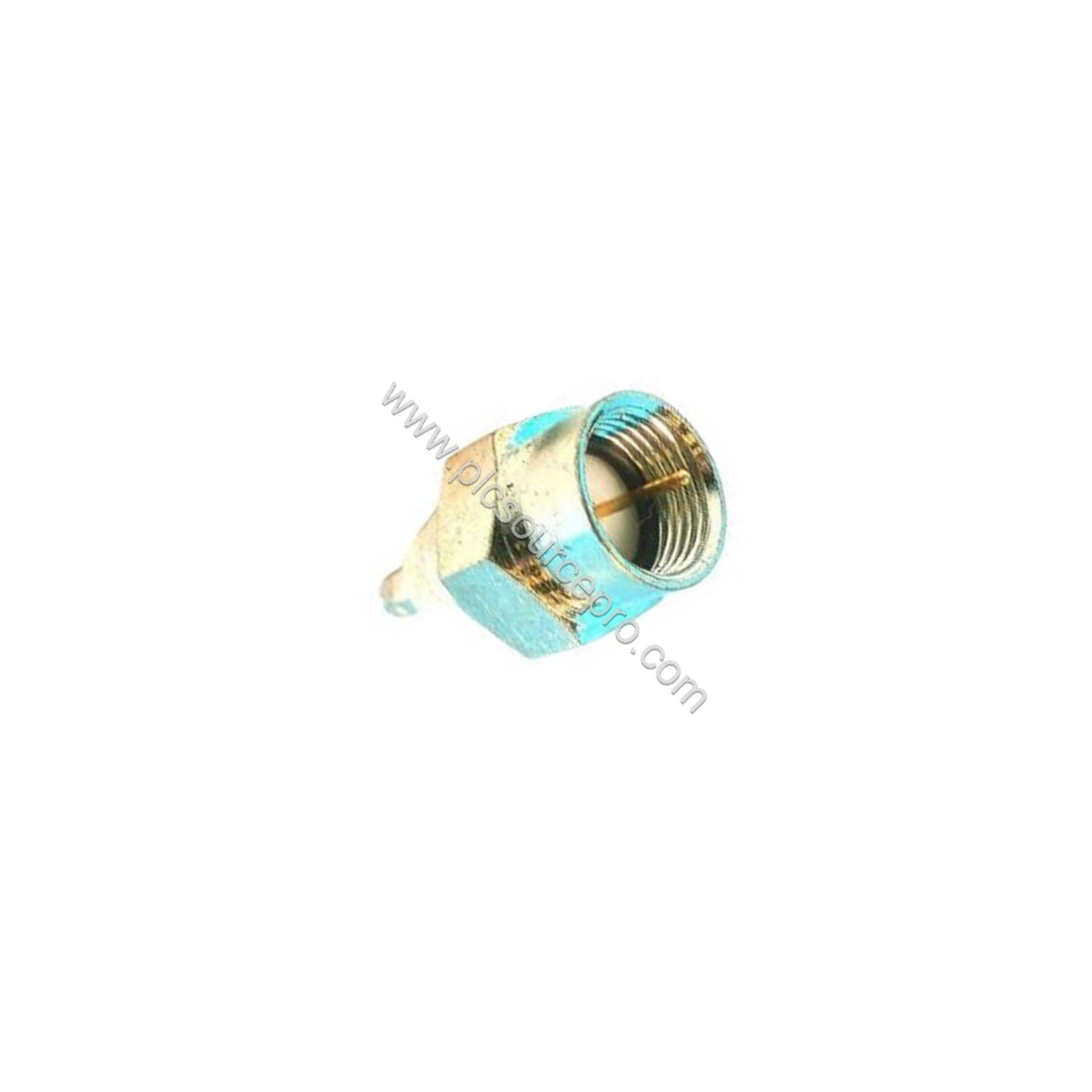

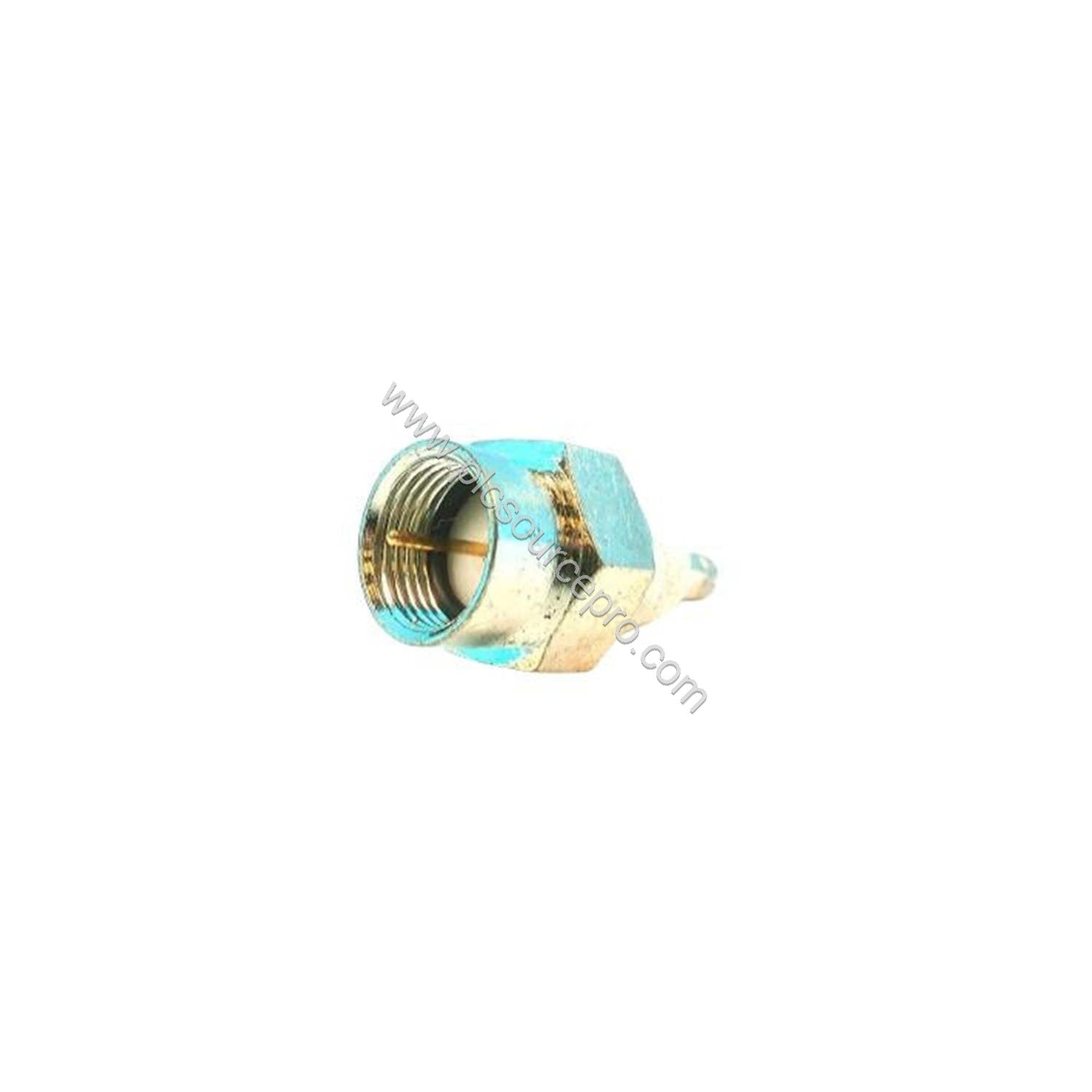

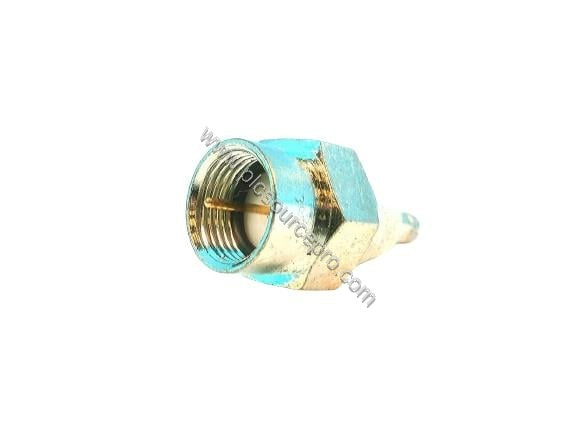

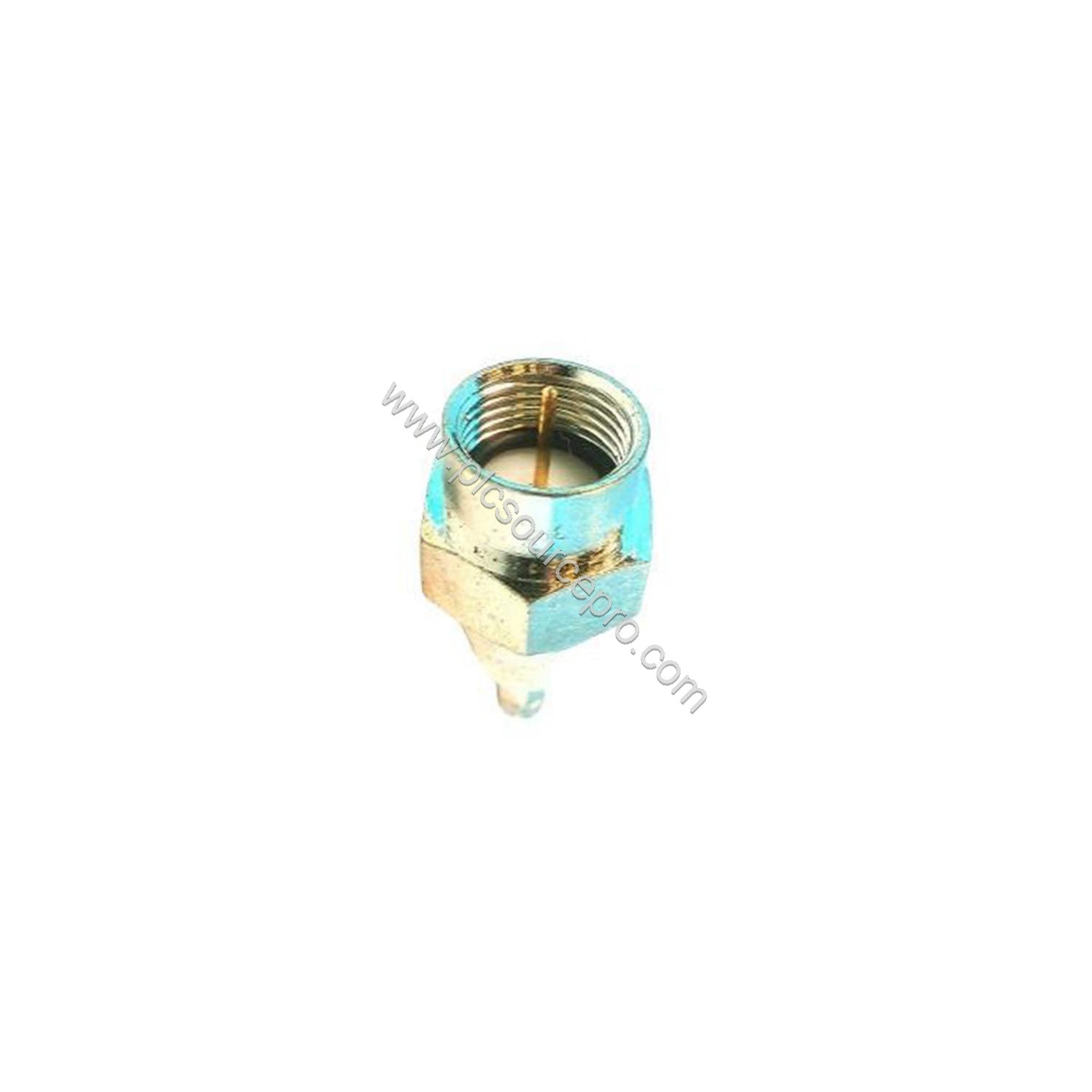

The Schneider 52-0422-000 trunk terminator is a critical component for coaxial cable networks within Modicon Quantum automation platforms. Designed to eliminate signal reflections and disruptions, this terminator ensures reliable data communication in industrial environments. With a characteristic impedance of 75 Ω and power handling up to 75 W, the Schneider 52-0422-000 is engineered for stable operation across industrial temperature ranges.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Trunk Terminator |
| Product Line |
Modicon Quantum |
| Part Number |
52-0422-000 |
| UPC |
785901795544 |
| Termination Impedance |
75 Ω characteristic impedance |
| Power Handling Capacity |
Rated for 75 W power dissipation |
| Termination Type |
Coaxial cable termination |
| Compliance Status |
Not compliant with RoHS |
| Environmental Certification |
Excluded from Green Premium sustainability classification |
| Signal Integrity Assurance |
Prevents signal disruptions and reflections in coaxial networks |
| System Compatibility |
Optimized for Modicon Quantum automation platform architectures |
| Termination Configuration |
Single-unit set for trunk line termination |
| Thermal Performance |
Stable operation in industrial temperature ranges |
Industry Applications
The Schneider 52-0422-000 excels in environments where signal integrity is paramount. In automotive assembly lines, coaxial networks carry critical control signals. Without proper termination, reflections cause data errors and machine downtime. This terminator prevents those failures, ensuring consistent communication between Modicon Quantum controllers and remote I/O stations.
In material handling systems, the Schneider 52-0422-000 maintains signal quality over long coaxial cable runs. By absorbing energy at the line end, it stops echo disturbances that could corrupt sensor data. This results in fewer false triggers and increased throughput.
Installation & Setup Guidance
Installing the Schneider 52-0422-000 requires attaching it to the open end of a coaxial trunk line. Ensure the cable connector matches the terminator's interface (BNC or TNC, depending on the network). Tighten the connection manually until secure—over-torque can damage the connector. Verify that no other termination devices exist on the same trunk, as multiple terminators cause impedance mismatch.
Before installation, inspect the coaxial cable for damage or kinks. A faulty cable negates the terminator's benefits. Use a 75 Ω rated cable for compatibility. The termination point should be at the farthest extremity of the trunk line, away from active nodes.
Maintenance & Reliability
The Schneider 52-0422-000 requires minimal maintenance due to its passive design. Periodically inspect the connector for corrosion or looseness—especially in humid or vibrating environments. Re-tighten or replace if oxidation is visible. Clean contacts with a dedicated electronics cleaner if needed.
Although the terminator is rated for stable industrial temperatures, avoid exposing it to direct heat sources or chemical splashes. The non-RoHS status indicates the presence of certain substances; handle according to local disposal regulations. Regular checks (every six months) ensure long-term signal integrity and prevent unexpected downtime.
Selection Guide & Purchasing Advice
When ordering the Schneider 52-0422-000, verify that your network uses coaxial cable with 75 Ω characteristic impedance. This terminator is designed for Modicon Quantum platforms; confirm compatibility with your specific controller revision. The single-unit configuration suits one trunk line; purchase multiple units for multi-drop networks with separate trunks.
For reliable sourcing, visit ubest101 at the store link. PLC Source PRO stocks genuine Schneider 52-0422-000 terminators with fast shipping. Ensure you have the correct part number before ordering to avoid returns.
