Product Overview

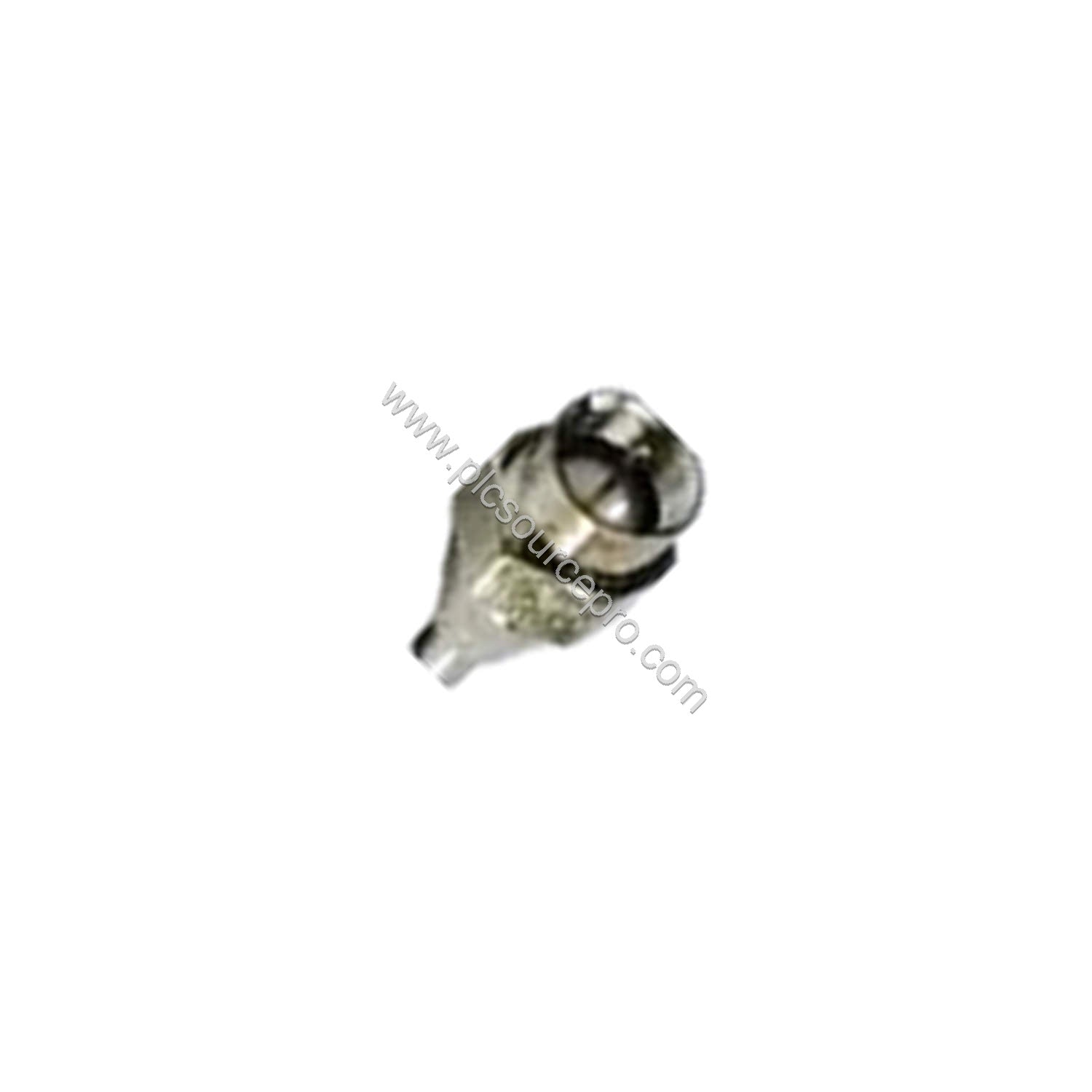

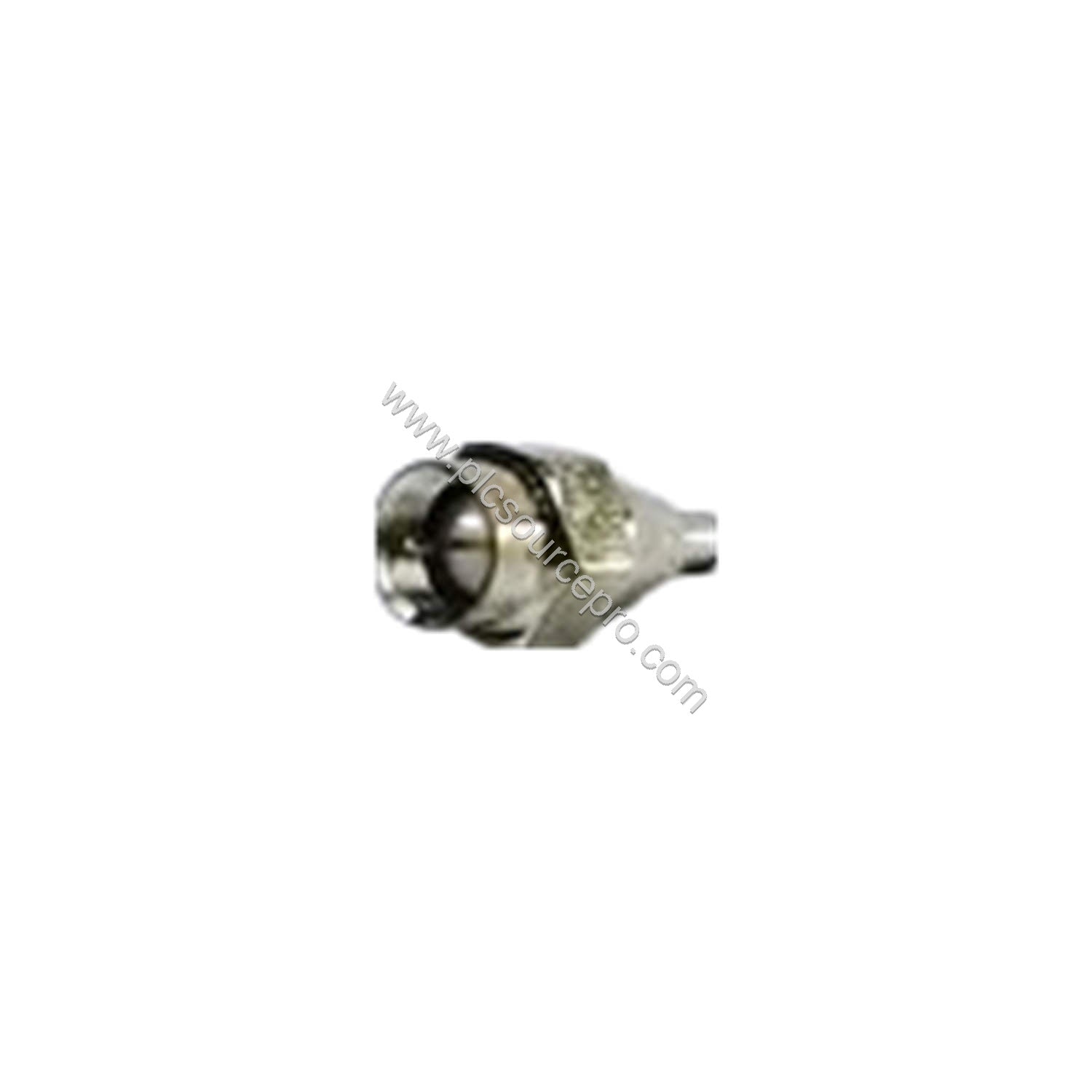

The Schneider 52-0411-000 is a self-terminating connector designed as a spare part for the Modicon Quantum series. This connector ensures reliable signal integrity in drop-quad shielded cable applications, making it essential for material handling, packaging, and textile machinery. The 52-0411-000 eliminates the need for additional termination components, simplifying installation and reducing potential failure points.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Connector |
| Product Line |
Modicon Quantum |
| Part Number |
52-0411-000 |
| UPC |
785901795537 |
| Connector Type |
Self-Terminating Connector |
| Compatible Cables |
Drop-Quad Shielded Cables |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity (Non-Condensing) |
80% RH max. |
| Storage Temperature |
0°C to 50°C |
| Storage Humidity (Non-Condensing) |
80% RH max. |
| Maximum Operating Altitude |
1000 m |
| Maximum Storage Altitude |
1000 m |
| Environment |
Clean indoor (no corrosive chemicals) |
Industry Applications
The Schneider 52-0411-000 supports material handling systems where reliable cable connections prevent downtime. In packaging lines, its self-terminating design ensures consistent signal transmission even in dusty conditions. Textile machinery benefits from the connector's robust performance in indoor environments with controlled temperature and humidity. This versatility makes the 52-0411-000 a cost-effective spare part for multiple automation setups.
Installation & Setup
Install the Schneider 52-0411-000 by connecting it to drop-quad shielded cables. Ensure the environment is clean and free of corrosive chemicals. The connector automatically terminates the cable, requiring no additional tools or components. Verify operating conditions stay within 0°C to 40°C and humidity below 80% RH non-condensing for optimal performance.
Maintenance & Reliability
Routine inspection of the 52-0411-000 connector focuses on physical damage and cable strain relief. Its self-terminating feature reduces wear from repeated mating cycles. Store the spare connector at 0°C to 50°C and up to 80% RH when not in use. Proper environmental control extends service life and minimizes replacement costs, offering long-term ROI.
Selection Guide
Before purchasing, verify compatibility with your Modicon Quantum system and drop-quad shielded cables. The Schneider 52-0411-000 is a direct spare part replacement. For additional support, contact PLC Source PRO at ubest101.myshopify.com. Ensure the intended application meets the clean indoor environment requirement to avoid performance degradation.
