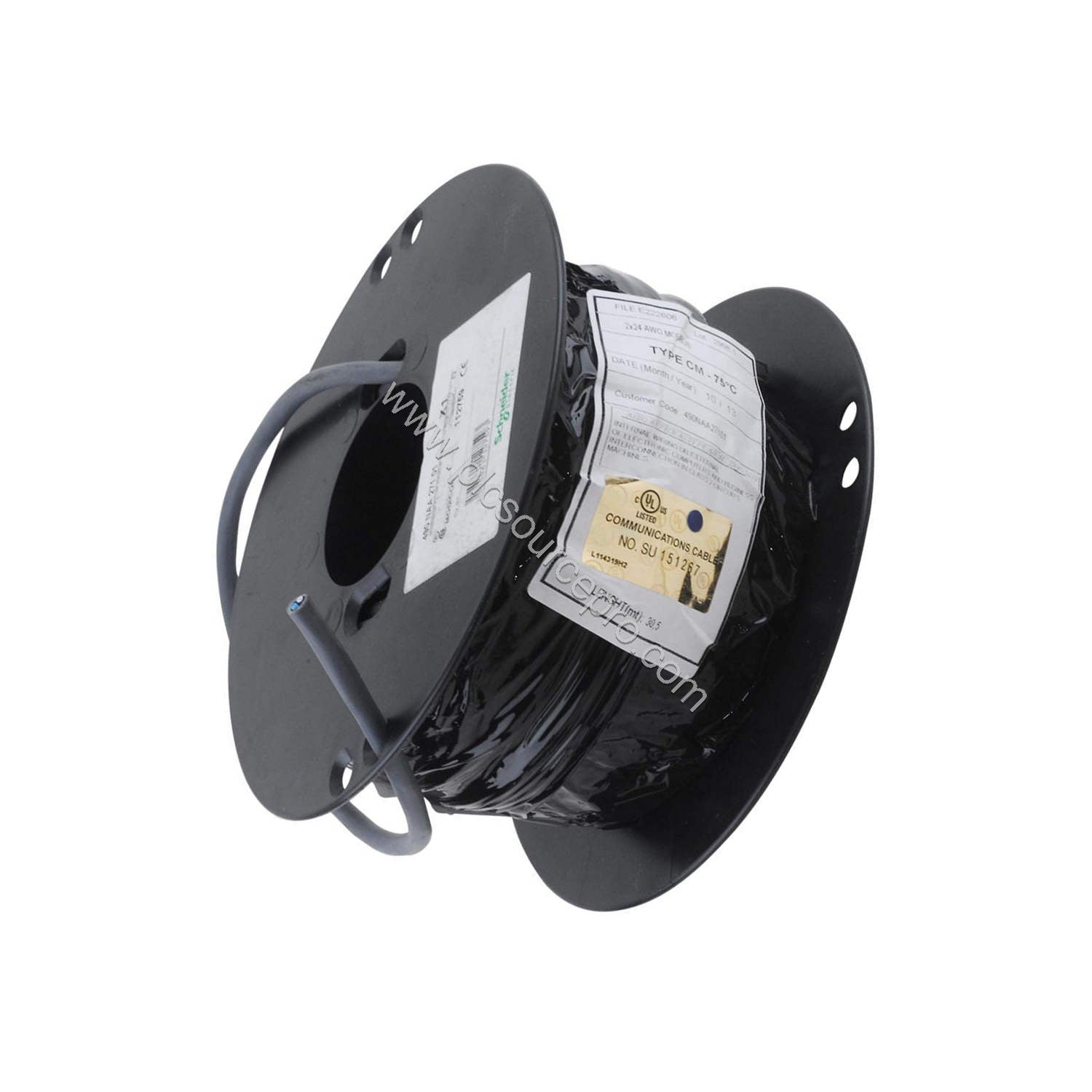

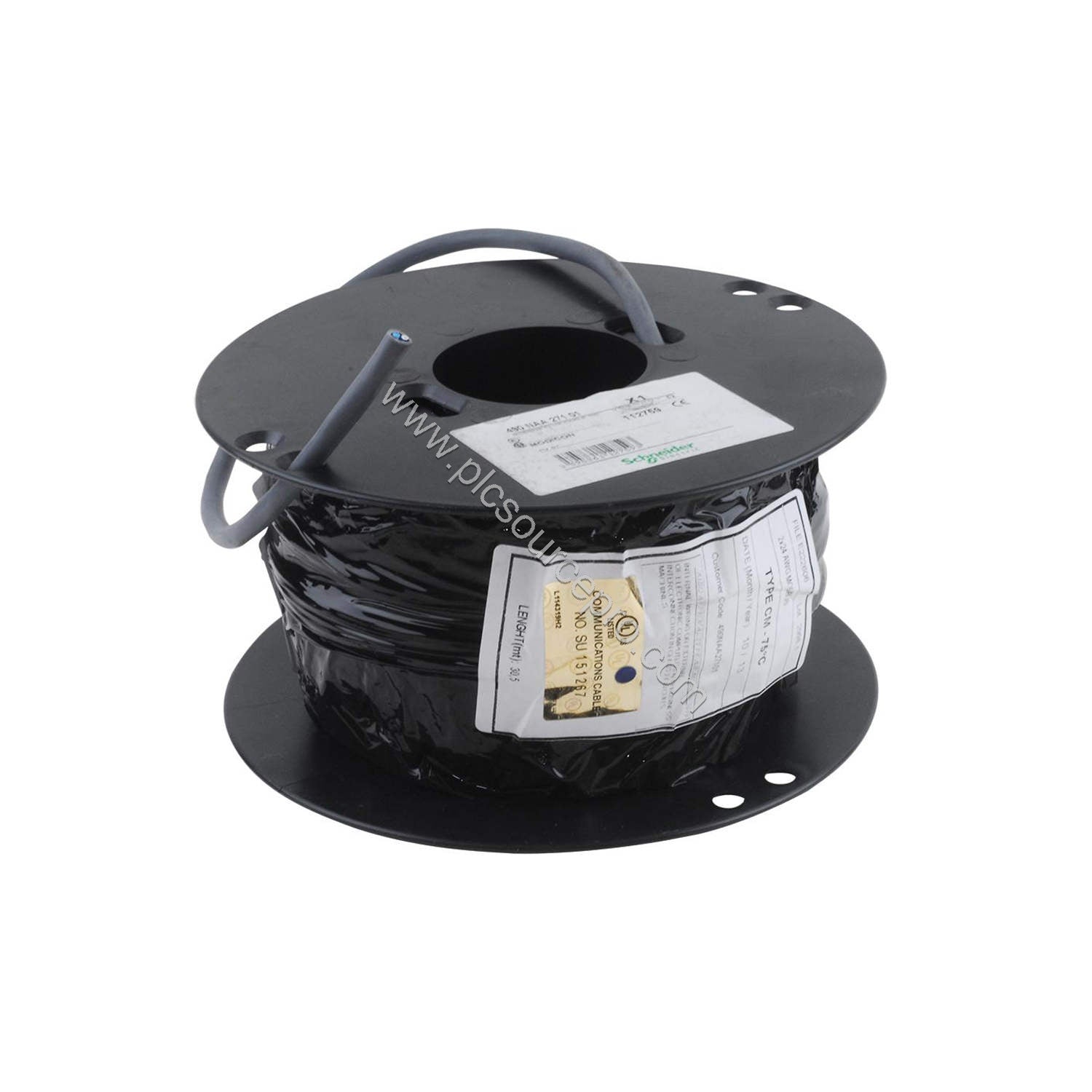

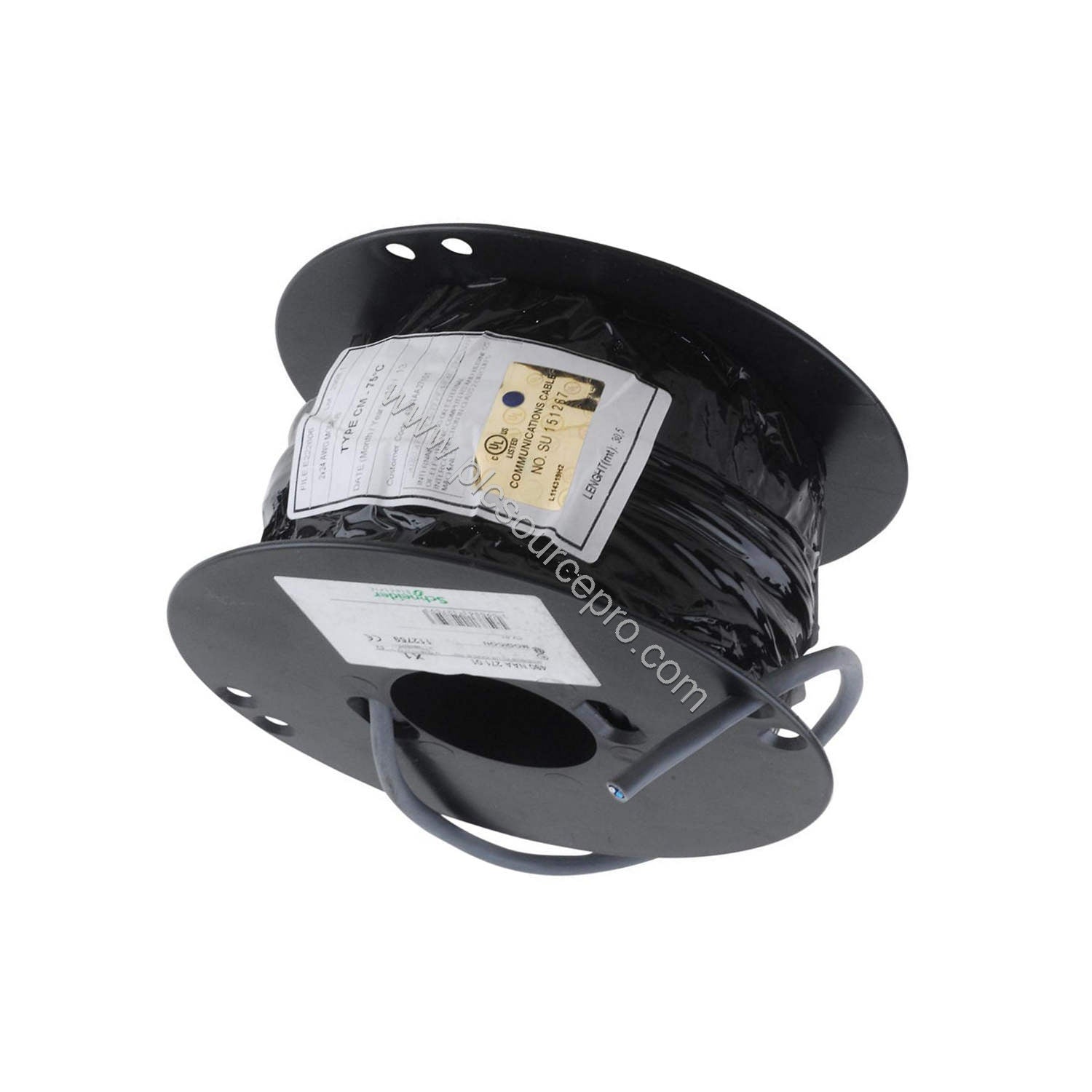

Product Overview: Schneider 490NAA27101 Modbus Plus Trunk Cable
The Schneider 490NAA27101 Industrial Automation Module is a trunk cable designed for reliable Modbus Plus communication in industrial environments. This 1-meter cable is essential for establishing connections with Modbus Plus junction boxes, ensuring seamless data transfer in automation systems.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Line |
Modicon Quantum |
| Part Number |
490NAA27101 |
| EAN |
3595861127593 |
| Type |
Trunk Cable |
| Modbus Plus Connections |
Supported |
| Compatible Junction Boxes |
Modbus Plus Junction Boxes |
| Cable Length |
1 Meter |
| Operating Temperature |
0 to 40°C |
| Storage Temperature |
0 to 50°C |
| Max Relative Humidity (Operation) |
80% (non-condensing) |
| Max Relative Humidity (Storage) |
80% (non-condensing) |
| Max Operating Altitude |
1000 m |
| Max Storage Altitude |
1000 m |
| Operating Environment |
Clean indoor environment, no corrosive substances |
Industry Applications
The Schneider 490NAA27101 is ideal for applications in material handling, packaging, and textiles. These sectors demand reliable communication for machine control and data acquisition. The cable's 1-meter length fits confined spaces, and its robust design ensures stable Modbus Plus connections in demanding industrial settings.
-
Material Handling: Connect PLCs and remote I/O in conveyor systems.
-
Packaging: Ensure synchronised communication between packaging machines.
-
Textiles: Link control systems for monitoring and automation.
Compatibility and Integration
The Schneider 490NAA27101 is specifically designed for Modbus Plus networks. It works seamlessly with Modbus Plus junction boxes and Modicon Quantum automation platforms. This trunk cable is a key component for extending Modbus Plus drop cables and building reliable communication backbones.
Reliability and Environmental Considerations
To ensure long-term performance, the Schneider 490NAA27101 operates within 0 to 40°C and can be stored from 0 to 50°C. It withstands up to 80% relative humidity (non-condensing) and altitudes up to 1000 m. Use only in clean indoor environments free from corrosive substances to maintain signal integrity and prolong cable life.
