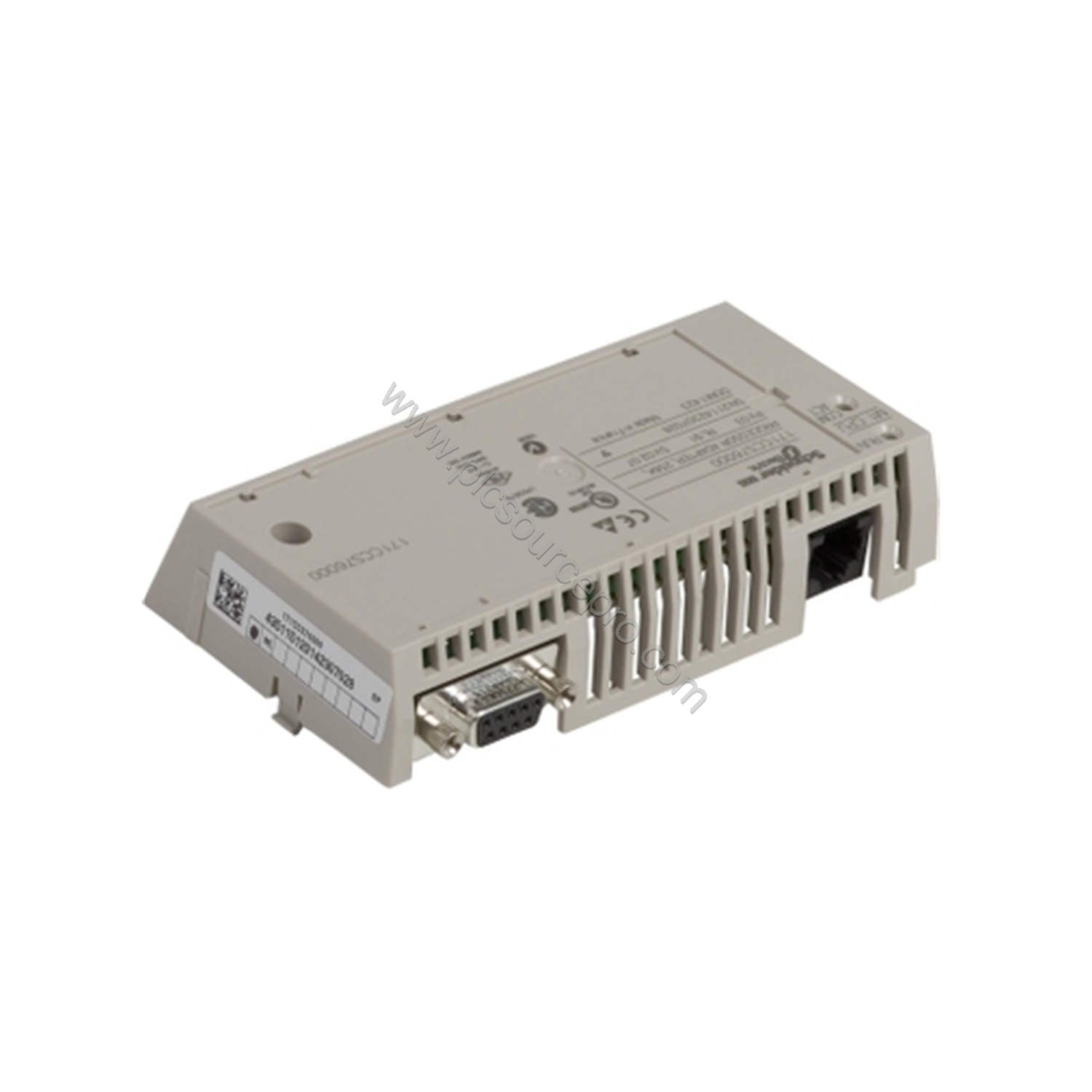

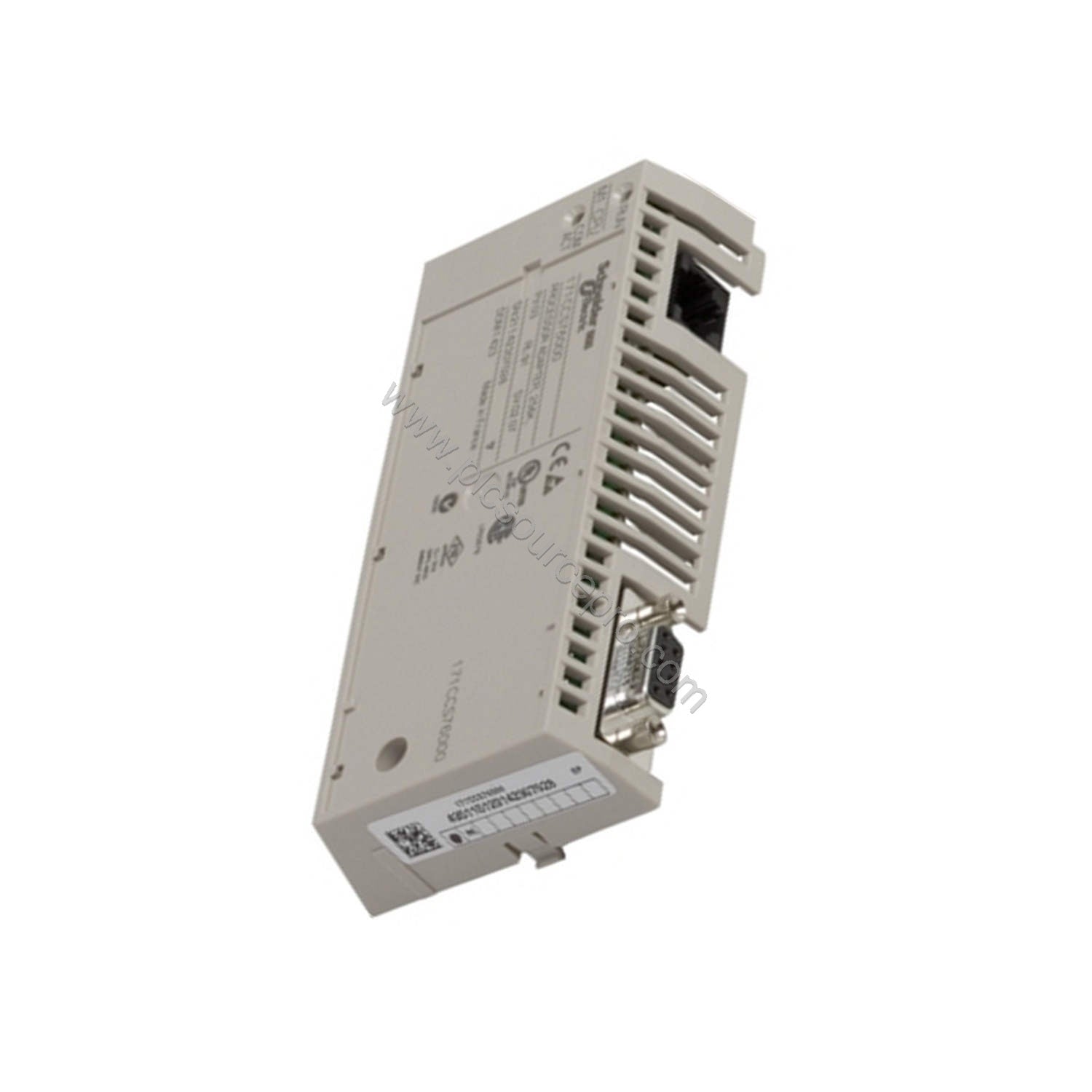

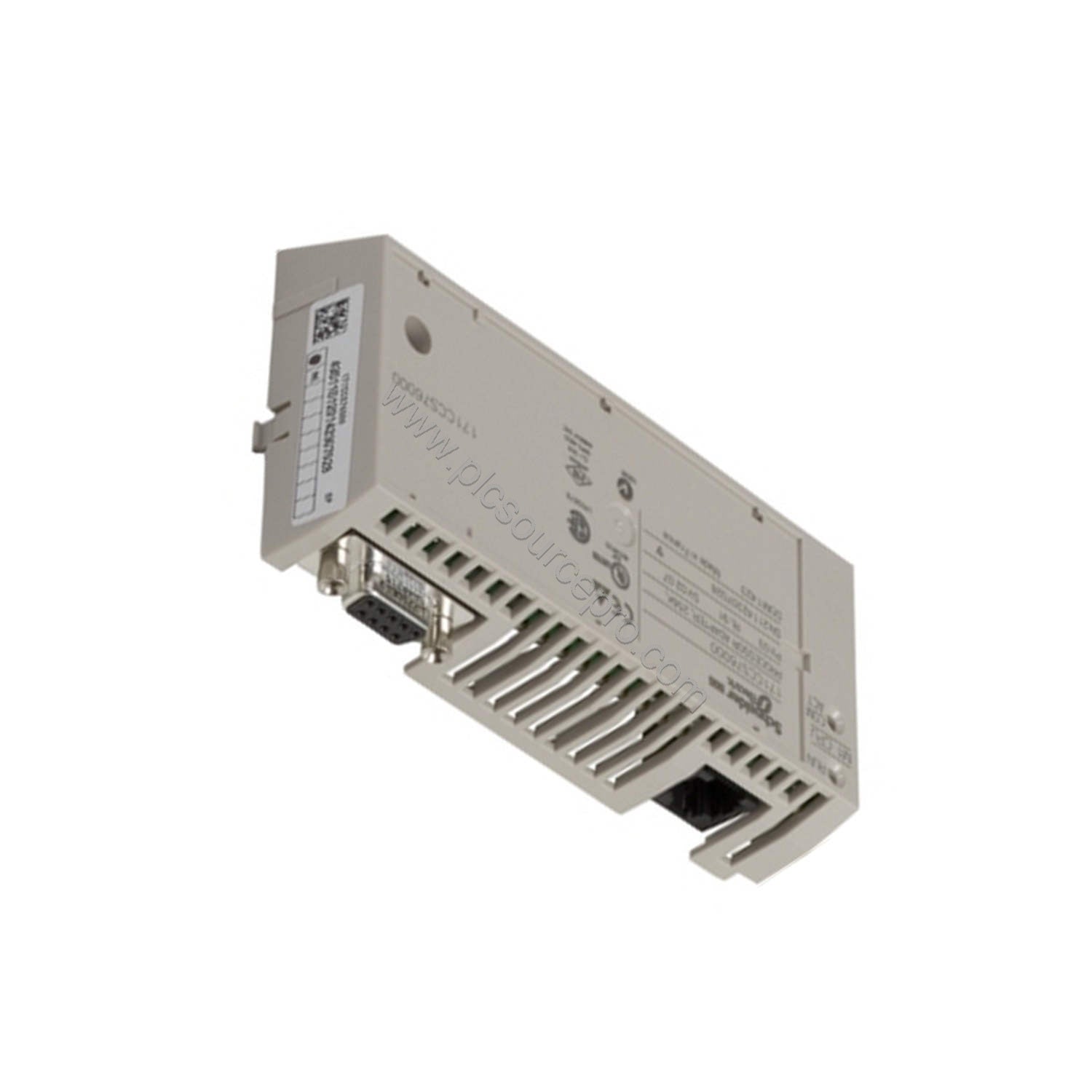

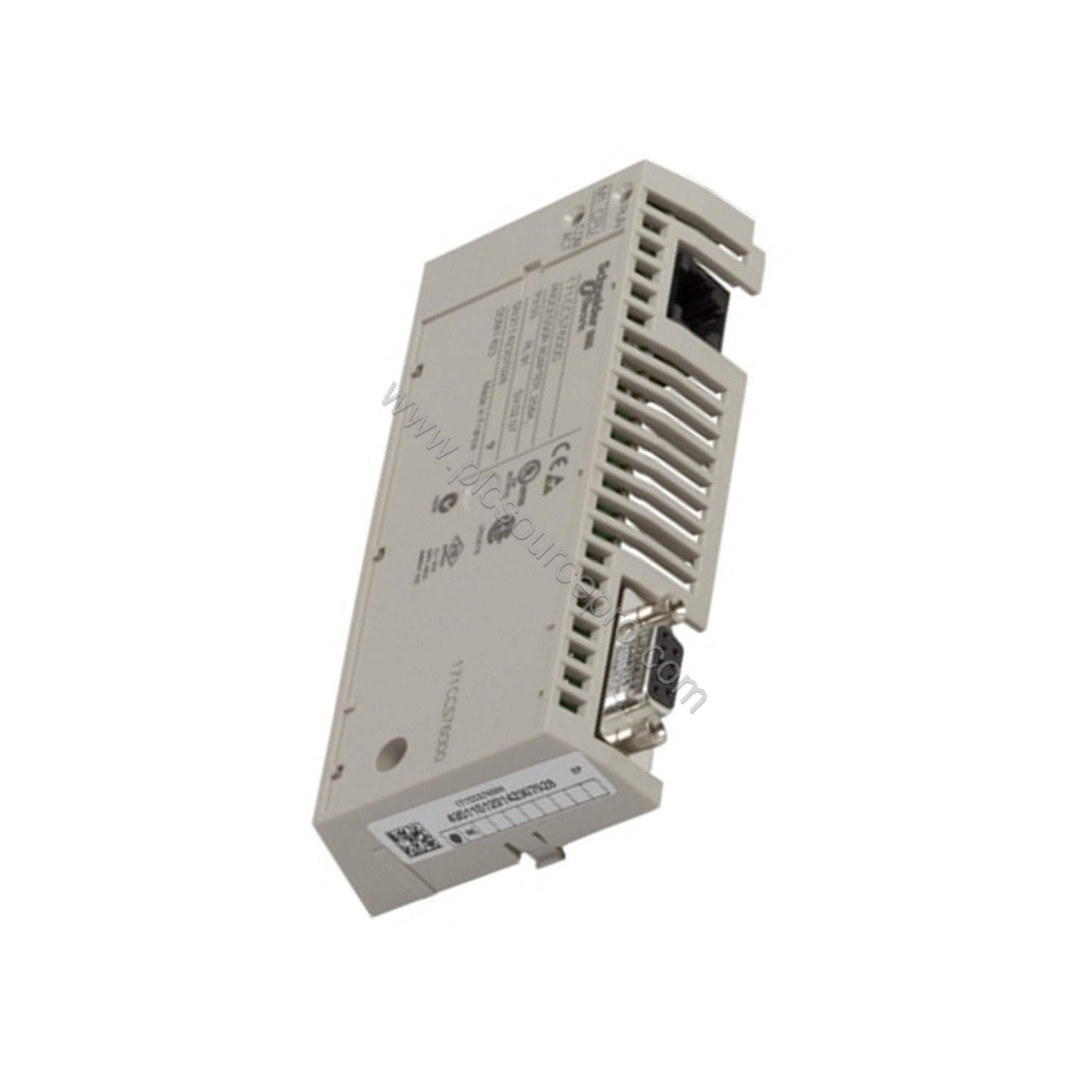

Product Overview: Schneider 171CCS76000 M1/M1E Processor Adapter Module
When upgrading legacy automation systems, the Schneider 171CCS76000 M1/M1E Processor Adapter Module provides a reliable and high-performance solution for the Modicon Momentum platform. This module combines flash memory and 256 kilobytes of RAM to ensure efficient program execution and data handling. With a rated supply voltage of 5 volts DC, it integrates seamlessly into existing control architectures. The processor operates at a clock frequency of 32 megahertz, enabling a scan time of 0.63 milliseconds per kilobyte for timely processing in demanding applications.
Key Technical Specifications
| Parameter |
Value |
| Memory Type |
256 kB Flash, 256 kB RAM |
| RAM Capacity |
256 kilobytes |
| Rated Supply Voltage |
5 V DC ±5% |
| Communication Protocol |
Modbus |
| Register I/O Processor Capacity |
4,096 words (max) |
| I/O Limit Processor Capacity |
8,192 bits (max) |
| Clock Frequency |
32 MHz |
| Scan Time |
0.63 ms/kB |
| Word Length |
16 bits |
| Ambient Operating Temperature |
0 to 60°C (non-condensing) |
| Storage Temperature |
-40 to 85°C (non-condensing) |
| Number of Communication Ports |
1 RS-232C Modbus, 1 I/O bus |
| Net Weight |
0.093 lb (0.042 kg) |
Industrial Applications
In discrete manufacturing and process control environments, the Schneider 171CCS76000 handles demanding I/O tasks with a scan time of 0.63 milliseconds per kilobyte. Its ability to manage up to 4,096 words of register I/O and 8,192 bits of I/O limit makes it suitable for complex automation sequences, such as packaging lines, material handling, and batch processing. The module operates reliably within a temperature range of 0 to 60°C, making it versatile for factory floor installations.
Compatibility and Integration
The 171CCS76000 communicates via Modbus protocol through one RS-232C port and one I/O bus port, ensuring easy integration with Schneider Electric controllers and third-party devices. It is compatible with software including Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32. The module uses a 16-bit word length and supports both discrete and register I/O processing efficiently.
Selection Guide and Purchasing Advice
When selecting the Schneider 171CCS76000, verify that your Momentum I/O base supplies 5 V DC power to the module. This adapter is designed for the Modicon Momentum platform and offers a compact form factor (Lexan material) with certifications including FM Class 1 Division 2, cUL, and UL. For genuine automation spares and reliable supply, choose UBEST Automation as your trusted source. Confirm the software revision requirements to ensure seamless integration with your existing system.
