Product Overview

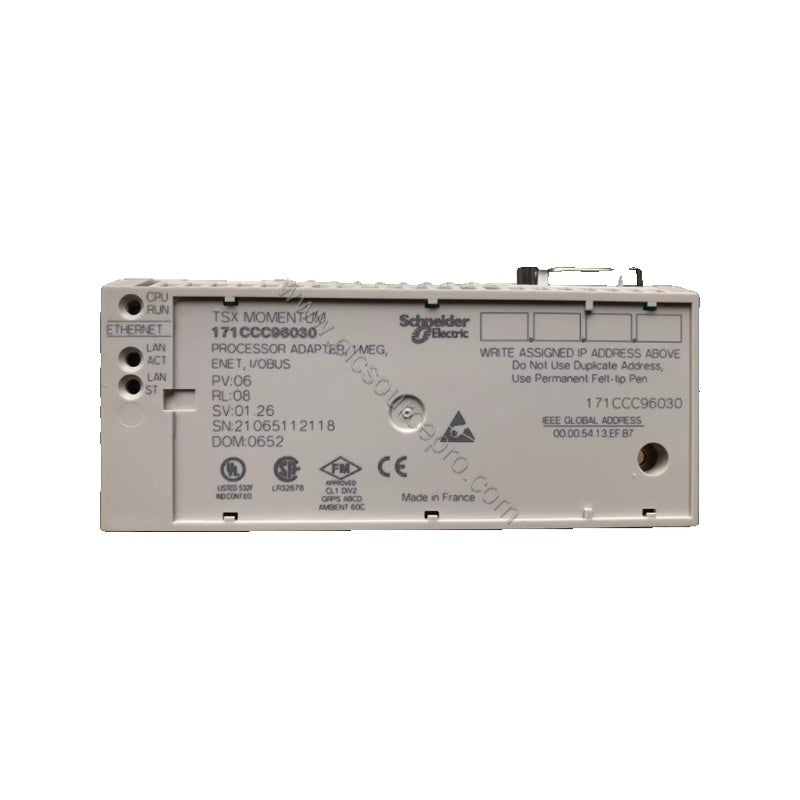

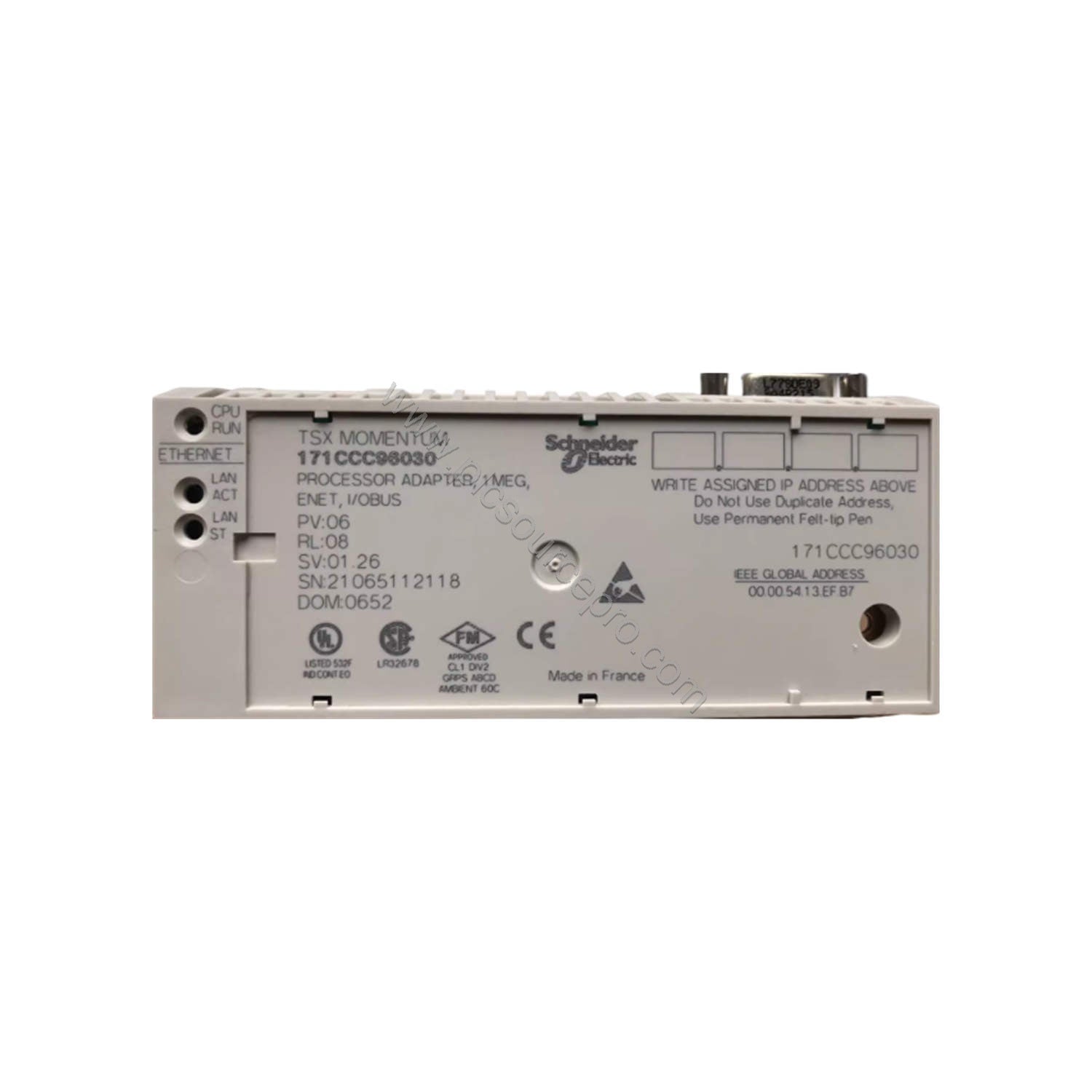

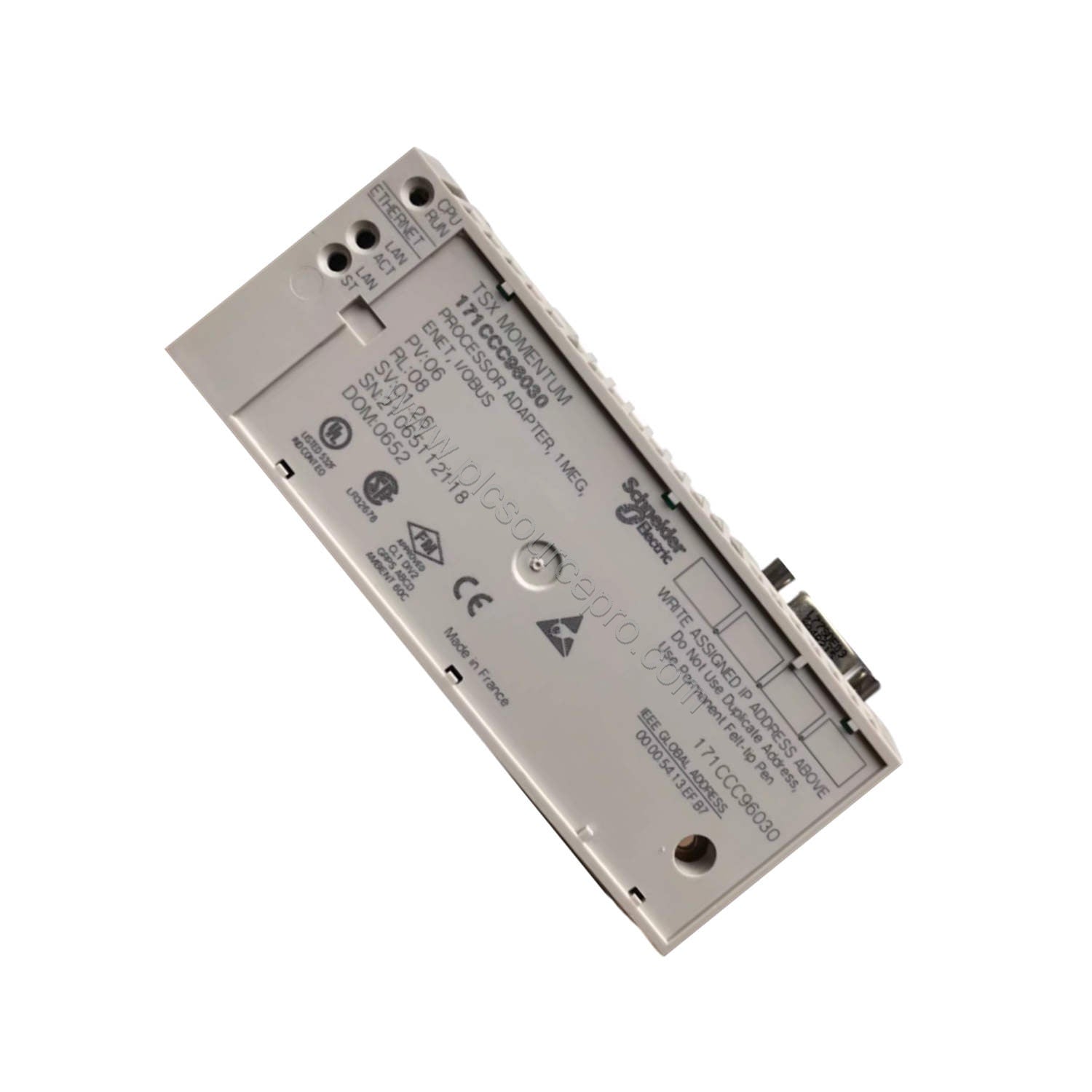

The Schneider 171CCC96030C M1/M1E processor adaptor is a core component of the Modicon Momentum automation platform. It integrates an Ethernet port and operates at a 50 MHz clock frequency, making it a reliable choice for upgrading older systems or building new control networks. With 512 KB each of flash memory and RAM, it handles demanding applications efficiently.
Technical Specifications
Below are the key performance parameters for the Schneider 171CCC96030C processor adaptor, drawn directly from the product datasheet.
| Parameter |
Value |
| Clock Frequency |
50 MHz |
| Flash Memory |
512 KB |
| RAM |
512 KB |
| Operating Temperature |
0 to 40 °C |
| Storage Temperature |
-40 to 85 °C |
| Relative Humidity |
5 to 96% without condensation |
| Operating Altitude |
Up to 2000 m |
| Supply Voltage |
5.0 V DC ±5% |
| Discrete I/O Capacity |
8192 I / 8192 O |
| Register I/O Capacity |
26048 I / 26048 O |
| Communication Protocol |
Modbus TCP, I/O scanning |
| Net Weight |
0.093 lb (0.042 kg) |
Real-World Applications
The 171CCC96030C excels in applications requiring deterministic Ethernet control. For example, in a packaging line, it coordinates multiple I/O drops with Modbus TCP messaging, ensuring zero packet loss. In water treatment plants, it scans discrete inputs from sensors across 2000 meters of cabling. Its 50 MHz processor handles 1 ms per 1000 instructions, meeting tight cycle times.
Compatibility & Integration
This processor adaptor integrates seamlessly with the Modicon Momentum platform. It supports Concept V2.6, Modsoft ≥ V2.5, ProWORX NxT V2.0, and ProWORX 32 software. The Ethernet port enables connection to any Modbus TCP network. The unit includes one I/O bus port and one Ethernet port. For legacy upgrades, the 171CCC96030C replaces older M1 adaptors without rewiring.
Selection Guide & Purchasing Advice
Before ordering the Schneider 171CCC96030C, verify your system's power supply provides 5.0 V DC via the Momentum I/O base. Confirm your software version is compatible (Concept, Modsoft, or ProWORX). For bulk orders or technical queries, contact ubest101 for expedited shipping and competitive pricing. This adaptor is also available with conformal coating (Humiseal 1A33) for harsh environments.
