Product Introduction

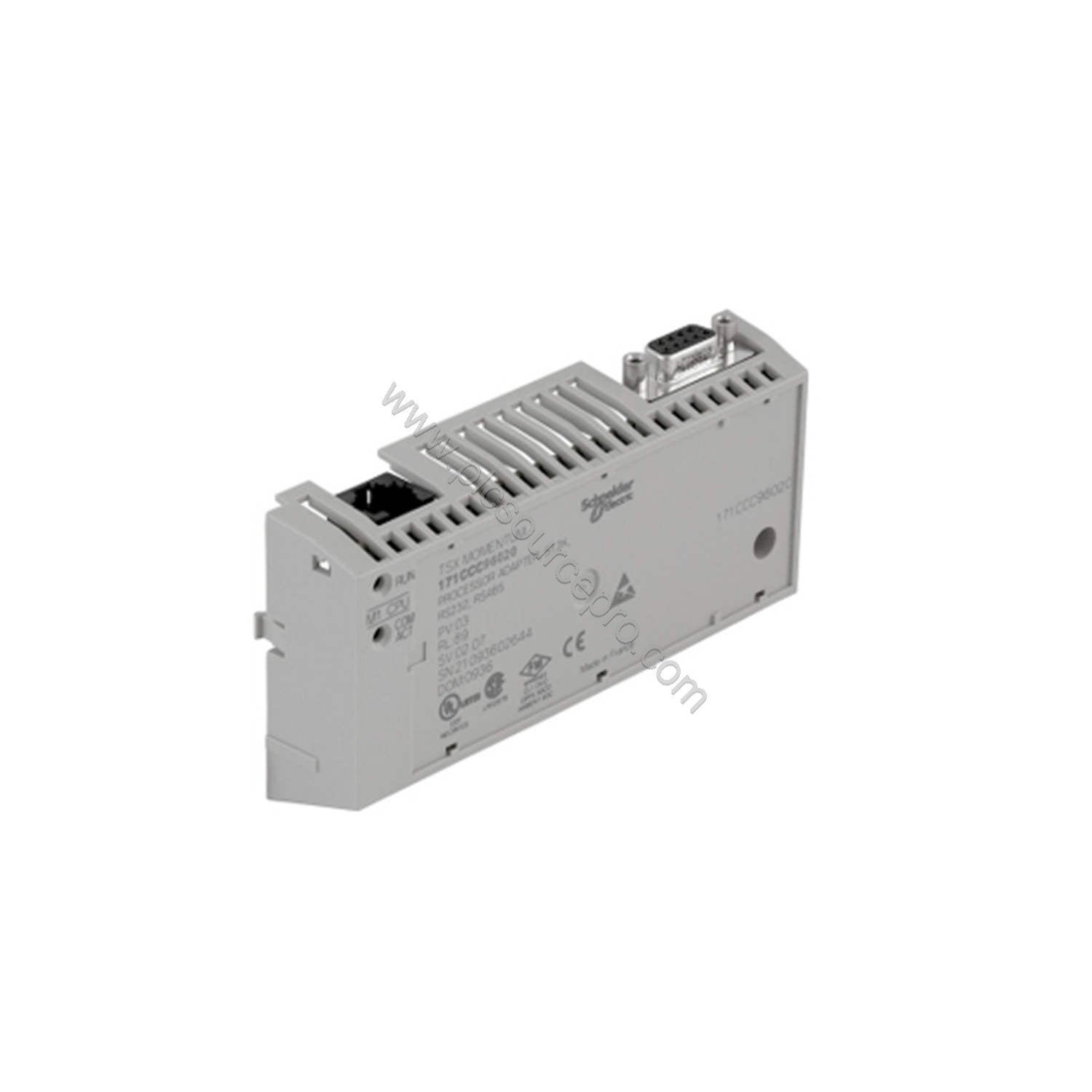

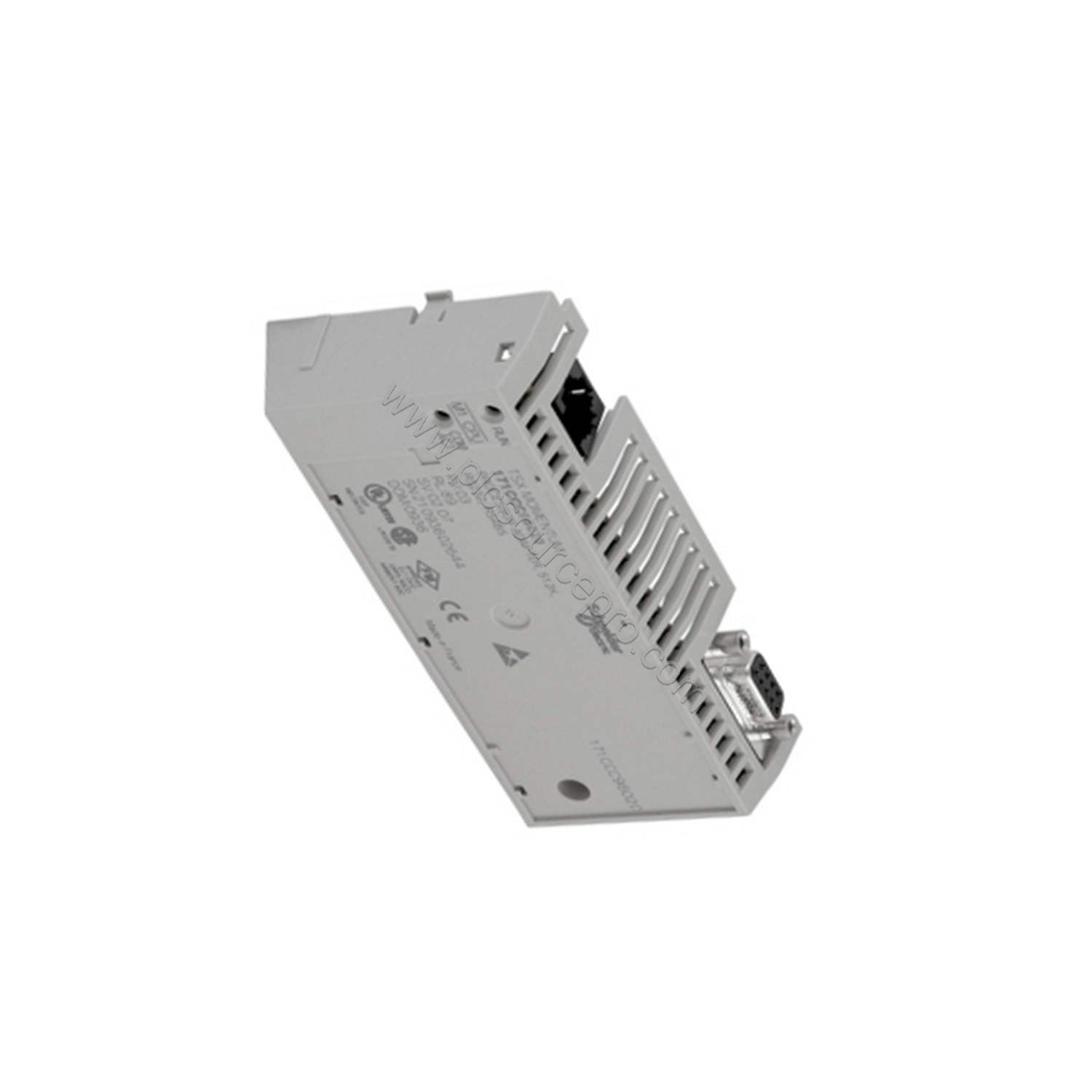

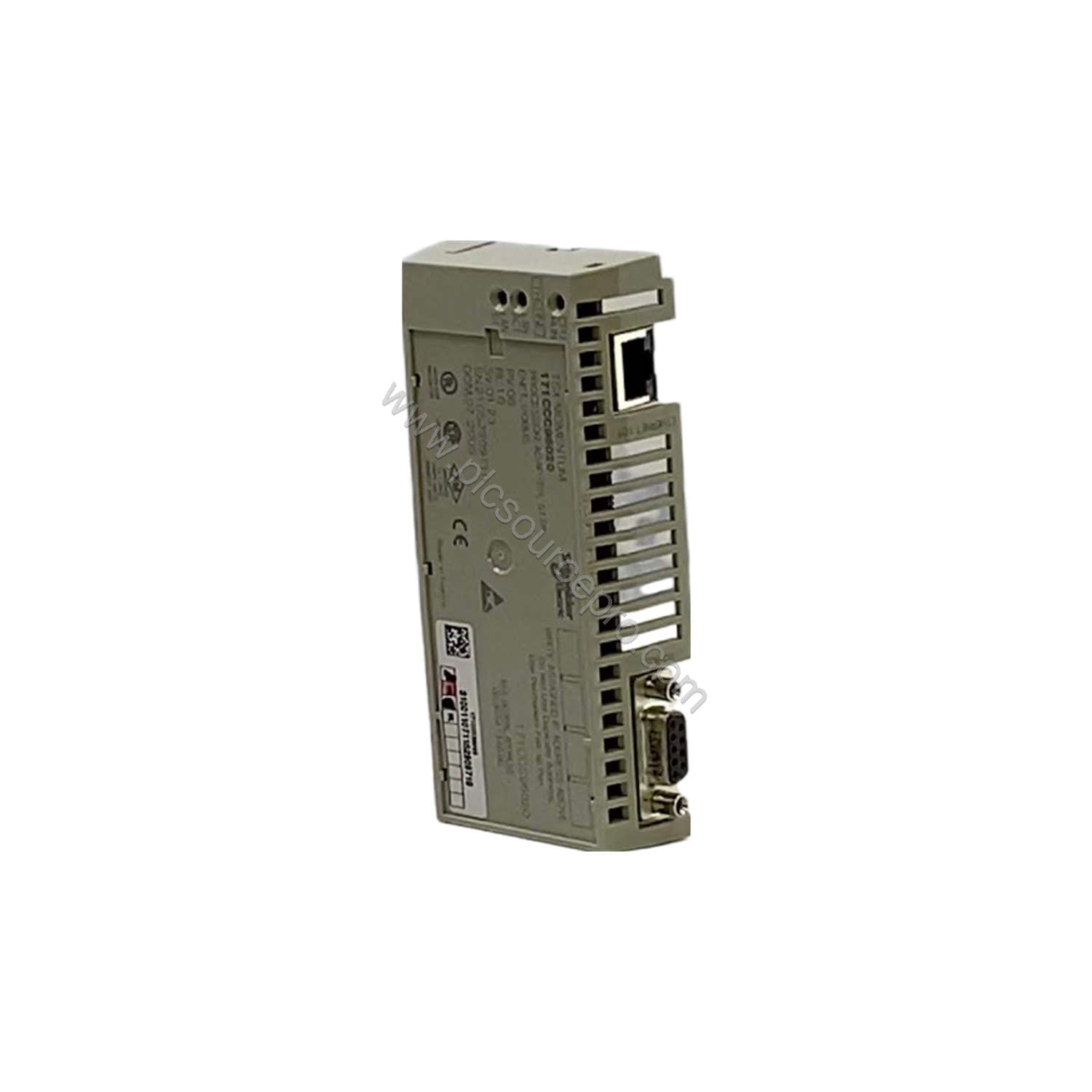

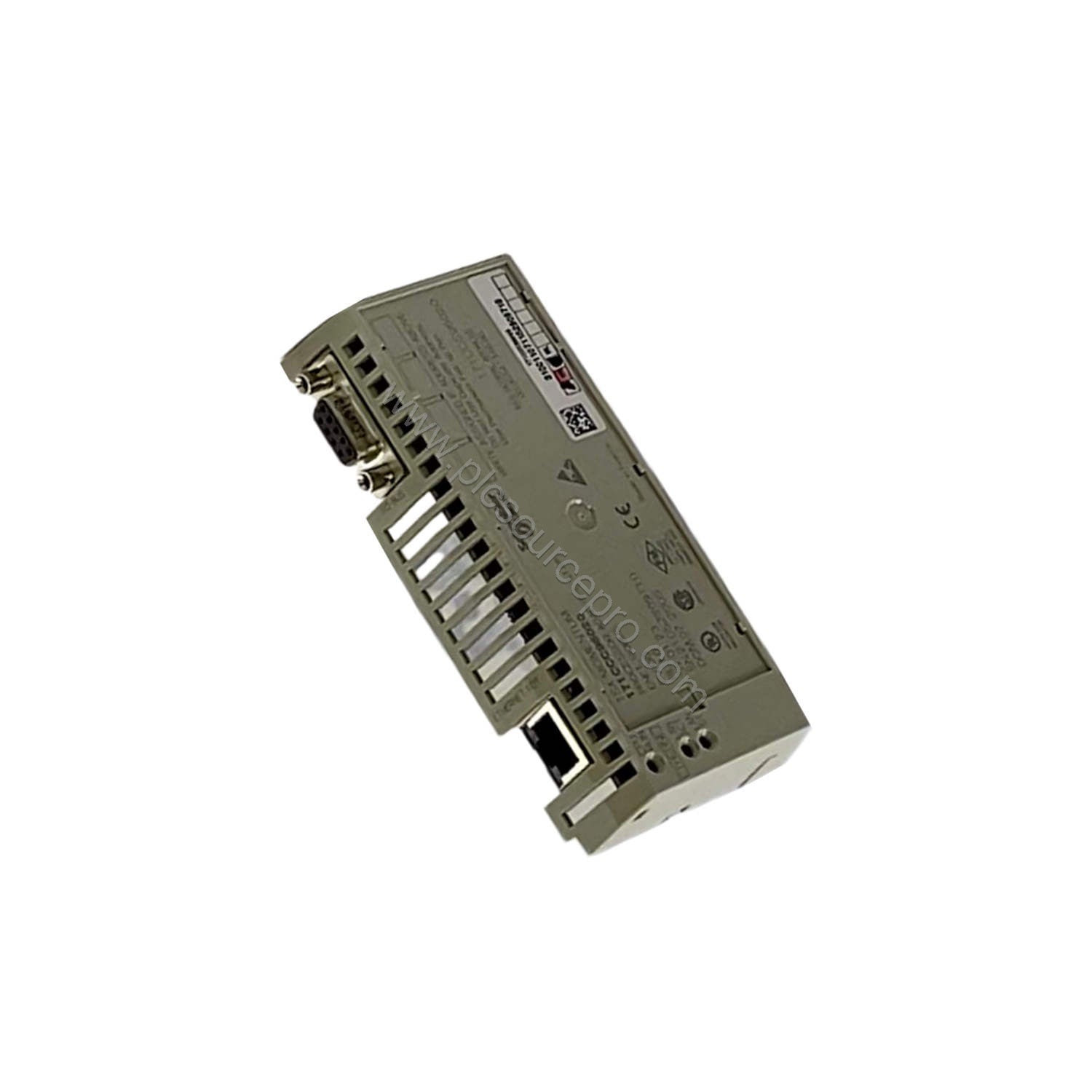

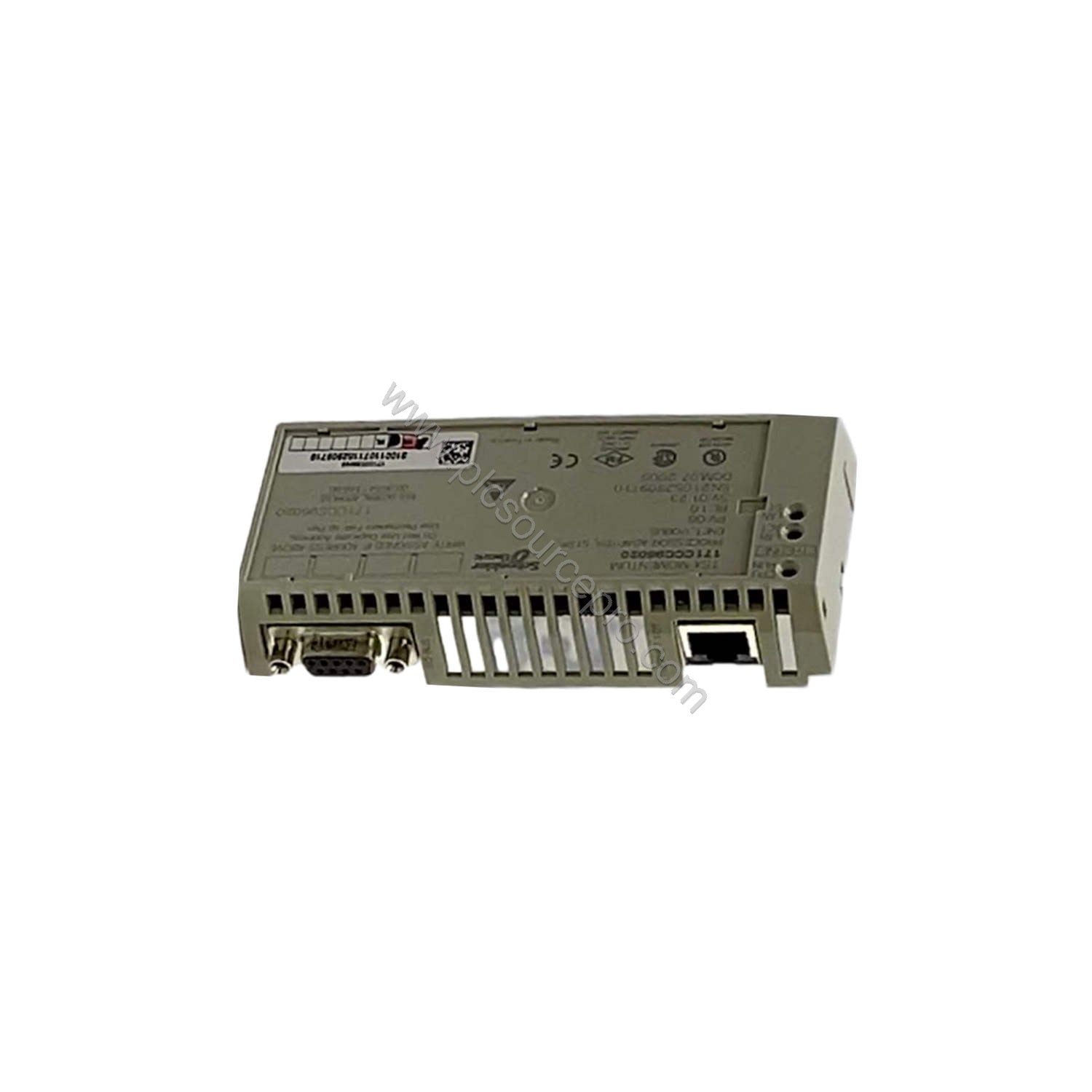

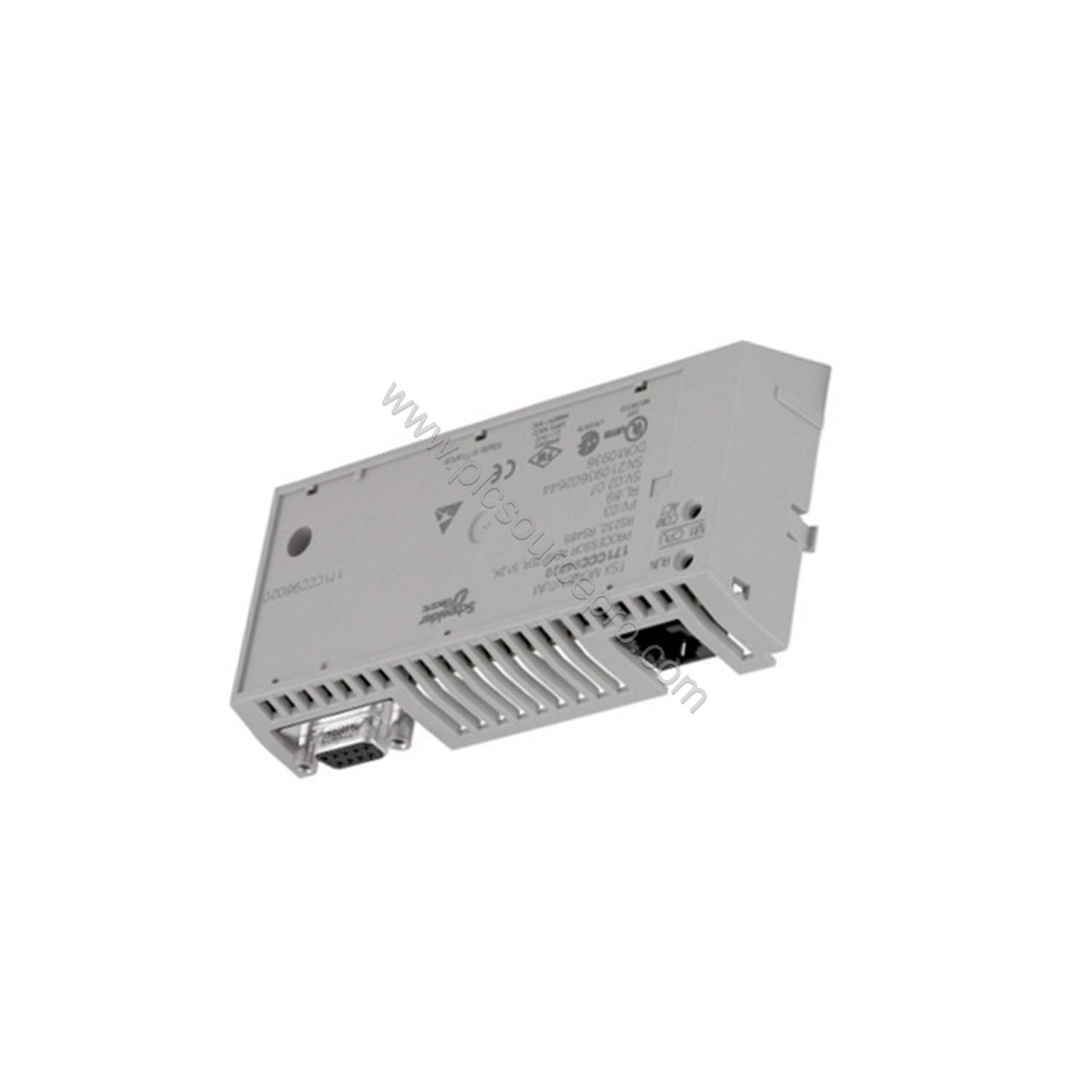

The Schneider 171CCC96020C Processor Adaptor belongs to the Modicon Momentum series, engineered to integrate seamlessly with the Momentum I/O base. This x86-based processor operates at a clock frequency of 50 MHz and delivers reliable performance across demanding industrial environments. With 512 KB Flash and 544 KB RAM, the 171CCC96020C handles complex control tasks efficiently while maintaining a compact footprint.
Technical Specifications Breakdown
The Schneider 171CCC96020C includes several key specifications that define its capability:
-
Clock Frequency: 50 MHz — ensures fast processing for real-time control applications.
-
Memory: 512 KB Flash for program storage and 544 KB RAM for data processing, enabling larger applications and faster execution.
-
I/O Capacity: 8192 discrete inputs and outputs plus 26048 register I/O points, allowing extensive system expansion.
-
Communications: One Ethernet port supporting Modbus TCP and I/O scan protocol, plus one I/O bus for direct connection to the Momentum I/O base.
-
Protective Coating: Conformal coating (Humiseal 1A33) shields the board from moisture, dust, and corrosive atmospheres, extending service life in harsh environments.
-
Operating Temperature: 0°C to 60°C, suitable for most industrial applications without active cooling.
Industry Applications
The Schneider 171CCC96020C Processor Adaptor thrives in applications where reliability and performance are critical. For example, in a water treatment plant, the processor handles discrete I/O for pump control and monitoring, while its conformal coating resists the high humidity environment. In a packaging line, the 50 MHz clock ensures precise timing for motion control sequences. Additionally, in a material handling system, the 26048 register capacity manages large data exchanges between conveyors and sensors, reducing downtime and improving throughput.
Compatibility & Integration
The Schneider 171CCC96020C mounts directly onto a Momentum I/O base and communicates via its built-in Ethernet port using Modbus TCP. This protocol integrates easily with SCADA systems, PLC networks, and HMI panels. For local expansion, the I/O bus allows connection of additional Momentum I/O modules without extra wiring. Its 16-bit word length aligns with legacy and modern control architectures, making it a versatile choice for upgrading existing installations or building new systems.
Selection Guide & Purchasing Advice
Before purchasing the Schneider 171CCC96020C, verify that your system requires a processor adaptor with 5 VDC ±5% supply voltage and that your Momentum I/O base is compatible. UBEST Automation stocks this exact model with genuine conformal coating, ensuring long-term reliability. Contact us at ubest101 for bulk pricing or to confirm stock availability.
