Product Introduction

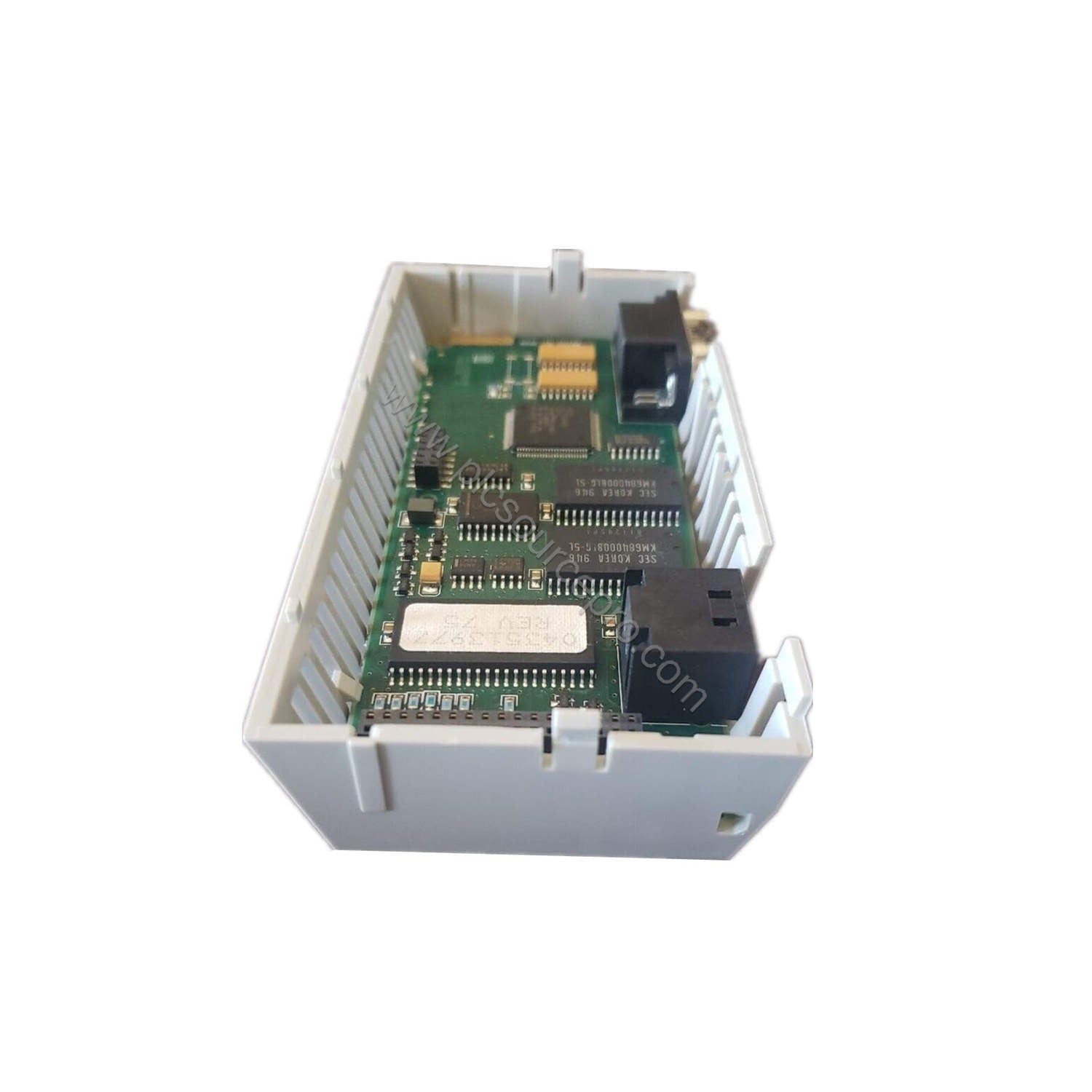

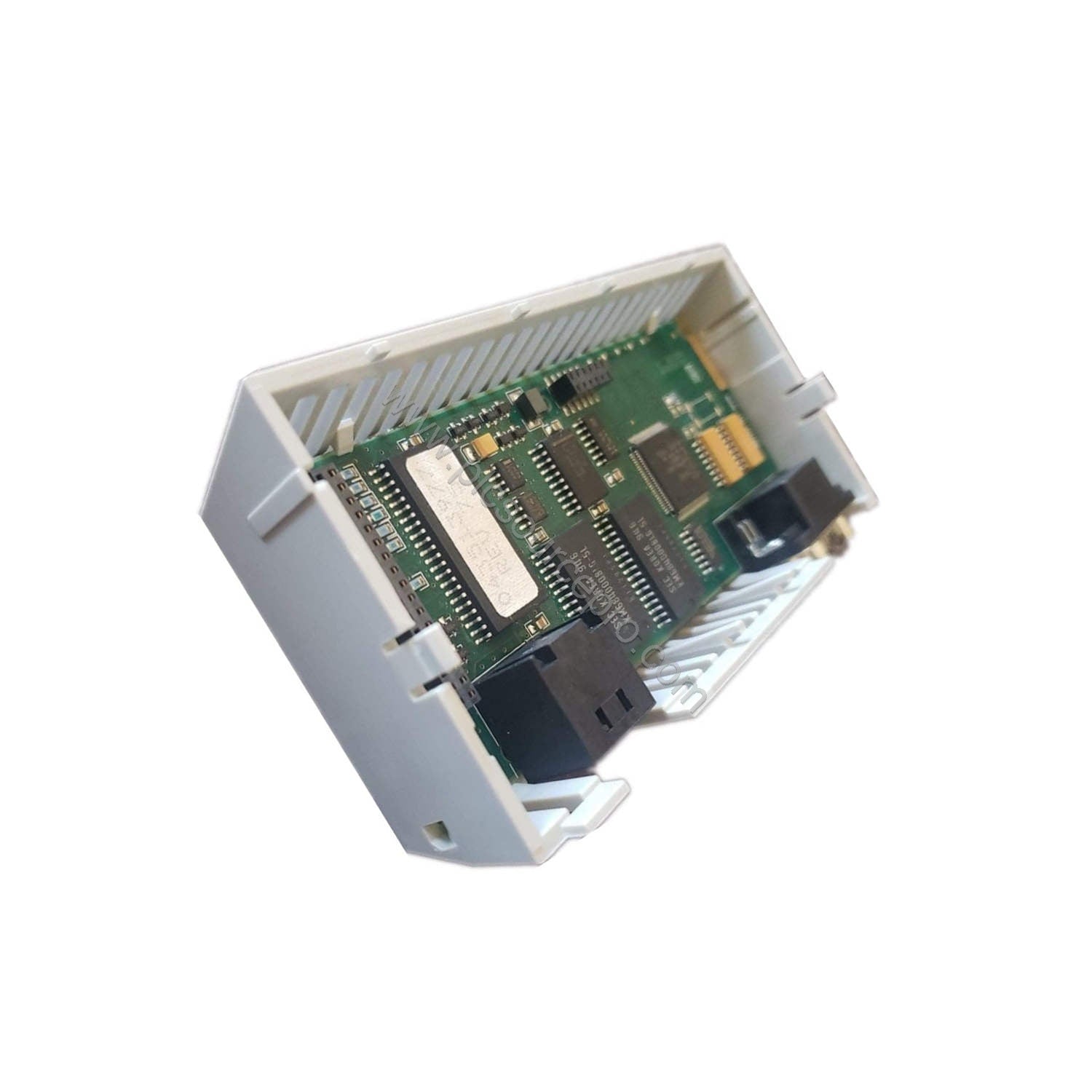

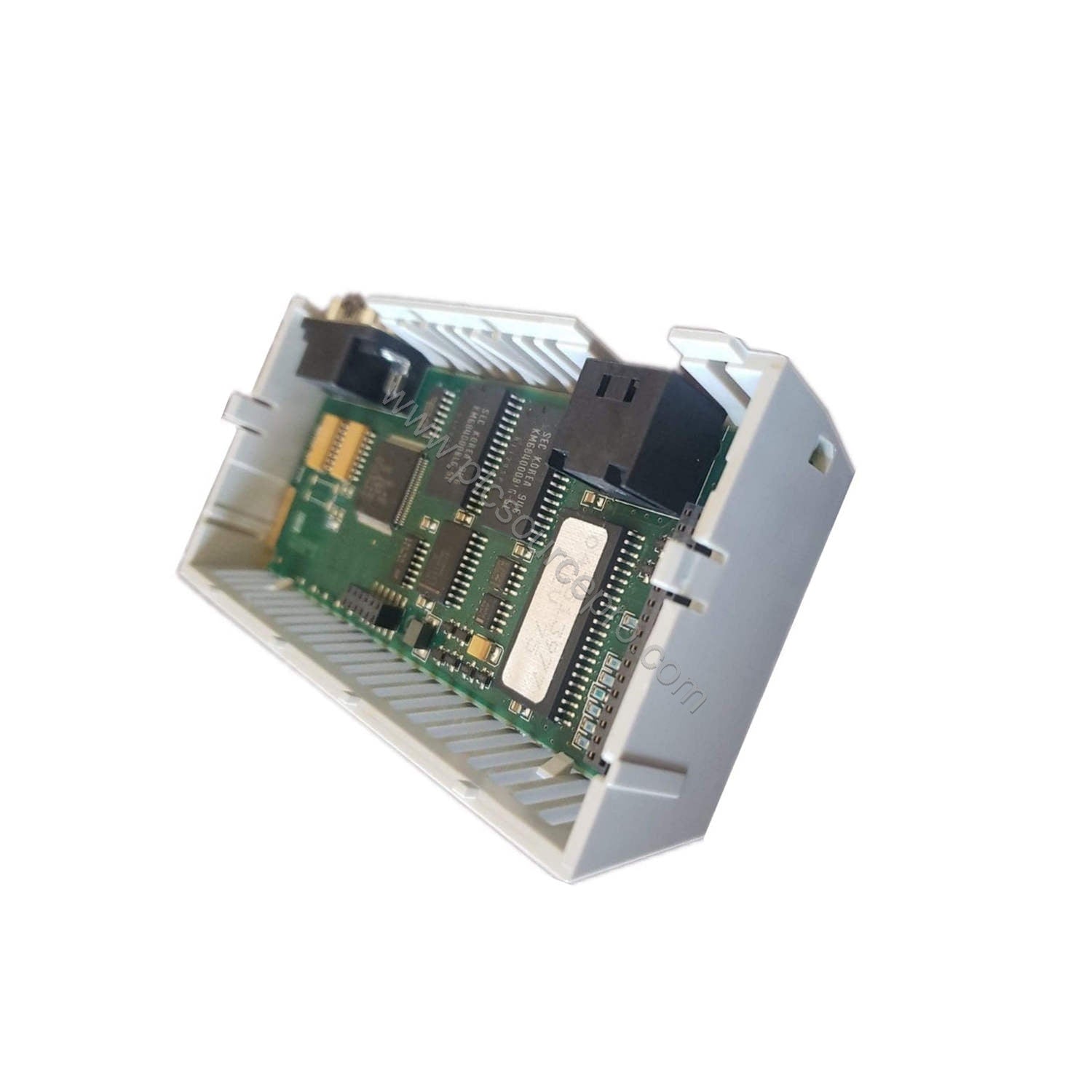

When upgrading legacy Modicon Momentum systems, the Schneider 171CCC76010 M1/M1E Processor Adapter Module provides a reliable replacement solution. This compact module operates within a temperature range of 0 to 60 °C and communicates using the Modbus protocol, ensuring seamless integration into existing automation networks. Part of the Modicon Momentum platform, the 171CCC76010 is designed for M1 and M1E processors, offering a balanced mix of program memory options and efficient execution speed.
Technical Specifications
| Parameter |
Value |
| Clock Frequency |
32 MHz |
| Rated Supply Voltage |
5 V DC |
| Program Memory Capacity |
18 kB (LL984) / 240 kB (IEC) |
| Data Memory Capacity |
4 kB |
| Total Memory (Flash & RAM) |
512 kB each |
| Word Length |
16 bit |
| I/O Processor Capacity |
8192 bits max |
| Exact Time for 1000 Instructions |
1 ms |
| Communication Ports |
1 non-isolated RS-232C, 1 I/O bus |
| Operating Temperature |
0 to 60 °C (non-condensing) |
| Storage Temperature |
-40 to 85 °C |
| Net Weight |
0.093 lb (0.042 kg) |
Industry Applications
The Schneider 171CCC76010 processor adapter module excels in real-time control applications requiring fast instruction execution. With a 1 ms execution time for 1,000 instructions, it supports high-speed discrete and register I/O operations. Typical use cases include packaging lines, material handling, and batch process control where Modicon Momentum platforms are deployed. Its 32 MHz clock and 512 KB memory ensure adequate performance for medium-sized control logic.
Compatibility & Integration
This 171CCC76010 module integrates with Modicon Momentum I/O bases and communicates via the Modbus protocol. It features one non-isolated RS-232C port for programming and diagnostics, plus a dedicated I/O bus port for expansion. Software compatibility includes Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32. The module supports both discrete and register I/O with capacities up to 8192 bits and 26048 words respectively.
Selection Guide & Purchasing Advice
Before purchasing the Schneider 171CCC76010, verify that your system uses M1 or M1E processors within the Modicon Momentum line. Ensure you have a compatible I/O base (the module draws power from the base) and appropriate programming software. For a reliable source of genuine automation parts, contact UBEST Automation (ubest101.myshopify.com) — your trusted supplier of industrial control components.
