Product Overview

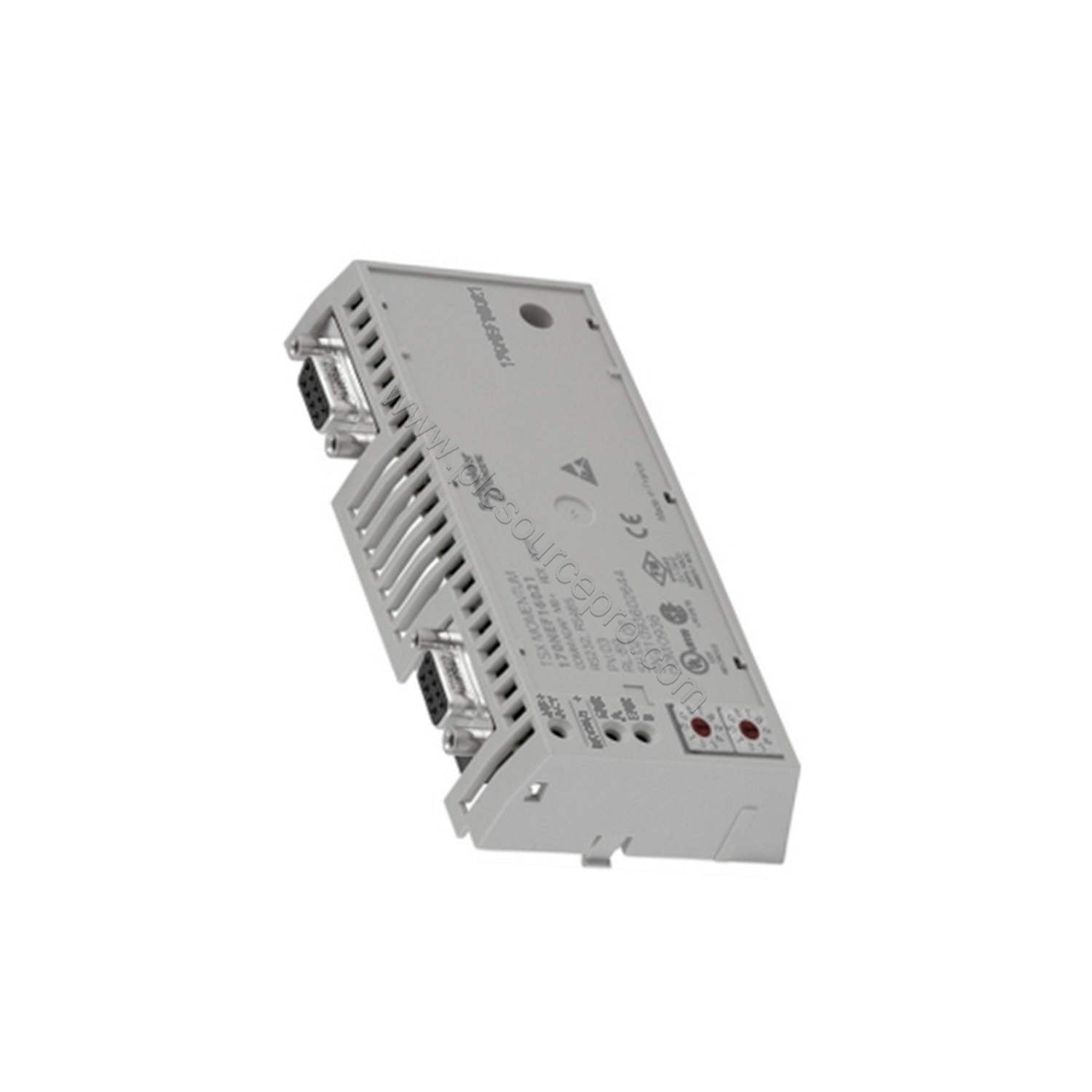

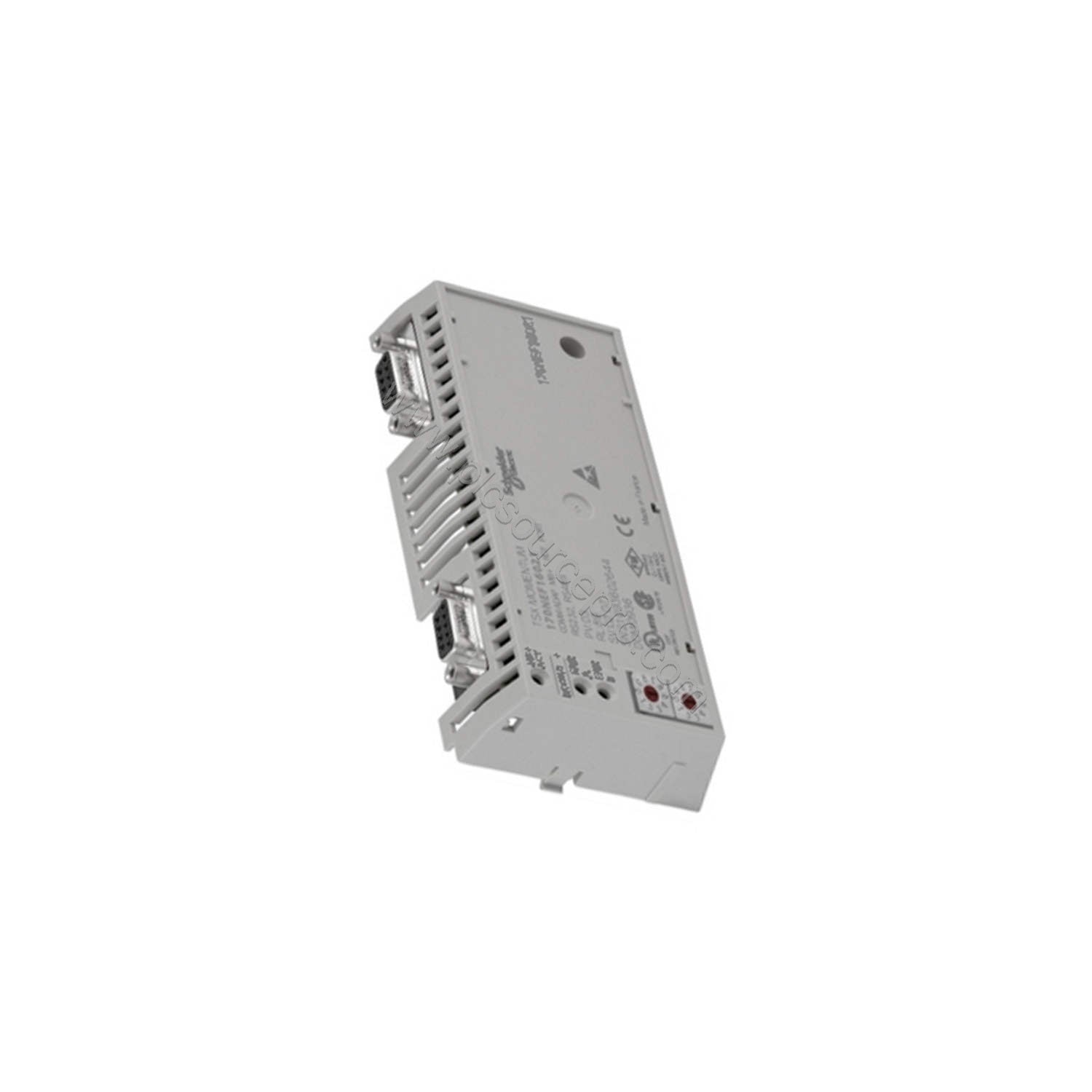

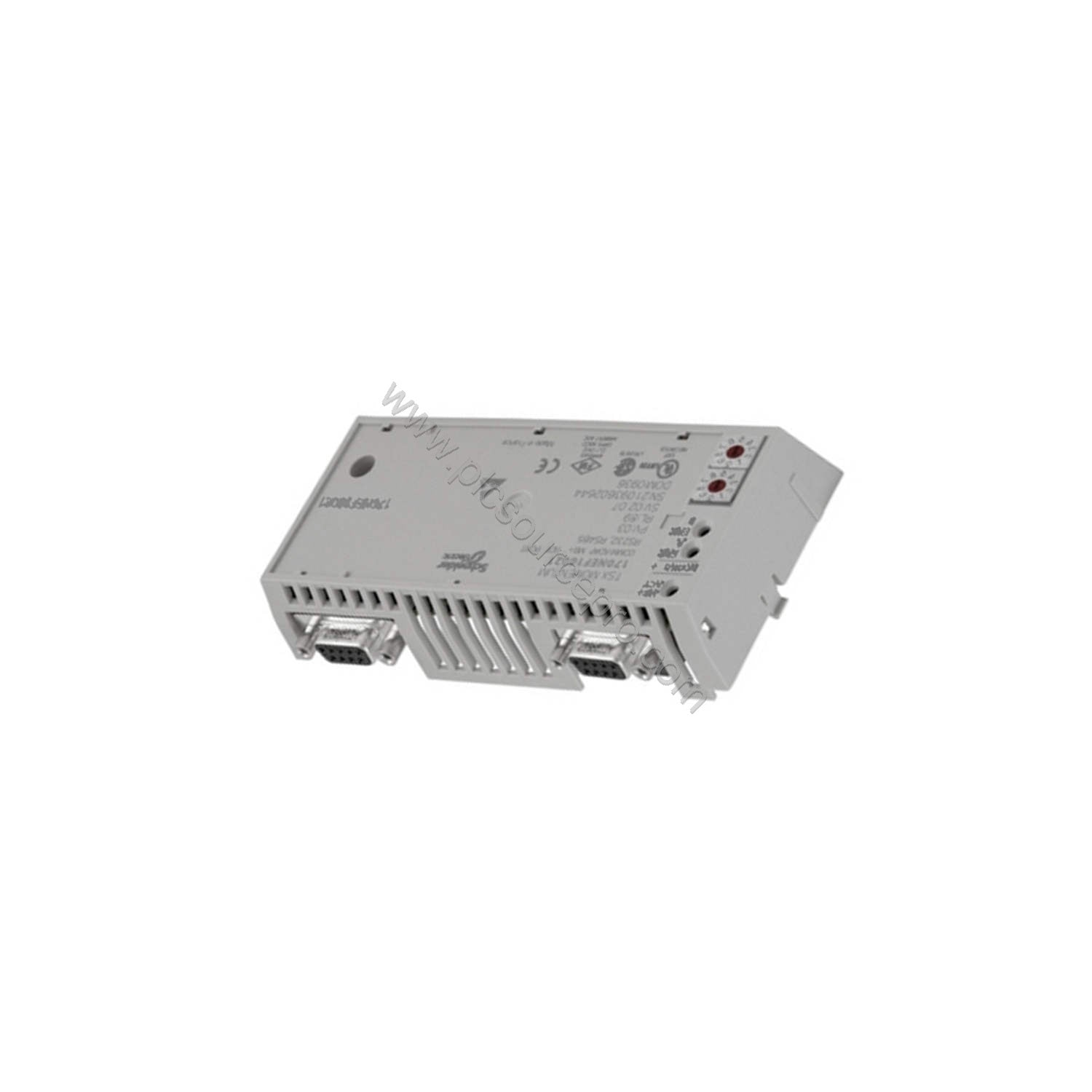

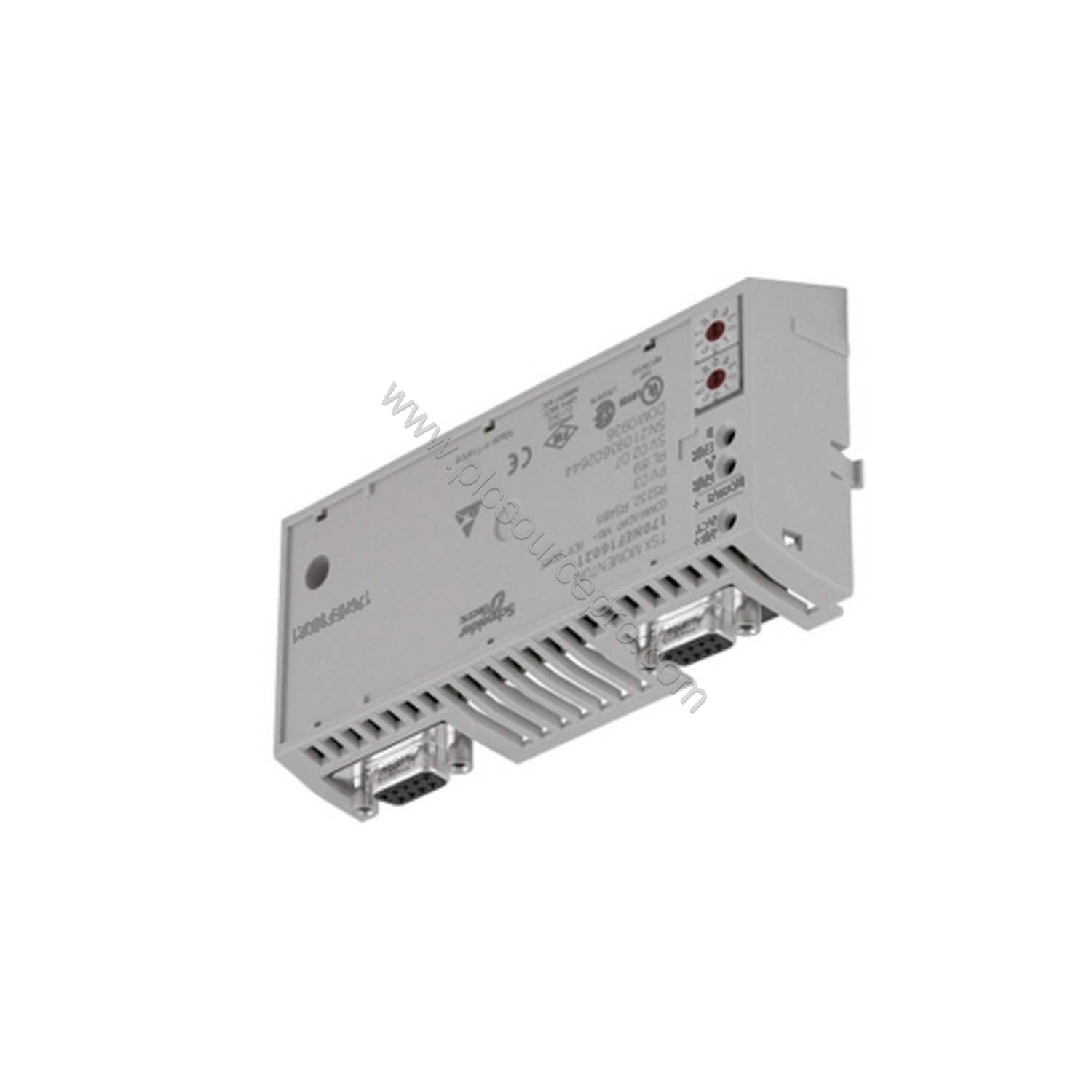

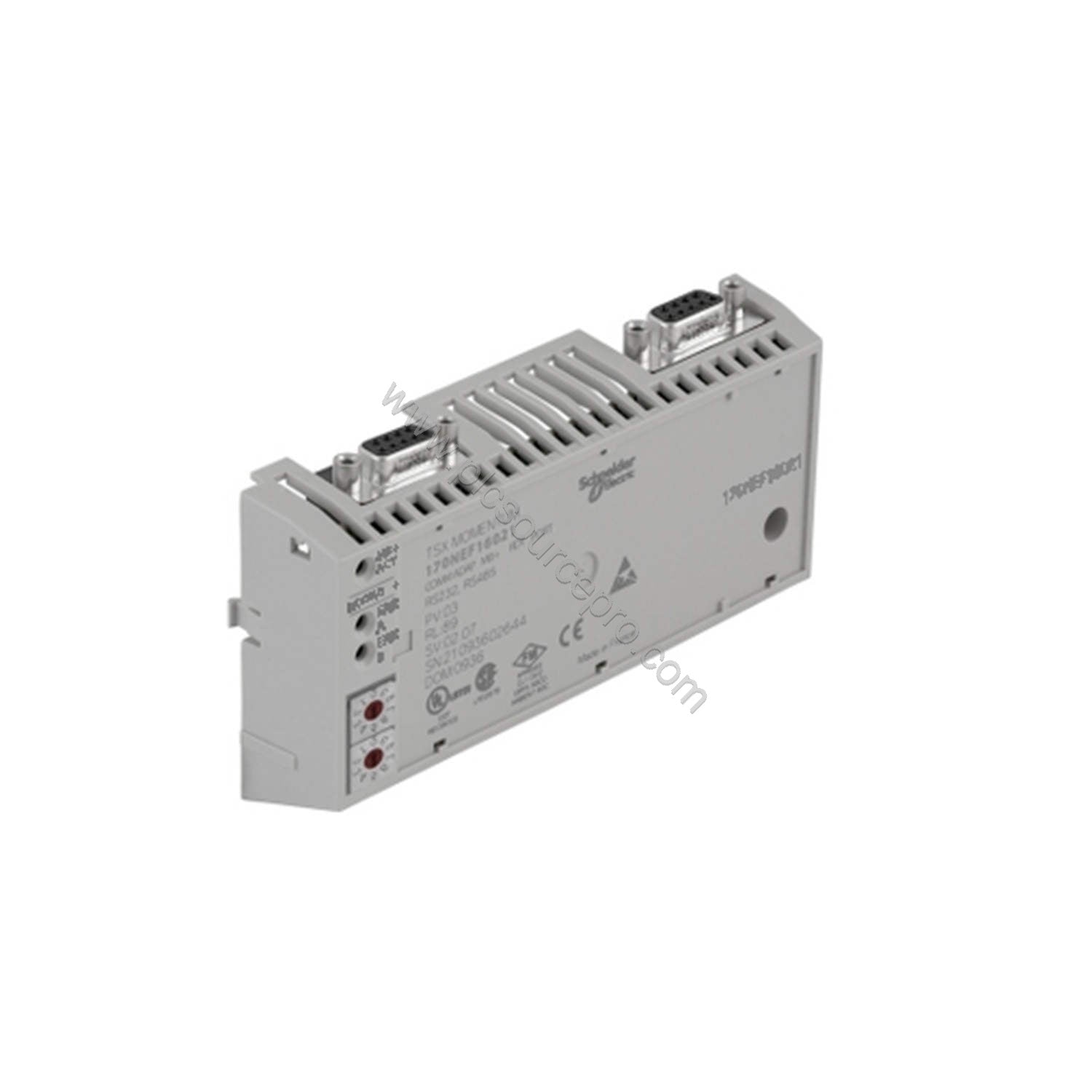

The Schneider 170PNT11020C Communication Adapter from the Modicon Momentum series ensures robust data exchange in industrial networks. It operates on the Modbus Plus protocol with a transmission rate of 1 Mbit/s and supports a multidrop topology for up to 31 devices per segment. With a maximum cable length of 5000 meters, it overcomes distance-related network failures.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Communication Adapter |
| Product Line |
Modicon Momentum |
| Part Number |
170PNT11020C |
| EAN |
3595863798586 |
| Communication Protocol |
Modbus Plus |
| Transmission Rate |
1 Mbit/s |
| Topology |
Multidrop |
| Devices per Segment |
0 to 31 per segment |
| Max Cable Length |
5000 m |
| Local Signalling |
LED |
| Electrical Connection |
SUB-D9 |
| Protection Class |
IP20 |
| Electromagnetic Field Resistance |
8 kV |
| Max Operating Humidity |
80% (non-condensing) |
| Max Storage Humidity |
80% (non-condensing) |
| Max Operating Altitude |
1000 m above sea level |
The 170PNT11020C resists electromagnetic interference up to 8 kV, reducing data corruption in noisy environments. Its IP20 rating suits indoor control cabinets.
Industry Applications
In manufacturing facilities, the Schneider 170PNT11020C connects PLCs and I/O modules over long distances. The 5000 m cable length supports large warehouse automation, while the multidrop topology simplifies cabling. For process plants, the 8 kV immunity ensures stable operation near heavy machinery.
Installation & Setup Guidance
Mount the 170PNT11020C in an IP20-rated enclosure in a clean indoor environment. Use a standard SUB-D9 cable for connection and configure Modbus Plus network parameters. Install termination resistors to prevent signal reflections. The LED indicators provide immediate feedback for power and network status.
Compatibility & Integration
The Schneider 170PNT11020C integrates natively with the Modicon Momentum series and any Modbus Plus-compatible controllers. Verify that your host device supports the 1 Mbit/s rate and multidrop addressing. For selection assistance, contact UBEST Automation for pre-sales checks.
