Product Overview

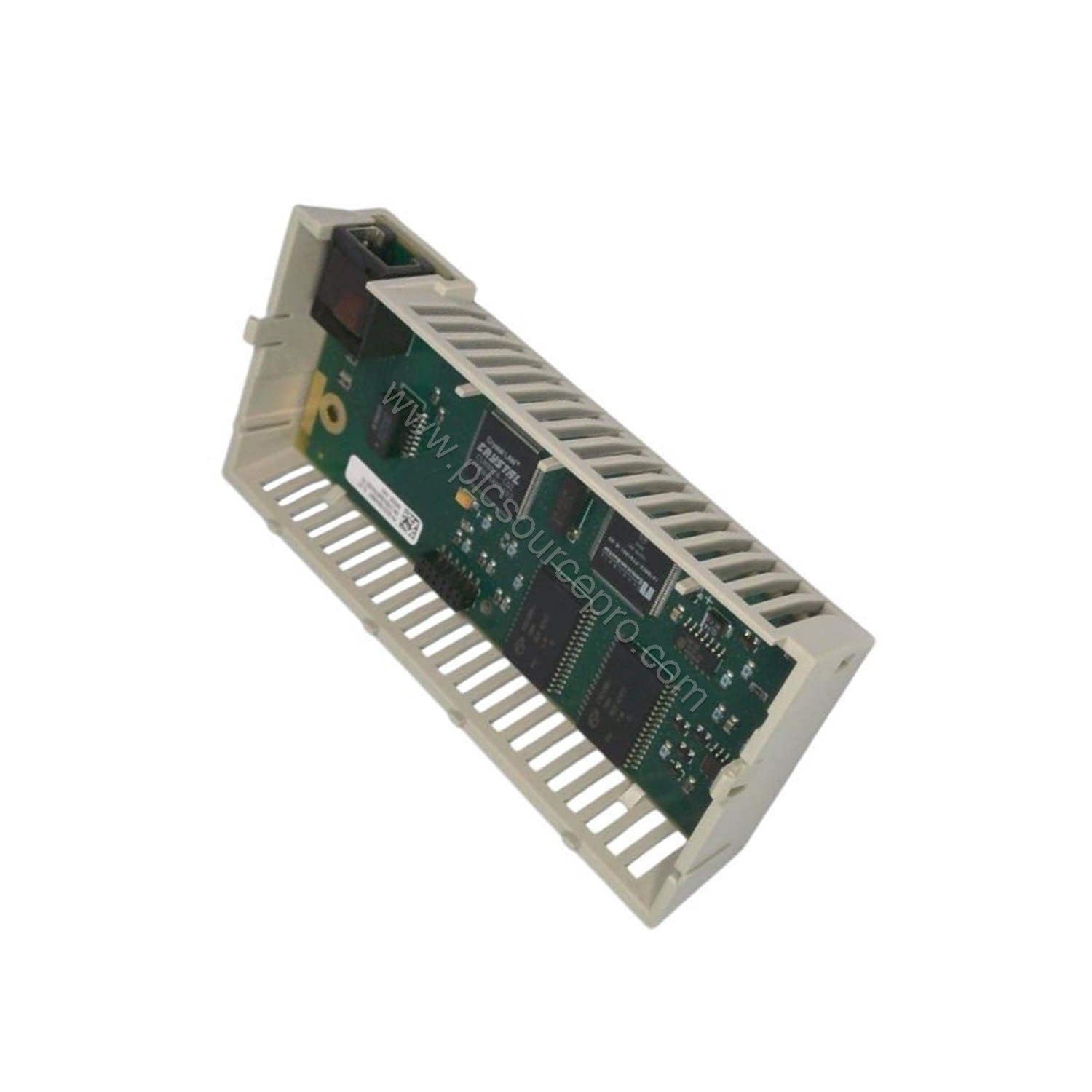

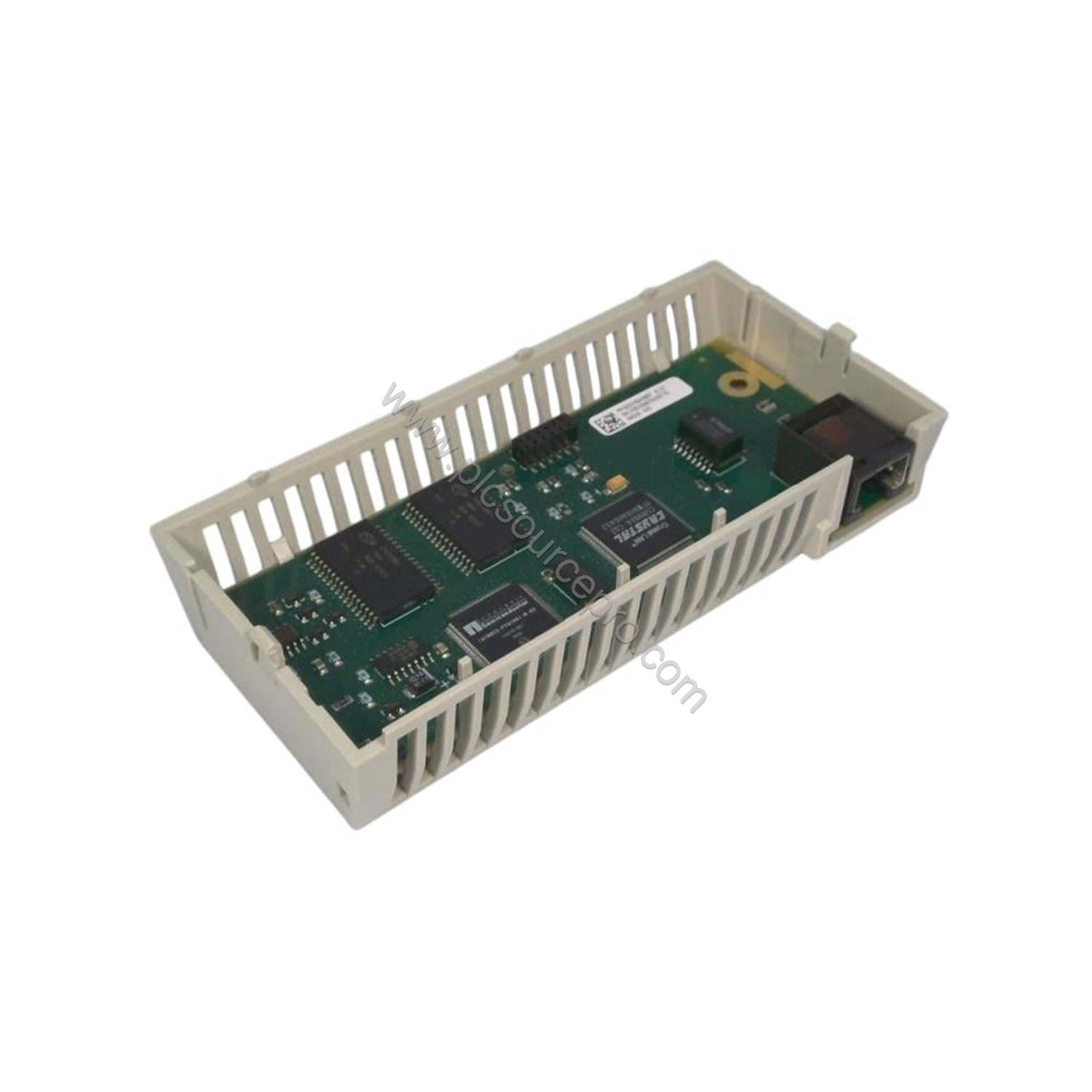

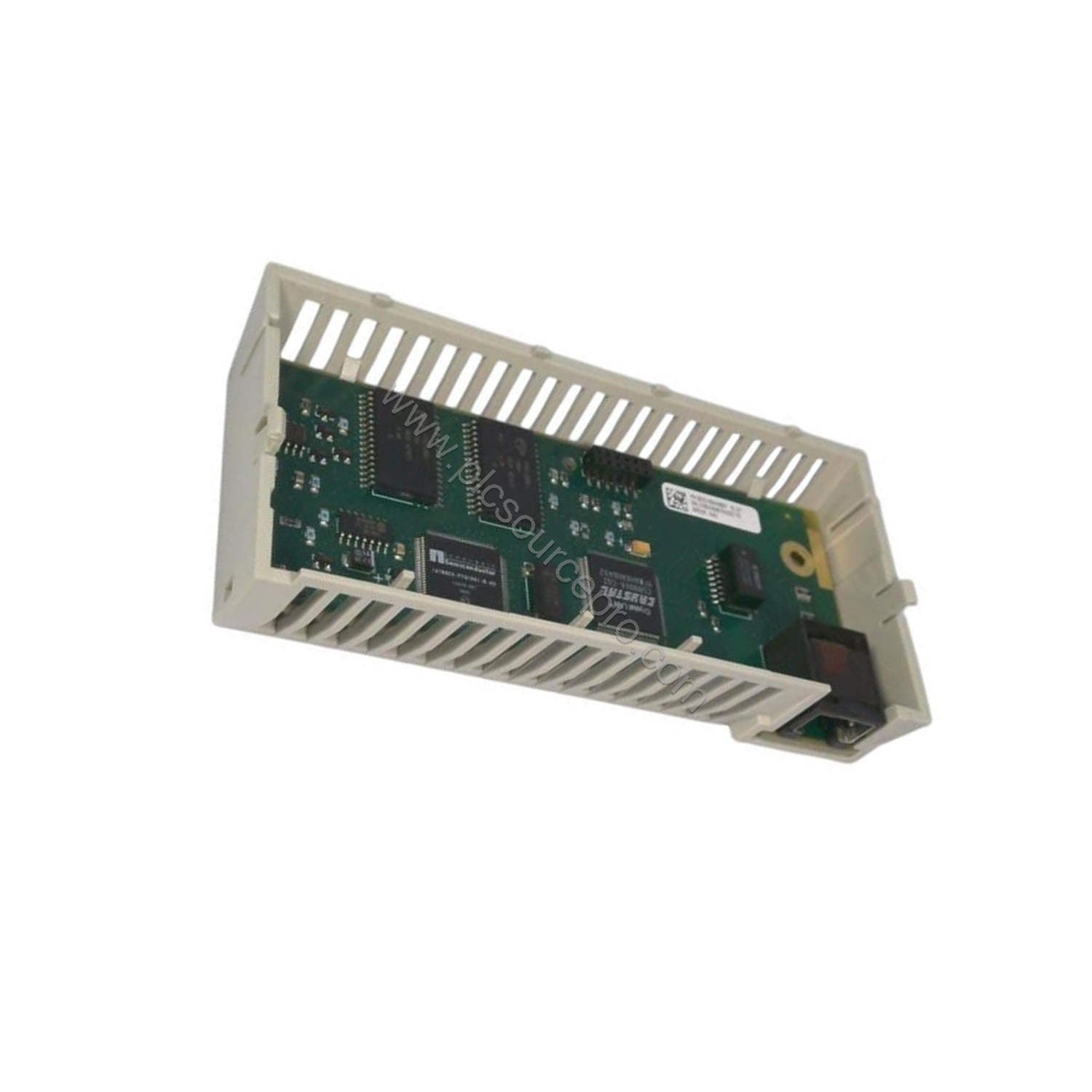

The Schneider 170ENT11002 Communication Adapter is a critical component for the Modicon Momentum automation platform. Designed for robust network connectivity, this unit operates on Ethernet TCP/IP and supports both master/slave and peer-to-peer access methods. With a 100BASE-TX port and a baud rate of 10 Mbit/s, it ensures reliable data transmission in industrial environments.
Technical Specifications
| Parameter |
Value |
| Communication Protocol |
Ethernet TCP/IP |
| Ethernet Port Type |
100BASE-TX |
| Baud Rate |
10 Mbit/s |
| Protection Class |
IP20 |
| Access Method |
Master/Slave and Peer-to-Peer (P2P) |
| Network Topology |
Star and Multi-drop |
| Operating Temperature |
0 to 60°C |
| Storage Temperature |
-40 to 85°C |
| Number of Devices per Segment |
0 to 32 |
| Electrical Connection |
RJ45 for 10BASE-T |
| Maximum Cable Distance (with repeater) |
More than 1000 m |
| Maximum Cable Distance (without repeater) |
Less than 1000 m |
| Operating Altitude |
Less than 5000 m |
| Weight |
0.45 kg |
Compatibility and System Integration
The Schneider 170ENT11002 seamlessly integrates into the Modicon Momentum automation platform. It supports multiple network topologies, including star and multi-drop, and can manage up to 32 devices per segment. The adapter uses a standard RJ45 connector for 10BASE-T connections, making it easy to integrate into existing Ethernet networks. It features a BOOTP server for IP parameter assignment and provides a unique IEEE global address.
Industry Applications
This communication adapter is ideal for industrial automation applications requiring reliable network connectivity. Use the Schneider 170ENT11002 in:
- Distributed control systems (DCS) for real-time data exchange
- Manufacturing lines where master/slave or peer-to-peer communication is needed
- Remote monitoring setups leveraging star or multi-drop network layouts
Its robust design supports long cable runs and operates in temperatures from 0 to 60°C, reducing downtime and maintenance costs.
Selection Guide and Purchasing Advice
When selecting the Schneider 170ENT11002, verify that your system requires a 100BASE-TX Ethernet adapter with TCP/IP protocol. This unit is CE marked and comes with an IP20 protection rating. For reliable supply, consider purchasing from UBEST Automation (ubest101), a trusted source for industrial automation spares. Ensure your network infrastructure supports the topologies and cable lengths specified.
Maintenance and Reliability
The Schneider 170ENT11002 is built for longevity in controlled environments. Its IP20 housing protects against solid objects, while the wide storage temperature range ensures durability during shipping. Routine checks of the RJ45 connection and cable integrity will help maintain performance. With CRC-32 error control, the adapter provides reliable data integrity, reducing the need for frequent replacements.
