Product Introduction

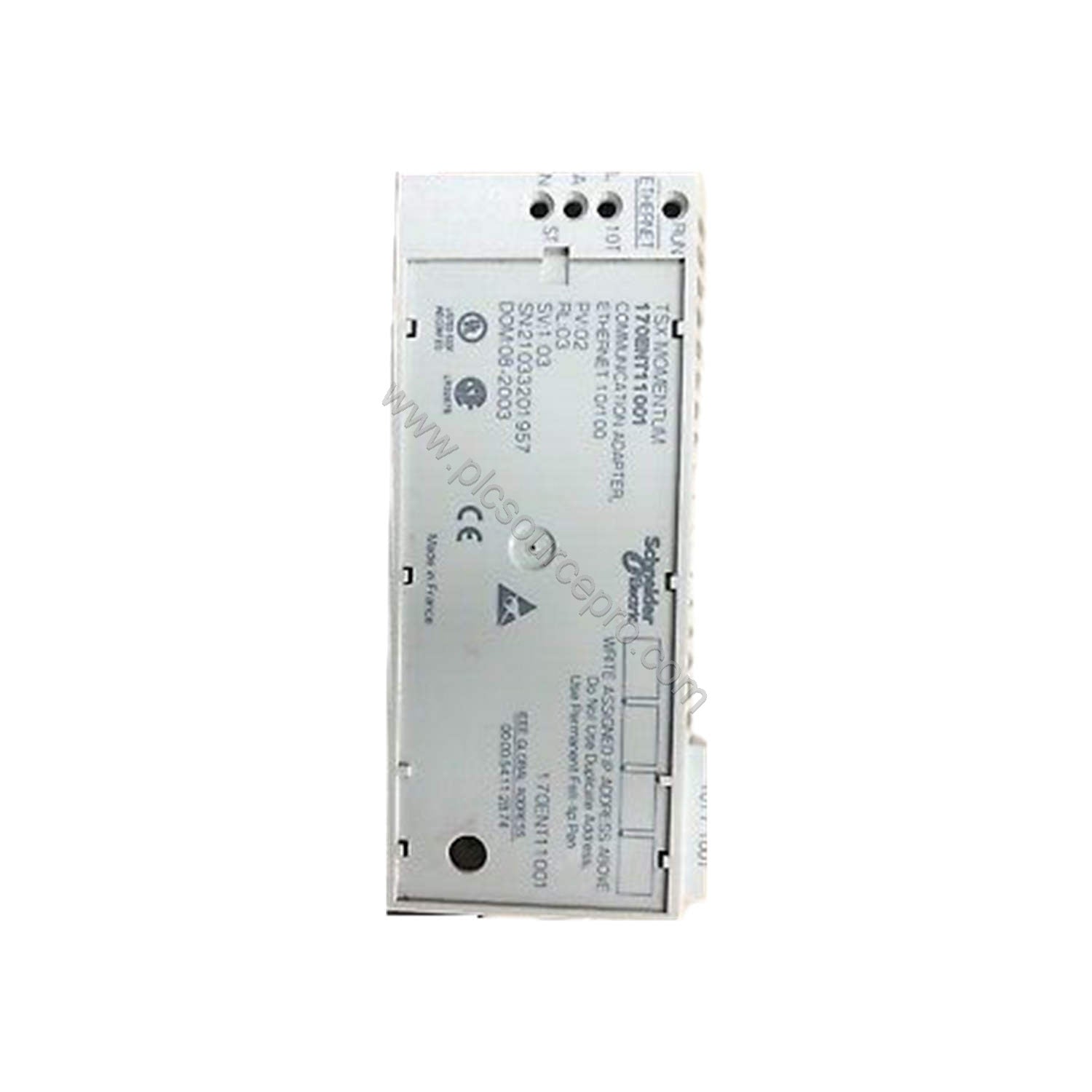

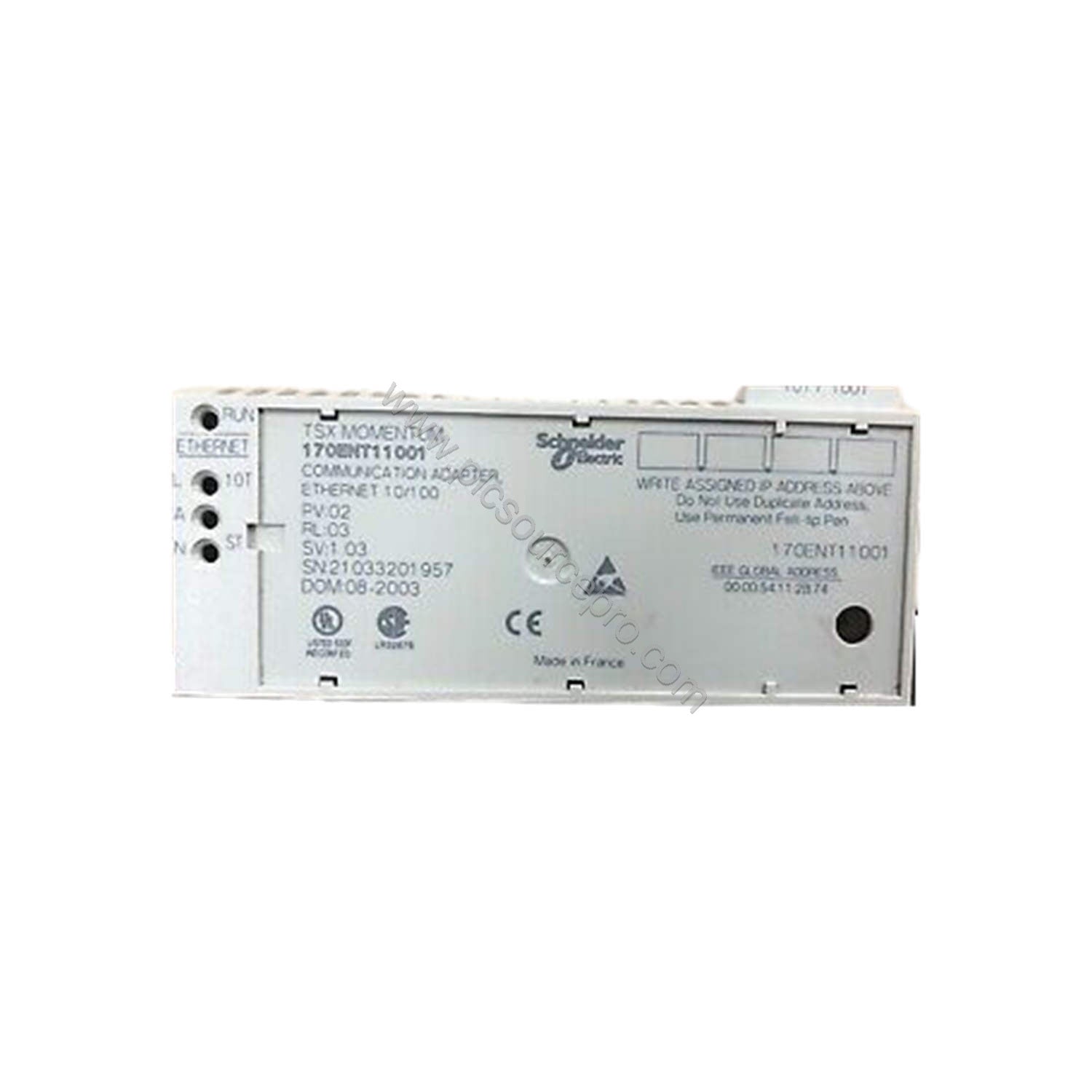

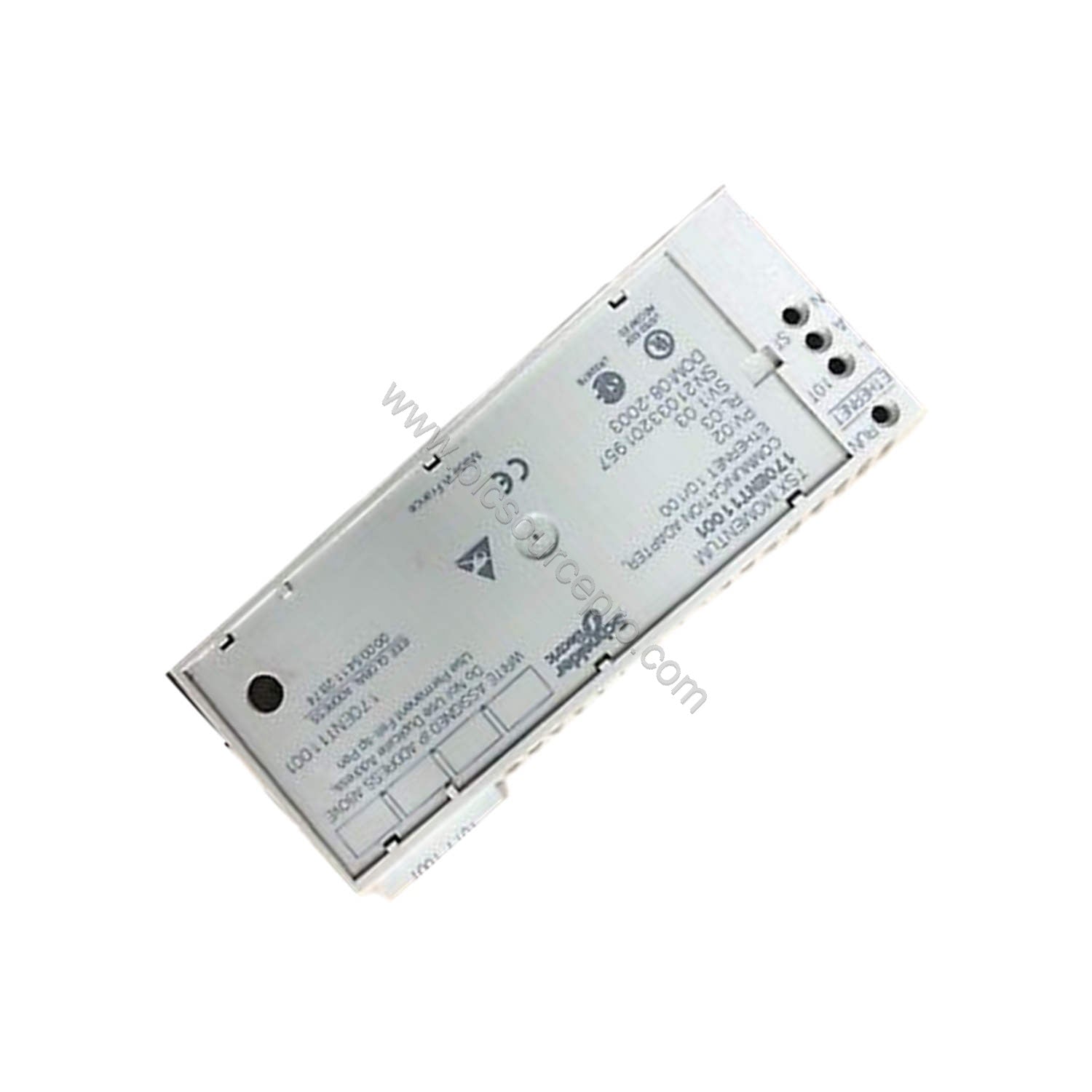

When legacy networking bottlenecks slow down your automation line, the Schneider 170ENT11001 offers a direct upgrade path. This Ethernet TCP/IP communication adapter is part of the Modicon Momentum series, engineered to deliver reliable, high-speed data transmission. Designed as a drop‑in replacement for older Momentum communication modules, the 170ENT11001 ensures minimal downtime while doubling as a future‑proofing investment for expanding industrial networks.
Technical Specifications
The Schneider 170ENT11001 communication adapter brings key performance metrics to your system. Below are the critical parameters drawn directly from the product data:
| Parameter |
Value |
| Baud Rate |
10 or 100 megabits per second |
| Communication Protocol |
Ethernet Transmission Control Protocol/Internet Protocol |
| Access Method |
Master/Slave and peer-to-peer (P2P) |
| Ethernet Port Type |
100BASE-TX (RJ45 connector) |
| Number of Devices Per Segment |
0 to 32 per segment |
| Maximum Cable Distance Between Devices |
3,280 feet (1,000 meters) |
| Ambient Operating Temperature |
0 to 60°C (non-condensing) |
| Storage Temperature |
-40 to 85°C (non-condensing) |
| Protection Class |
IP20 |
| Status Indicators |
4 LED indicators (3 green, 1 yellow) |
| Control Parameter |
CRC-32 |
| Net Weight |
0.15 lb (US) (0.07 kg) |
Real‑World Applications
In upgrading a bottling plant’s discrete control network, the Schneider 170ENT11001 replaced an older serial‑based Momentum adapter, cutting data transfer latency by over 30%. For a packaging line requiring peer‑to‑peer communication between PLCs, the master/slave and P2P access methods enabled direct device‑to‑device exchange without a central controller bottleneck. In material handling systems with long cable runs, the 3,280‑foot maximum distance allowed flexible placement of the 170ENT11001 across multiple cells.
Compatibility & Integration
The Schneider 170ENT11001 integrates seamlessly with the Modicon Momentum automation platform. It communicates via Ethernet TCP/IP and supports star and multi‑drop topologies. The RJ45 100BASE-TX port connects directly to standard switches and routers. For IP assignment, the built‑in BOOTP server simplifies configuration. Use shielded twisted‑pair cables per the recommended transmission medium for noise‑immune operation. The adapter works with any Momentum CPU or I/O base that accepts a communication adapter, making it a versatile upgrade for existing installations.
Selection Guide & Purchasing Advice
Before ordering the Schneider 170ENT11001, verify that your Momentum base unit has an available slot and that your network infrastructure supports 10/100 Mbps Ethernet. Confirm cable type (shielded twisted pair) and topology (star/multi‑drop). For bulk purchases or technical inquiries, UBEST Automation – listed as ubest101 on Shopify – provides genuine Schneider parts with fast shipping. Always cross‑reference your existing model number to ensure the 170ENT11001 is the correct replacement for your application.
