Product Introduction

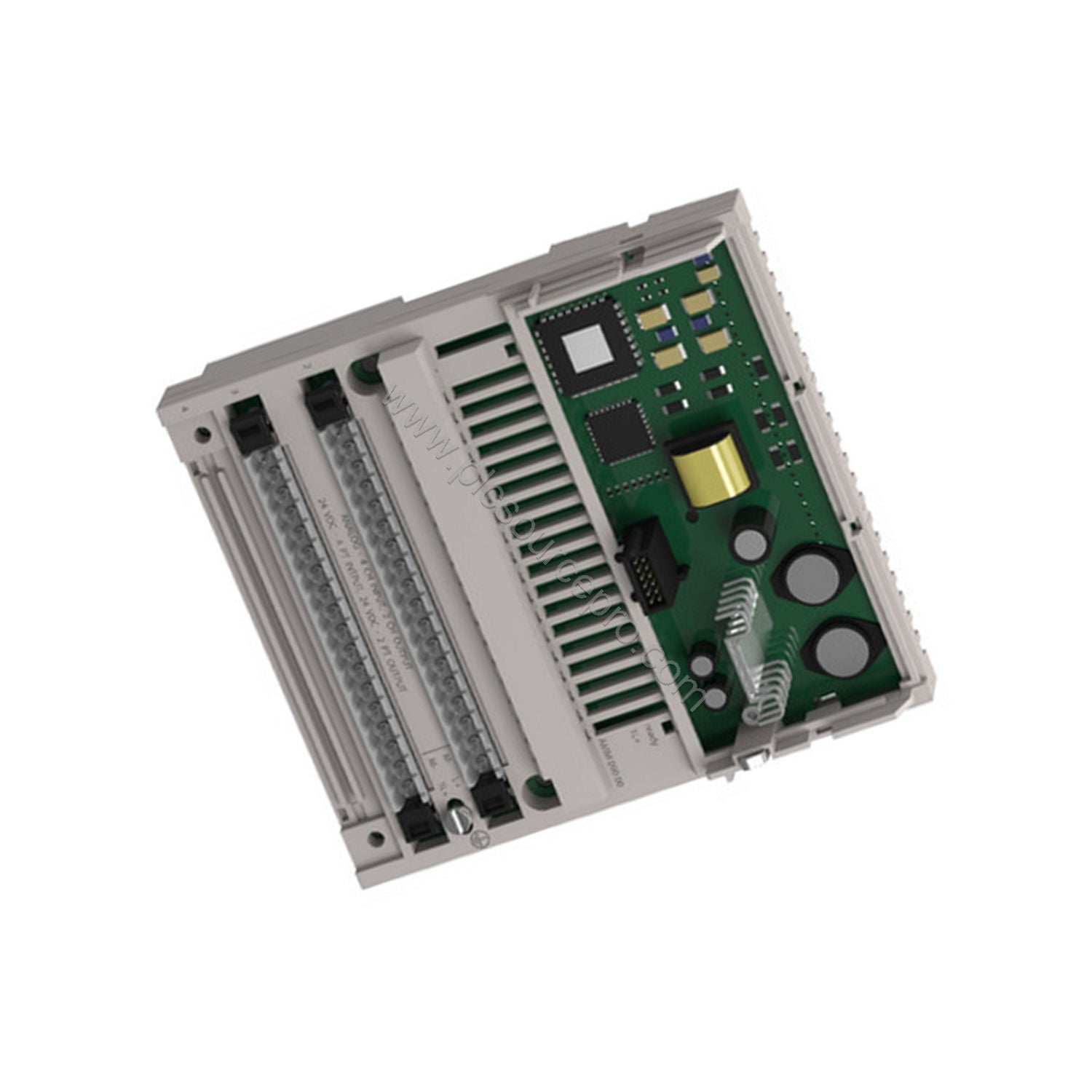

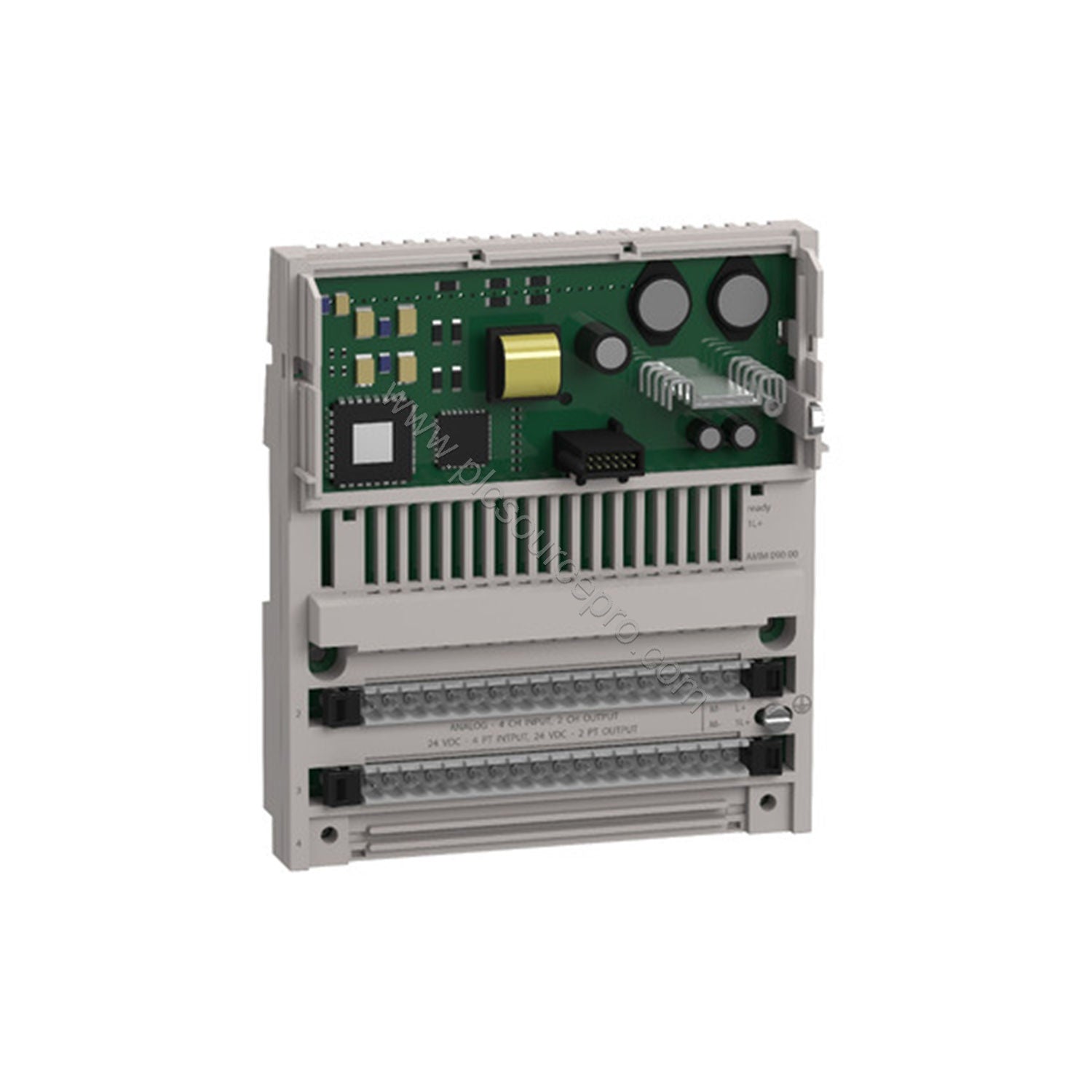

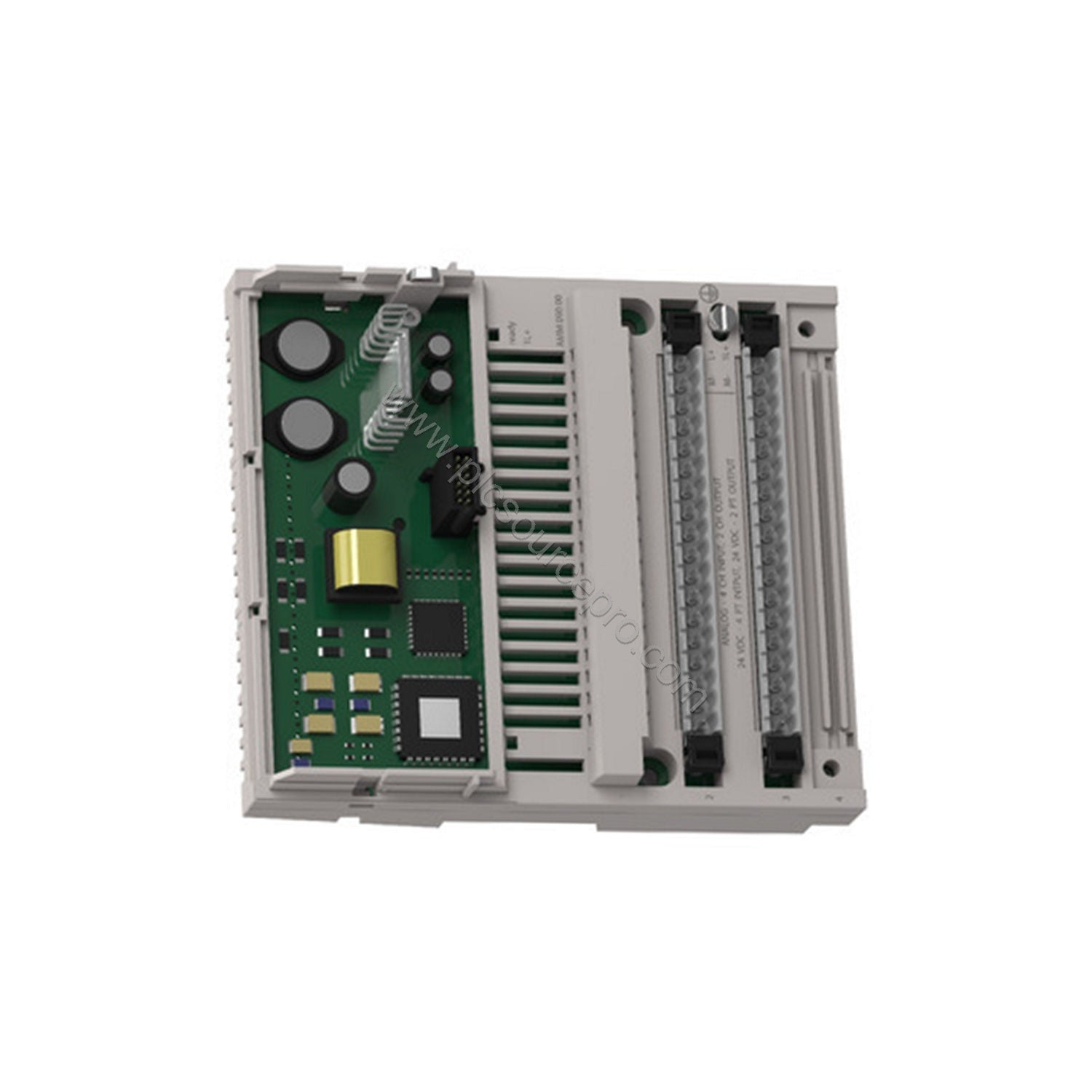

The Schneider 170ANR12091 I/O Base Unit from the Modicon Momentum series delivers comprehensive I/O capabilities for demanding industrial applications. It integrates 8 discrete inputs, 8 discrete outputs, 6 analog inputs, and 4 analog outputs in a single compact module, simplifying wiring and reducing panel space. Designed for clean indoor environments, this unit operates reliably from 0 to 60°C and withstands storage from -40°C to 85°C, making it a robust choice for long-term automation projects.
Technical Specifications Breakdown
Key parameters of the 170ANR12091 include:
-
Discrete I/O: 8 inputs plus 8 outputs for digital control.
-
Analog I/O: 6 analog inputs and 4 analog outputs for precise signal monitoring.
-
Operating Temperature: 0 to 60°C, ensuring reliability in typical factory floors.
-
Storage Temperature: -40 to 85°C for extended shelf life.
-
Humidity: Up to 95% RH non-condensing in both operation and storage.
-
Altitude: 5000m maximum, suitable for high-altitude installations.
-
Weight: 1.00 lbs (0.45 kg) for easy handling.
Installation & Setup Guidance
Mount the Schneider 170ANR12091 on a DIN rail or directly on a panel using the provided mounting slots. Ensure the ambient temperature stays within 0–60°C and that the enclosure is free of corrosive chemicals. Connect discrete wiring to the appropriate terminal blocks and analog signals to the dedicated inputs/outputs. Verify power supply polarity before energizing the module. Refer to the Modicon Momentum installation manual for detailed wiring diagrams.
Maintenance & Reliability
Routine inspection of the 170ANR12091 includes checking for dust accumulation on ventilation slots and verifying that all terminal connections remain tight. The wide humidity tolerance (95% RH) reduces risk of condensation damage, while the altitude rating of 5000m ensures performance even in high-elevation facilities. Periodic cleaning with a dry, lint-free cloth extends operational life. Thanks to its rugged design, this I/O base unit minimizes unexpected downtime, improving overall system ROI.
Selection Guide & Purchasing Advice
Before purchasing the Schneider 170ANR12091, confirm that your controller supports the Modicon Momentum protocol and that the I/O count matches your application needs. Consider ordering a spare unit for critical processes to avoid production halts. UBEST Automation stocks genuine 170ANR12091 modules with fast shipping. For larger projects, contact our team to verify compatibility with your existing system. We recommend reviewing the datasheet for precise electrical specifications.
