Product Introduction

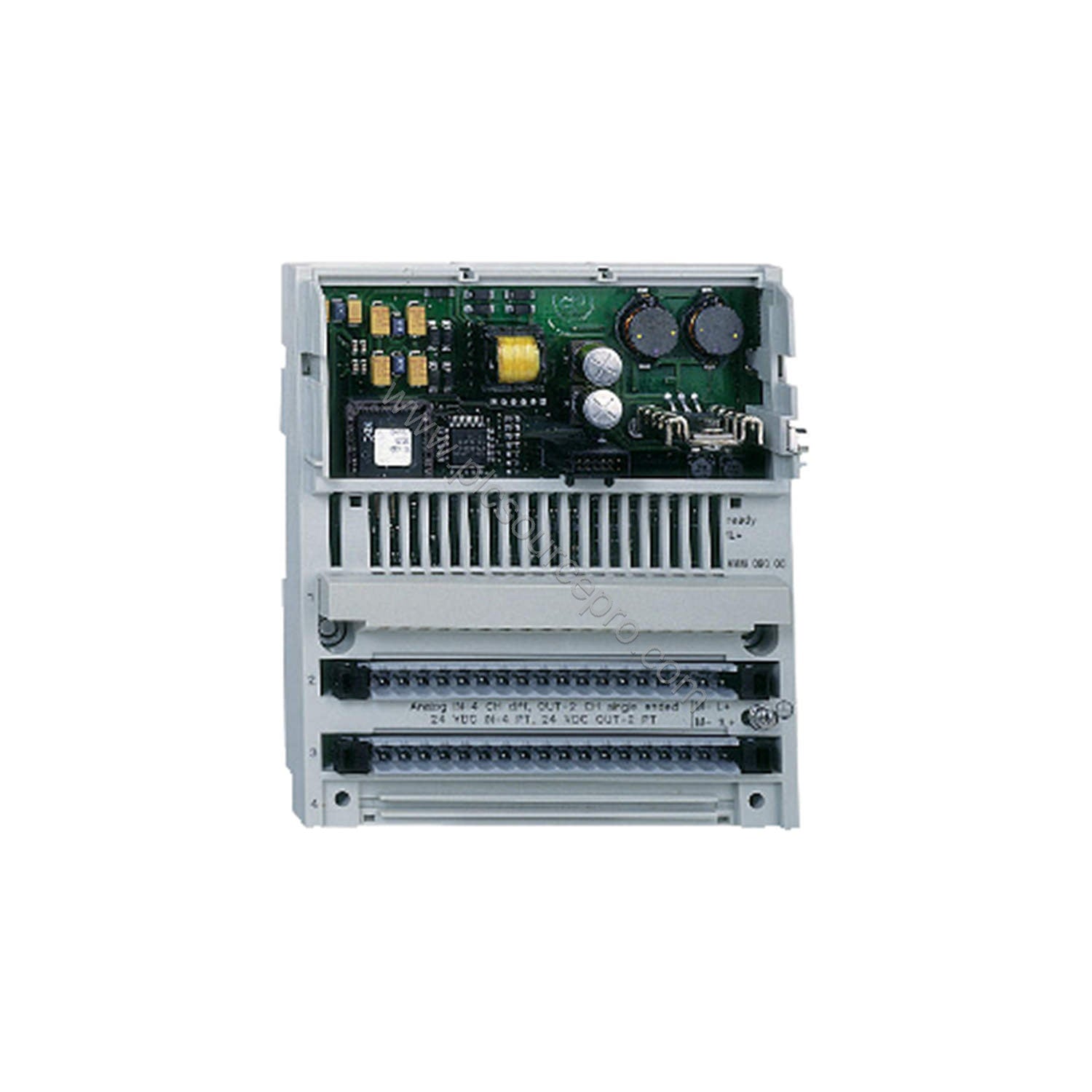

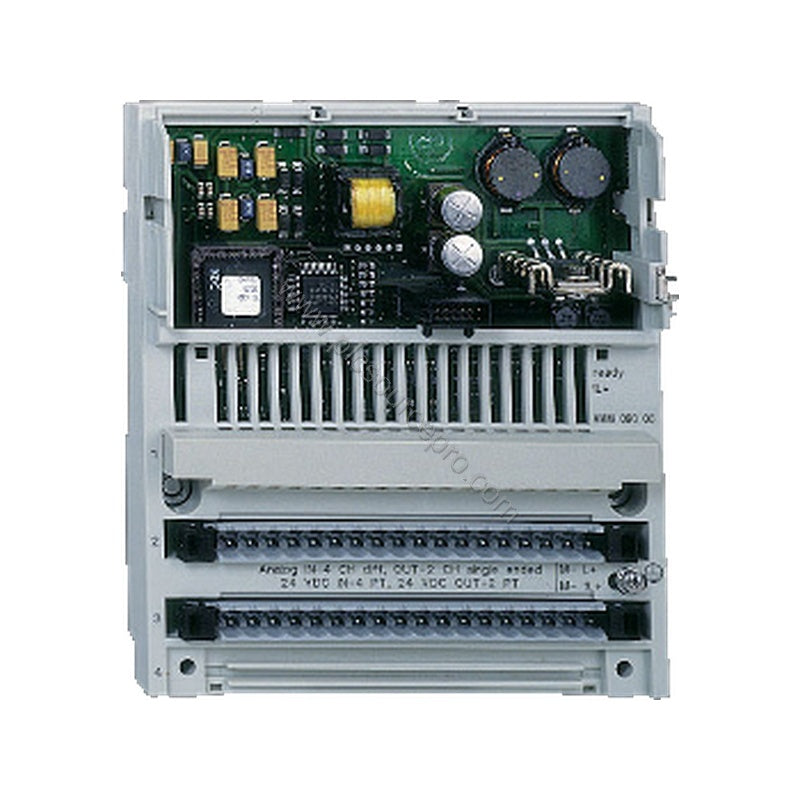

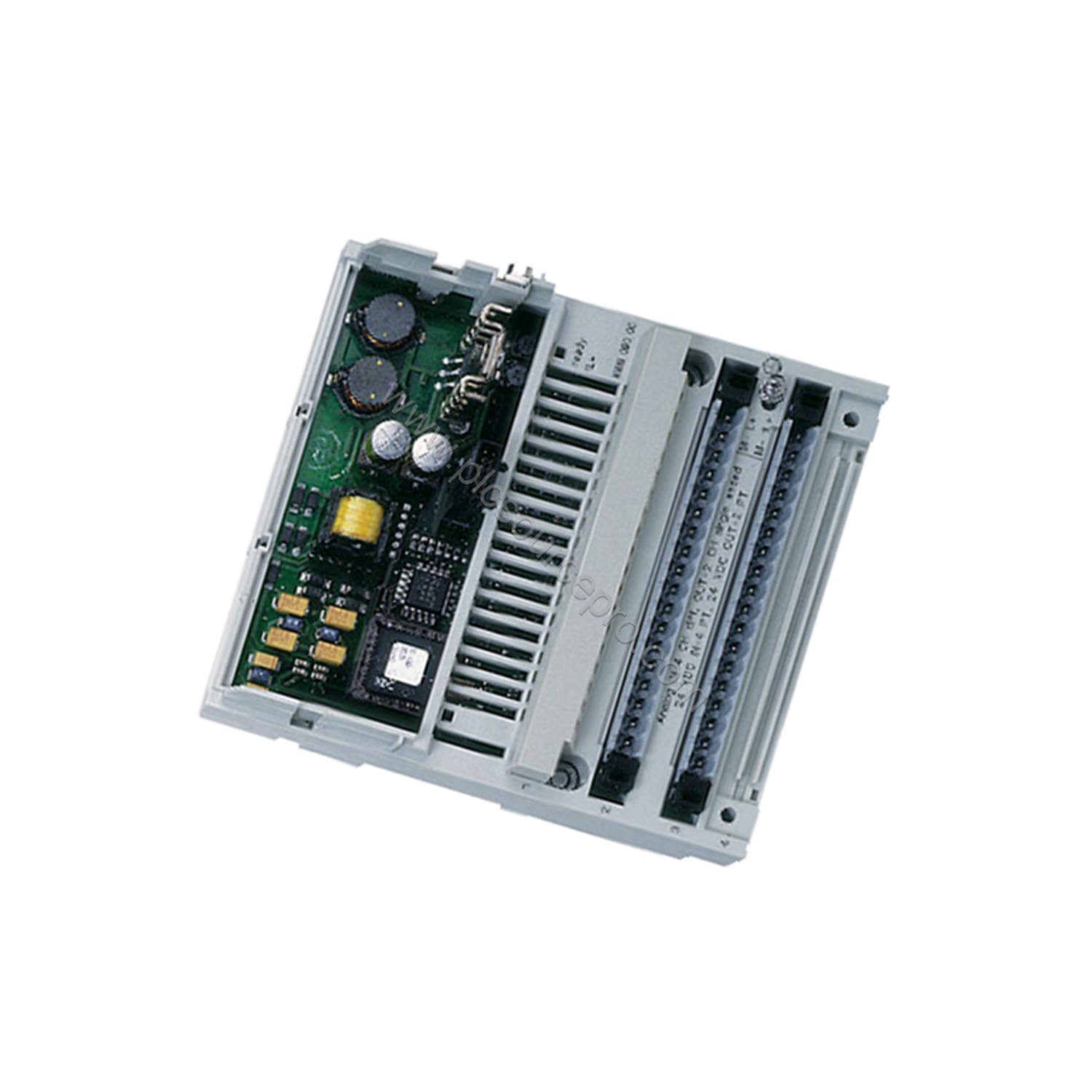

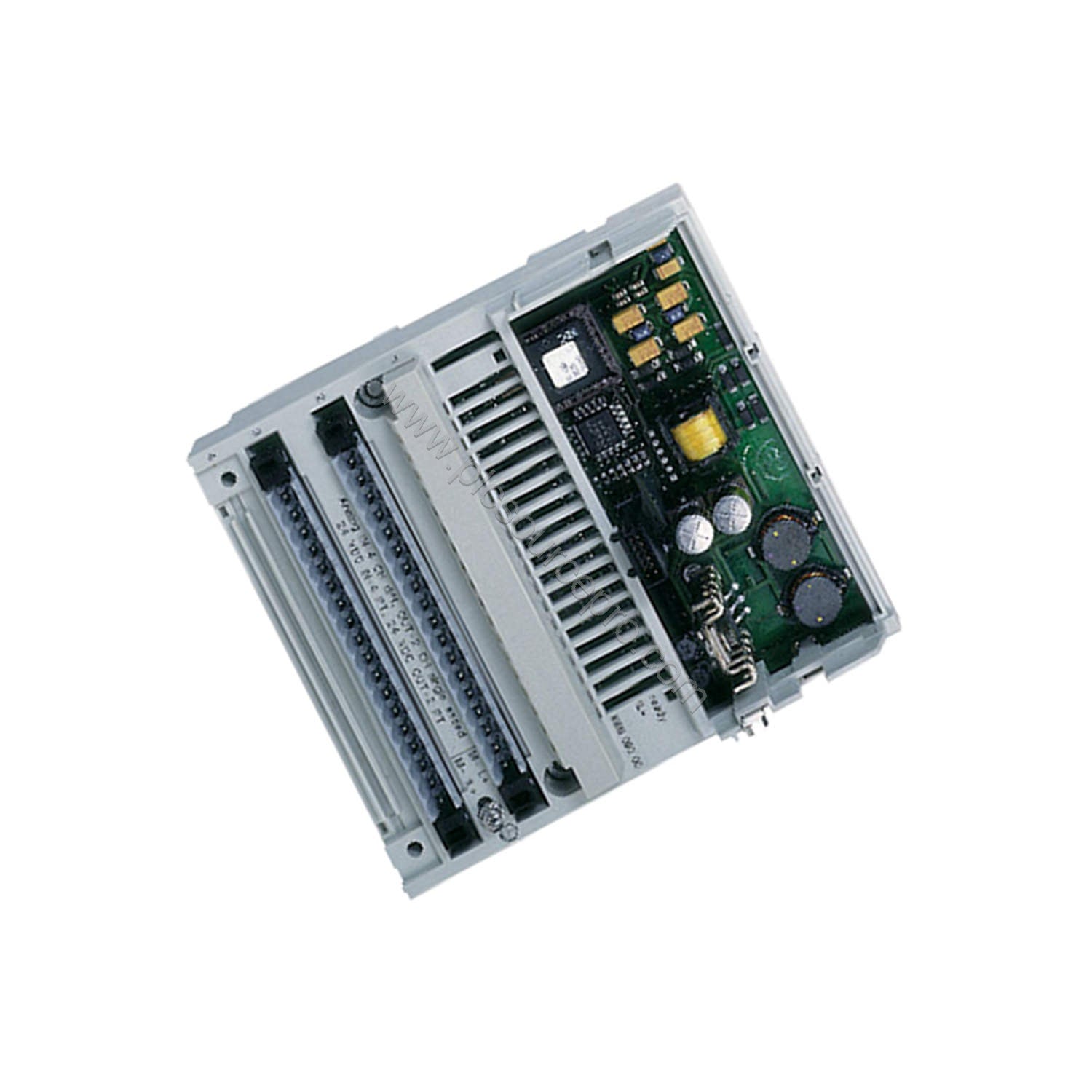

When your automation system demands precise analog and discrete signal handling, the Schneider 170AMM09000 provides a versatile solution. Part of the Modicon Momentum platform, this base module integrates 4 analog differential inputs and 4 discrete inputs, along with 2 analog outputs and 2 discrete outputs. It operates on 24 VDC and includes overload and short-circuit protection, ensuring long-term reliability.
Technical Specifications Breakdown
The Schneider 170AMM09000 offers a wide range of analog input ranges: ±10 V, ±5 V, 1–5 V, ±20 mA, and 4–20 mA, with resolutions from 12 to 14 bits. Analog outputs support ±10 V at 12 bits and 0–20 mA at 12 bits. Discrete inputs are 24 VDC, and discrete outputs are transistor type with a maximum current of 1 A per point. Power dissipation is 6 W maximum, and conversion time is 10 ms for analog input and 1 ms for analog output.
| Parameter |
Value |
| Supply Voltage |
24 VDC |
| Analog Input Ranges |
±10 V, ±5 V, 1–5 V, ±20 mA, 4–20 mA |
| Analog Output Ranges |
±10 V @ 12 bits, 0–20 mA @ 12 bits |
| Discrete Input Voltage |
24 VDC |
| Discrete Output Type |
Transistor |
| Protection |
Overload and short-circuit on discrete outputs |
| Power Dissipation |
6 W max |
| Conversion Time (analog input) |
10 ms |
| Conversion Time (analog output) |
1 ms |
Industry Applications
In process control, the Schneider 170AMM09000 excels at monitoring temperature, pressure, and flow via its analog inputs while controlling actuators with its outputs. Its protective features reduce downtime, offering excellent ROI in manufacturing and packaging lines. The module's low power consumption and wide temperature range (0–60 °C) make it suitable for continuous industrial environments.
Maintenance & Reliability
With overload and short-circuit protection, the 170AMM09000 minimizes unexpected failures. Its low power dissipation (6 W) reduces heat stress, extending component life. Operating within 0–60 °C in non-condensing conditions ensures consistent performance. We recommend periodic inspection of terminal block connections to maintain signal integrity.
Selection Guide & Purchasing Advice
Verify your system supply voltage is 24 VDC and check compatibility with a Modicon Momentum backplane. The Schneider 170AMM09000 requires removable terminal blocks (included). For genuine parts and fast shipping, rely on UBEST Automation. Confirm your control cabinet has adequate ventilation to stay within the 0–60 °C operating range.
