Product Introduction

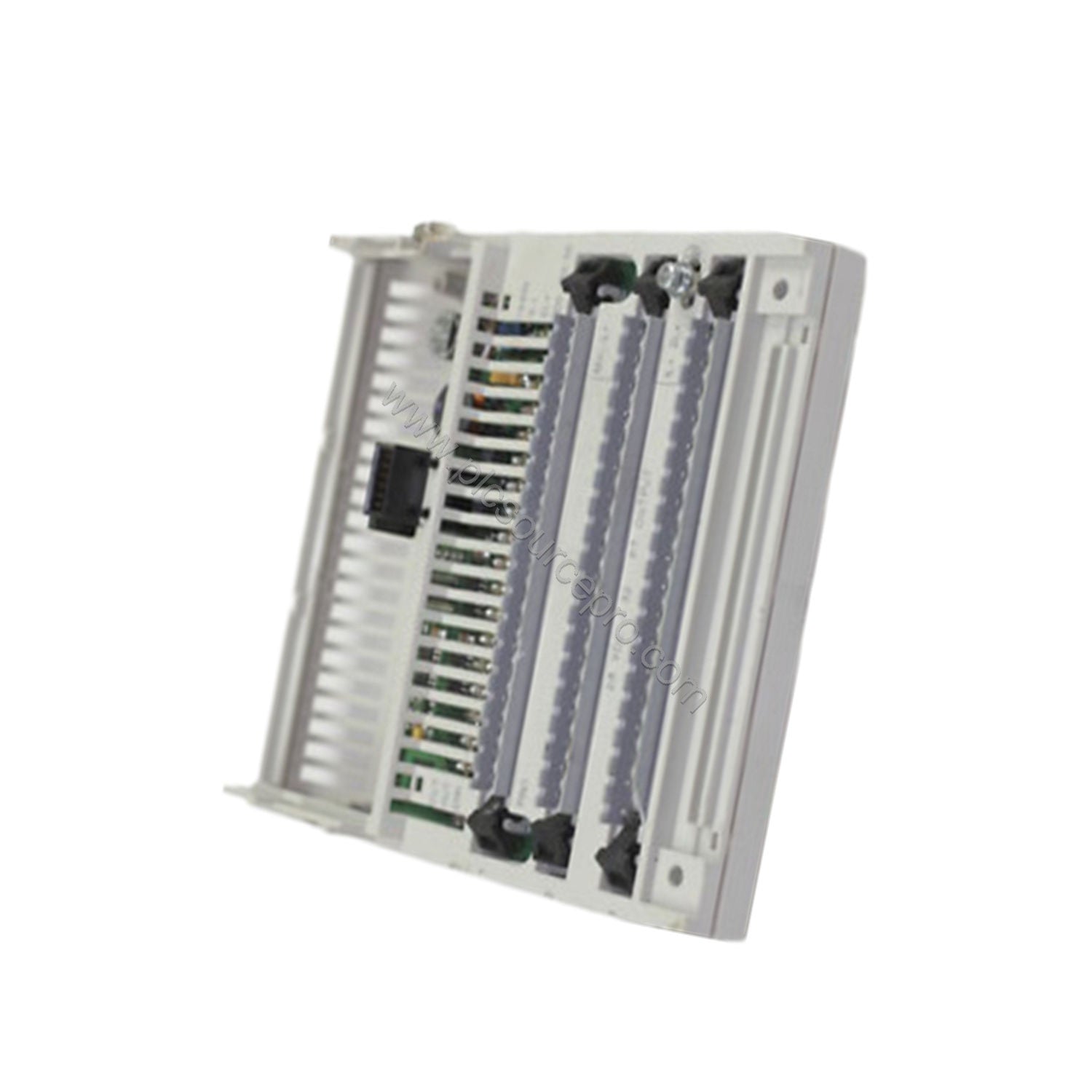

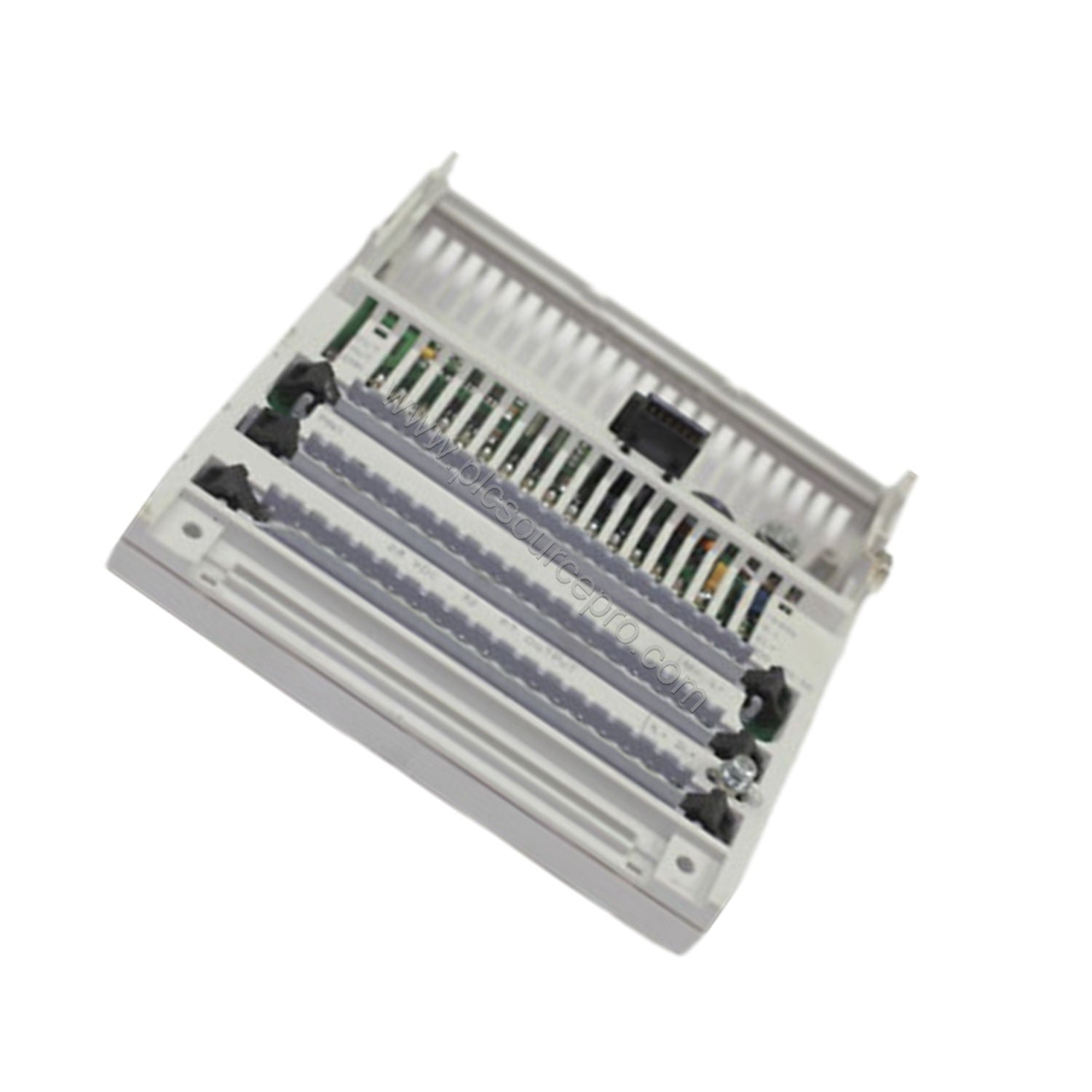

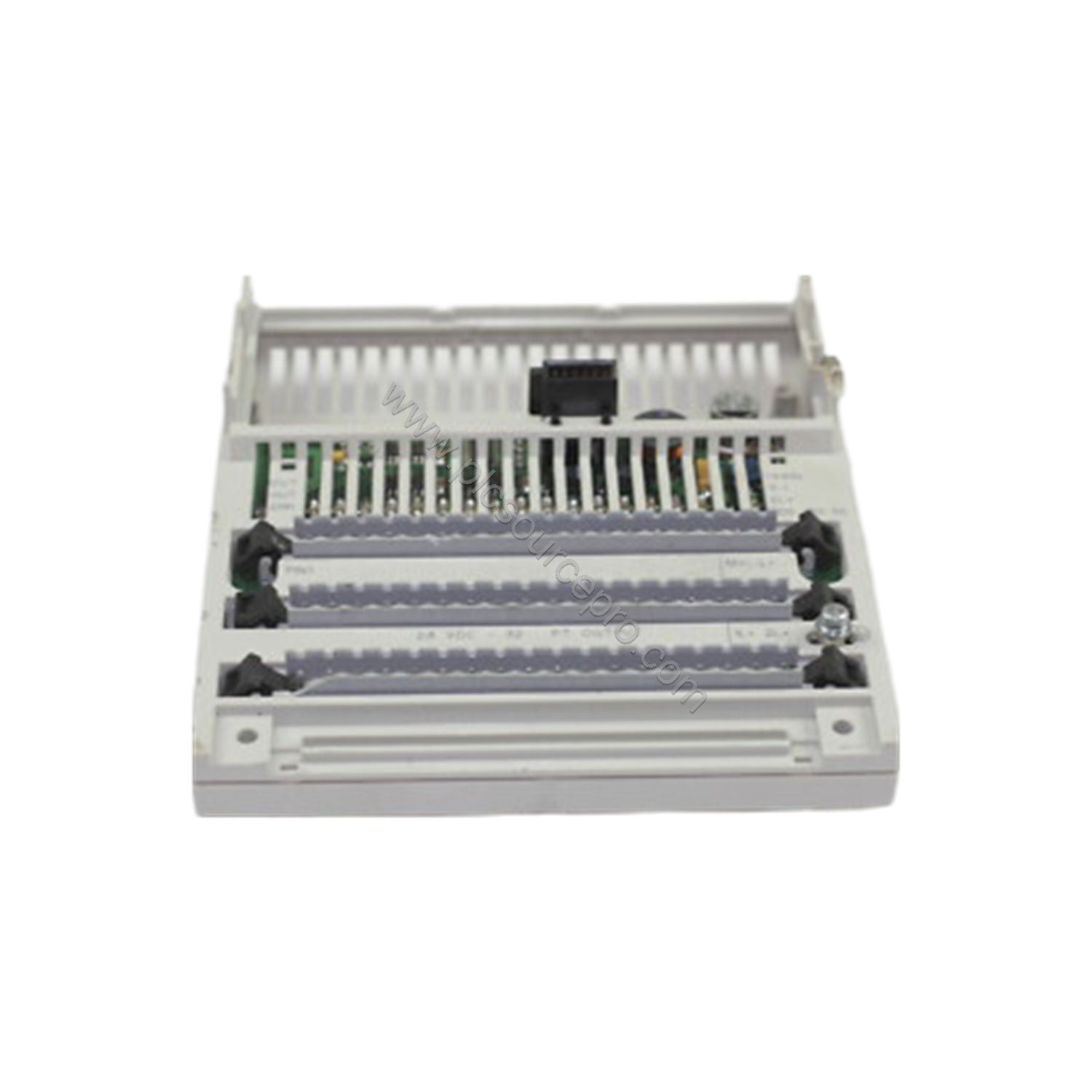

When electrical faults threaten control system reliability, the Schneider 170ADO35000 discrete output module provides robust protection against common failures. Part of the Modicon Momentum series, this module delivers 32 solid-state outputs with integrated electronic overload protection, ensuring stable operation even under harsh conditions.
Technical Specifications
The specifications for the Schneider 170ADO35000 are detailed below, highlighting its capacity to withstand surge currents and electrical noise.
| Parameter |
Value |
| Outputs |
32 Solid State |
| Surge Current |
5 A, 1 ms duration |
| Voltage Drop |
<0.5 V at 0.5 A |
| Overload Protection |
Electronically protected |
| Insulation Voltage |
4 kV IEC 801-2 |
| Air Discharge Voltage |
8 kV IEC 801-2 |
| Radiated Immunity |
10 V/m, 80-1000 MHz |
| Output Voltage Range |
0-24 V DC rated |
| Operating Temperature |
0 to 60°C |
| Storage Temperature |
-40 to 85°C |
| Max Output Frequency |
1 kHz |
| Pollution Degree |
2 |
| Certifications |
CE, RoHS, CSA, UL-approved |
| Weight |
0.56 lbs (0.26 kg) |
Real-World Applications
In high-vibration environments like conveyor systems, the Schneider 170ADO35000 handles surge currents up to 5 A for 1 ms, preventing output channel damage. Its radiated immunity of 10 V/m ensures stable operation near variable frequency drives, making it ideal for packaging and material handling equipment where electrical noise is prevalent.
Maintenance & Reliability
The module operates reliably within 0 to 60°C and can be stored from -40 to 85°C. Pollution Degree 2 installation reduces contamination risk. The electronic overload protection eliminates the need for frequent fuse replacements, lowering maintenance costs and downtime.
Troubleshooting Common Issues
Output failures often stem from overvoltage or transient surges. The Schneider 170ADO35000’s 4 kV insulation and 8 kV air discharge protection mitigate these risks. If a channel fails, check load wiring and ensure supply voltage remains within 0-24 V DC. The module’s status LEDs aid quick diagnosis.
Selection Guide & Purchasing Advice
Before purchasing, verify that your control system supports a 24 V DC output module with 32 channels. Ensure load current does not exceed 0.5 A per output steadily. For reliable sourcing, consider UBEST Automation (ubest101.myshopify.com) for genuine Schneider 170ADO35000 modules with certifications.
