Product Introduction

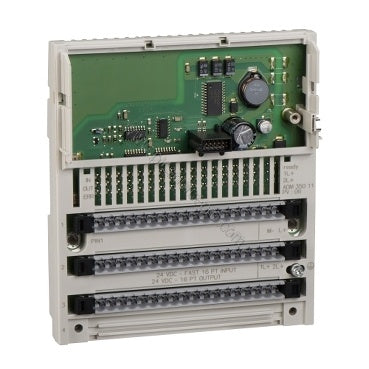

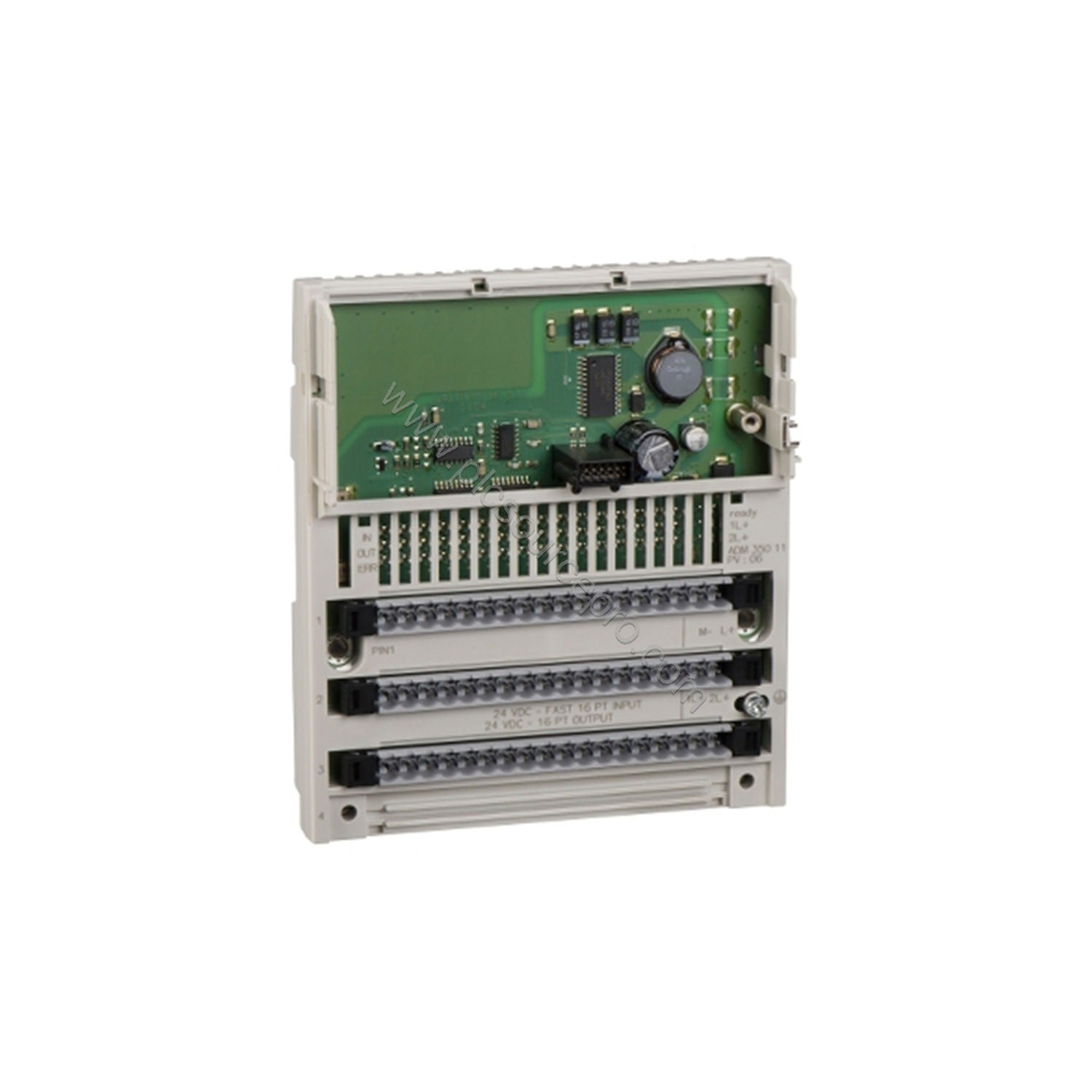

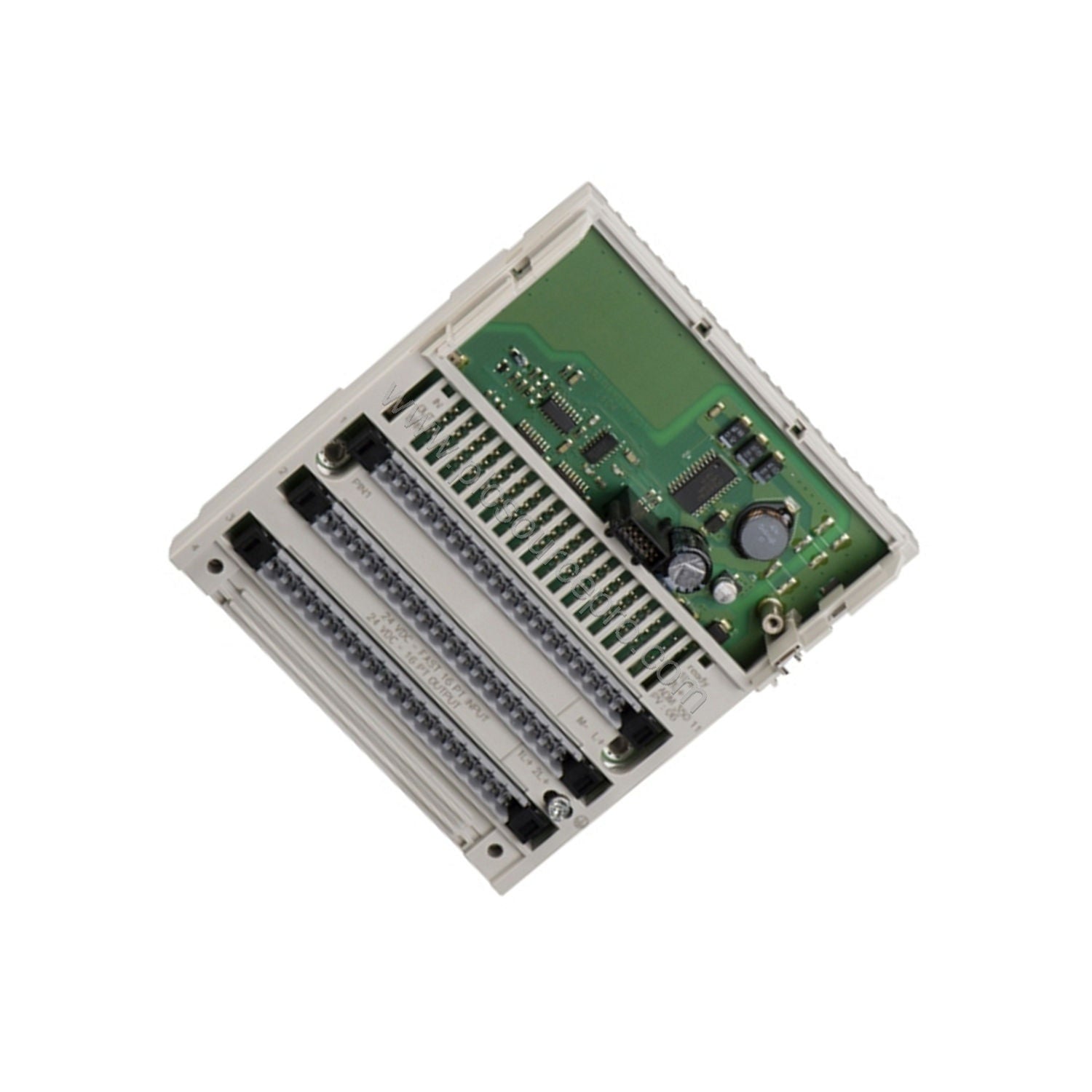

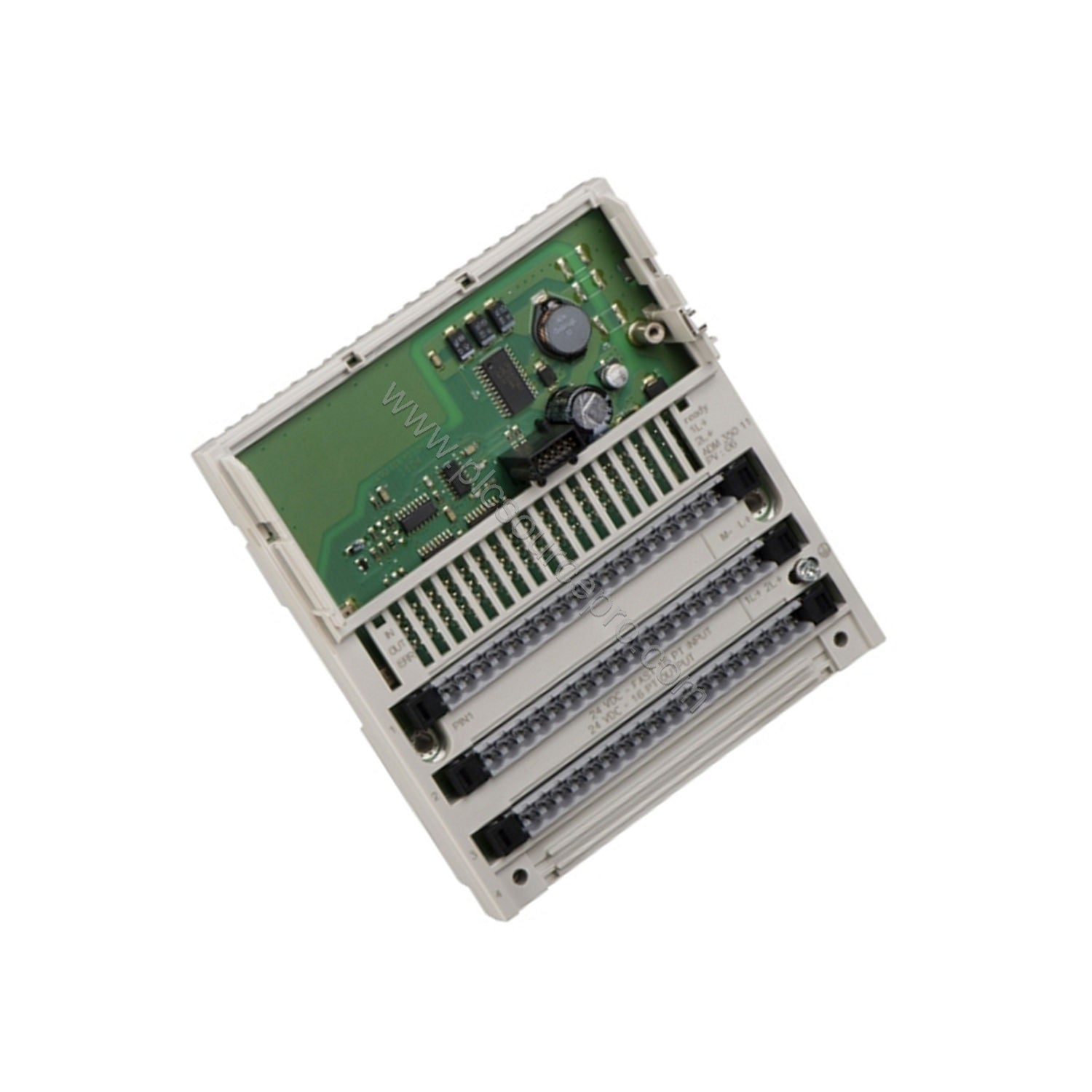

When industrial control systems demand reliable signal handling and efficient power management, the Schneider 170ADM85010 I/O module delivers. Part of the Modicon Momentum series, this module combines 16 input and 16 output channels to streamline data acquisition and actuator control. Designed with a power factor of 0.98.7, it minimizes energy losses, directly contributing to lower operational costs—a key advantage for facilities focused on ROI.
Technical Specifications Breakdown
The Schneider 170ADM85010 offers a robust set of parameters that ensure adaptability across various industrial environments:
-
Voltage Range: 10 V to 60 V DC — accommodates fluctuating power supplies without performance degradation.
-
Current per Channel: 0.5 A — sufficient for driving standard actuators and sensors.
-
Environmental Rating: IP20 enclosure protection suits indoor control cabinets where dust and moisture are minimal.
-
Temperature Range: -20°C to +60°C — maintains operation in demanding thermal conditions.
-
Mounting Type: DIN rail mountable — simplifies installation and reduces panel space.
Each specification directly supports the module’s reliability and efficiency, aligning with our cost-benefit perspective.
Industry Applications
The Schneider 170ADM85010 excels in applications such as conveyor control, packaging machinery, and batch processing. In a typical conveyor system, its 16 inputs monitor photoelectric sensors while the 16 outputs drive motor contactors. The wide voltage range (10-60 V DC) enables integration with existing 24 V DC power architectures, avoiding costly voltage conversion. This adaptability translates to faster commissioning and reduced downtime—both critical for maximizing ROI.
Installation & Setup Guidance
Mount the Schneider 170ADM85010 directly onto a standard DIN rail (35 mm). Ensure the power supply provides 24 V DC (nominal) within the module’s voltage range. Connect input devices to terminals 1–16 and output loads to terminals 17–32, observing polarity for DC circuits. Use a slotted screwdriver to secure wires with torque between 0.5–0.6 Nm. The module’s IP20 protection requires installation inside a cabinet to prevent dust ingress. No special grounding beyond standard industrial practices is needed.
Maintenance & Reliability
Regular inspection of the Schneider 170ADM85010 focuses on terminal tightness and ambient temperature. Signs of overheating (e.g., discolored plastic) or loose connections should be addressed immediately. The module’s wide temperature range (-20°C to +60°C) reduces failure risk in non-climate-controlled areas. Its high power factor (0.98.7) indicates efficient energy use, lowering electricity bills and prolonging component life—a direct contributor to long-term savings.
Selection Guide & Purchasing Advice
Before ordering, verify your system’s voltage requirements (10–60 V DC) and channel count. The Schneider 170ADM85010 is ideal for applications needing 16 I/O points each. If you need more channels, consider pairing multiple modules via the Modicon Momentum backplane. For reliable sourcing, visit ubest101 to ensure genuine Schneider parts with fast delivery.
