Product Introduction

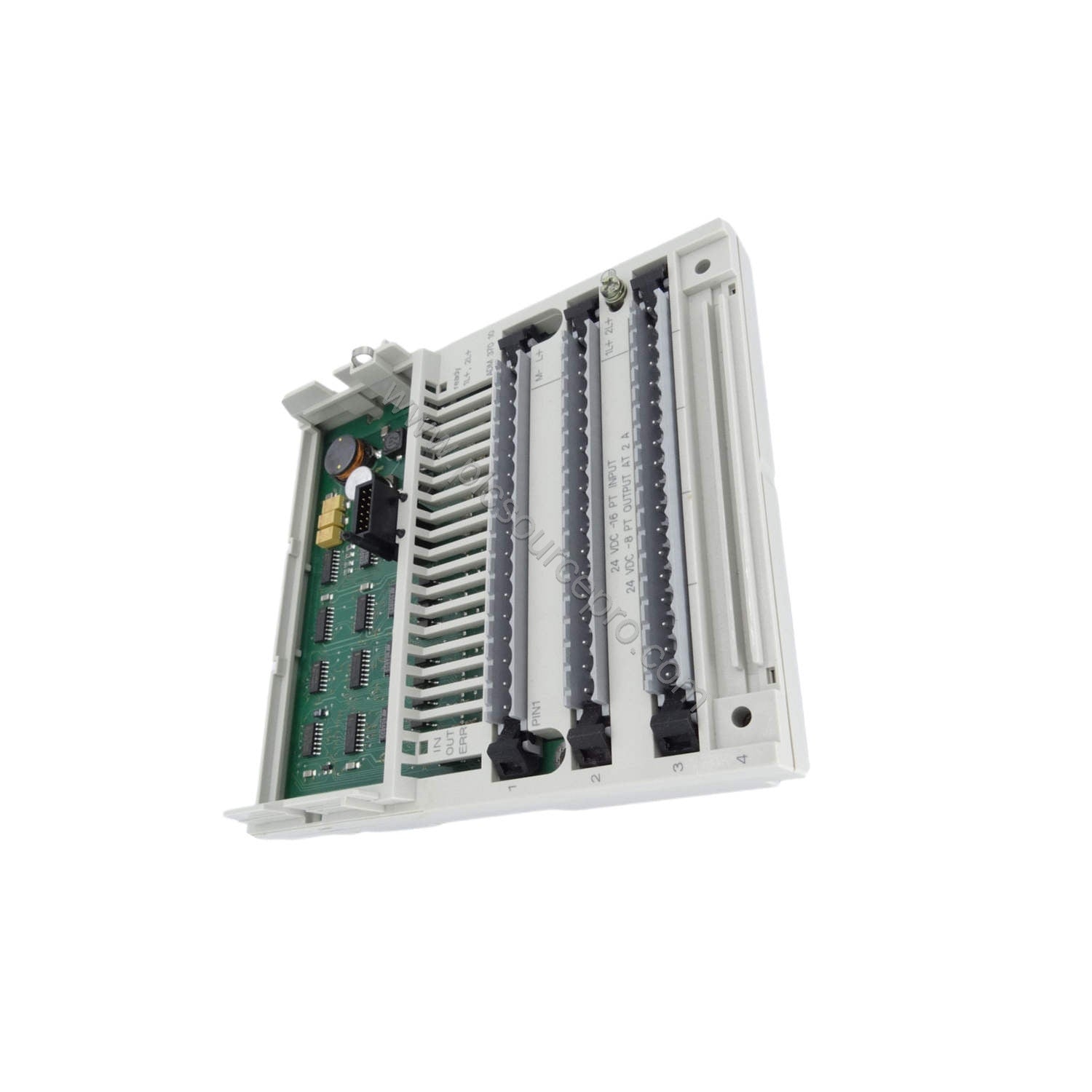

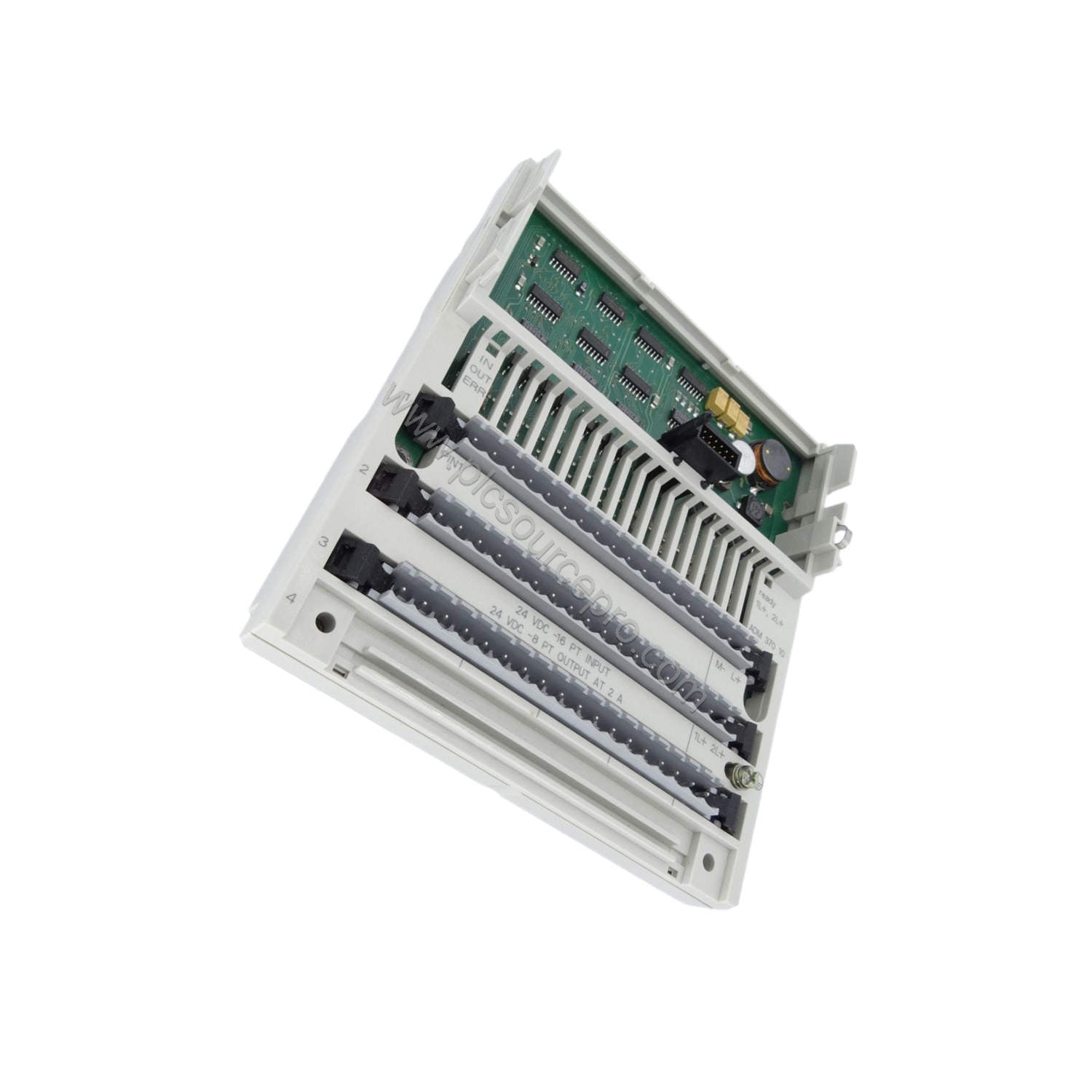

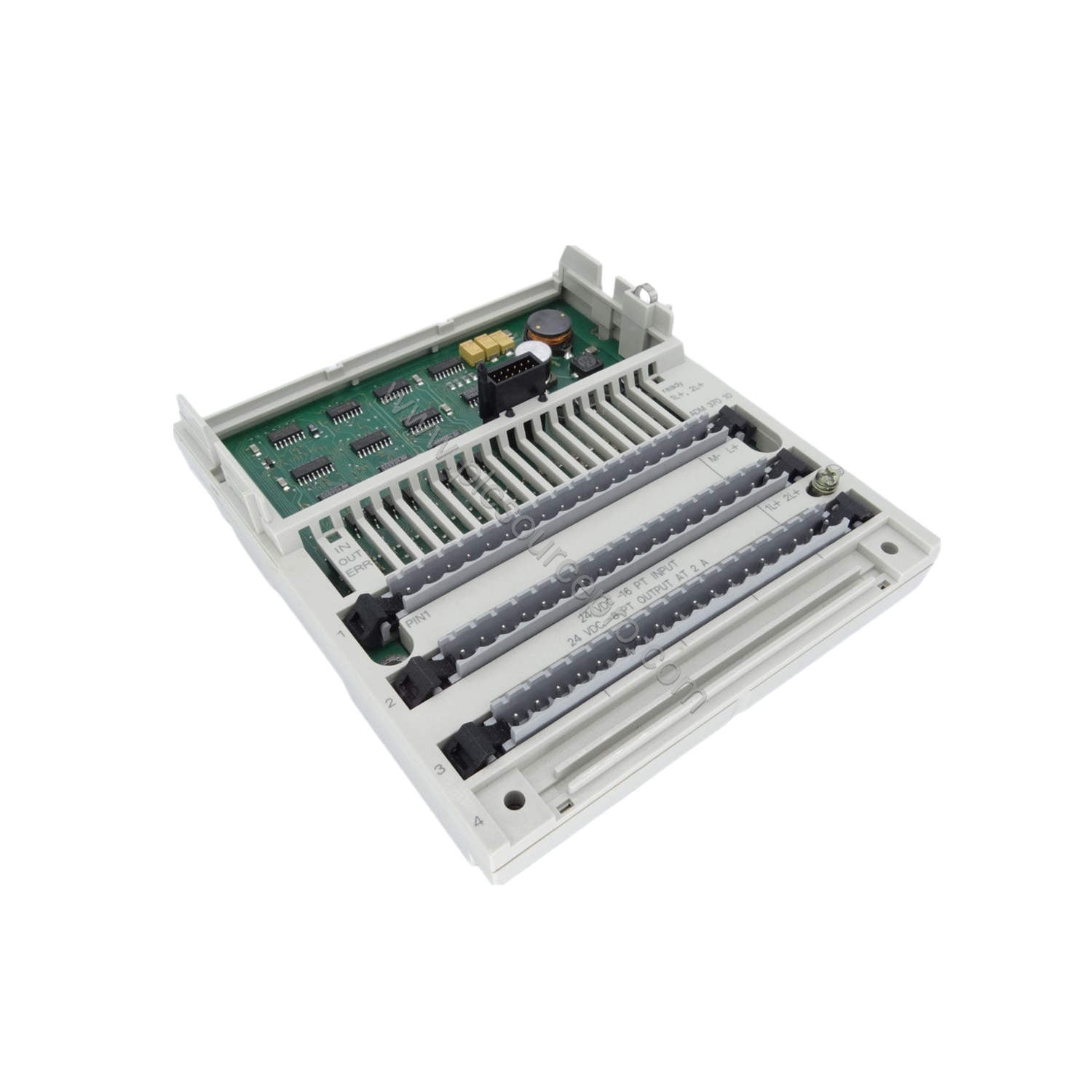

The Schneider 170ADM37010 Discrete I/O Base is a key component in the Modicon Momentum series. Designed for industrial automation, this unit provides 16 discrete inputs and 8 outputs, operating at 24 V DC. Its robust construction and protective TC treatment ensure long service life in harsh environments.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Part Number |
170ADM37010 |
| Product Type |
Discrete I/O Base |
| Number of Inputs |
16 |
| Number of Outputs |
8 |
| Input Voltage |
24 V DC |
| Output Voltage |
24 V DC (up to 30 V DC) |
| Logic Type |
Positive (both input and output) |
| Output Type |
Solid-state switch |
| Input Groups |
4 |
| Output Groups |
2 |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Maximum Humidity |
95% (non-condensing) |
| Weight |
1.00 lbs (0.45 kg) |
These specifications make the Schneider 170ADM37010 a reliable choice for discrete I/O applications. The unit supports positive logic for both inputs and outputs, ensuring compatibility with most control systems.
Industry Applications
The Schneider 170ADM37010 is ideal for manufacturing and process control. Example applications include:
- Assembly line monitoring: Uses 16 inputs to detect part presence and 8 outputs to actuate solenoids.
- Packaging machinery: Controls conveyor belts and sorting gates.
- Material handling: Manages sensors and actuators in warehouse automation.
Maintenance & Reliability
With protective TC treatment, the 170ADM37010 resists environmental stress. Regular inspection of connections and environmental conditions is recommended. The wide operating temperature range (0°C to 60°C) and high humidity tolerance (95% non-condensing) contribute to long-term reliability, reducing total cost of ownership.
Selection Guide & Purchasing Advice
When selecting the Schneider 170ADM37010, ensure your system uses 24 V DC positive logic. This module is a direct fit for Modicon Momentum racks. For pricing and availability, contact UBEST Automation, a trusted supplier of industrial automation parts. For more details, visit ubest101.myshopify.com.
