Product Introduction

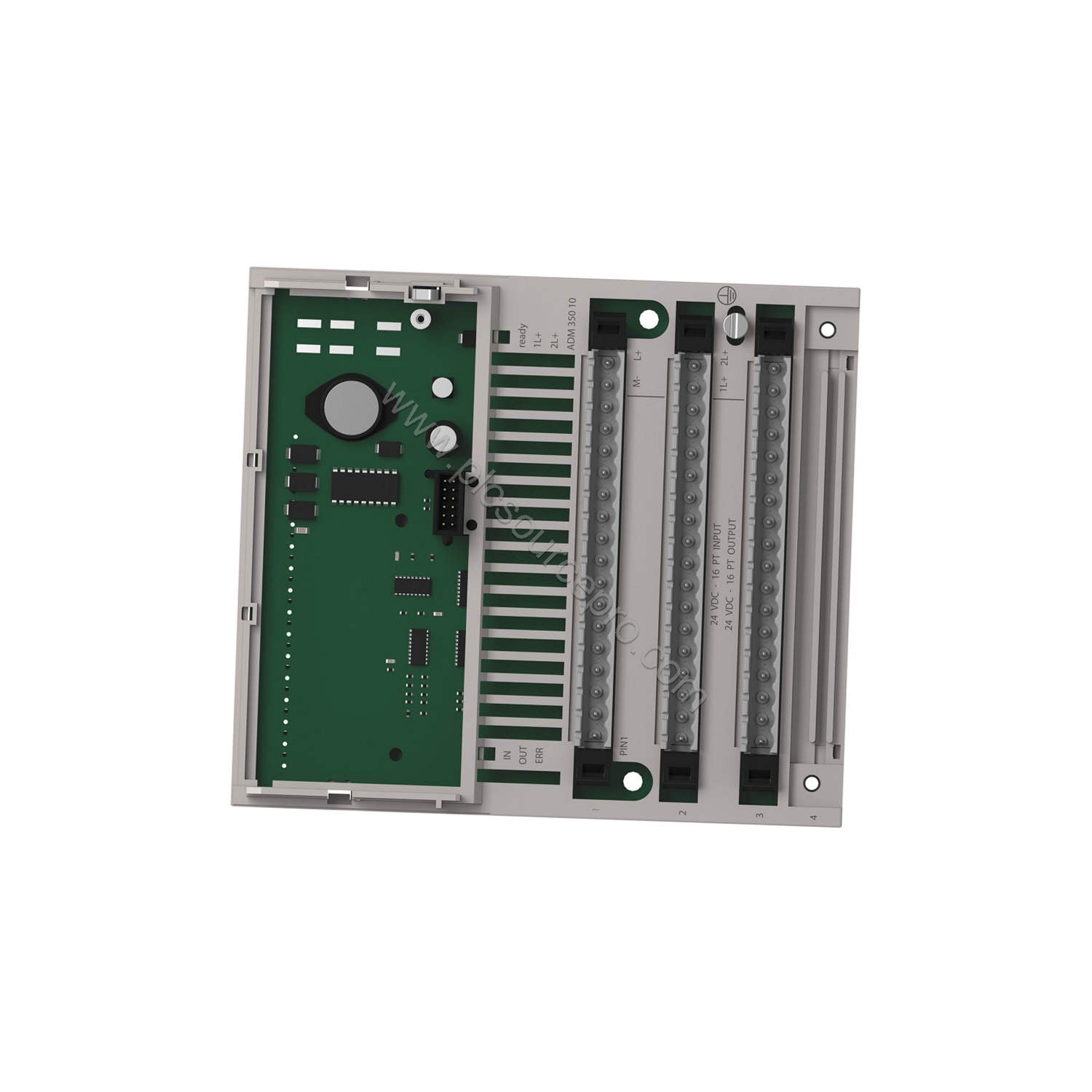

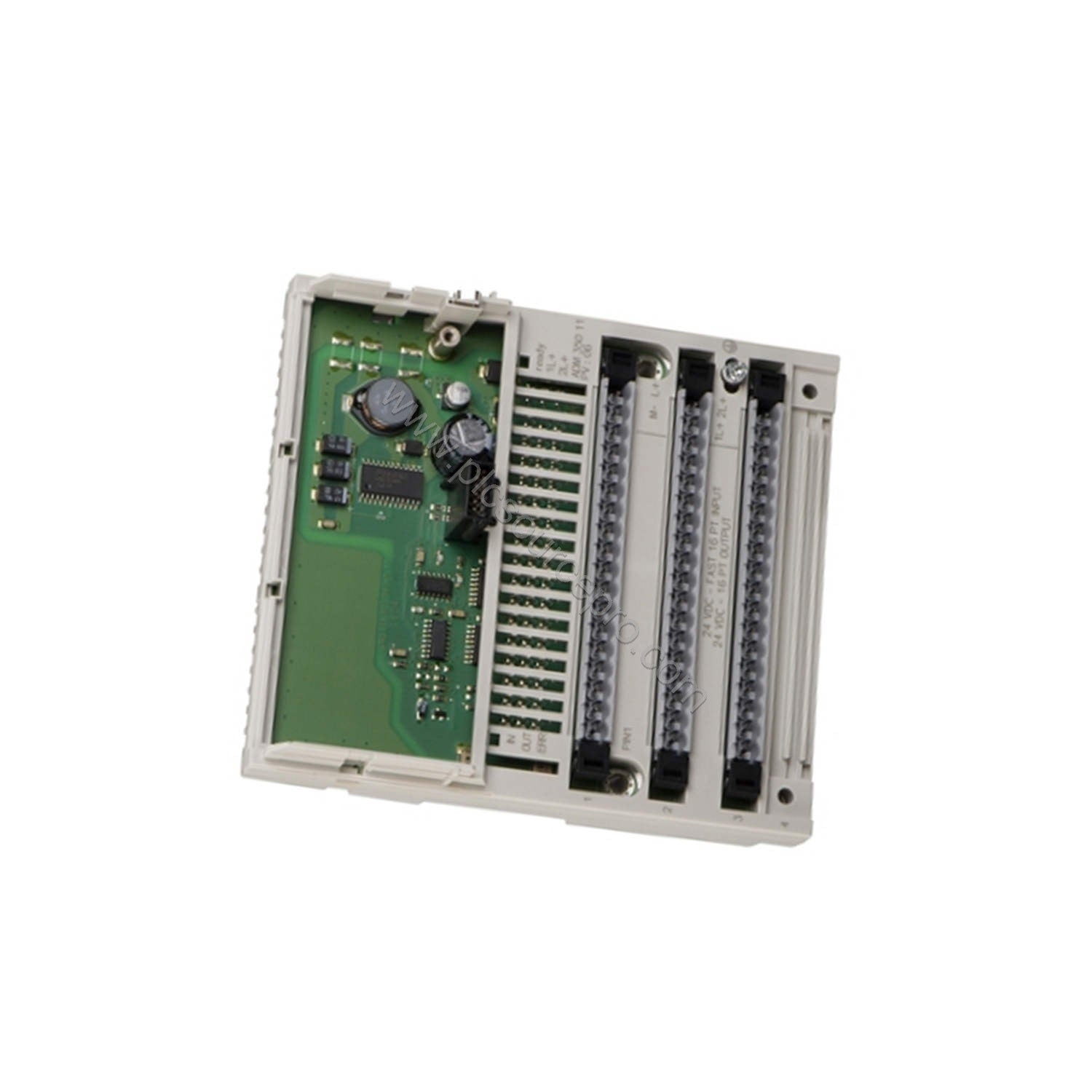

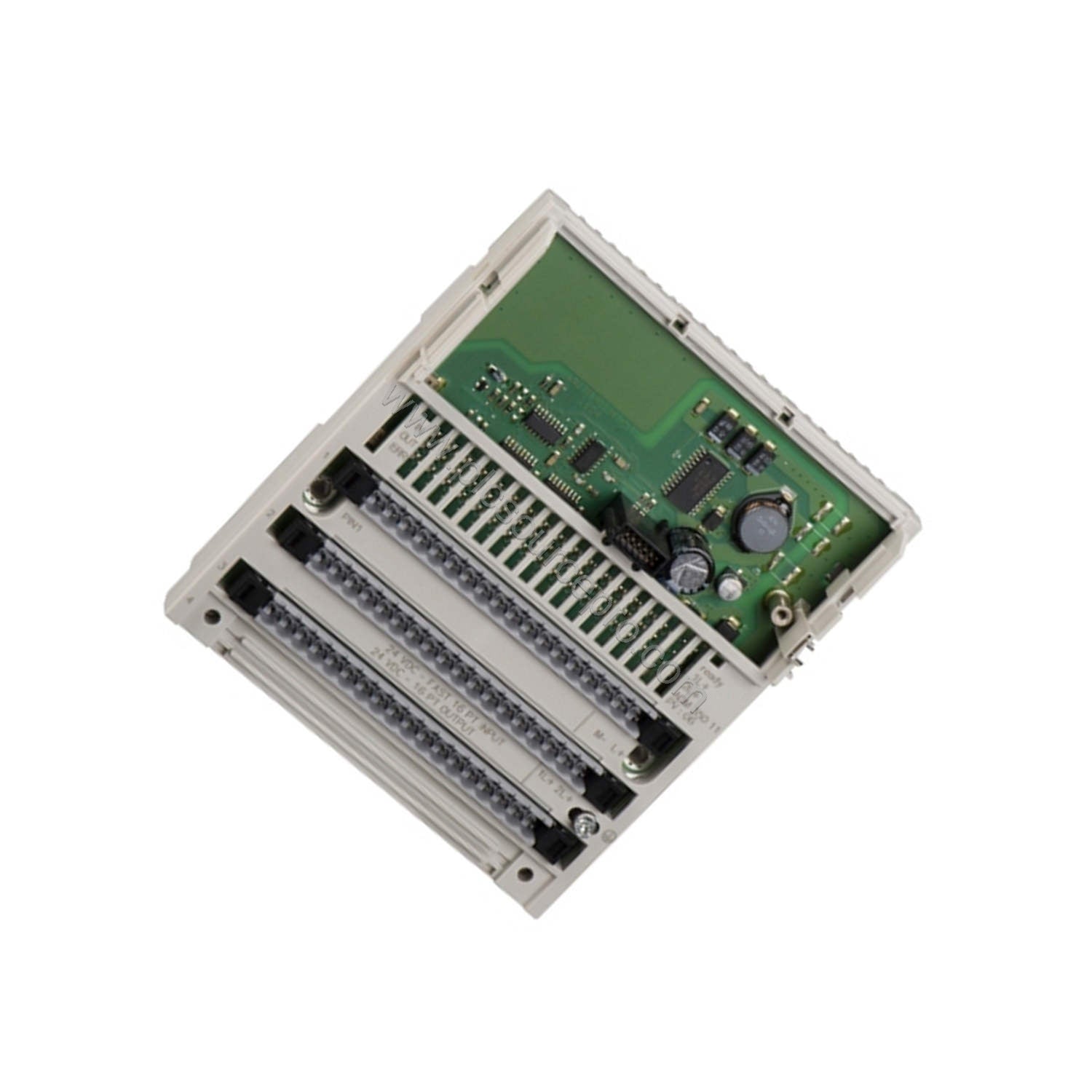

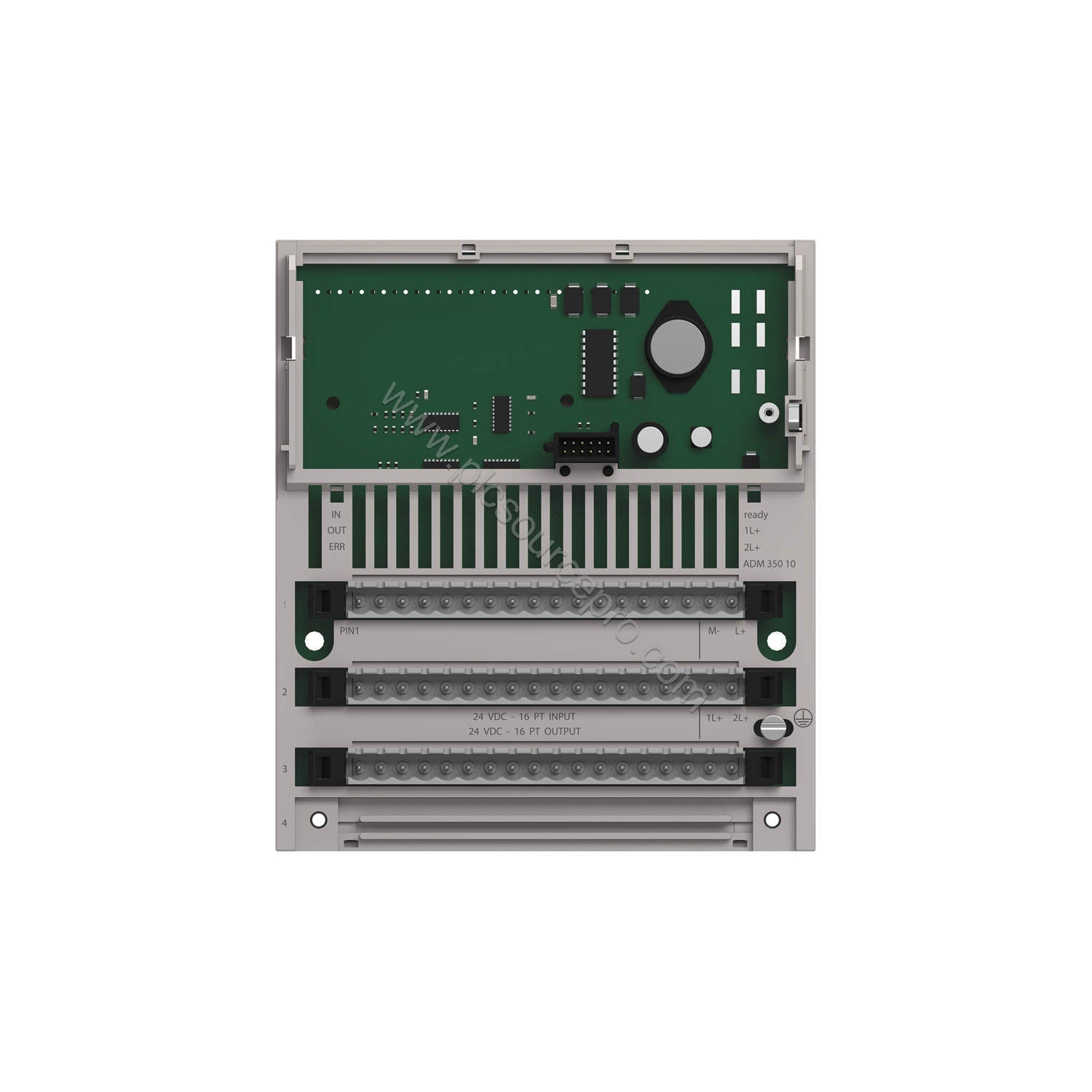

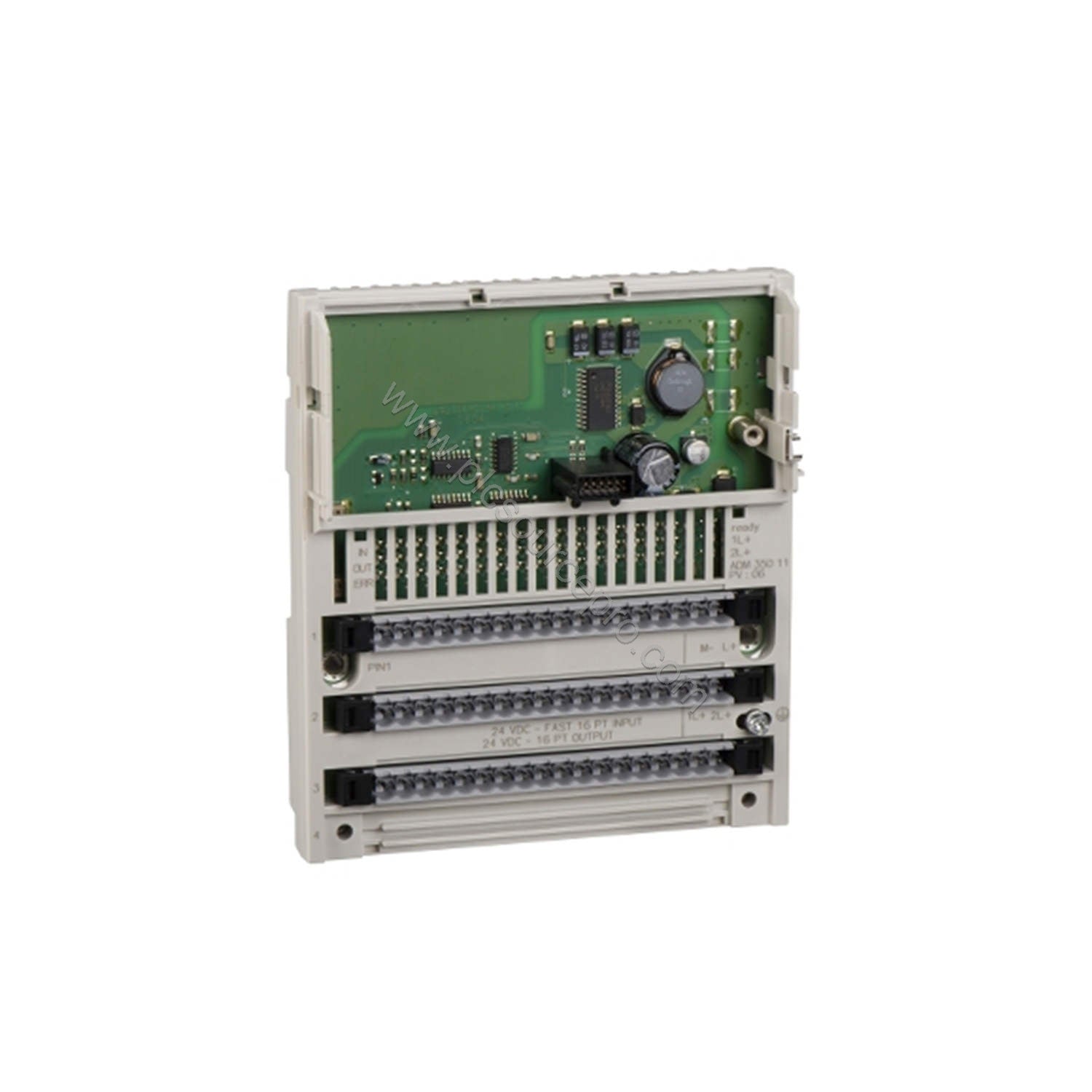

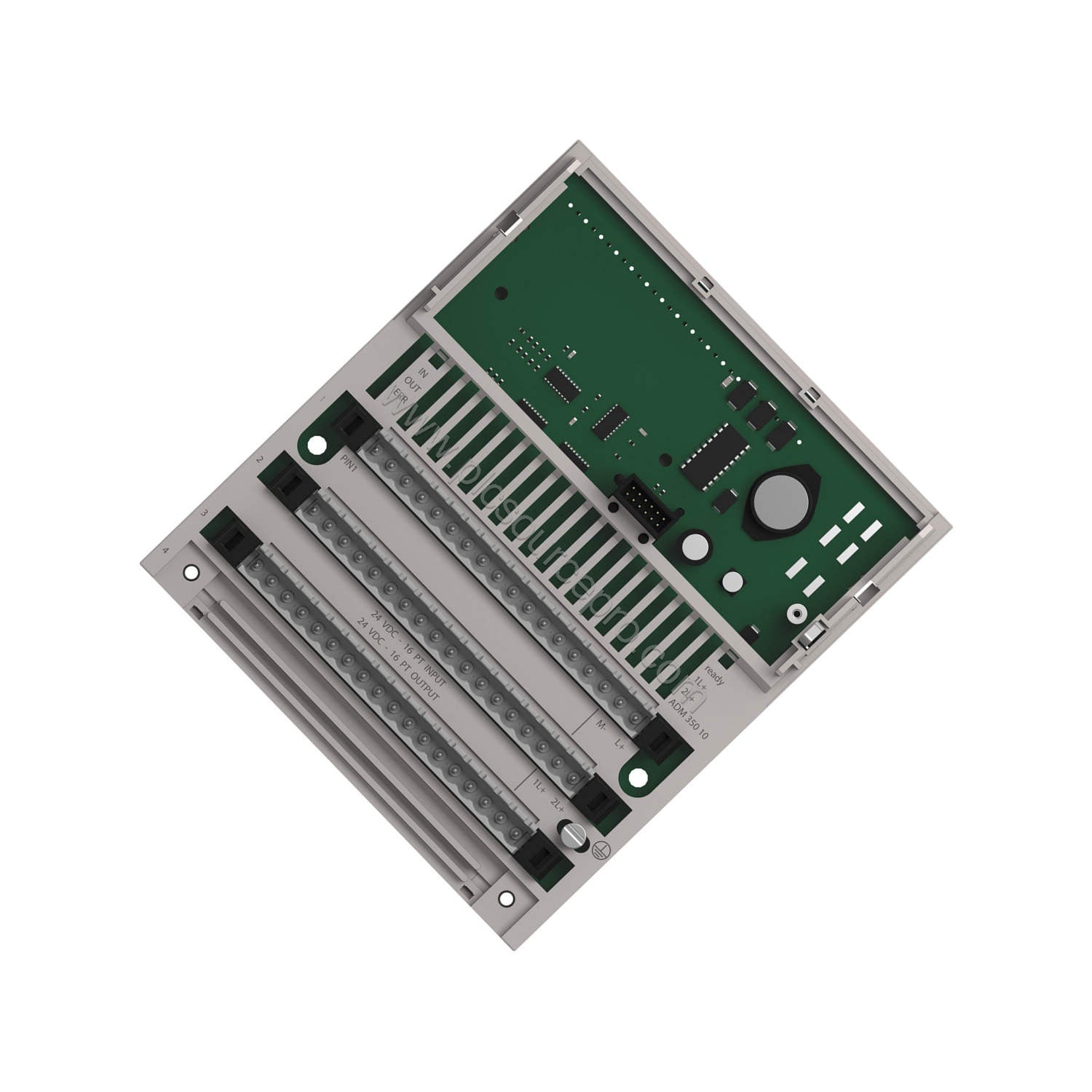

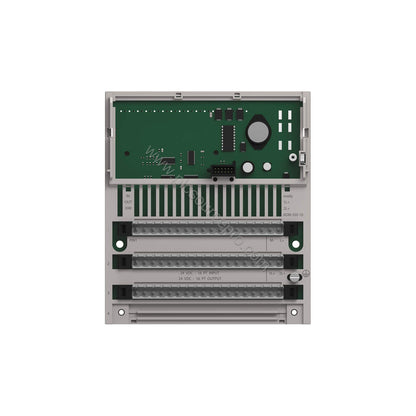

When upgrading legacy control systems, the Schneider 170ADM35010C Discrete I/O Module provides a reliable drop-in solution. Part of the Modicon Momentum series, this module is designed for precise discrete input/output operations in demanding industrial environments. It supports 16 digital inputs and 16 digital outputs, operating at 24 V DC, making it ideal for modernizing older PLC racks without extensive rewiring. The conformal coating (Humiseal 1A33) protects against moisture and dust, extending service life in applications like food processing or chemical plants.
Technical Specifications Breakdown
The following table presents the key parameters of the Schneider 170ADM35010C:
| Parameter |
Value |
| Product Type |
Discrete I/O Module |
| Input/Output Type |
16 DI / 16 DO |
| Input Voltage |
24 V DC |
| Network Frequency |
47-63 Hz |
| Output Voltage |
≤ 30 V DC |
| Output Current per Channel |
0.5 A |
| Input Resistance |
4 kΩ |
| Operating Temperature |
-40°C to +70°C |
| Humidity Range |
Up to 80% RH (non-condensing) |
| Protection |
Conformal Coating (Humiseal 1A33) |
| Output Type |
Solid State Switch |
| Input/Output Logic |
Positive |
These specifications ensure the Schneider 170ADM35010C can withstand harsh conditions while delivering consistent performance. The solid-state switches eliminate mechanical wear, reducing maintenance intervals. The 4 kΩ input resistance minimizes false triggers in electrically noisy environments.
Industry Applications
The Schneider 170ADM35010C is well-suited for upgrading older I/O systems in manufacturing, packaging, and material handling. Its 16 digital inputs and 16 outputs can directly replace legacy 24 V DC modules, reducing downtime during retrofit projects. The wide temperature range makes it reliable in unheated warehouses or refrigerated environments. In water treatment facilities, the conformal coating resists corrosion from humidity and chemical vapors.
Installation & Setup Guidance
Mount the Schneider 170ADM35010C securely on a DIN rail or panel. Wire inputs according to the positive logic sinking/sourcing configuration. Ensure the power supply delivers stable 24 V DC. For output channels, confirm that the load current does not exceed 0.5 A per channel. The solid-state outputs require no external snubbers for inductive loads below the rating. Always disconnect power before installation or removal.
Selection Guide & Purchasing Advice
Before purchasing, verify your PLC backplane compatibility with Modicon Momentum I/O modules. The Schneider 170ADM35010C is a direct replacement for older 170 ADM models. For additional support or bulk pricing, contact UBEST Automation at ubest101.myshopify.com. Our team can help you match the module to your existing system and ensure a smooth transition.
