Product Introduction

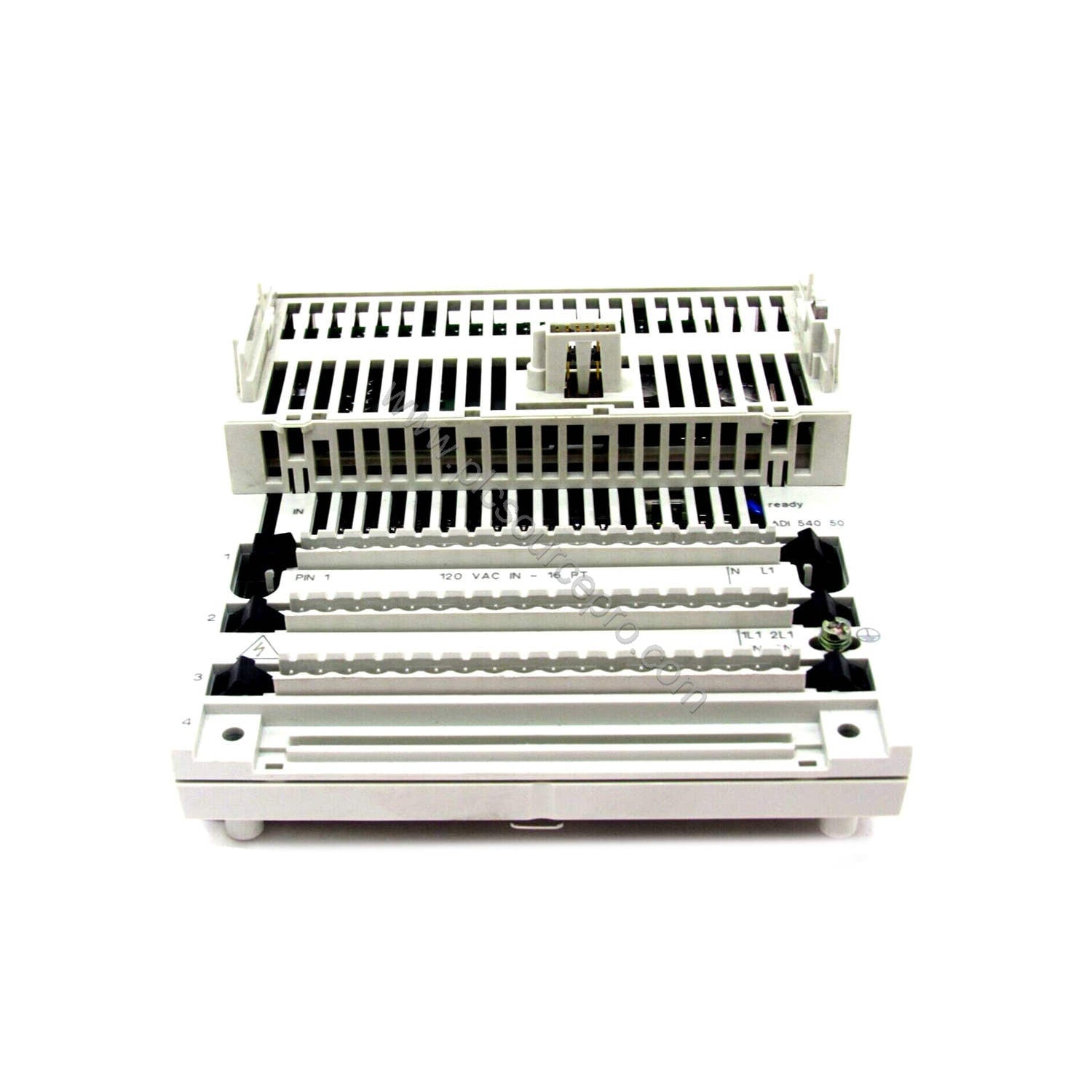

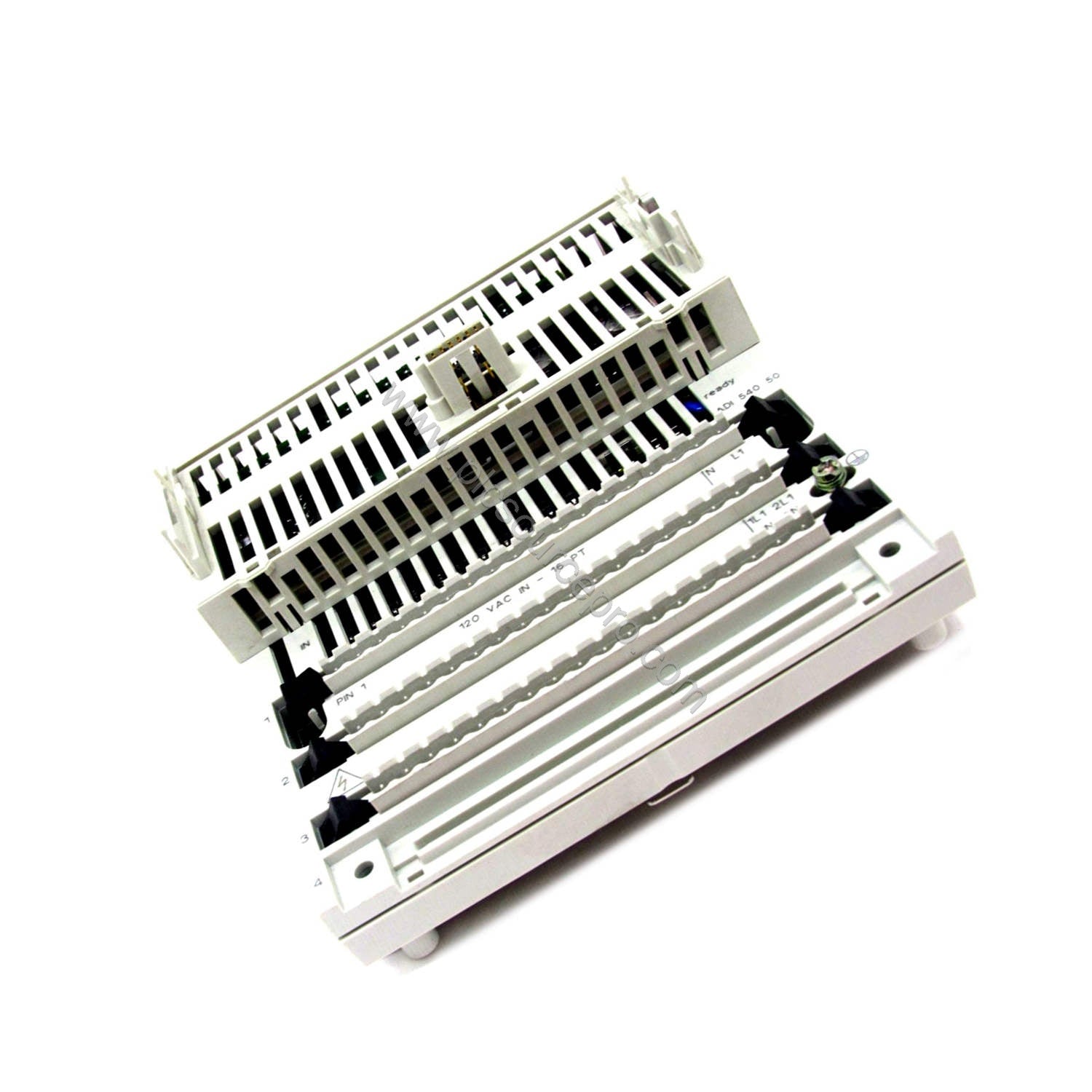

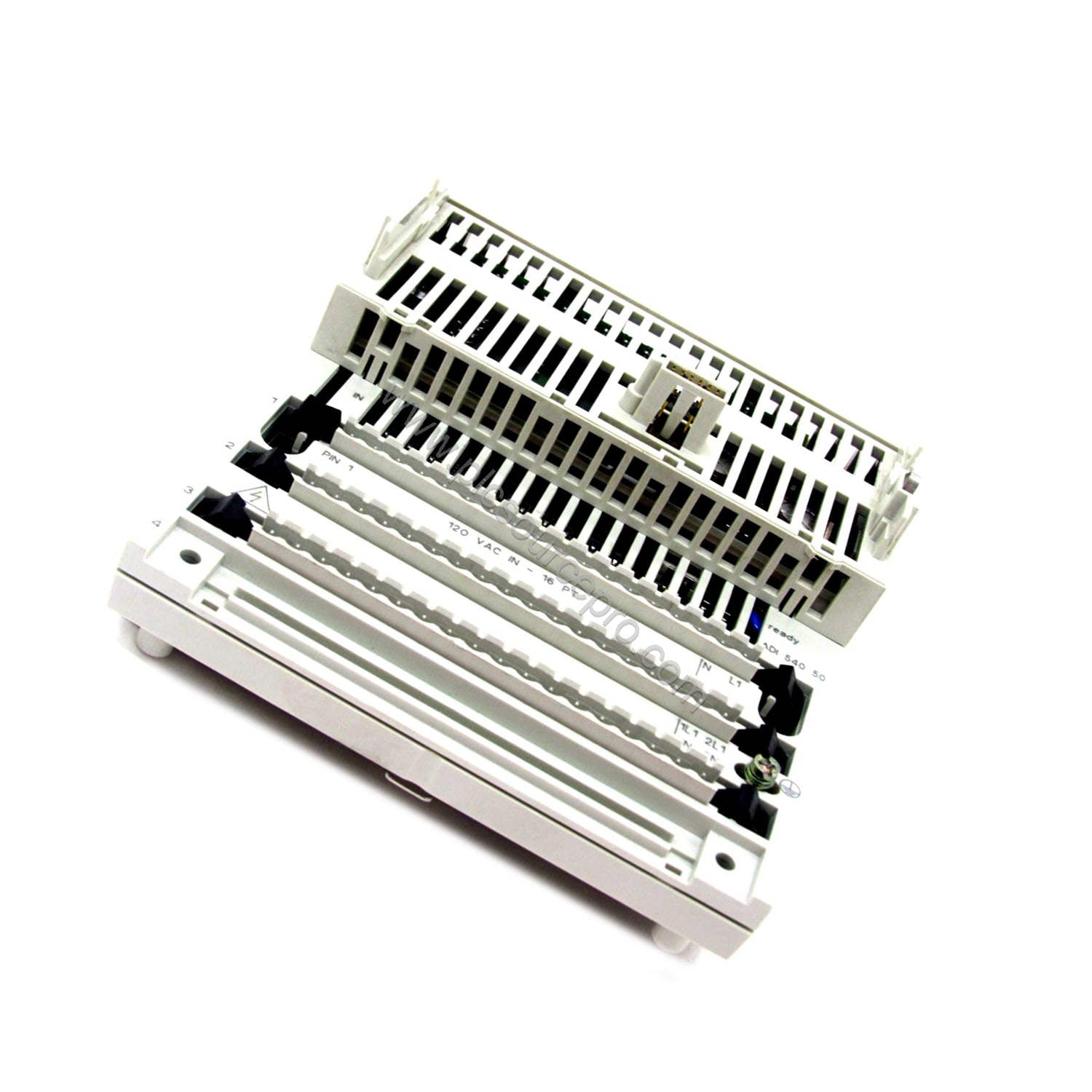

When reliable discrete input detection is critical for your automation system, the Schneider 170ADI54050 discrete input base provides a robust solution. Part of the Modicon Momentum series, this module delivers 16 channels organized into two groups of eight inputs, each accepting 120V AC signals. Its positive input logic and wide voltage tolerance (85–132V AC) make it a versatile choice for mid-level industrial control tasks.
Technical Specifications Breakdown
The Schneider 170ADI54050 is engineered for precision and durability. Below are its key parameters:
| Parameter |
Value |
| Number of Channels |
16 (2 groups of 8) |
| Discrete Input Voltage |
120V AC |
| Input Logic |
Positive |
| Voltage Range |
0–132V AC |
| Network Frequency |
47–63 Hz |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Relative Humidity |
95% (non-condensing) |
| Isolation Between Groups |
1780V AC |
| Isolation Channel-to-Bus |
1780V AC |
| Protective Treatment |
TC (conformal coating) |
These specifications ensure the Schneider 170ADI54050 operates reliably even in harsh electrical environments. The protective TC treatment guards against moisture and contaminants, while the high isolation levels prevent interference between input groups.
Industry Applications
The Schneider 170ADI54050 discrete input base excels in applications requiring dependable AC input sensing. Common use cases include:
-
Conveyor Systems: Monitoring limit switches and photoelectric sensors in material handling lines.
-
Packaging Machinery: Detecting product presence, position, and jams with 120V AC proximity sensors.
-
HVAC Control: Reading status signals from pumps, fans, and damper actuators in building automation.
By integrating the Schneider 170ADI54050 into your Modicon Momentum rack, you gain a cost-effective upgrade path from older discrete modules, reducing downtime and maintenance overhead.
Maintenance & Reliability
Designed for longevity, the Schneider 170ADI54050 includes protective TC treatment that resists corrosion and dust accumulation. Its operating range from 0°C to 60°C covers typical factory floor conditions, while the storage range of -40°C to 85°C allows safe warehousing in extreme climates. To maximize service life, inspect the module annually for signs of thermal stress or physical damage. Because input circuits use positive logic, wiring mistakes are less likely, reducing field failures.
Selection Guide & Purchasing Advice
Before purchasing the Schneider 170ADI54050, confirm that your system uses 120V AC discrete inputs and requires positive logic. This module is a direct replacement for many older Modicon Momentum input bases. For genuine parts and competitive pricing, rely on UBEST Automation (ubest101), an industrial automation supplier with extensive inventory of PLC, DCS, and control system spares. Ensure your project needs match the 16-channel configuration and group isolation rating.
