Product Introduction

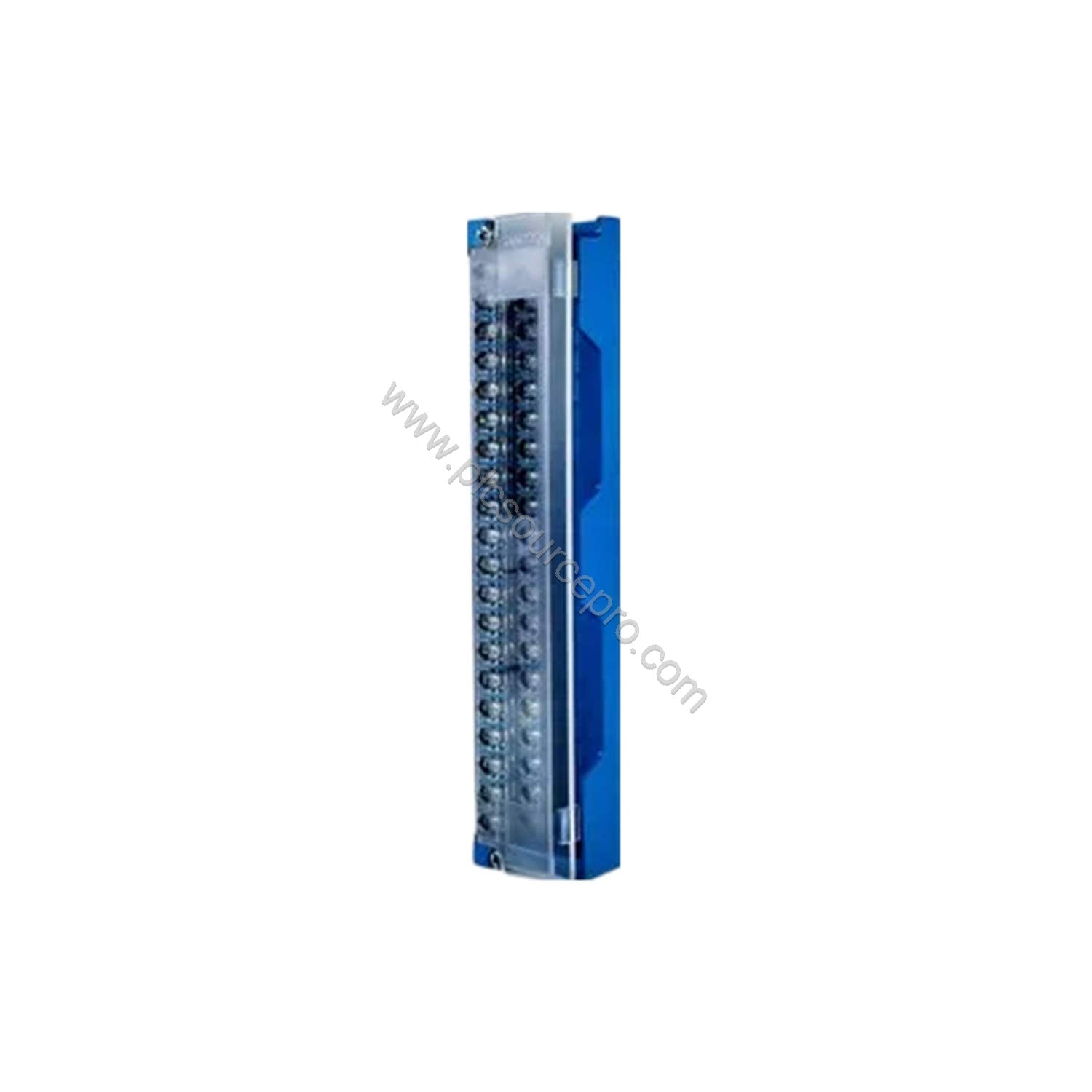

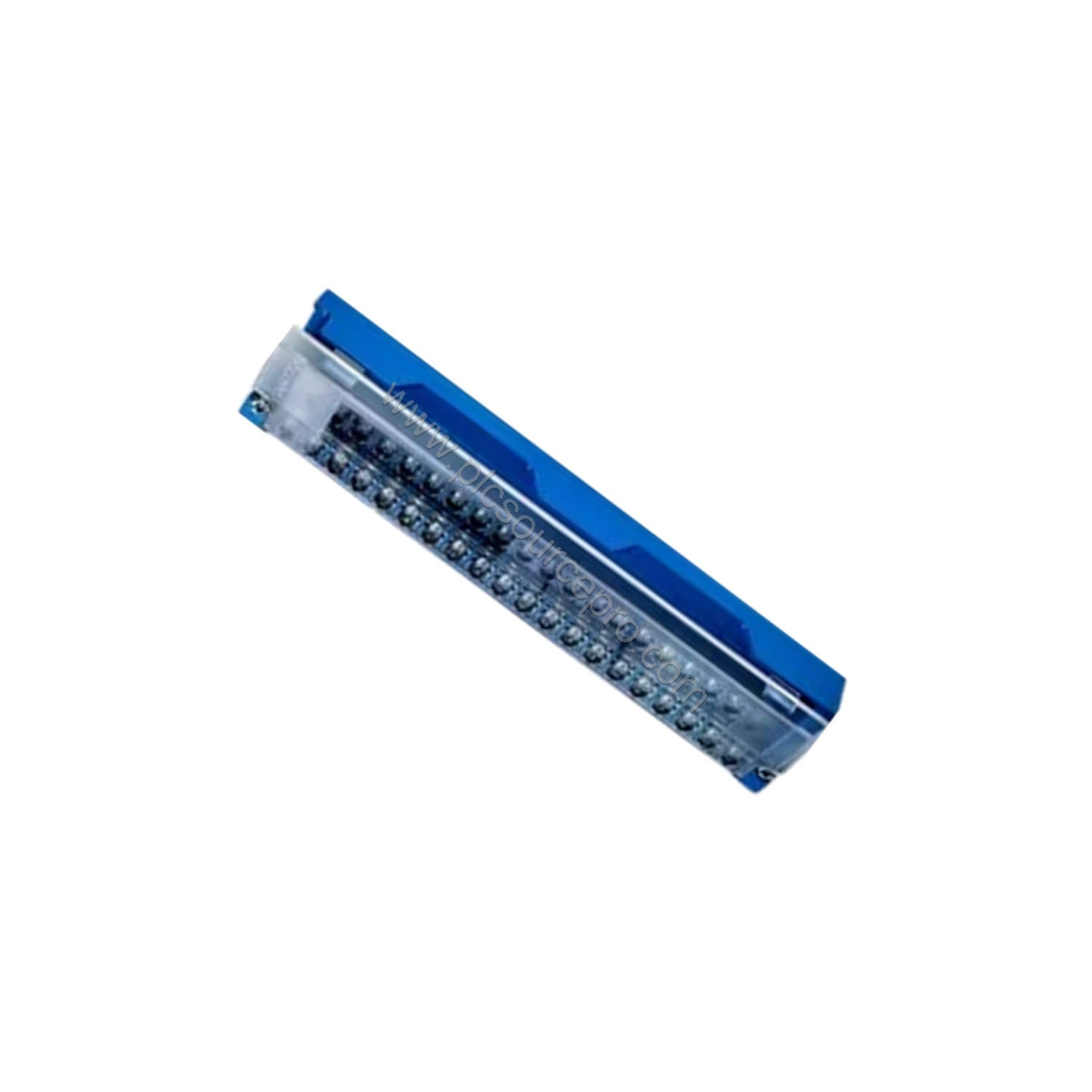

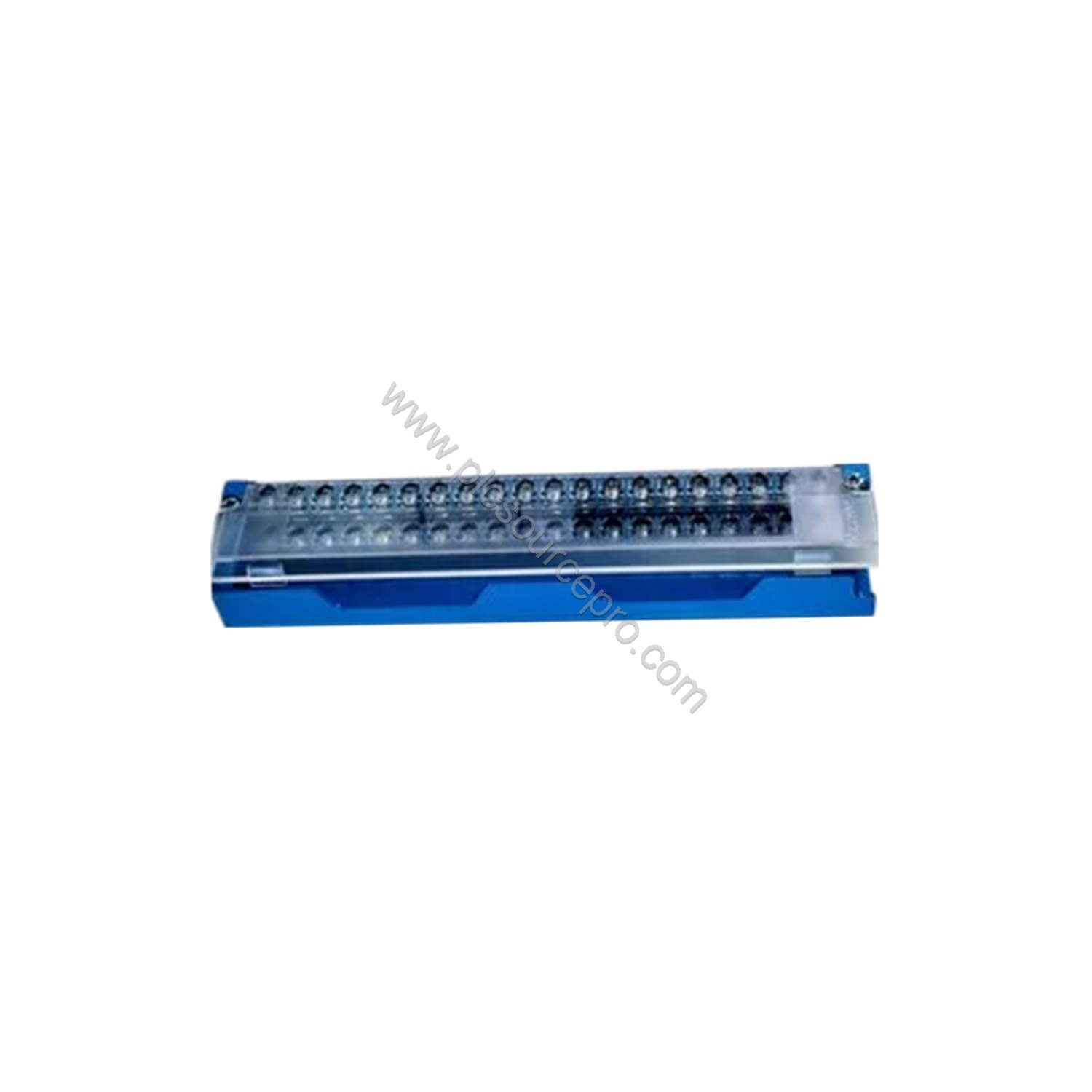

When signal integrity and safety are paramount in hazardous industrial environments, the Schneider 140XTS33200 Input/Output Connector delivers reliable performance. Part of the Modicon Quantum series, this 8-channel connector provides galvanic isolation between channels, preventing electrical interference and ensuring stable operation in applications like HVAC systems, automotive testing, and power plants. The Schneider 140XTS33200 features 40 pins and an IP20 protection rating, making it ideal for control cabinets.
Technical Specifications Breakdown
The Schneider 140XTS33200 offers critical specifications that directly impact system reliability and safety:
-
Number of Channels: 8 channels – allows connection of multiple field devices.
-
Galvanic Isolation: Between channels – prevents ground loops and signal crosstalk.
-
Intrinsically Safe Design: Suitable for explosive atmospheres.
-
Pin Count: 40 pins – provides ample connectivity.
-
Weight: 0.31 lbs (0.14 kg) – lightweight for easy installation.
-
Protection Rating: IP20 – protects against solid objects larger than 12.5 mm.
These specifications ensure the Schneider 140XTS33200 minimizes common failure modes like electrical noise and short circuits.
Industry Applications
The Schneider 140XTS33200 excels in environments requiring intrinsic safety. In a food processing plant, the connector’s galvanic isolation protects sensitive sensors from motor drive interference, reducing false readings. Similarly, in a boiler control system, the IP20 rating and robust design maintain signal integrity despite temperature fluctuations. Automotive testing facilities benefit from the connector’s high channel density, allowing multiple test points in a compact footprint.
Installation & Setup Guidance
Mount the Schneider 140XTS33200 inside a control cabinet to maintain IP20 protection. Ensure the terminal strip (blue color code) is properly keyed to match the intended module (e.g., 140AII33000 or 140DII33000). Use shielded cables for long runs to maximize noise immunity. Verify that all 40 pins are securely seated before powering the system; a loose connection can cause intermittent faults.
Maintenance & Reliability
Routine inspection of the Schneider 140XTS33200 every six months is recommended. Check for dust accumulation on the connector housing, which could compromise the IP20 seal. Due to the intrinsically safe rating, avoid using non‑approved cleaning solvents. The galvanic isolation design inherently reduces wear on adjacent electronics, extending overall system life and lowering total cost of ownership.
Selection Guide & Purchasing Advice
Before purchasing the Schneider 140XTS33200, verify compatibility with your specific Modicon Quantum I/O modules. It works directly with 140AII33000, 140DII33000, 140DIO33000, 140AII33010, and 140AIO33000. If you are replacing an existing connector, confirm the pin count and channel configuration match. For fast delivery and genuine parts, trust UBEST Automation (ubest101.myshopify.com) as your reliable supplier.
