Product Overview

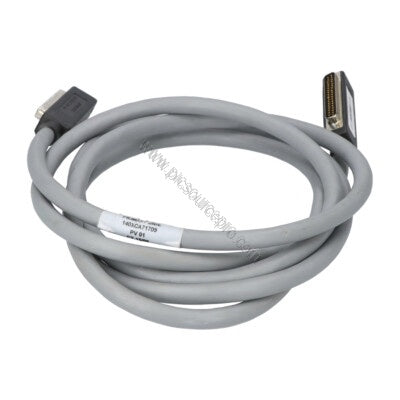

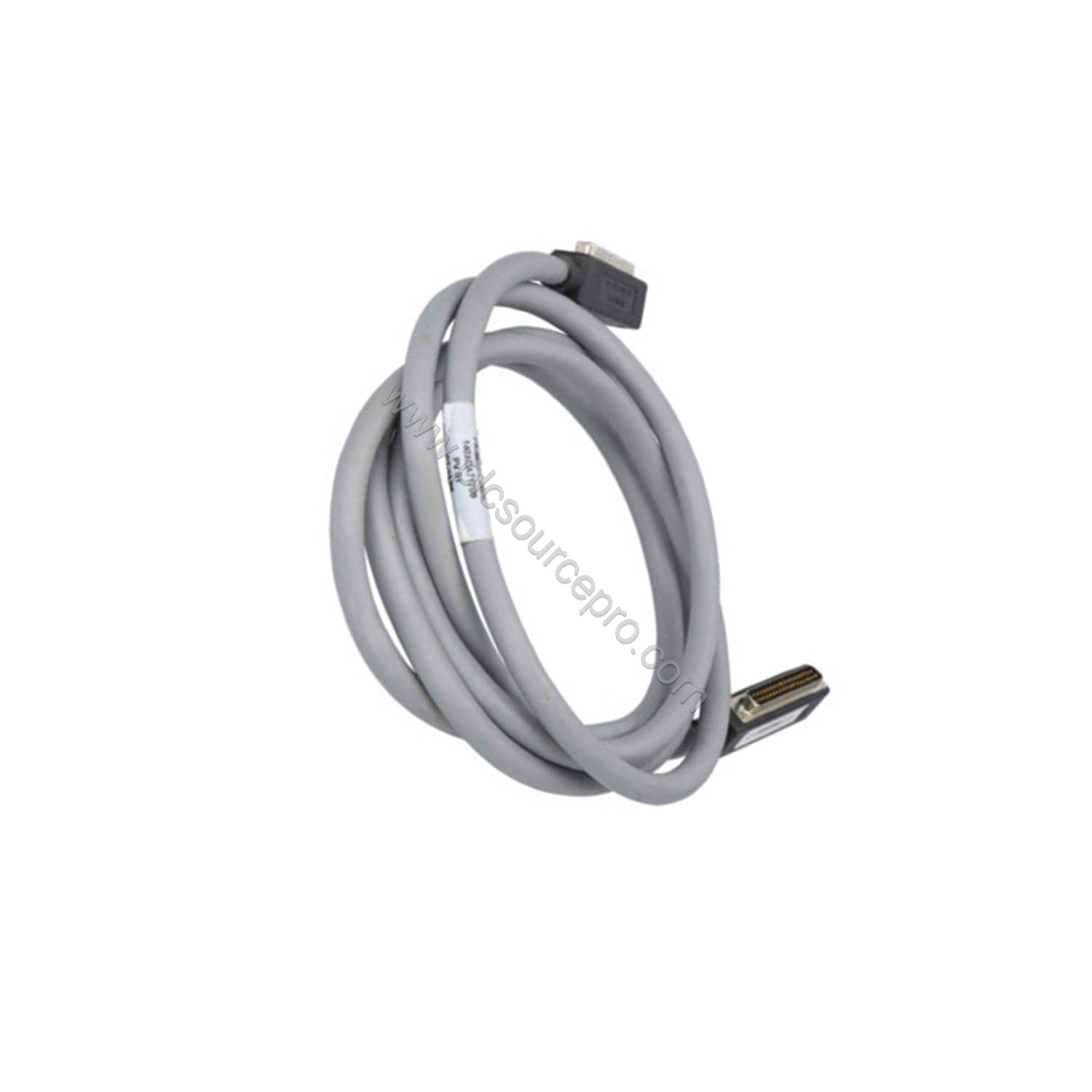

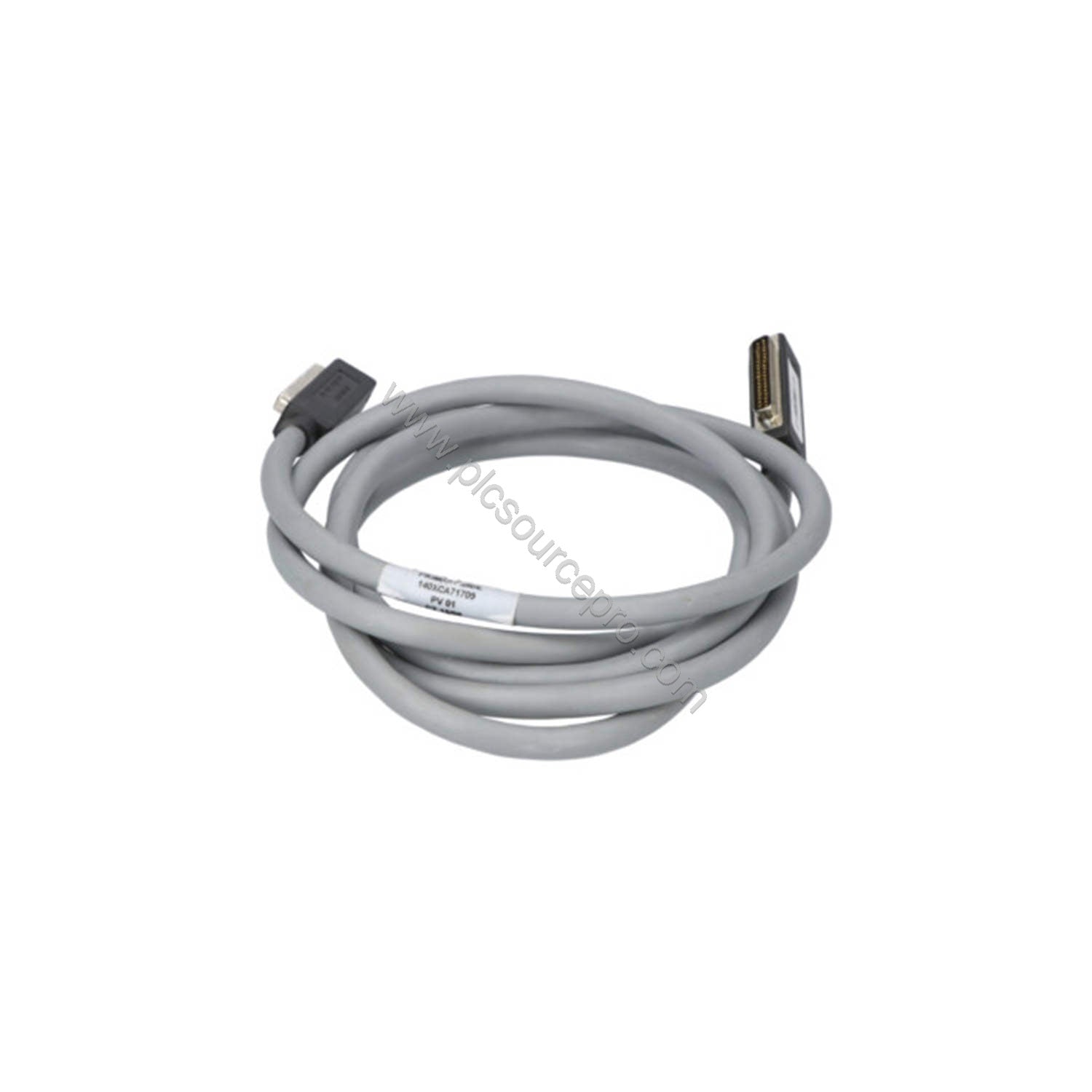

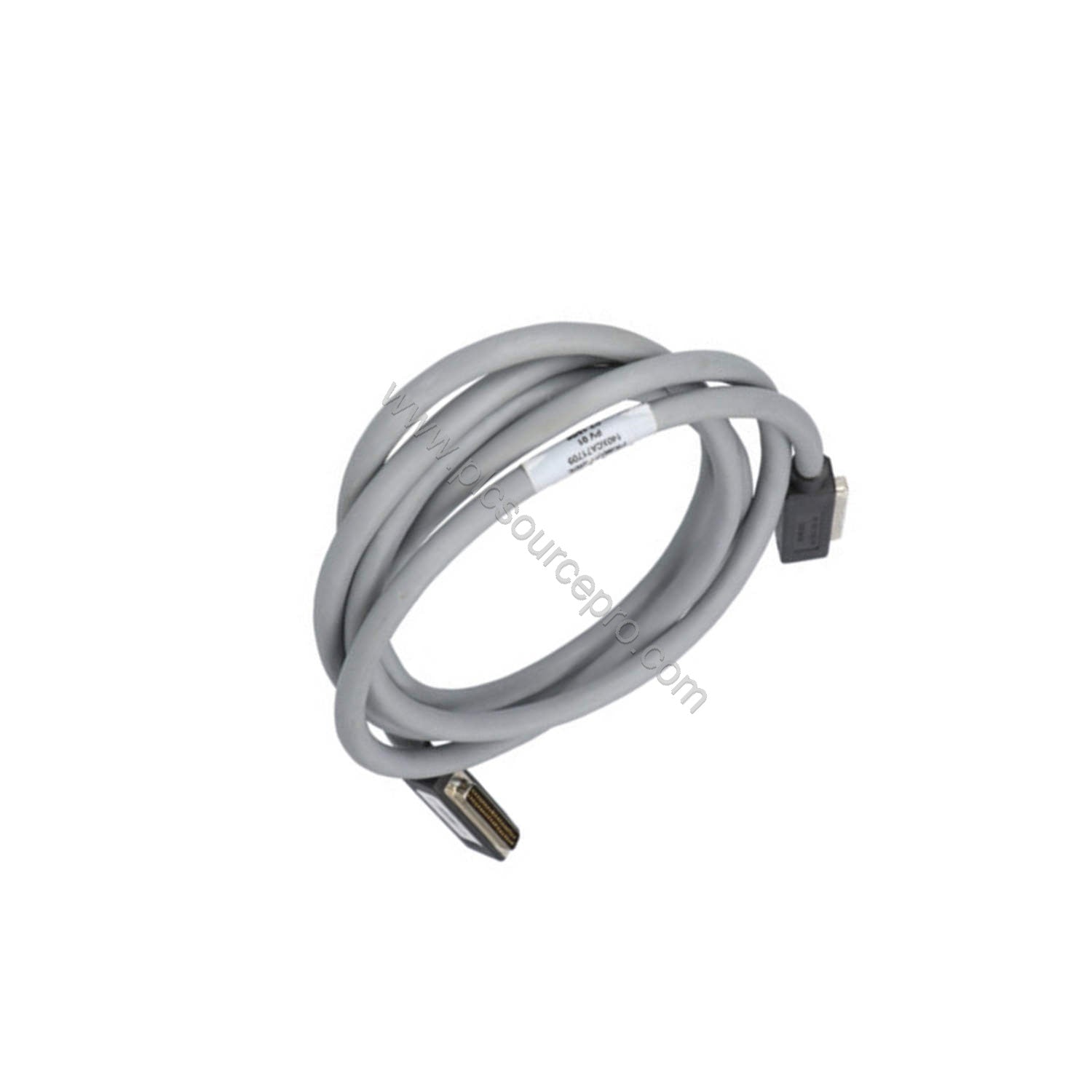

The Schneider 140XCA71709 is a backplane expander cable engineered for the Modicon Quantum automation platform. With a robust 3-meter length, this cable ensures reliable communication between components in industrial control systems. Designed to operate in harsh environments, the 140XCA71709 delivers consistent performance across a wide temperature range, reducing the risk of system downtime and maintenance costs.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Backplane expander cable |
| Product Line |
Modicon Quantum |
| Part Number |
140XCA71709 |
| Cable Length |
9.84 feet (3 meters) |
| Weight |
2.00 lbs (0.91 kg) |
| Operating Temperature Range |
-20°C to 60°C |
| Storage Temperature Range |
-40°C to 85°C |
| Altitude Range |
Up to 2000 meters |
| IP Rating |
IP20 |
| Input Voltage |
24V DC |
| Communication Interface |
Modbus TCP/IP |
| Compatibility |
140XBE10000 backplane expander |
Industry Applications
The Schneider 140XCA71709 excels in process manufacturing, water treatment, and material handling systems. In a typical application, this cable connects remote I/O racks to a central controller, enabling modular system expansion without signal degradation. Its wide temperature tolerance makes it ideal for outdoor or unconditioned spaces, while Modbus TCP/IP ensures seamless integration with existing plant networks—ultimately boosting operational uptime.
Compatibility and Integration
This backplane expander cable is designed specifically for the Modicon Quantum series and is fully compatible with the 140XBE10000 backplane expander. The Modbus TCP/IP communication protocol allows direct connection to high-level control systems, simplifying network architecture and reducing additional hardware costs. Use the 140XCA71709 to extend your automation system efficiently and reliably.
Selection Guide and Purchasing Advice
When ordering the Schneider 140XCA71709, verify that your existing backplane expander module is the 140XBE10000. The cable's 3-meter length provides flexibility in cabinet layout while maintaining signal integrity. For bulk purchases or urgent replacements, contact UBEST Automation—a trusted distributor of industrial automation spares. Ensure your system remains productive with genuine Schneider components.
