Product Overview

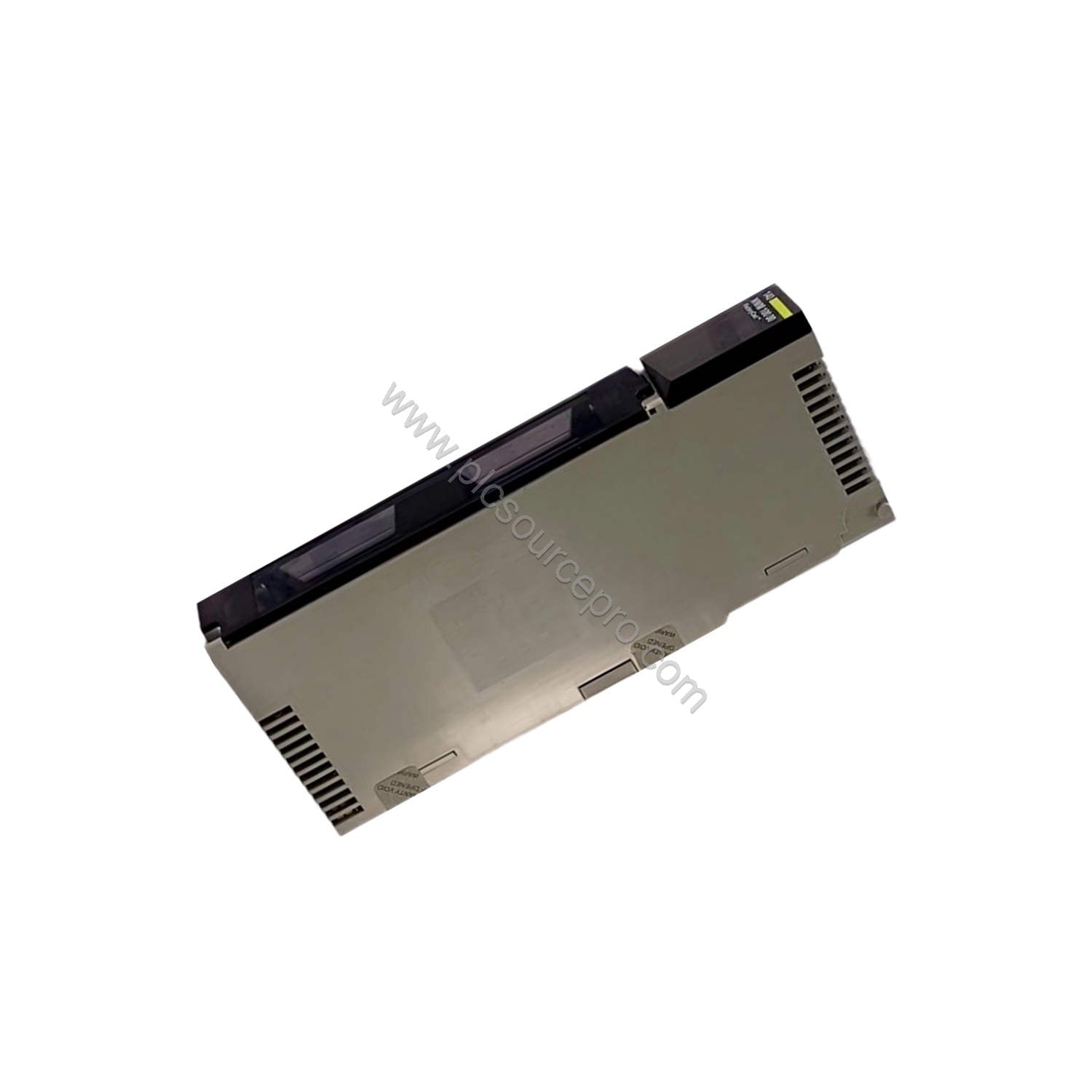

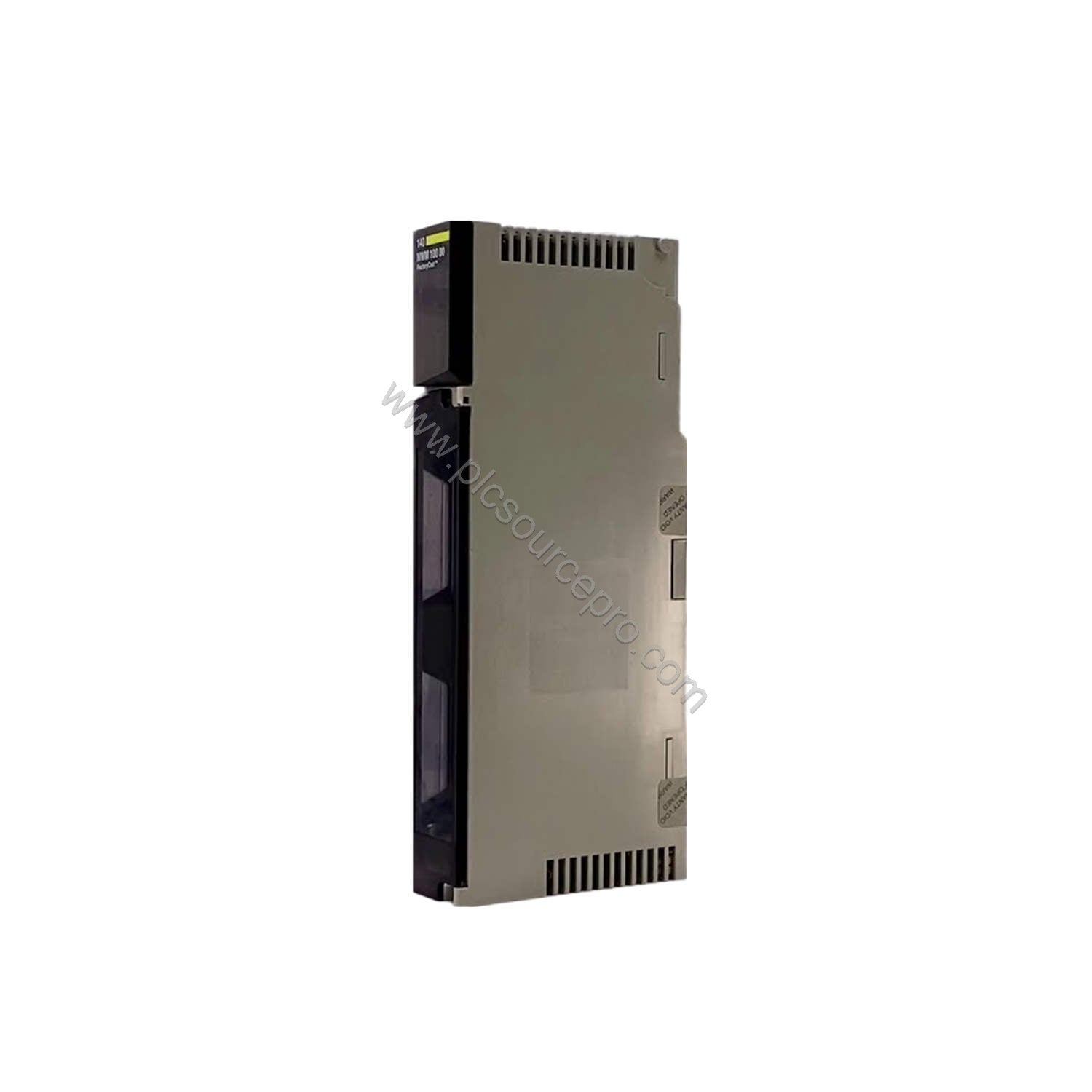

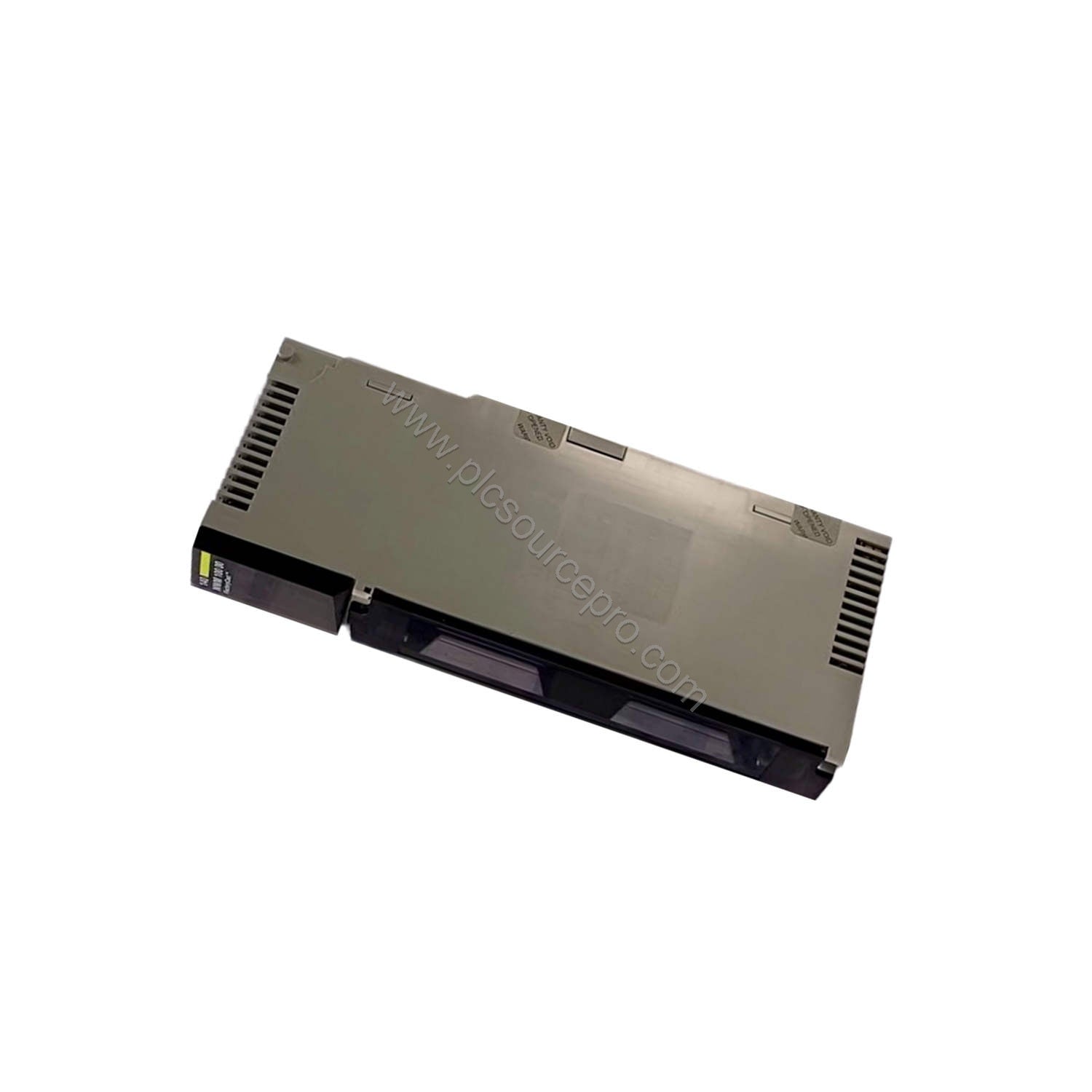

The Schneider 140NWM10000C Operator Panel is a dedicated user interface module within the Modicon Quantum series. Equipped with a bright LED display, this unit enables clear visibility and straightforward interaction with industrial control systems. Its robust design ensures reliable performance in demanding environments.
Technical Specifications
Based on manufacturer data, the 140NWM10000C offers the following key parameters:
| Parameter |
Value |
| Display Type |
LED |
| Number of Connection Ports |
2 |
| Connector Types |
MT-RJ, RJ-45 |
| Standards Compliance |
CE |
| Protection Class |
IP20 |
| Enclosure Rating |
NEMA 1 |
| Max Ambient Temperature |
40°C |
| Min Ambient Temperature |
0°C |
| Max Operating Humidity |
80% RH (non-condensing) |
| Max Storage Humidity |
80% RH (non-condensing) |
| Max Operating Altitude |
1000 m |
Application Scenarios
The 140NWM10000C operator panel excels in factory automation, material handling, and process control environments. Its LED display provides clear status indications, while the two communication ports allow easy connection to PLCs and supervisory systems. For example, in a packaging line, the panel can display machine status and allow operator inputs via the network.
Compatibility & Integration
Designed for the Modicon Quantum platform, the Schneider 140NWM10000C integrates seamlessly with other Quantum modules. The MT-RJ and RJ-45 connectors support standard Ethernet or fiber optic links, enabling communication with controllers like the 140CPU modules. This compatibility simplifies system design and reduces integration effort.
Selection Guide & Purchasing Advice
When selecting the 140NWM10000C, verify that your system uses Modicon Quantum backplane and supports the required connector type. This panel is a reliable choice for indoor use where IP20 and NEMA 1 ratings suffice. For genuine parts and expert support, consider sourcing from UBEST Automation at ubest101. We ensure fast delivery and authentic components.
