Product Introduction

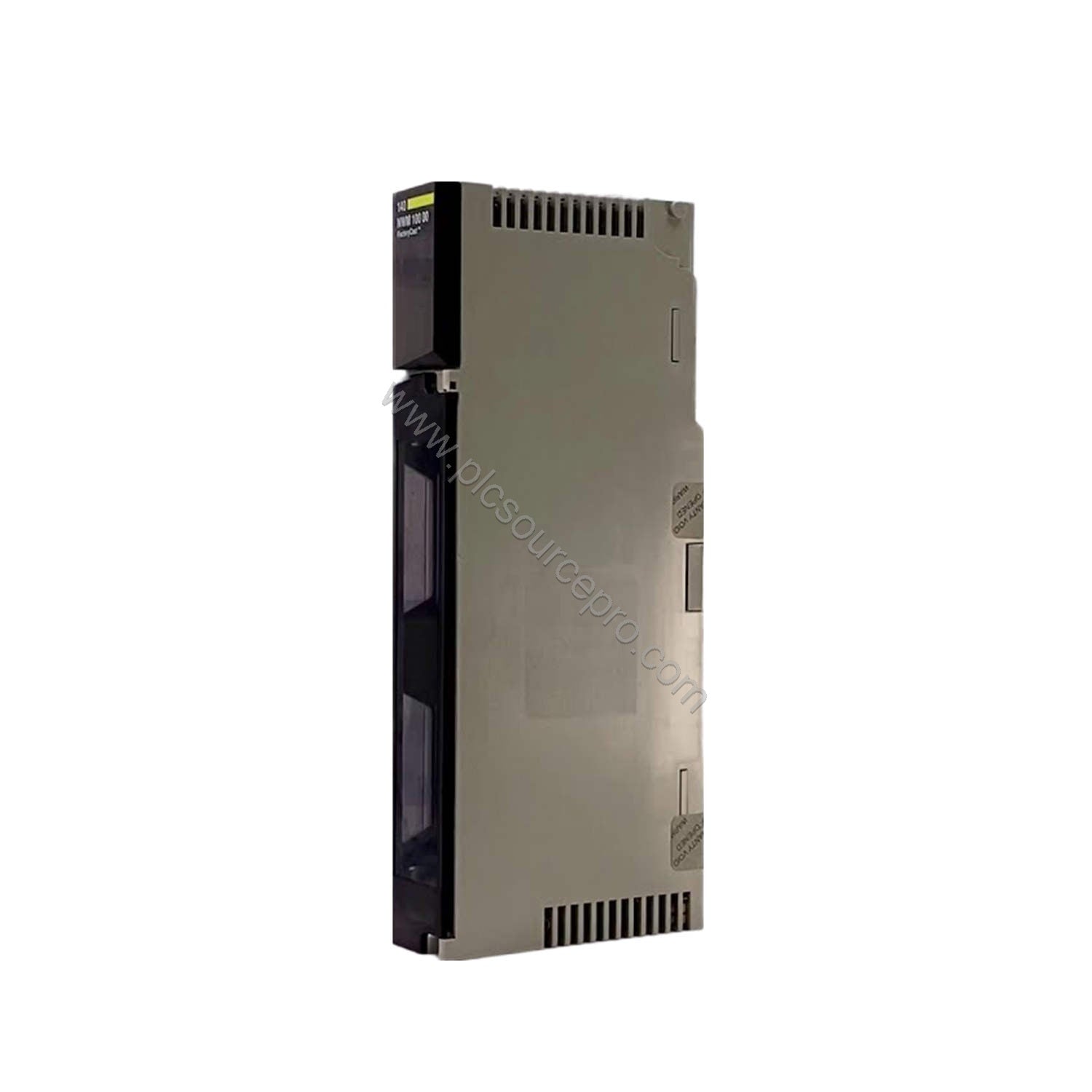

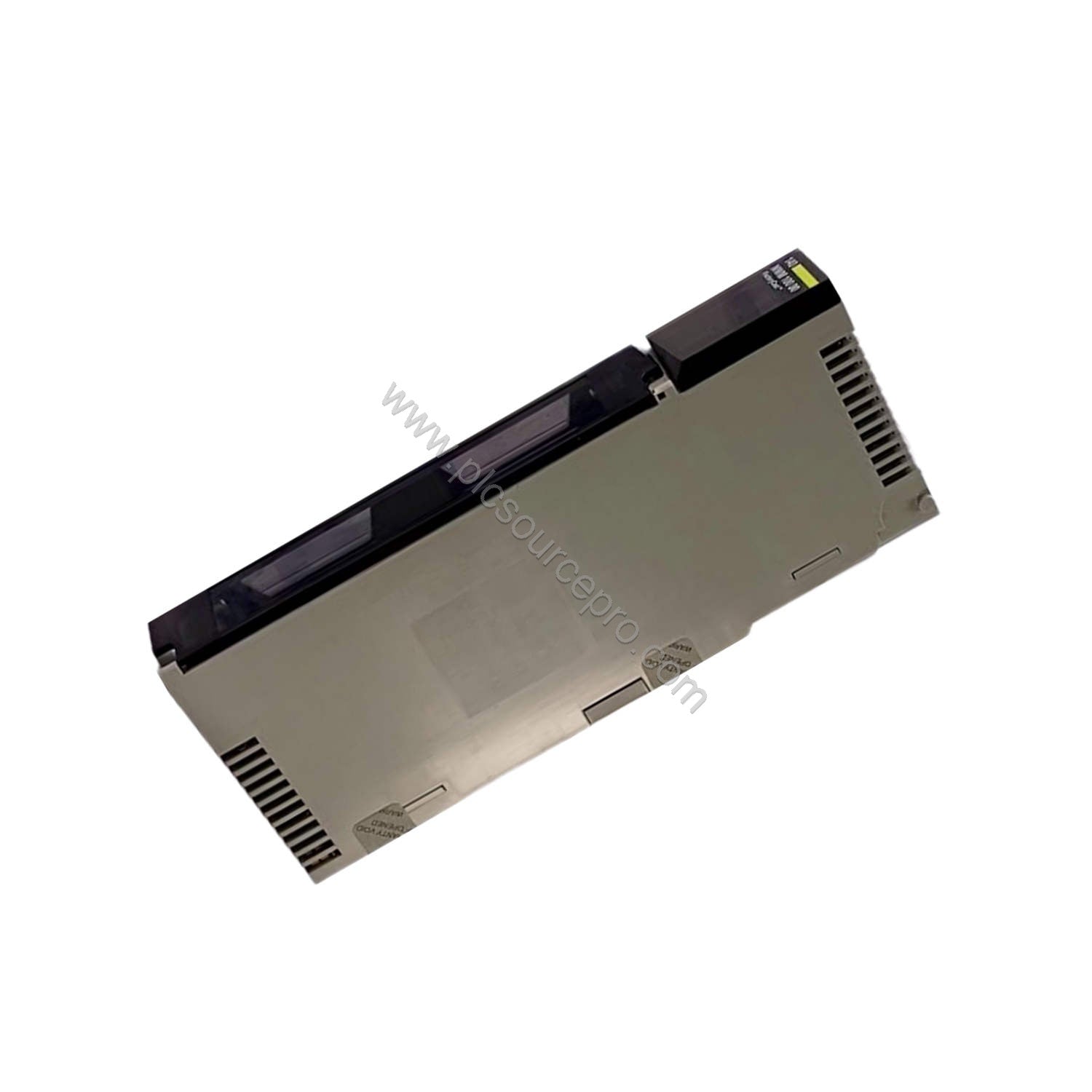

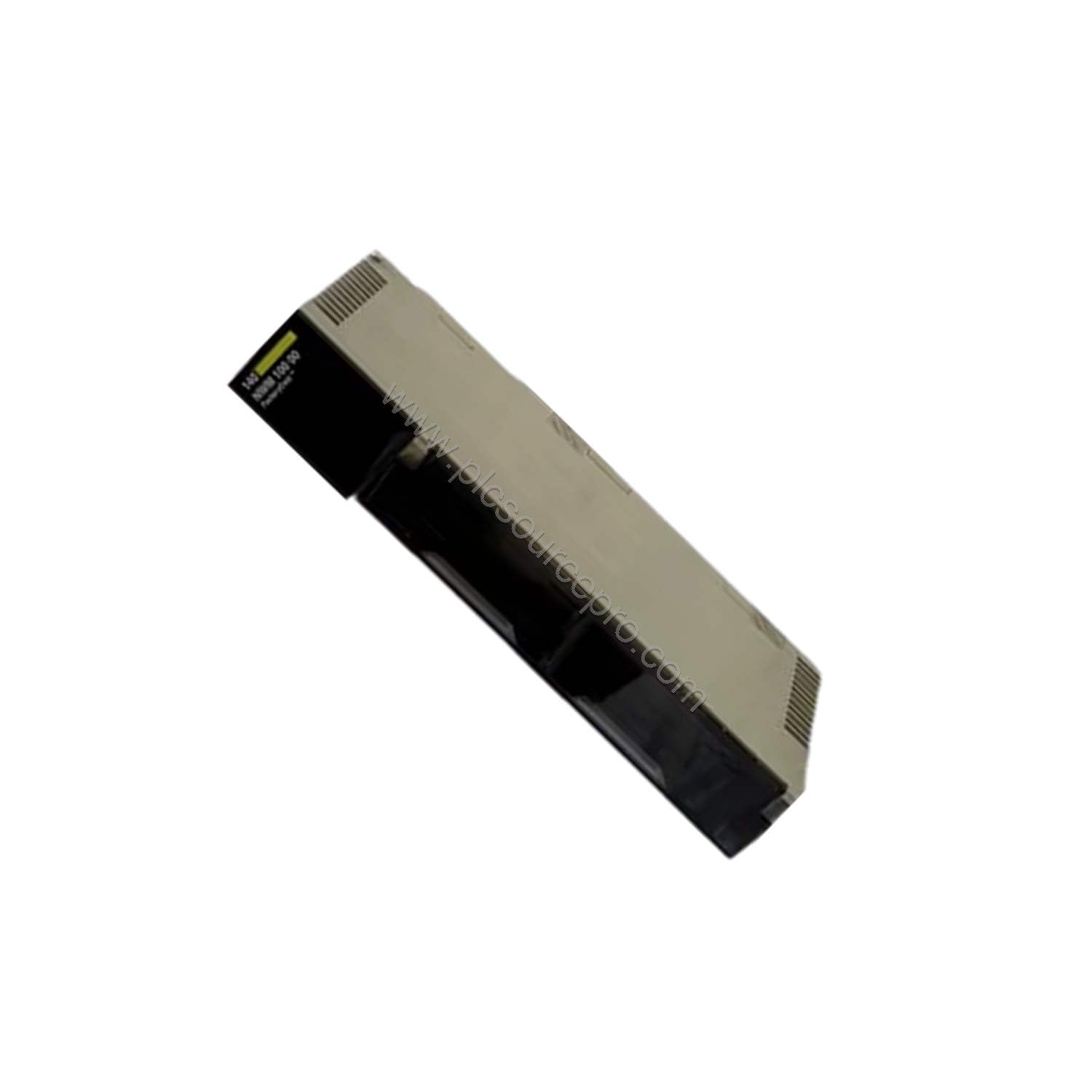

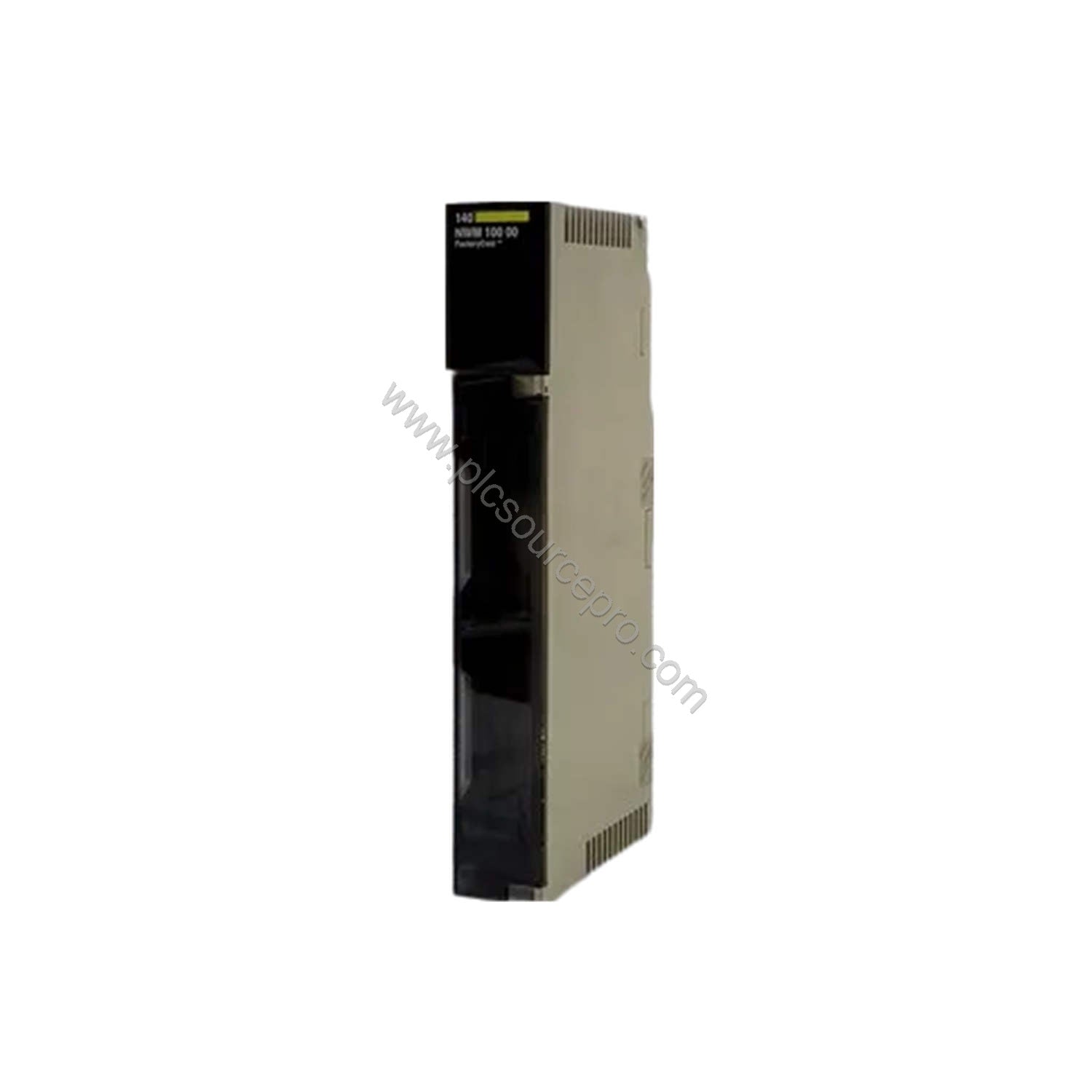

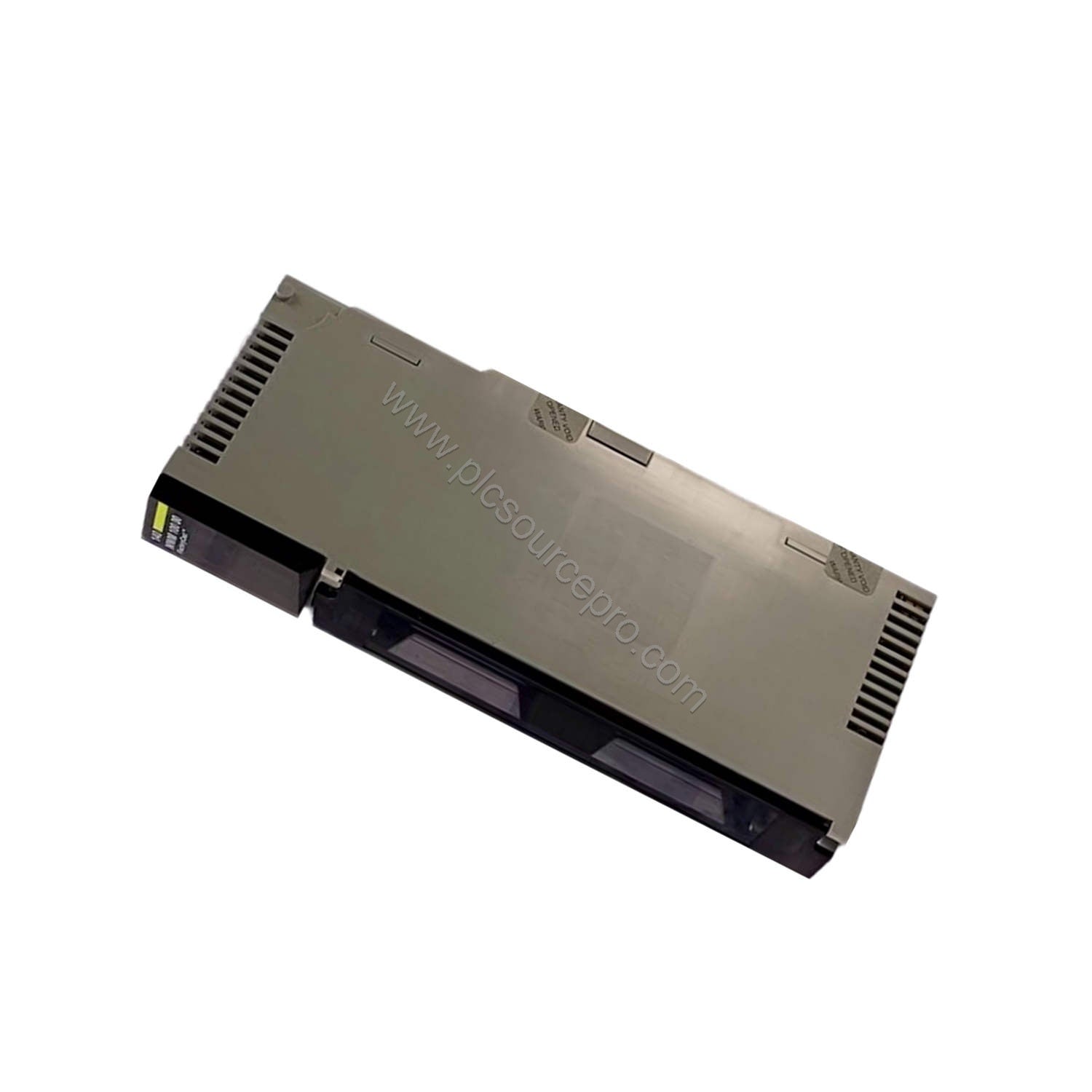

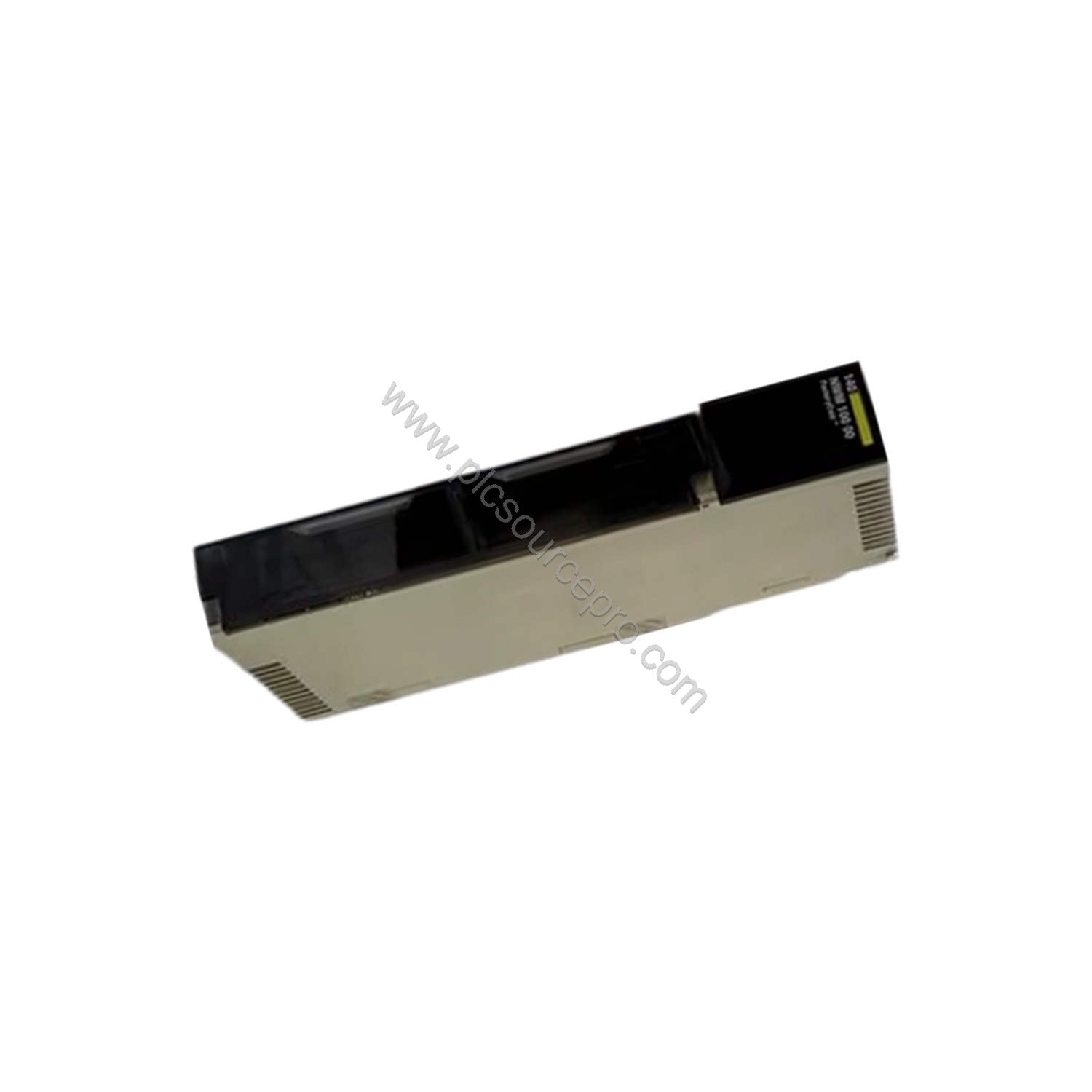

When network communication failures disrupt your Modicon Quantum system, the Schneider 140NWM05000 DIO head-end adaptor provides a reliable solution. This module acts as the critical interface between your distributed I/O and the control network, requiring an assigned IP address for proper integration. Its removable door design simplifies initial setup and ongoing maintenance, reducing downtime in industrial environments.
Technical Specifications
The 140NWM05000 from Schneider Electric offers robust connectivity and power management. Key parameters include:
-
Interfaces: RS-232, 100 Base-Fx, 10/100 Base-T – versatile for various network topologies
-
Bus Current: 900 mA – supports multiple downstream devices
-
Power Dissipation: 4.5 W total, with serial port dissipation of 3.8 W – ensures thermal efficiency
-
Serial Port Bus Current: 750 mA – dedicated power for serial devices
-
Diagnostics LEDs: Yes – visual status indication for troubleshooting
-
Firmware Upgradable: Yes – extends product lifespan and adaptability
-
Operating Temperature: 0 to 40 °C; Storage Temperature: 0 to 50 °C; Humidity: 80% RH non-condensing
These specifications make the 140NWM05000 a stable and efficient choice for harsh industrial conditions. No internal fuse is provided, simplifying replacement when needed.
Industry Applications
The Schneider 140NWM05000 is ideal for applications requiring reliable remote I/O communication. Common use cases include:
-
Manufacturing Lines: Connects sensors and actuators on assembly lines to the central controller, reducing wiring complexity.
-
Process Control: Handles analog and discrete signals in chemical or food processing plants, where the removable door facilitates quick maintenance.
-
Building Automation: Integrates HVAC and lighting systems into a Modicon Quantum backbone, leveraging the multiple communication interfaces.
Maintenance & Reliability
To ensure long-term performance of your 140NWM05000, follow these guidelines:
- Inspect diagnostic LEDs monthly – steady green indicates normal operation; flashing patterns help identify network issues.
- Verify IP address configuration after any network changes to avoid communication failures.
- Keep the removable door closed when not servicing to protect internal components from dust and moisture.
- Monitor ambient temperature and humidity – the module operates reliably within 0 to 40 °C and 80% RH non-condensing.
By adhering to these steps, you minimize downtime and extend the service life of the Schneider 140NWM05000.
Troubleshooting Common Issues
Even robust modules like the 140NWM05000 may encounter problems. Typical issues and solutions include:
-
Module not communicating: Confirm the IP address is assigned correctly and the network cables (RS-232, 100 Base-Fx, or 10/100 Base-T) are securely connected.
-
Diagnostic LEDs off: Check that bus current supply (minimum 900 mA) is available from the backplane.
-
Intermittent communication: Ensure operating temperature stays below 40 °C and humidity below 80% RH – condensation can cause transient faults.
-
Firmware corruption: Since the module is firmware-upgradable, reload the latest version from Schneider Electric to restore functionality.
Selection Guide & Purchasing Advice
Before purchasing the Schneider 140NWM05000, verify compatibility with your Modicon Quantum backplane and confirm that your system can provide an IP address (DHCP or static). No additional accessories are required for basic operation, but we recommend using shielded cables for RS-232 and fiber optic connectors for 100 Base-Fx. For reliable sourcing, contact UBEST Automation (ubest101) – a trusted supplier of industrial automation spares with extensive inventory of Schneider products.
