Product Overview

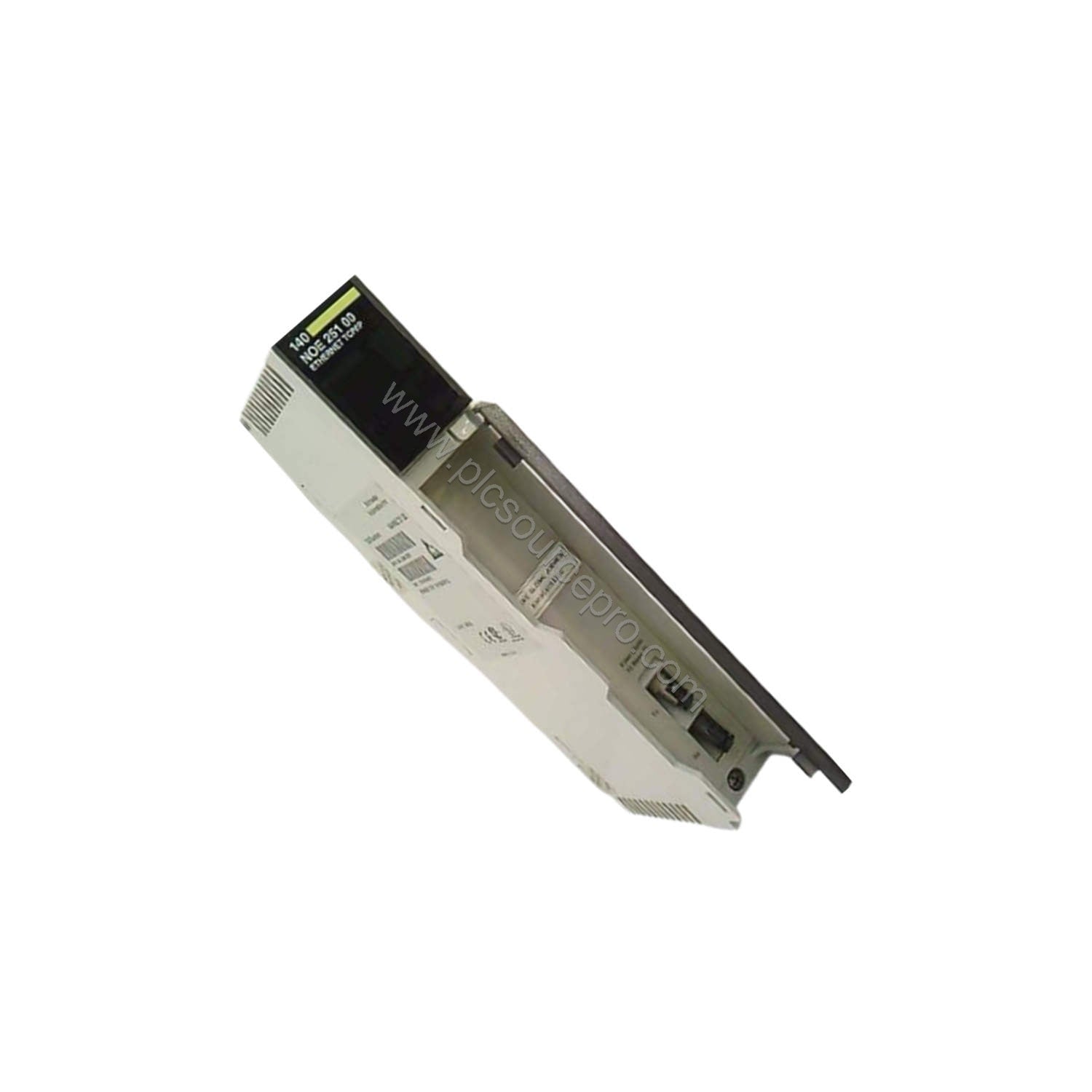

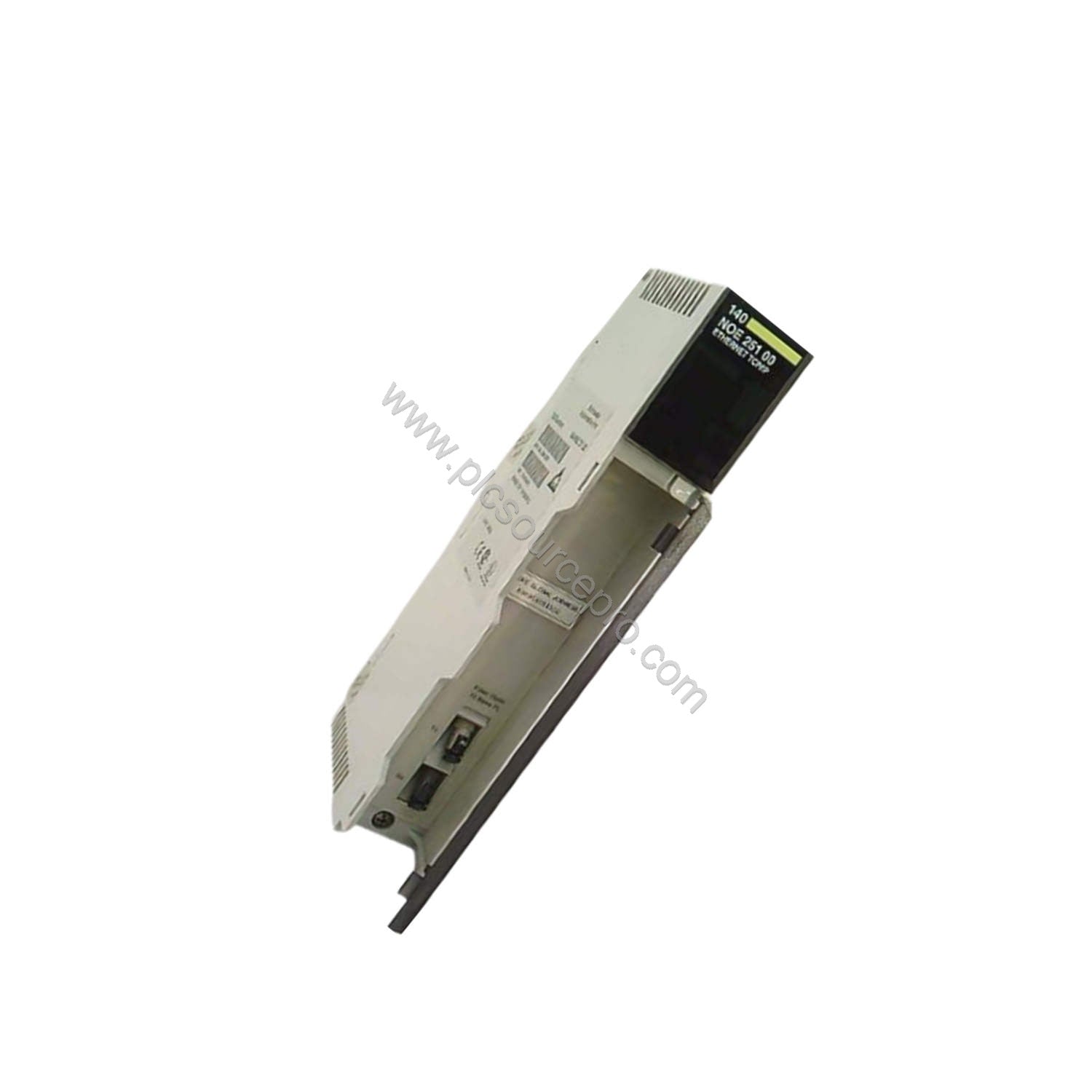

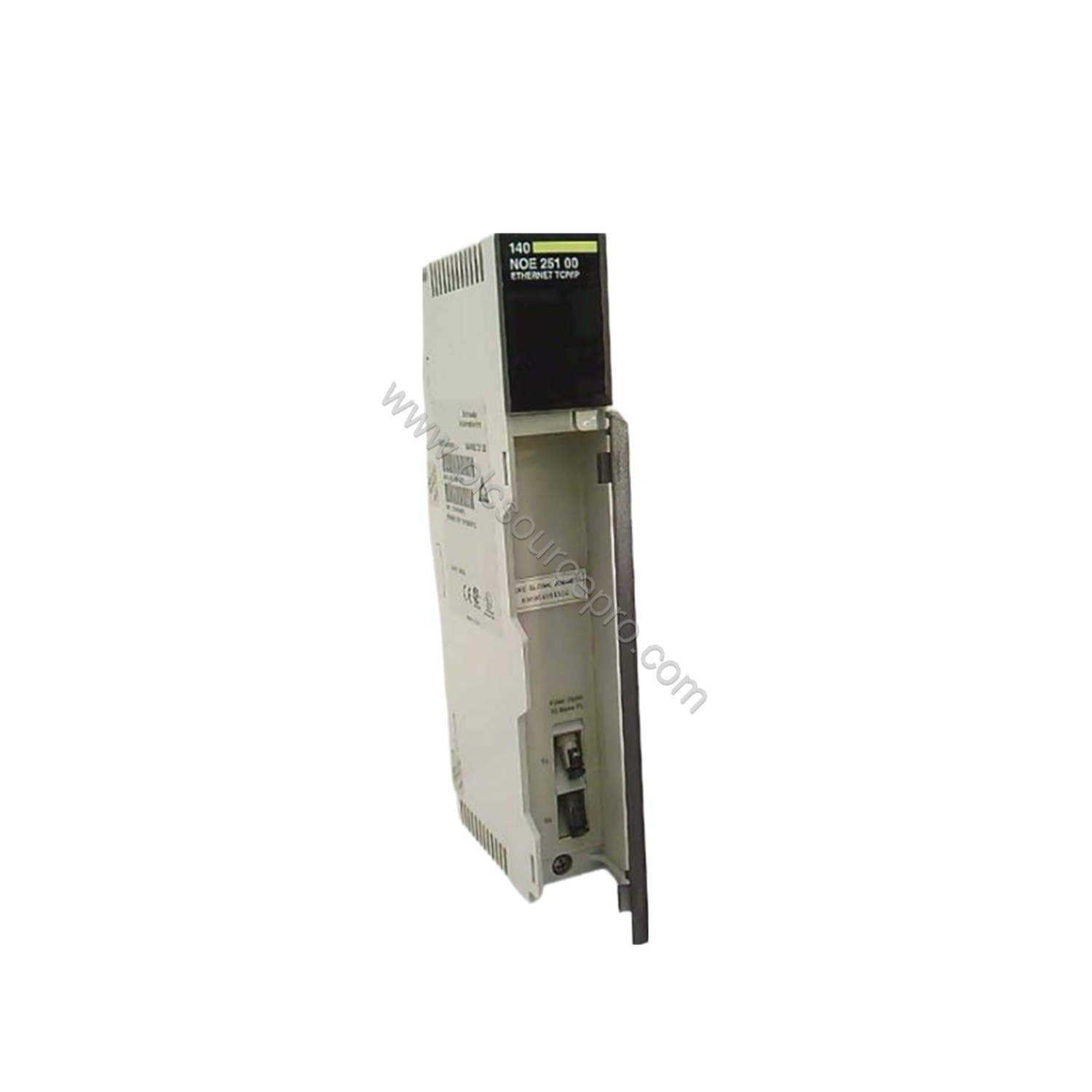

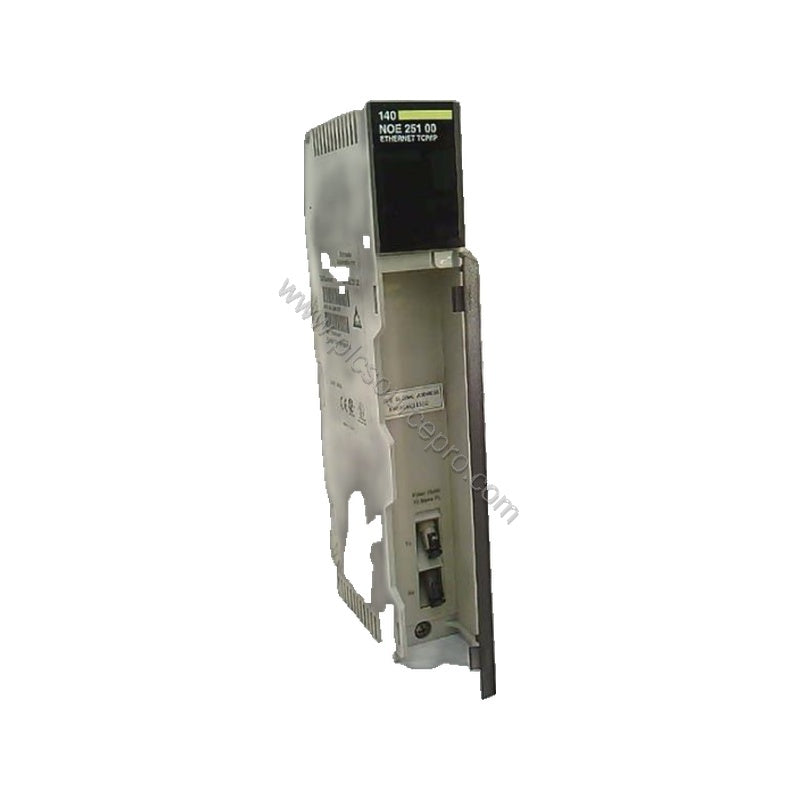

The Schneider 140NOE25100C is an Ethernet module designed for reliable and flexible communication in industrial environments. As part of the Modicon Quantum series, this module supports fiber-optic cables, making it an ideal upgrade for older copper-based Ethernet systems. It provides a single channel for robust data transfer, ensuring seamless integration into existing control networks. Whether replacing outdated modules or upgrading for better performance, the 140NOE25100C delivers dependable operation in material handling, packaging, and textile machinery applications.
Industry Applications
The 140NOE25100C is built to perform in diverse industrial settings. In material handling, it connects conveyor systems and automated storage to a central controller, handling high-speed data transfer over long distances via fiber-optic cabling. For packaging machinery, the module ensures synchronized communication between sensors and actuators, reducing downtime. In textile mills, it withstands humid environments and provides stable Ethernet connectivity for spinning and weaving lines. This module is designed for clean indoor environments and can operate at altitudes up to 1000 meters, making it a versatile choice for upgrading facilities seeking modern Ethernet communication.
Installation and Setup Guidance
To install the Schneider 140NOE25100C, ensure the host rack is powered off. Insert the module into an available slot in a Modicon Quantum backplane, verifying correct alignment. Connect fiber-optic cables to the single channel port, observing proper cable types and polarity. After mounting, power on the rack and configure the module's IP settings via the control software. Verify that the ambient temperature remains between 0°C and 40°C during operation and that the location is free from corrosive chemicals. For best results, use quality fiber-optic connectors and keep cabling away from high-voltage lines to prevent interference.
Maintenance and Reliability
To maximize the lifespan of the 140NOE25100C, perform regular inspections every six months. Check fiber-optic cable connections for dust or damage and clean with approved cleaning kits. Monitor environmental conditions: keep humidity below 80% RH non-condensing and storage temperature between 0°C and 50°C. The module's solid-state design requires minimal maintenance, but periodic verification of status LEDs can help detect early issues. When replacing older modules, the 140NOE25100C offers improved noise immunity and longer cable runs, reducing maintenance calls and improving overall system reliability.
Selection and Purchasing Guide
When selecting the Schneider 140NOE25100C, verify that your backplane has a free slot for a single-channel Ethernet module. Confirm that your control system supports Modicon Quantum series modules. For applications requiring fiber-optic communication, this module is an exact fit. If you need multi-channel options, consider other models in the Quantum family. For expert assistance and genuine parts, trust UBEST Automation. We provide the 140NOE25100C with fast shipping and technical support to help you upgrade your industrial network seamlessly.
