Product Introduction

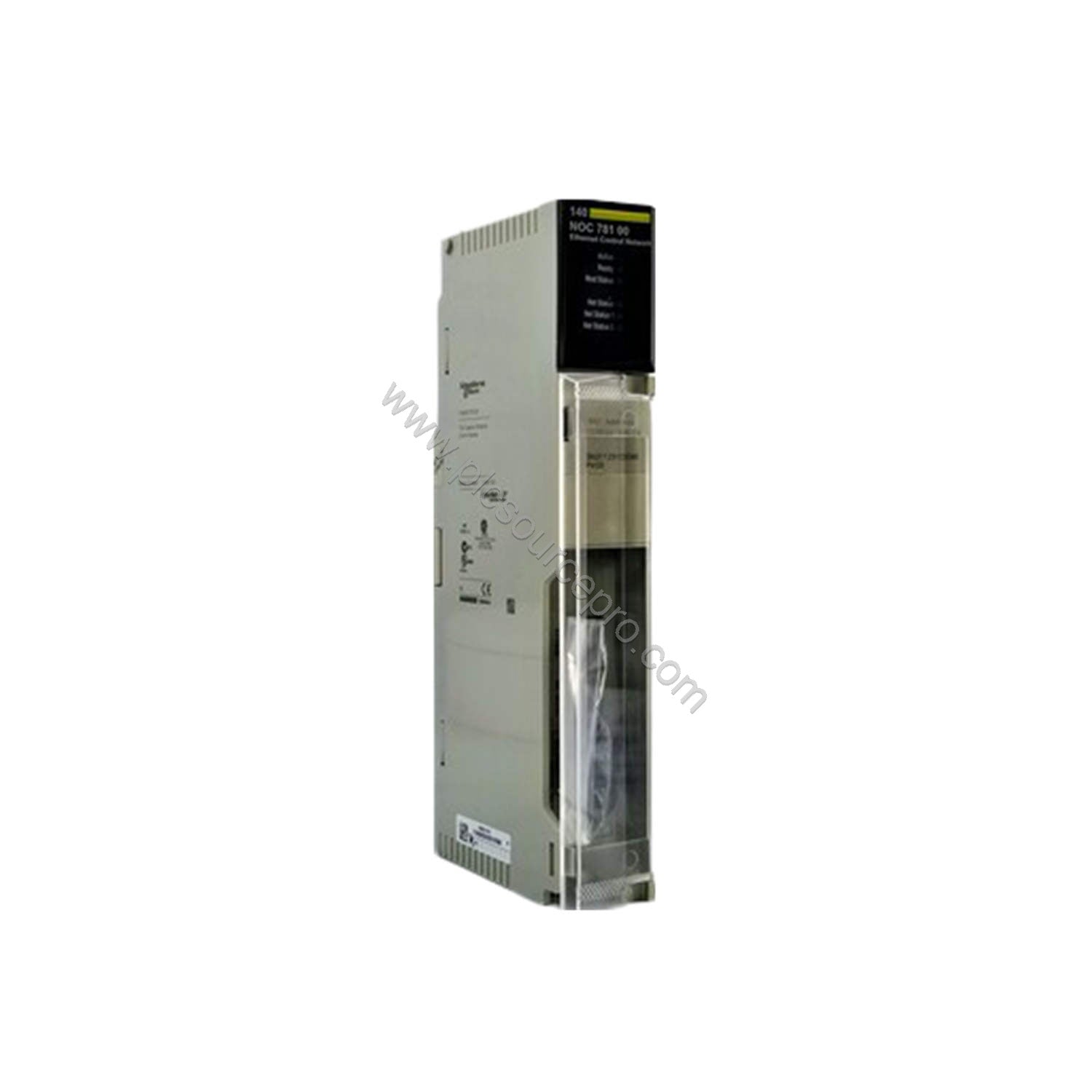

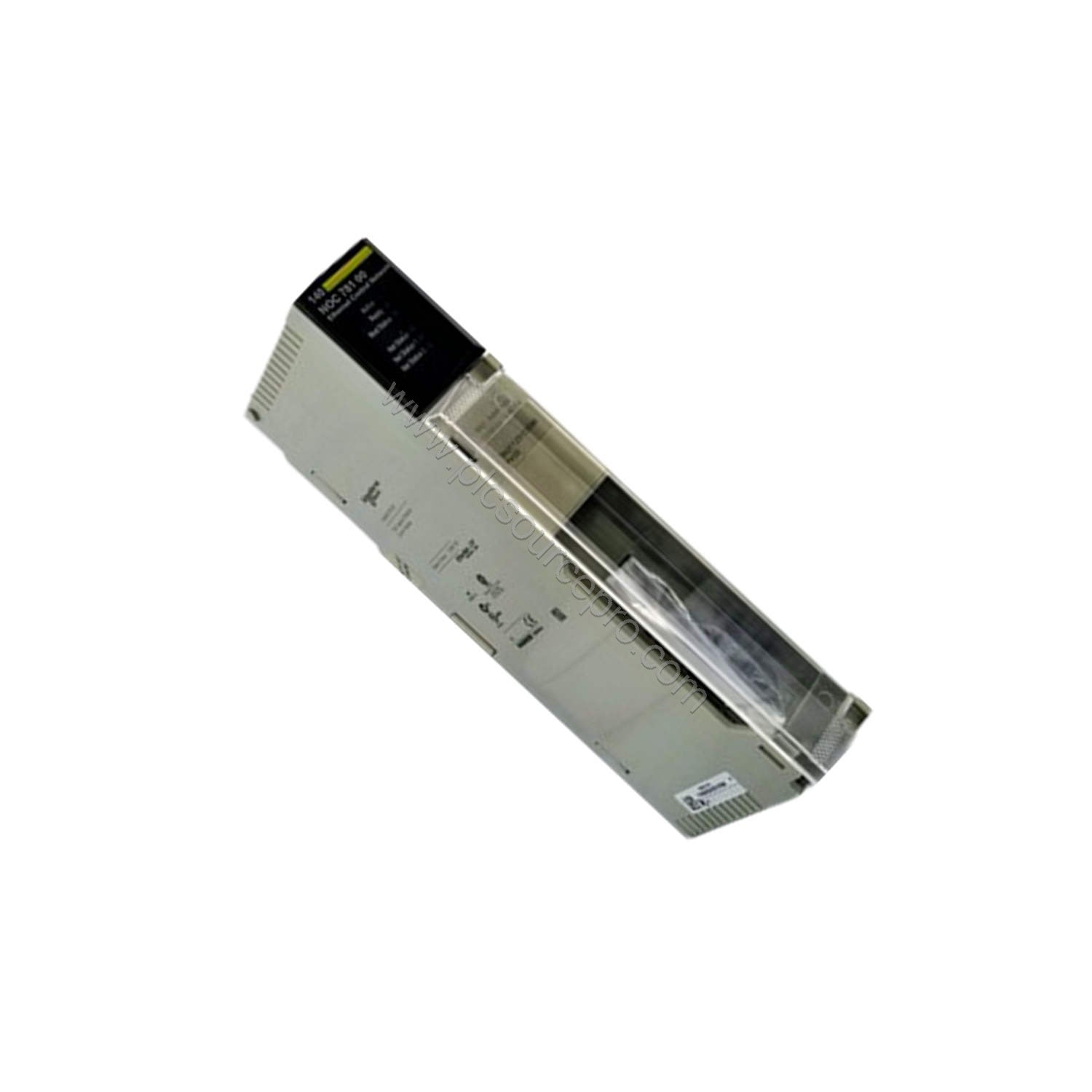

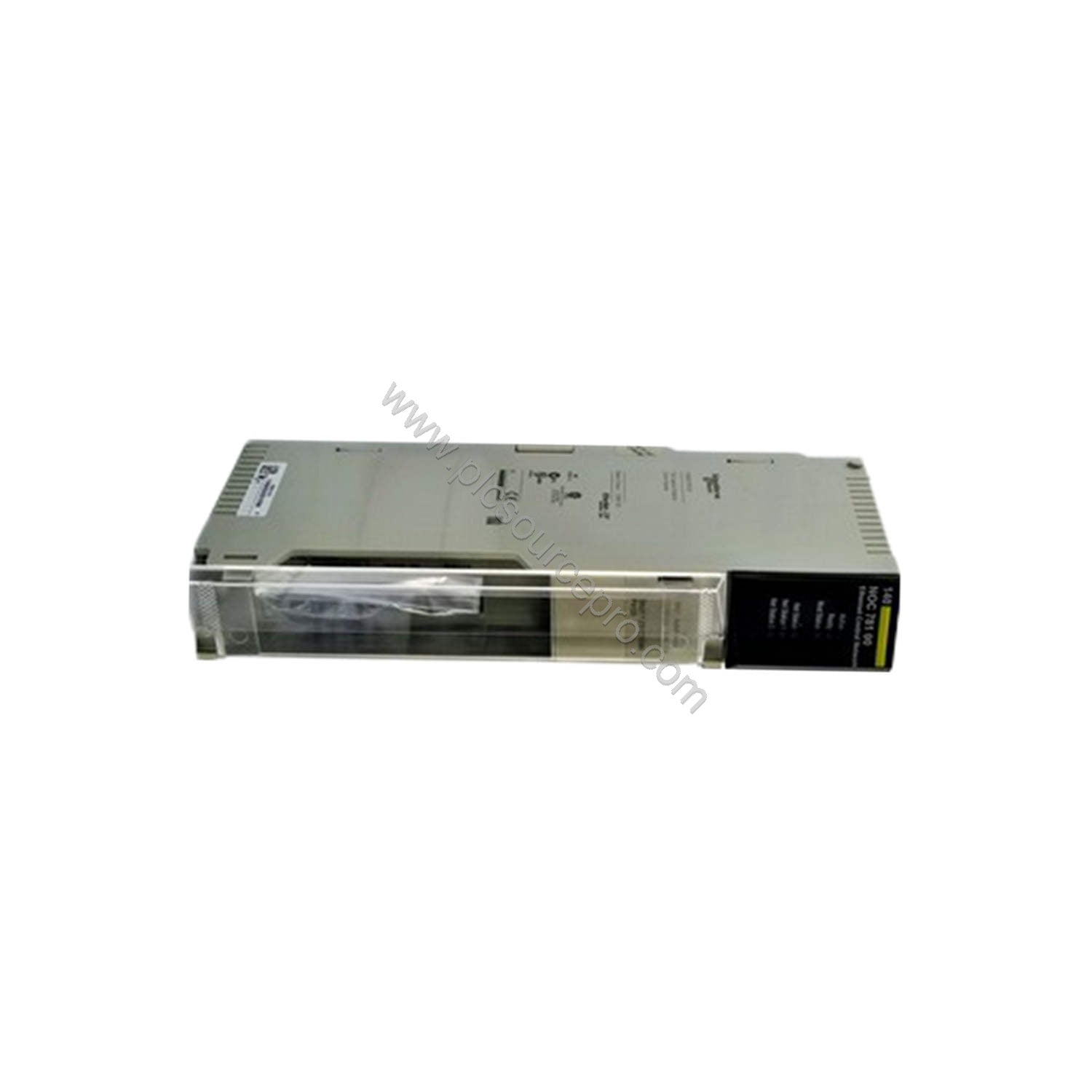

When network failures disrupt industrial operations, the Schneider 140NOC78100C Ethernet network module provides robust reliability. Designed for the Modicon Quantum series, this rack-mountable module supports both EtherNet/IP and Modbus TCP protocols, enabling flexible and resilient communication. Its hot standby redundant architecture ensures seamless failover, minimizing downtime.
Technical Specifications Breakdown
The 140NOC78100C operates at 10 or 100 Mbit/s transmission rates in full duplex mode, supporting up to 64 connections. Key parameters include:
- Communication Protocols: EtherNet/IP, Modbus TCP
- Redundancy: Hot standby redundant architecture
- Topology: Redundant ring and daisy chain loop
- Embedded web server for monitoring
- IP20 protection, coated module
- Operating temperature: 0°C to 60°C; Storage: -40°C to 85°C
Industry Applications
The Schneider 140NOC78100C excels in demanding environments such as manufacturing plants, process control, and energy management. For instance, in a redundant ring topology, it prevents single-point failures, ensuring continuous data flow even if a cable is damaged. Its hot standby feature allows immediate switchover to a backup module, critical for safety systems.
Installation & Setup Guidance
Mount the 140NOC78100C into a standard Quantum rack. Connect via RJ45 10BASE-T/100BASE-TX ports using twisted pair cable. The module is coated for environmental protection. No external power supply needed; power is drawn from the rack. Ensure proper IP20 enclosure for dust protection.
Compatibility & Integration
The Schneider 140NOC78100C integrates seamlessly with the Modicon Quantum platform, compatible with 140CPU6xxxx processors. It supports EtherNet/IP and Modbus TCP for plant-wide connectivity. The embedded services include DHCP/BootP server, SMTP email notification, SNMP agent, NTP time synchronization, and QoS for traffic prioritization.
Selection Guide & Purchasing Advice
Before purchasing a 140NOC78100C, verify your rack size and power supply compatibility. This module is ideal for applications requiring high availability and redundancy. For expert assistance and competitive pricing, contact UBEST Automation at ubest101. We stock genuine Schneider modules ready for fast shipment.
