Product Overview

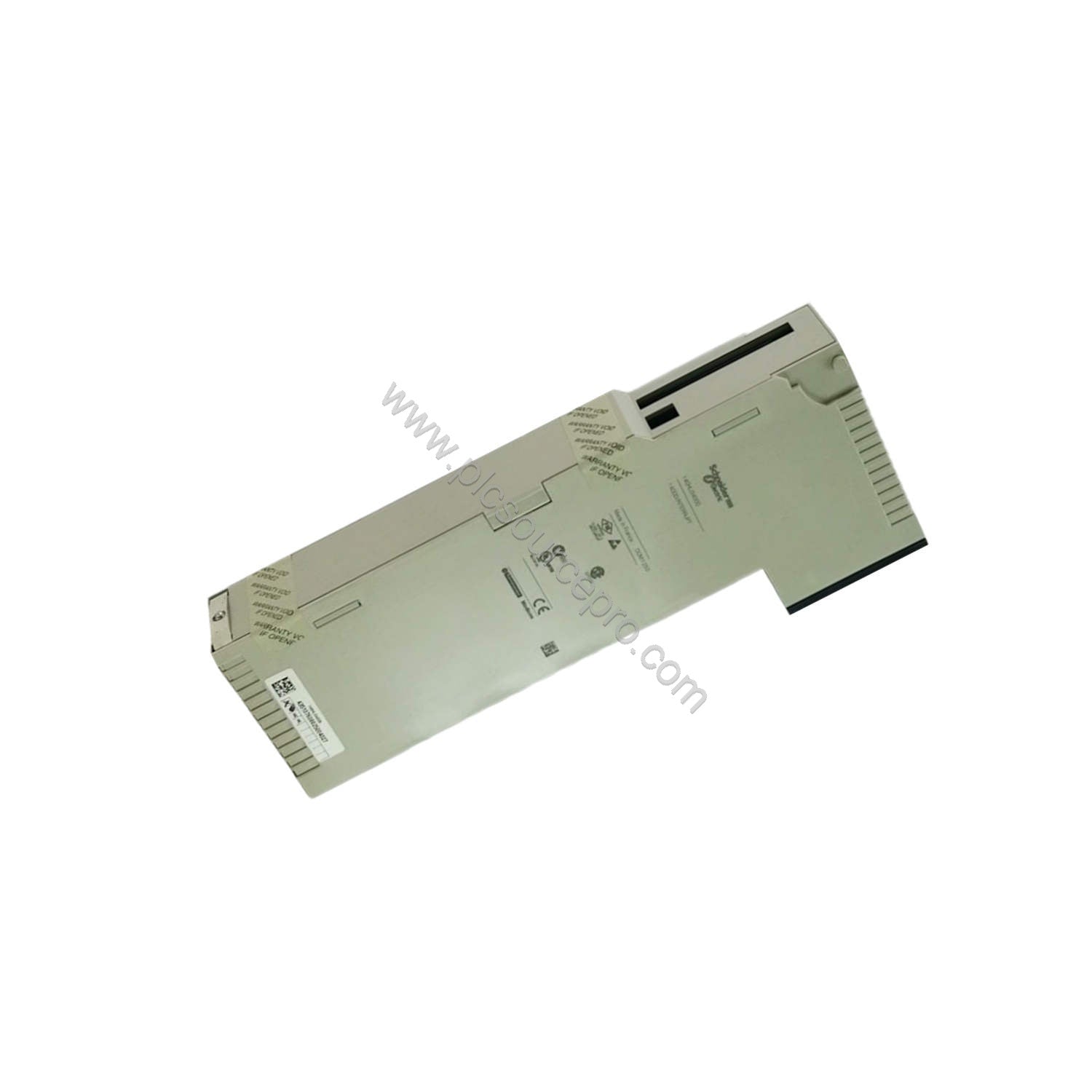

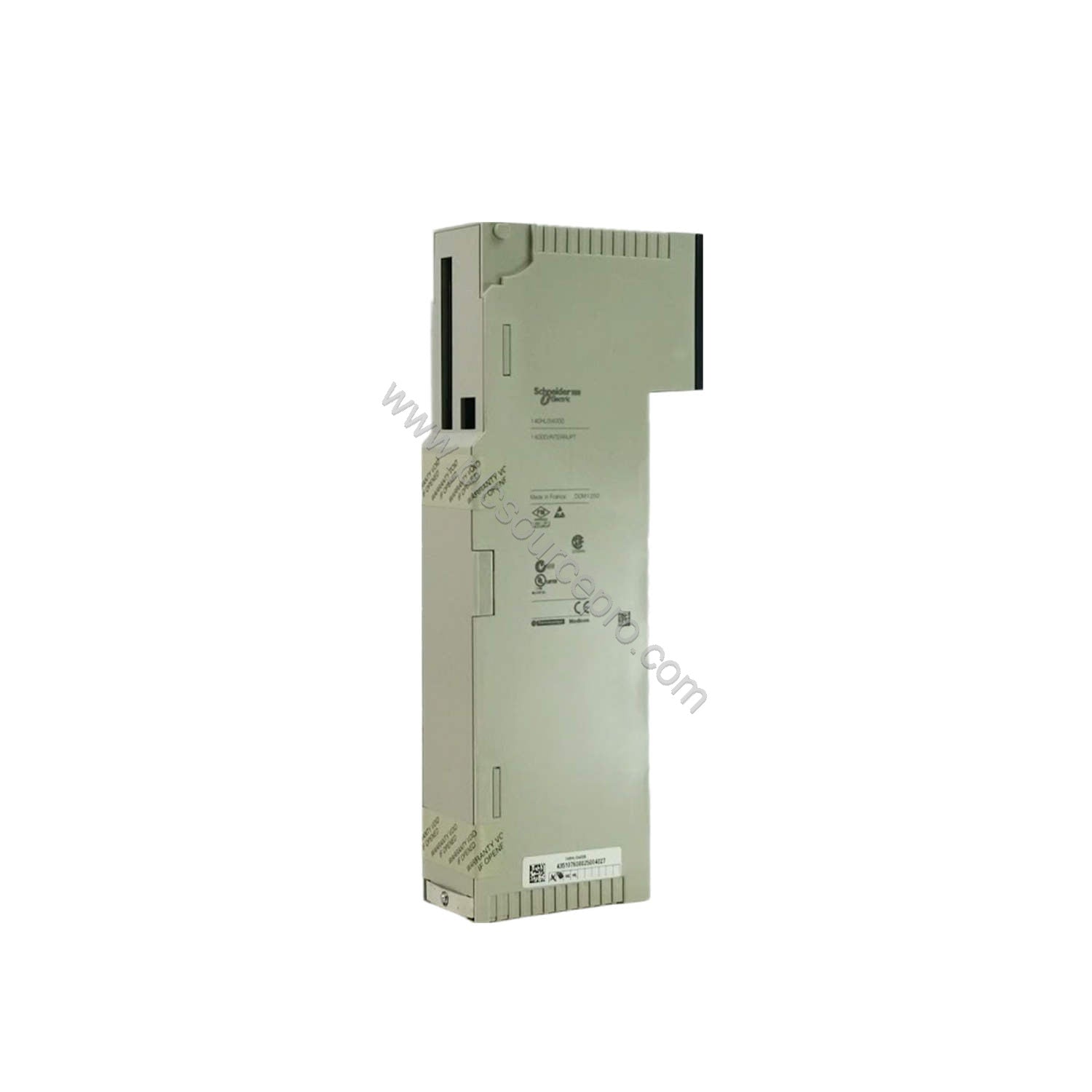

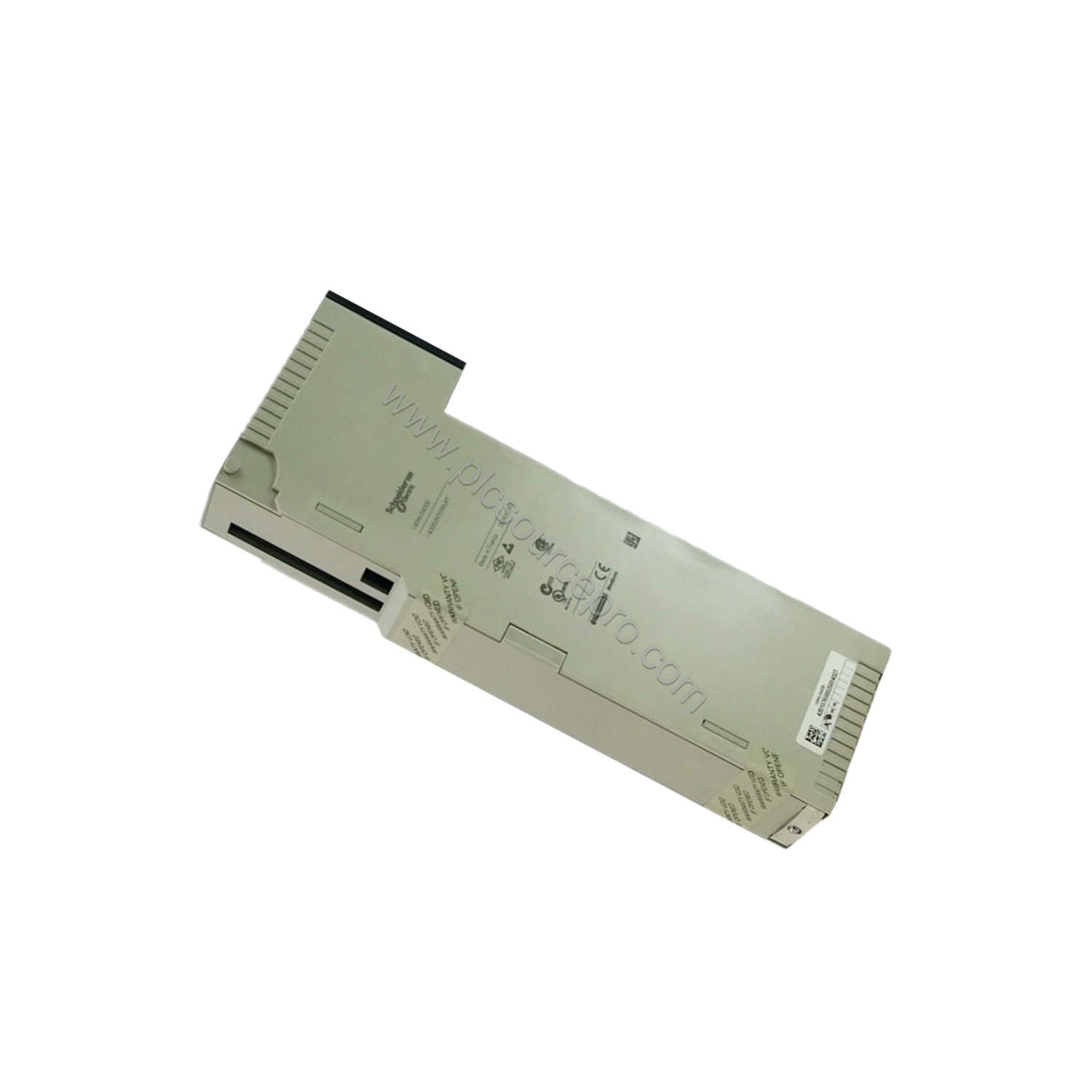

The Schneider 140MMB10200 multi-axis motion controller is designed for the Modicon Quantum series, offering a powerful upgrade path for older motion control systems. This controller accepts a wide supply voltage range of 100 to 240 volts AC or 24 volts DC, ensuring flexibility in various power environments. With built-in communication networks including Serial link, SERCOS III, Modbus TCP, and EtherNet/IP, plus a USB Mini‑B programming port, the 140MMB10200 simplifies integration into existing architectures.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Multi‑Axis Motion Controller |
| Product Line |
Modicon Quantum |
| Part Number |
140MMB10200 |
| Rated Supply Voltage |
100 to 240 VAC or 24 VDC |
| Permissible Supply Voltage Range |
96 to 264 VAC |
| Supply Frequency |
50 to 60 Hz |
| Built‑in Communication Networks |
Serial link, SERCOS III, Modbus TCP, EtherNet/IP, USB Mini‑B |
| Optional Communication Networks |
CANopen, EtherNet |
| Protection Rating |
IP20 |
| Ambient Operating Temperature |
0 to 60 °C (non‑condensing) |
| Storage Temperature |
−25 to 70 °C (non‑condensing) |
| Humidity Tolerance |
10% to 95% relative humidity (without condensation) |
| Operating Altitude |
6,561.68 ft (2,000 m) above sea level |
Compatibility & Integration
The Schneider 140MMB10200 excels in multi‑system environments. Its built‑in SERCOS III, Modbus TCP, and EtherNet/IP protocols enable direct connectivity with modern PLCs and drives. The USB Mini‑B port simplifies local programming and diagnostics. For legacy or specialized networks, optional CANopen and EtherNet modules extend compatibility. This makes the 140MMB10200 an ideal choice for upgrading older motion controllers without replacing the entire control infrastructure.
Industry Applications
Use the 140MMB10200 in packaging machinery, material handling systems, and robotics. In a typical upgrade scenario, replacing a previous‑generation motion controller with the 140MMB10200 reduces wiring overhead and improves cycle times via deterministic SERCOS III communication. The wide input voltage range (24 VDC or 100‑240 VAC) allows deployment in both European 230 VAC and North American 120 VAC facilities without external transformers.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system’s voltage and network requirements match the 140MMB10200 specifications. The controller requires a screw‑type terminal block for external connections and supports operation up to 2,000 m altitude. For reliable sourcing, UBEST Automation (ubest101) offers genuine Schneider 140MMB10200 units with full traceability. Ensure your order includes any optional CANopen or EtherNet modules if your application demands those networks.
