Product Overview

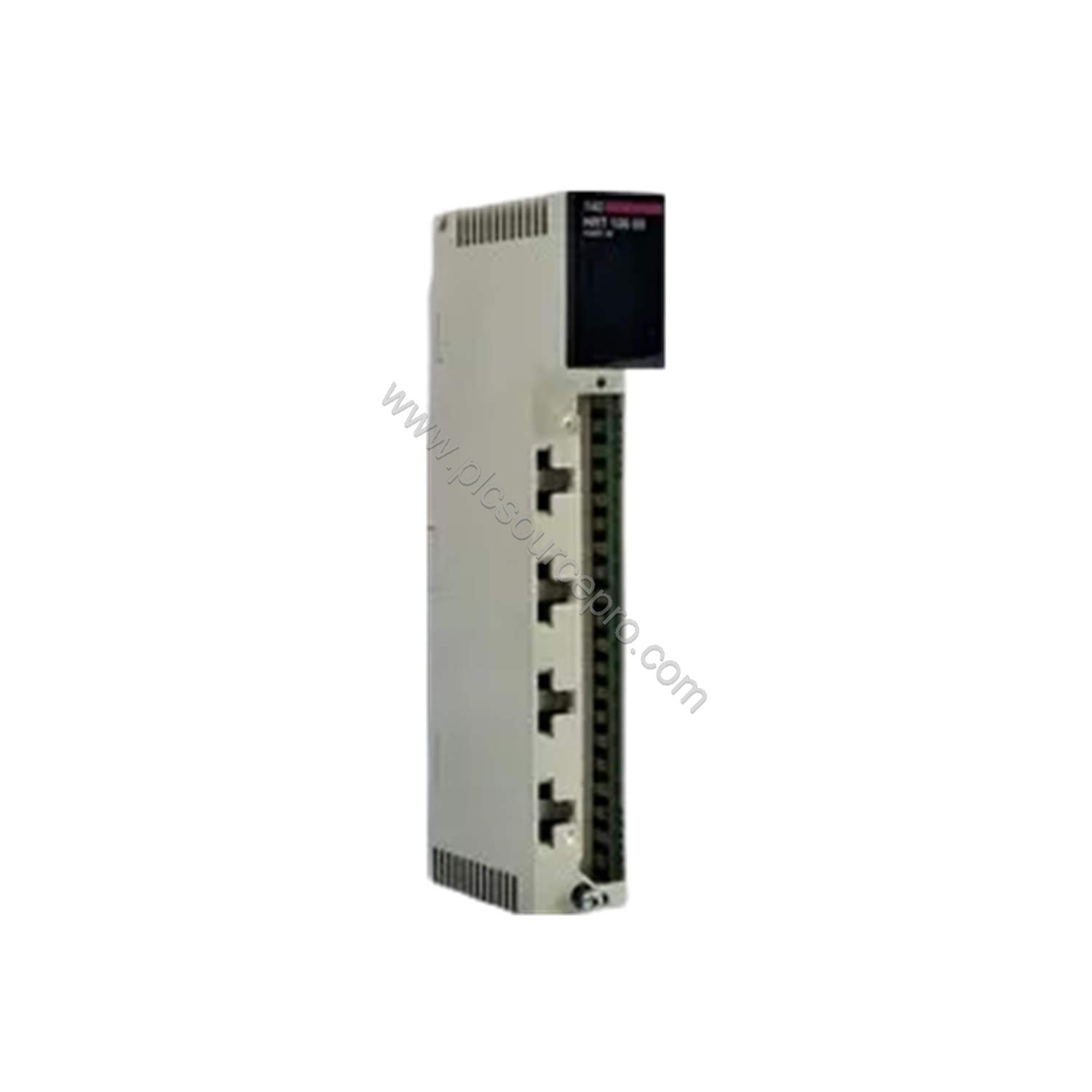

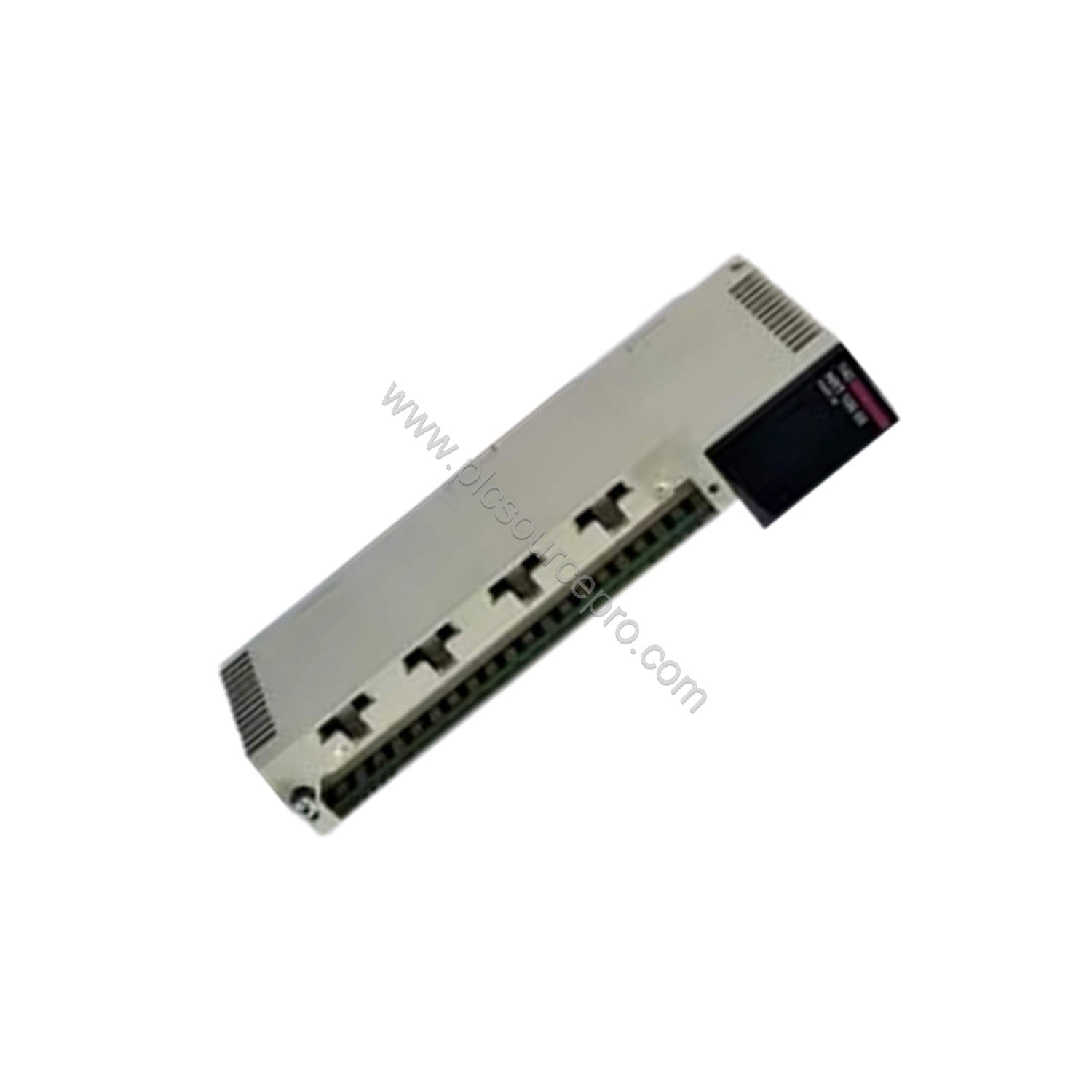

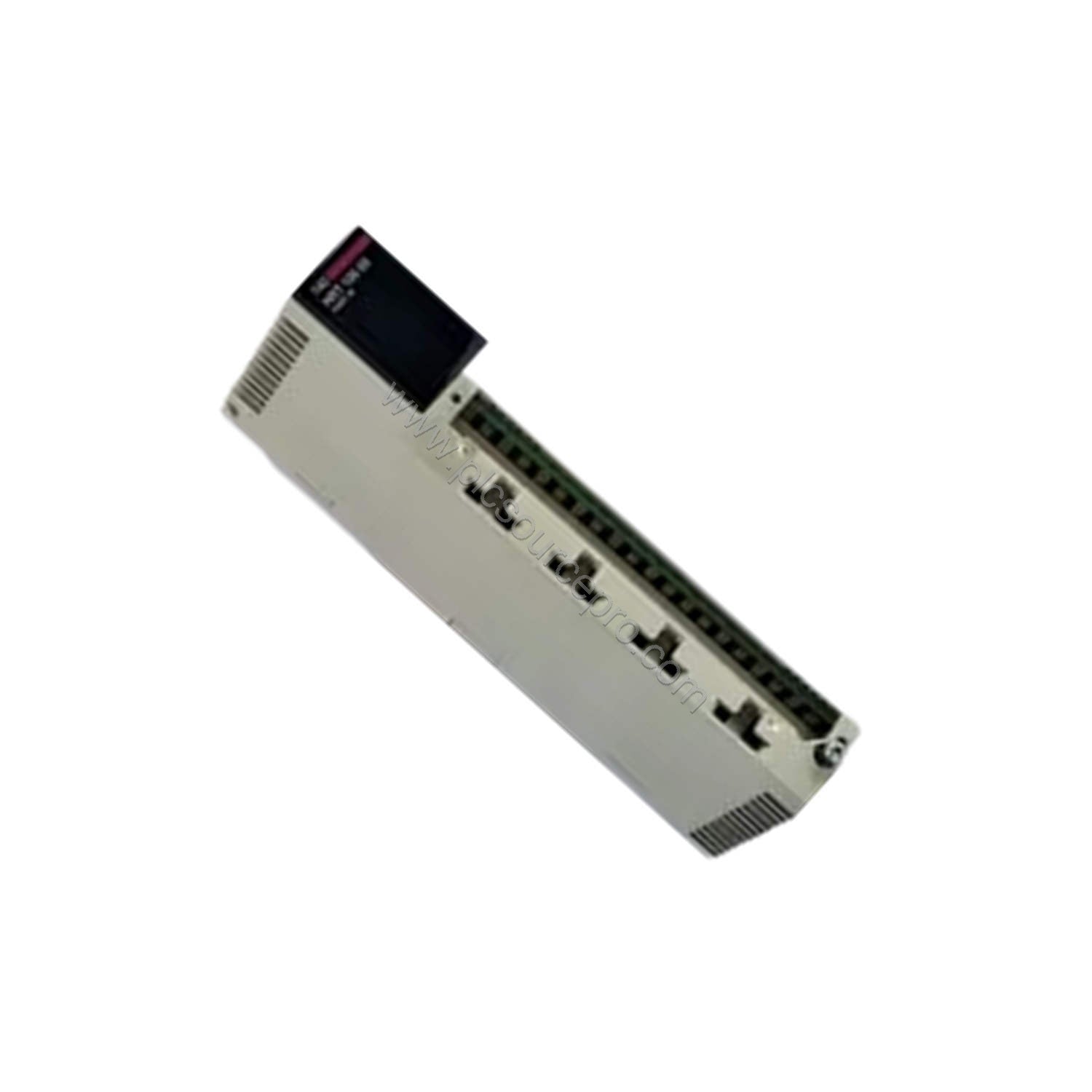

In industrial automation systems requiring robust data integration, the Schneider 140HRT10000 interface module ensures seamless communication within Modicon Quantum architectures. This Schneider 140HRT10000 module is engineered for reliable operation in challenging environments, offering durable metal construction and natural cooling for prolonged service life.
Technical Specifications & Key Parameters
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Line |
Modicon Quantum |
| Part Number |
140HRT10000 |
| Product Type |
Interface Module |
| Application |
Communication and Data Integration |
| Cooling Method |
Natural Cooling |
| Enclosure Material |
Metal |
| Mounting Type |
Through Screw and Holes |
| Maximum Ambient Temperature |
60°C |
| Minimum Ambient Temperature |
0°C |
| Operating Humidity |
80% max., non-condensing |
| Storage Humidity |
80% max., non-condensing |
| Maximum Operational Altitude |
1000 m above sea level |
| Standards |
CE |
| Protection Class |
IP20 |
The Schneider 140HRT10000 operates reliably across a broad temperature range of 0 to 60°C, making it suitable for most industrial floors. Its natural cooling design eliminates the need for auxiliary fans, reducing energy consumption and maintenance requirements. The metal housing provides exceptional durability and EMI shielding.
Installation & Mounting Guidance
Mount the Schneider 140HRT10000 securely using the provided through screw and hole pattern. Ensure the mounting surface is flat and grounded. Leave adequate space around the module for natural cooling air circulation. Verify that ambient conditions (temperature, humidity, altitude) remain within the specified limits to avoid derating. No special tools are required beyond standard screwdrivers.
Maintenance & Long-Term Reliability
Due to its metal enclosure and natural cooling, the Schneider 140HRT10000 requires minimal routine maintenance. Periodically inspect the mounting screws for tightness and check for dust accumulation on the enclosure. Operate only within the 0–60°C temperature range and keep humidity below 80% non-condensing to ensure long-term reliability. The IP20 protection class makes it suitable for clean, dry indoor environments.
Selection Guide & Purchasing Advice
Before purchasing, verify that the Schneider 140HRT10000 fits your Modicon Quantum system’s backplane and slot requirements. Confirm that your application’s ambient conditions fall within the 0–60°C temperature and 80% humidity thresholds. For bulk or urgent orders, contact UBEST Automation (ubest101) for fast availability and competitive pricing on this and other Schneider modules.
