Product Introduction

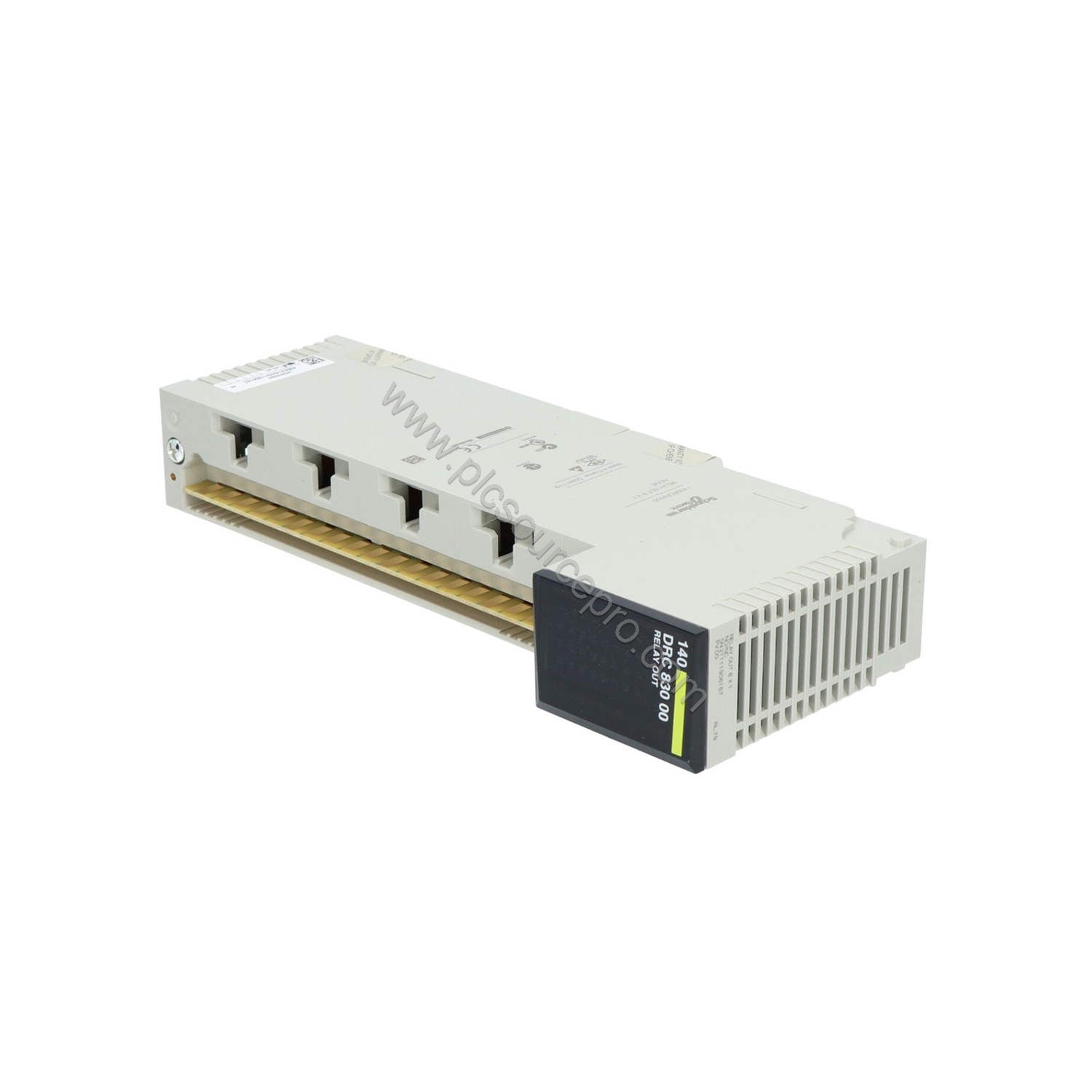

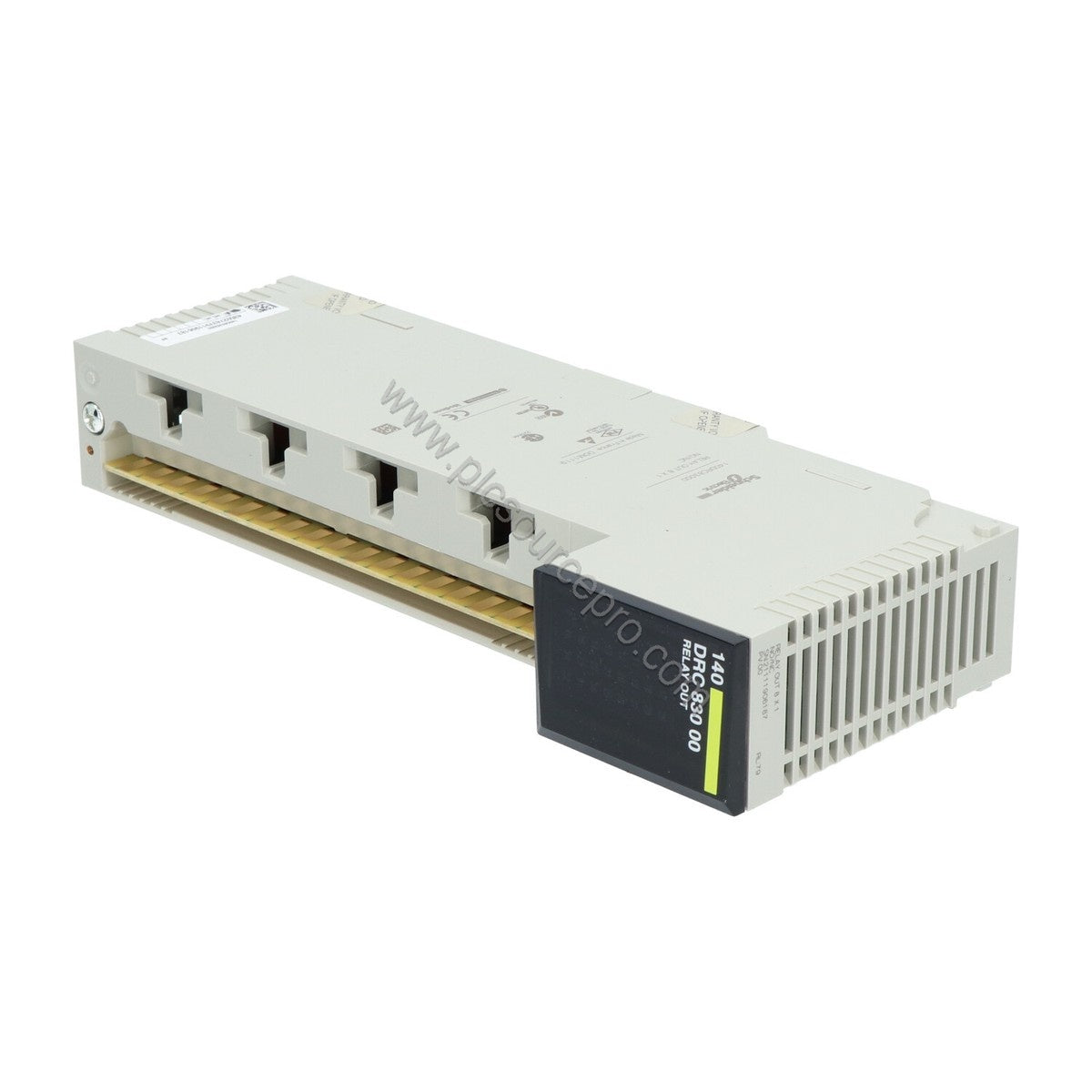

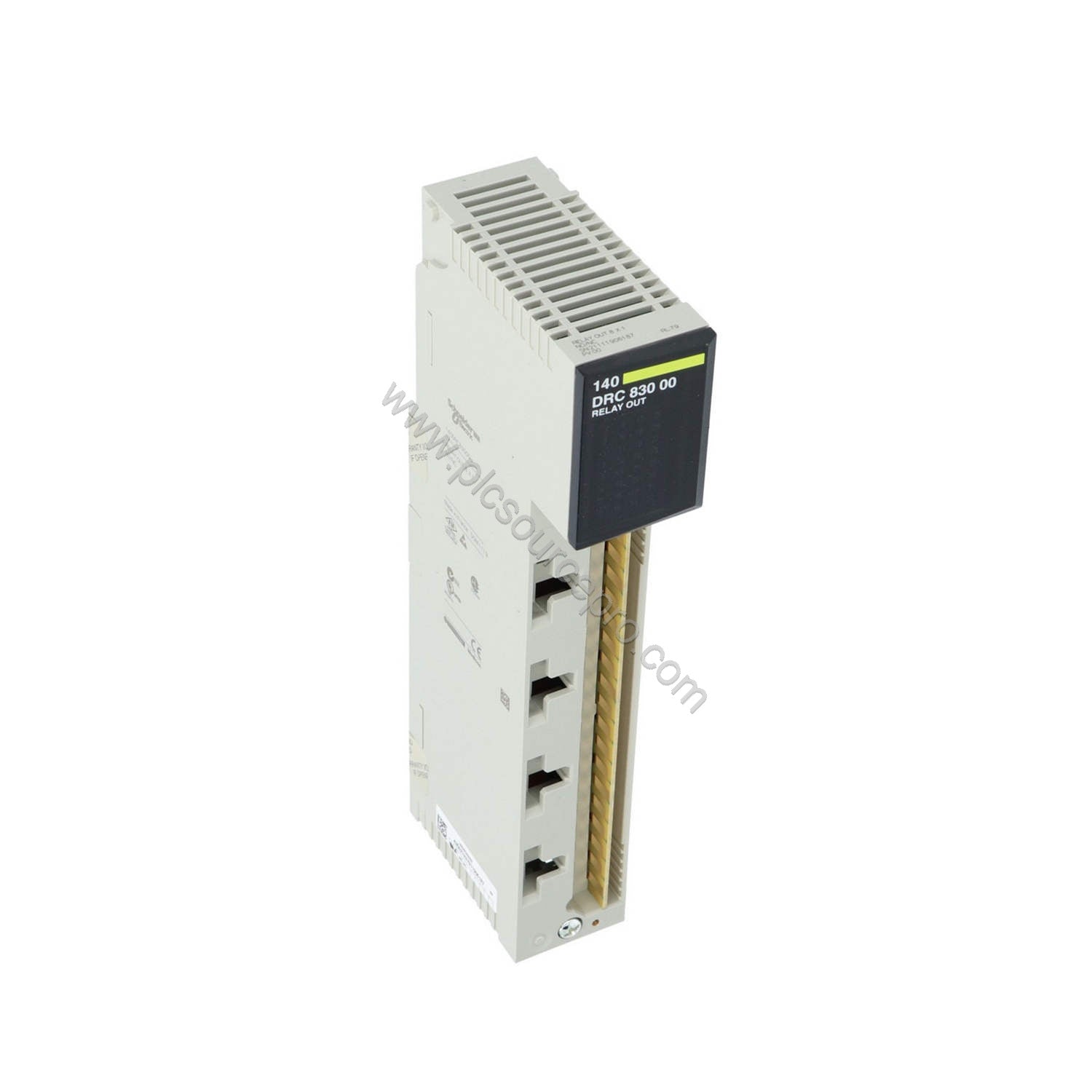

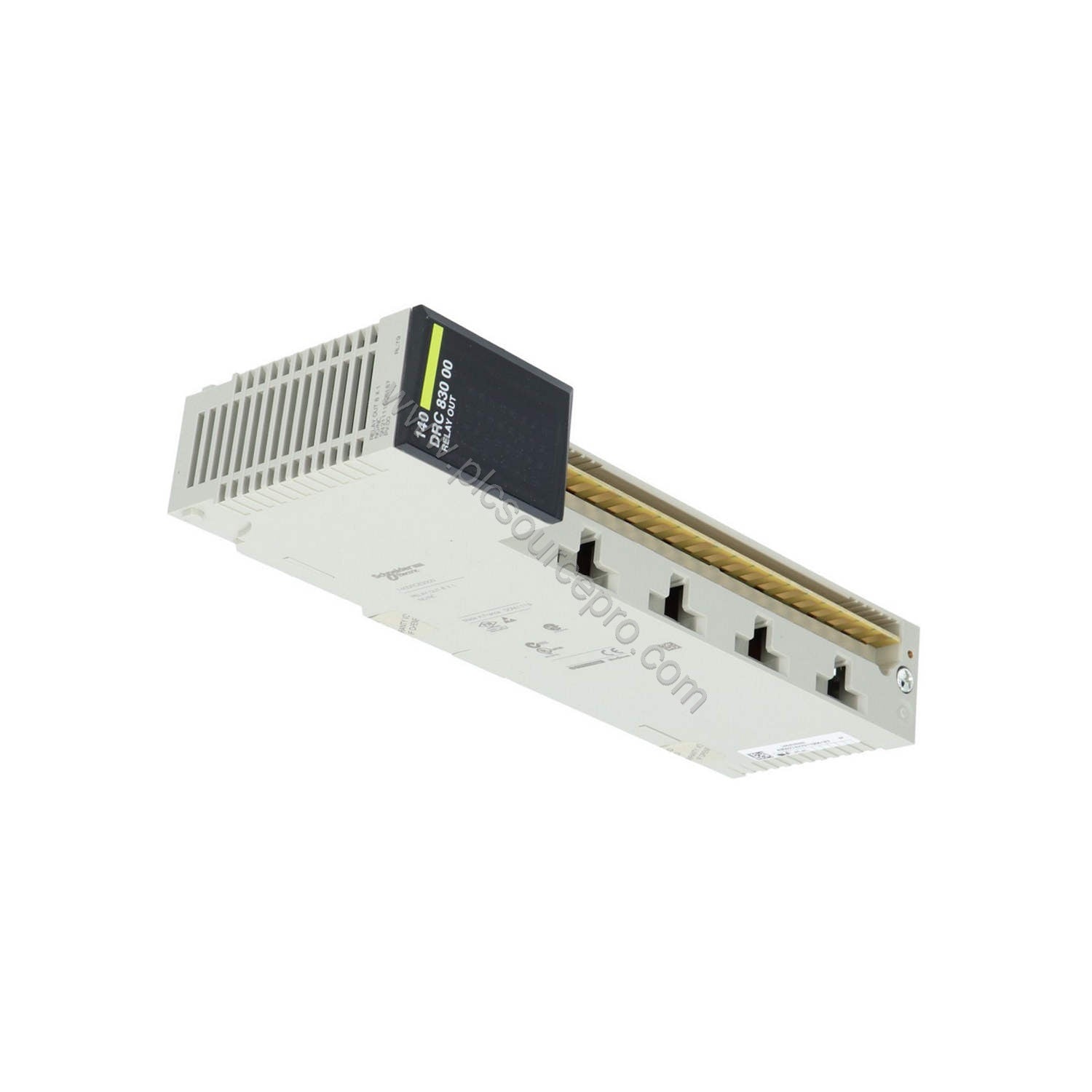

The Schneider 140DRC83000C discrete output module from the Modicon Quantum series delivers eight output channels with Form C contact configuration. Designed for reliability and longevity, this module supports multiple voltage ranges including 20-250 V AC, 30-150 V DC, and 5-30 V DC. With a mechanical durability of 10 million cycles and conformal coating for environmental protection, the 140DRC83000C ensures robust performance in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Output Channels |
8 |
| Contact Form |
Form C (1 NO/NC) |
| Discrete Output Voltage |
20–250 V AC, 30–150 V DC, 5–30 V DC |
| Surge Current |
20 A |
| Mechanical Durability |
10,000,000 cycles |
| Bus Current Requirement |
560 mA |
| Operating Temperature |
0 to 60 °C |
| Protective Treatment |
Conformal coating (Humiseal 1A33) |
| Standards |
UL 508, CSA C22.2 No 142 |
| Marking |
CE |
Industry Applications
The 140DRC83000C is well-suited for automation tasks in manufacturing assembly lines, material handling systems, and process control. Its wide voltage range allows integration with both AC and DC loads, while the high surge current capability handles inrush from inductive devices. The module’s 10 million cycle mechanical life reduces maintenance intervals, contributing to lower total cost of ownership.
Maintenance and Reliability
With conformal coating protection against moisture and contaminants, the Schneider 140DRC83000C maintains reliable operation in harsh conditions. The 560 mA bus current requirement ensures efficient power usage. For long service life, periodic inspection of terminal connections and environmental conditions is recommended.
Compatibility and Integration
This module integrates seamlessly into the Modicon Quantum automation platform. It requires 0.5 output word addressing and supports standard rack mounting. The 140DRC83000C is compatible with Quantum controllers and I/O backplanes.
Selection Guide and Purchasing Advice
When selecting the 140DRC83000C, verify that your system’s backplane can provide the required 560 mA bus current. For new installations, confirm compatibility with your Quantum controller version. UBEST Automation offers genuine Schneider modules with fast shipping. Visit ubest101 for competitive pricing and support.
