Product Introduction

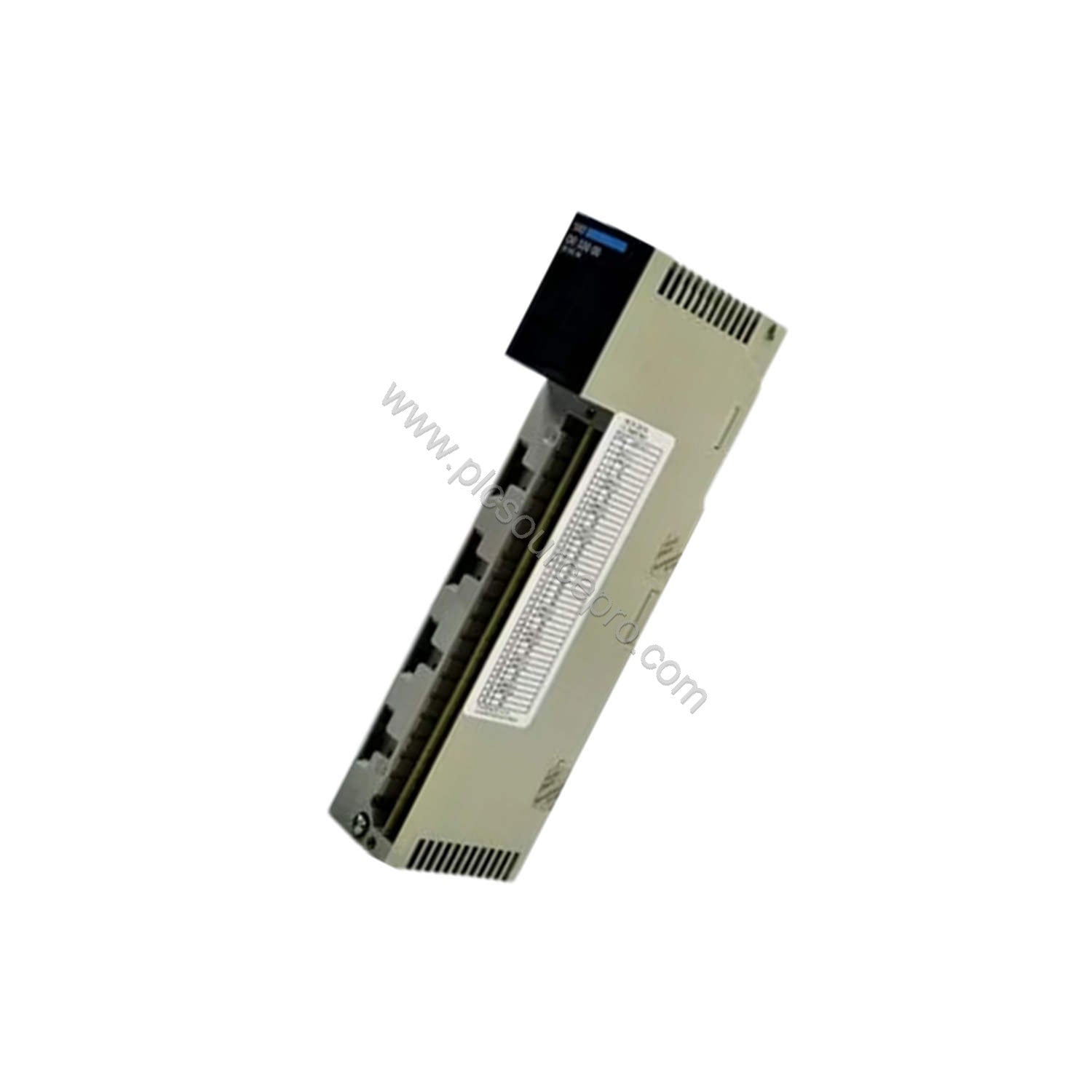

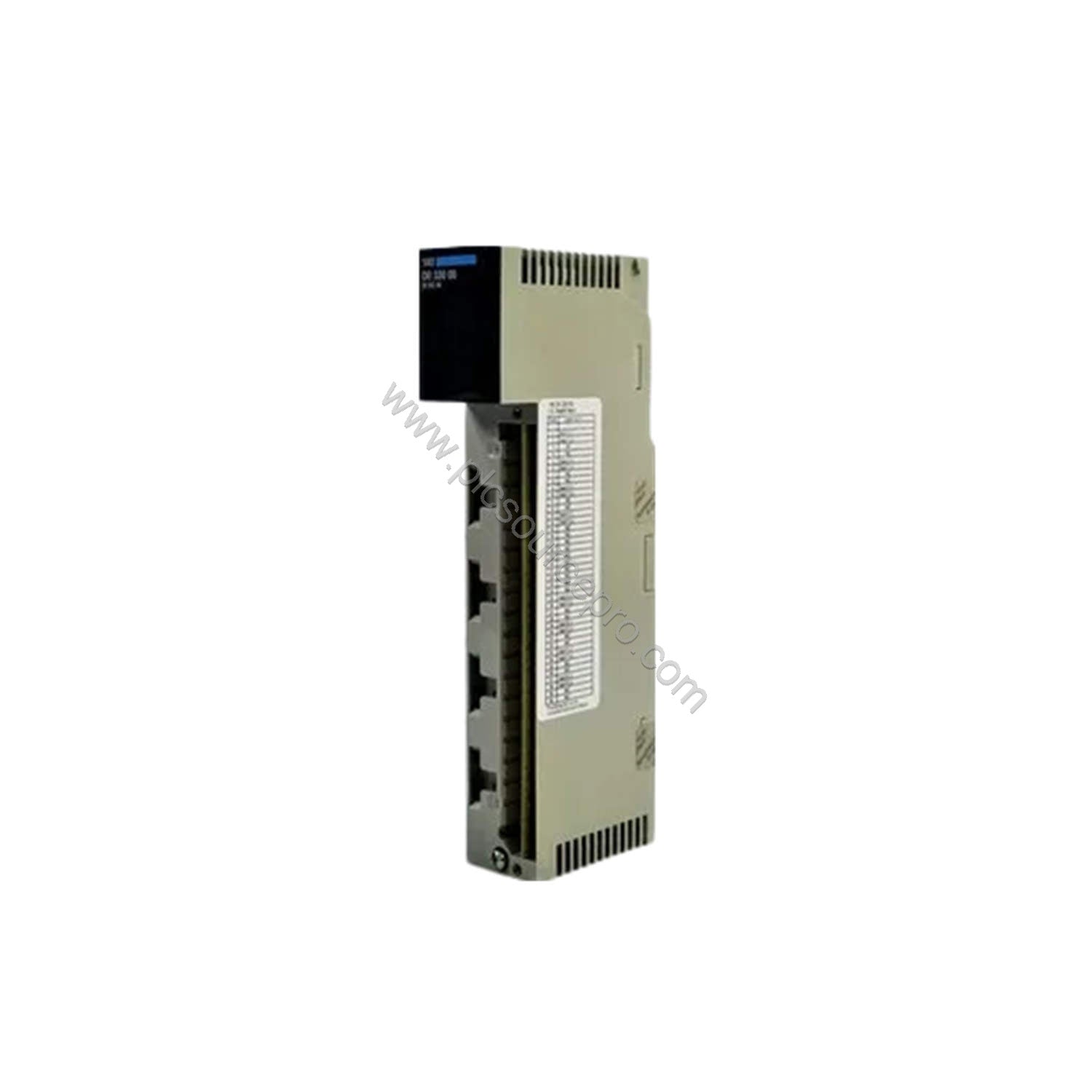

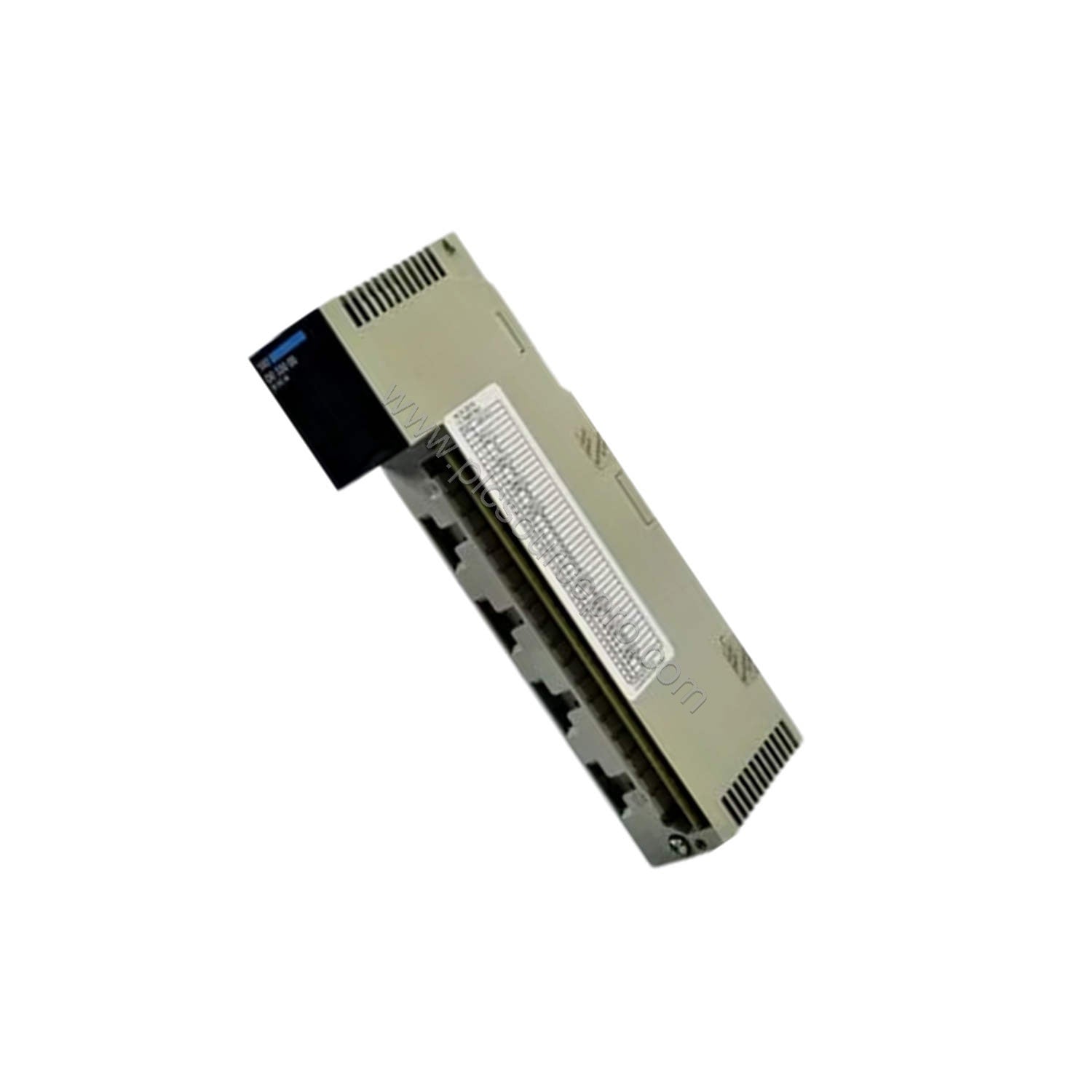

The Schneider 140DII33000C input module from the Modicon Quantum series delivers intrinsically safe discrete inputs for demanding industrial environments. It prevents electrical faults from igniting hazardous atmospheres, ensuring safe operation in packaging lines, textile machinery, and material handling systems. Operating reliably from 0 to 40 degrees Celsius, this module withstands storage from 0 to 50 degrees Celsius and up to 80% relative humidity (non-condensing).
Installation & Setup Guidance
Install the Schneider 140DII33000C in a clean indoor environment free of corrosive chemicals. Mount the module securely on a DIN rail within the Quantum backplane. Ensure proper grounding to avoid electrostatic discharge. Connect field wiring to the spring‑clamp terminals using wires sized per local electrical codes. Verify that the backplane power supply matches the module’s voltage requirements before powering up. Follow the lock‑and‑tag procedures during installation to prevent accidental energization.
Maintenance & Reliability
The 140DII33000C requires minimal routine care. Inspect connectors and wiring annually for signs of corrosion or loose connections. Keep the enclosure clean and free of dust to maintain airflow over the heat sinks. The module’s intrinsically safe design reduces the risk of spark‑induced failures in volatile environments, extending service life and lowering total cost of ownership. Replace the module only when diagnostics indicate a fault; otherwise, it delivers years of trouble‑free operation.
Troubleshooting Common Issues
If the 140DII33000C does not respond, check the backplane connection and power supply voltage. A flashing status LED indicates a field‑wiring fault; inspect sensor connections and cable integrity. For intermittent input signals, measure the signal voltage at the module terminals. Use the Quantum controller’s diagnostic tools to monitor channel status. If the module overheats (above 40°C ambient), improve ventilation or reduce the load. Always consult the official Schneider documentation for detailed error‑code interpretations.
Selection Guide & Purchasing Advice
Before ordering the Schneider 140DII33000C, confirm your system’s backplane configuration and the number of discrete input channels required. Verify that the module is compatible with your Quantum processor series. For pricing and availability, contact UBEST Automation at ubest101.myshopify.com. We stock genuine Schneider modules with full traceability. Ensure your application does not exceed the module’s altitude limit of 1000 meters above sea level. For applications needing explosive‑area certification, this intrinsically safe module meets standard industrial safety requirements.
