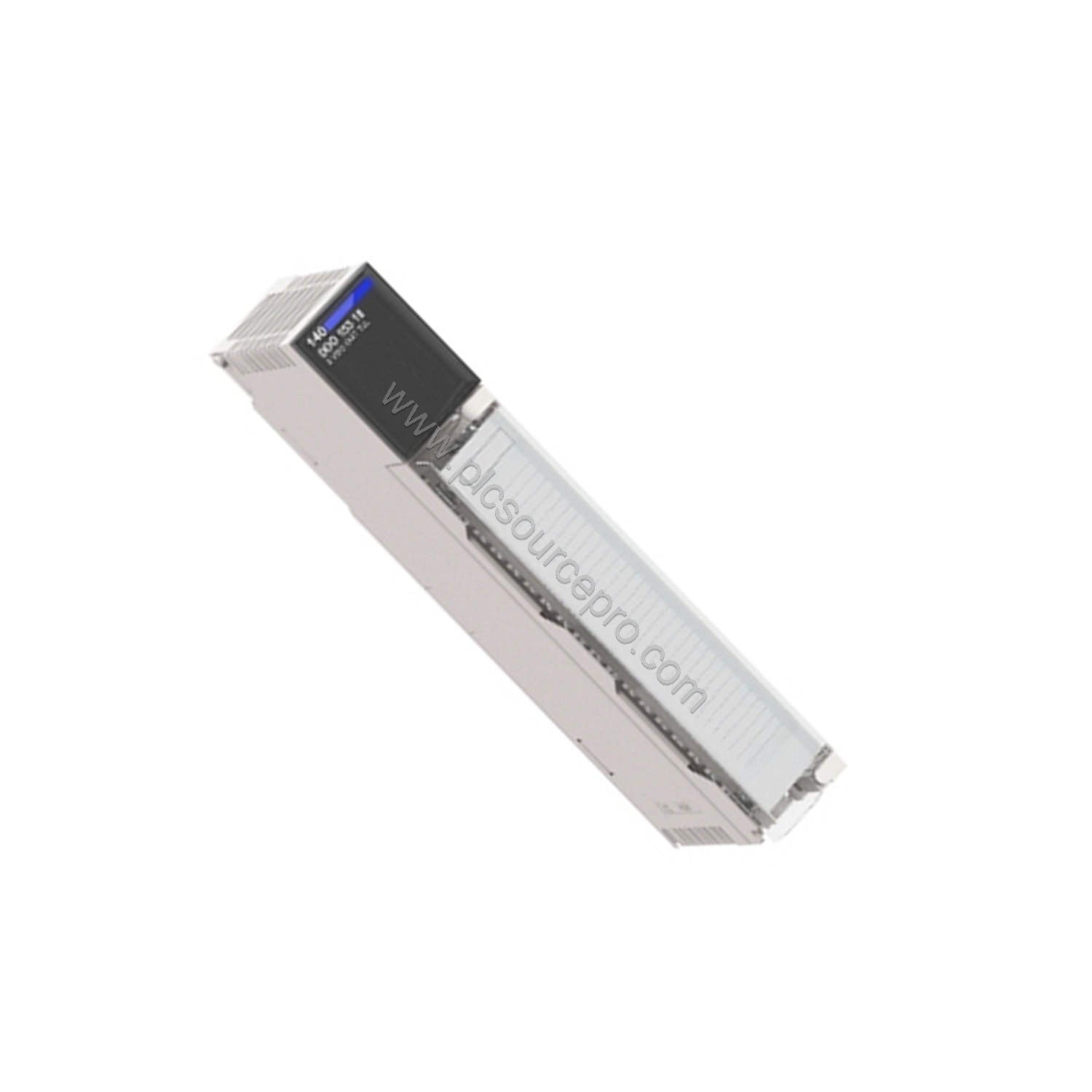

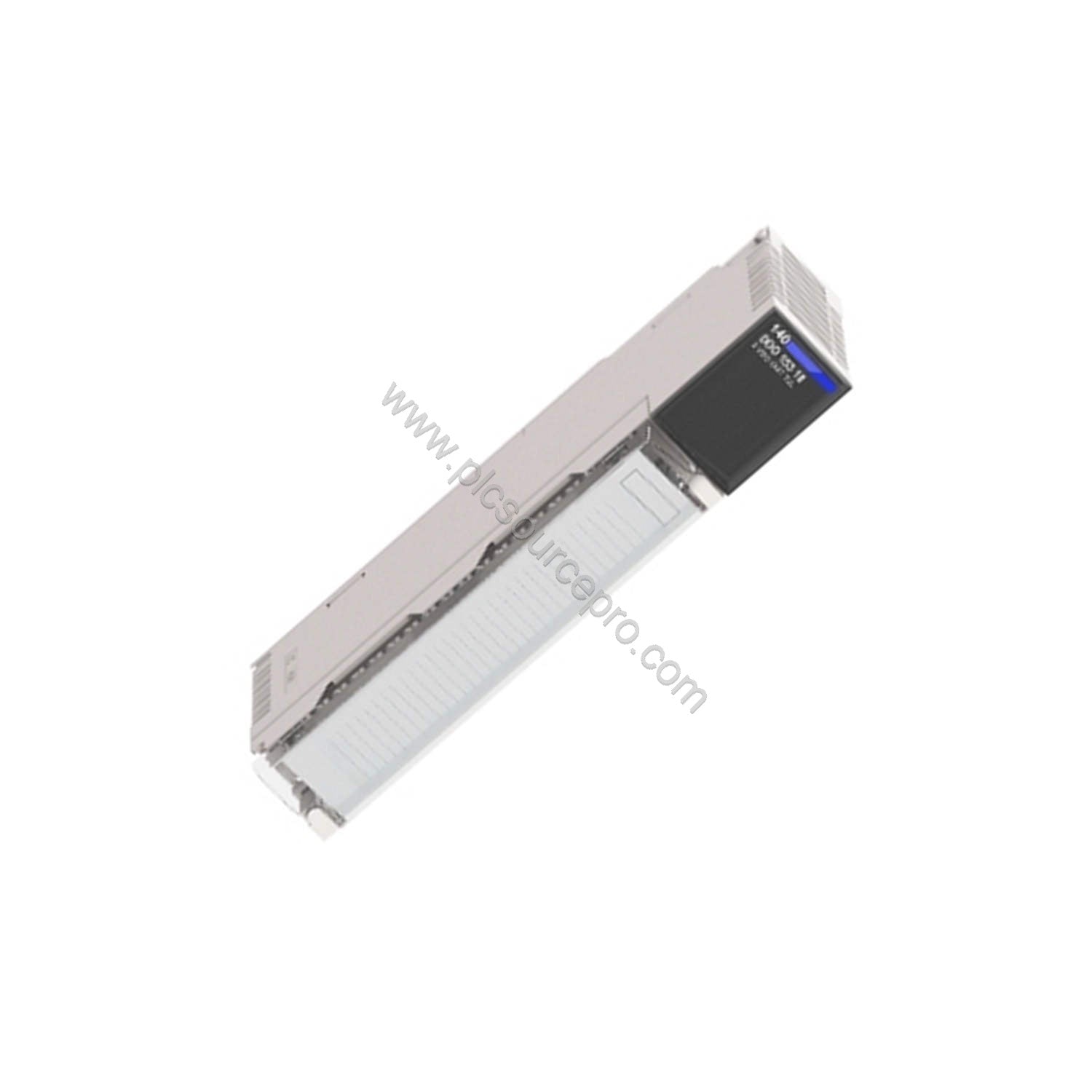

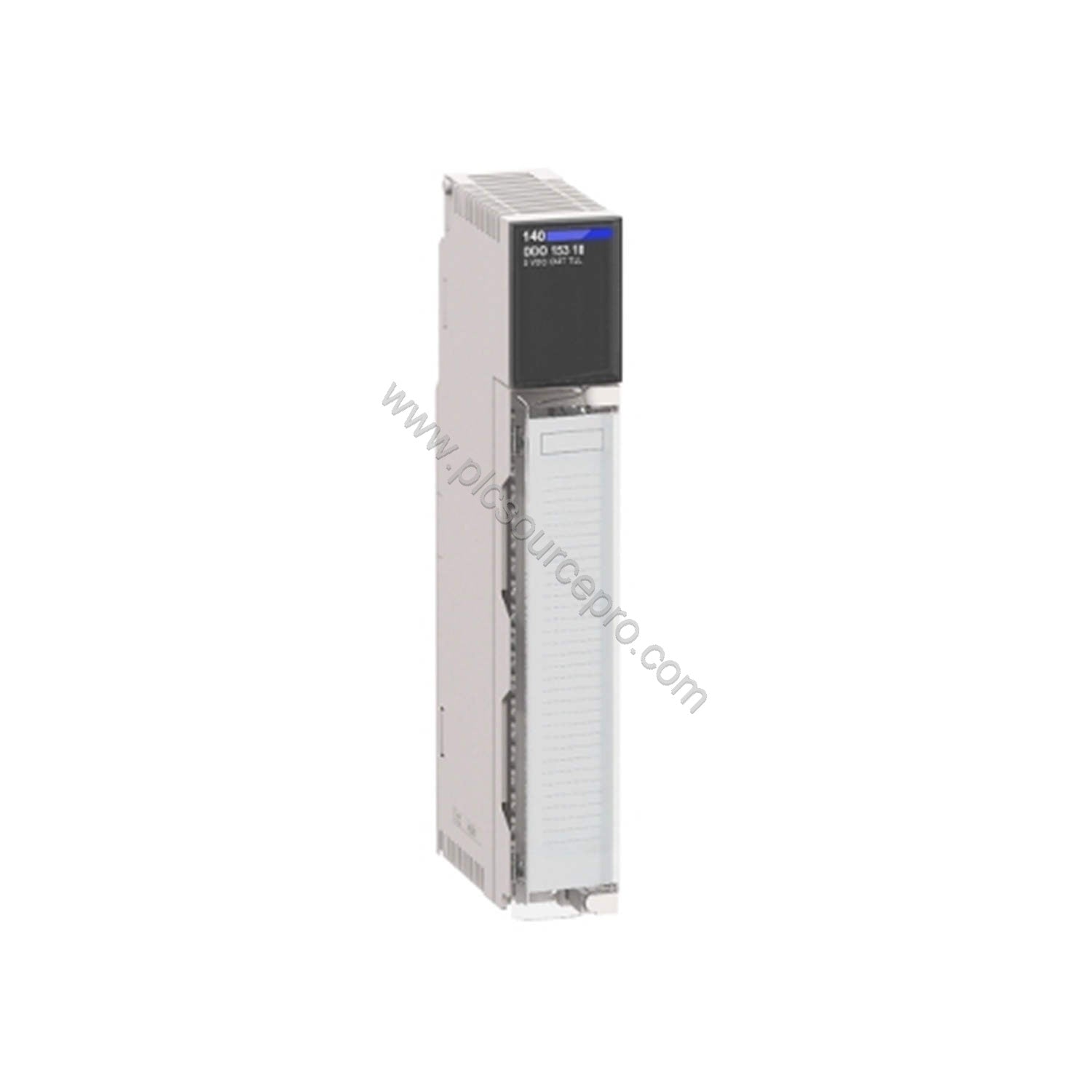

Introduction to the 140DDO36400C
When your control system demands reliable and high-density discrete output switching, the Schneider 140DDO36400C DC discrete output module delivers robust performance. Part of the Modicon Quantum series, this module integrates six channel groups, each with 16 discrete outputs, for a total of 96 outputs. Operating at a nominal 24 V DC with a permissible range of 19.2 to 30 V, it ensures stable operation across varying industrial conditions.
Key Technical Specifications
The 140DDO36400C offers precise electrical parameters designed for demanding environments. Below are the core specifications:
| Parameter |
Value |
| Discrete Output Voltage |
24 V DC |
| Output Voltage Limits |
19.2 to 30 V |
| Surge Current |
2 A |
| Maximum Leakage Current |
1 mA at 24 V |
| Power Dissipation |
7 W |
| Bus Current Requirement |
250 mA |
| Number of Discrete Outputs |
96 (6 groups of 16) |
| Output Logic |
Negative logic (sink) |
| Response Time (0→1 or 1→0) |
≤0.1 ms |
| Isolation (Channel to Bus) |
500 Vrms DC for 1 minute |
| Short-Circuit Protection |
Yes |
| Resistance to Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
| Resistance to Electromagnetic Fields |
10 V/m (80–2000 MHz, IEC 801-3) |
| Operating Altitude |
≤5000 m |
| Net Weight |
0.45 kg |
Industrial Applications
The 140DDO36400C excels in high-density discrete output control for material handling, packaging machinery, and assembly lines. Its 96 individually fused outputs (with short-circuit protection) allow reliable switching of solenoid valves, relays, and indicator lamps. The module's negative logic sink output simplifies integration with modern PLC systems, reducing wiring complexity in large-scale installations.
Maintenance and Reliability
Designed for long service life, the Schneider 140DDO36400C features conformal coating (Humiseal 1A33) to protect against moisture and contaminants. It operates reliably in temperatures from 0 to 60 °C and withstands electrostatic discharge up to 4 kV contact and 8 kV air. The module provides continuous fault monitoring through red and green LEDs: a green LED for bus communication, a red LED for external fault, and 96 green LEDs for output status. Regular visual checks of these indicators help identify issues early.
Troubleshooting Common Issues
Common problems with discrete output modules include ground loops, overcurrent, and wiring errors. The 140DDO36400C addresses these with built-in short-circuit and overload protection. If a red fault LED lights up, check for a shorted load or missing field power. The module also reports faults at the point of failure, aiding rapid diagnosis. For best results, verify that the bus current requirement (250 mA) is within your backplane capacity and that the output voltage stays within the 19.2–30 V range.
Selection Guide and Purchasing Advice
Before purchasing the 140DDO36400C, confirm compatibility with your Modicon Quantum backplane and ensure your application requires negative logic (sink) outputs. The module's net weight of 0.45 kg makes it easy to handle during installation. For genuine parts and fast delivery, source from UBEST Automation (available at ubest101). Our inventory includes the 140DDO36400C along with other Quantum series modules, ensuring you get the exact part your system needs.
