Product Introduction

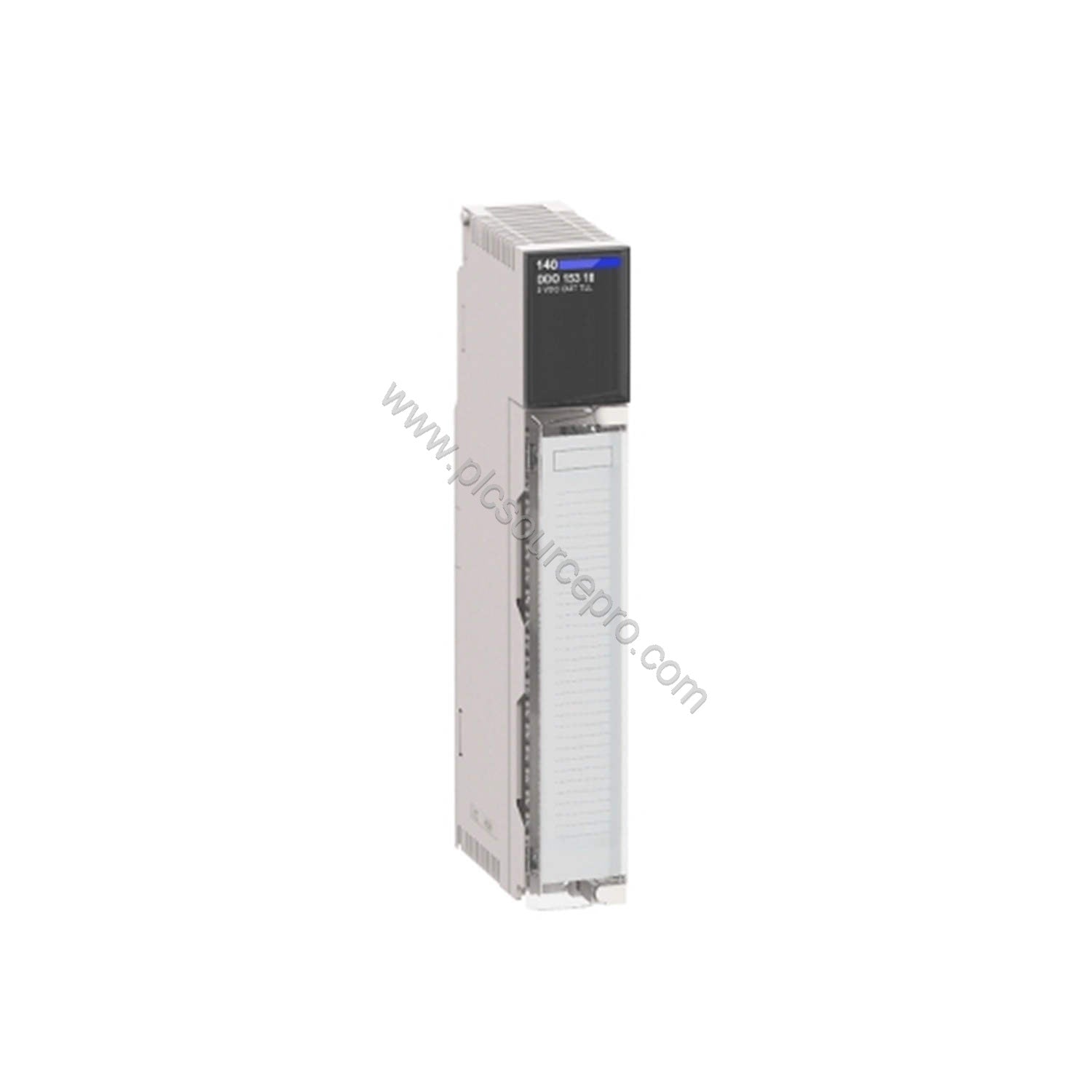

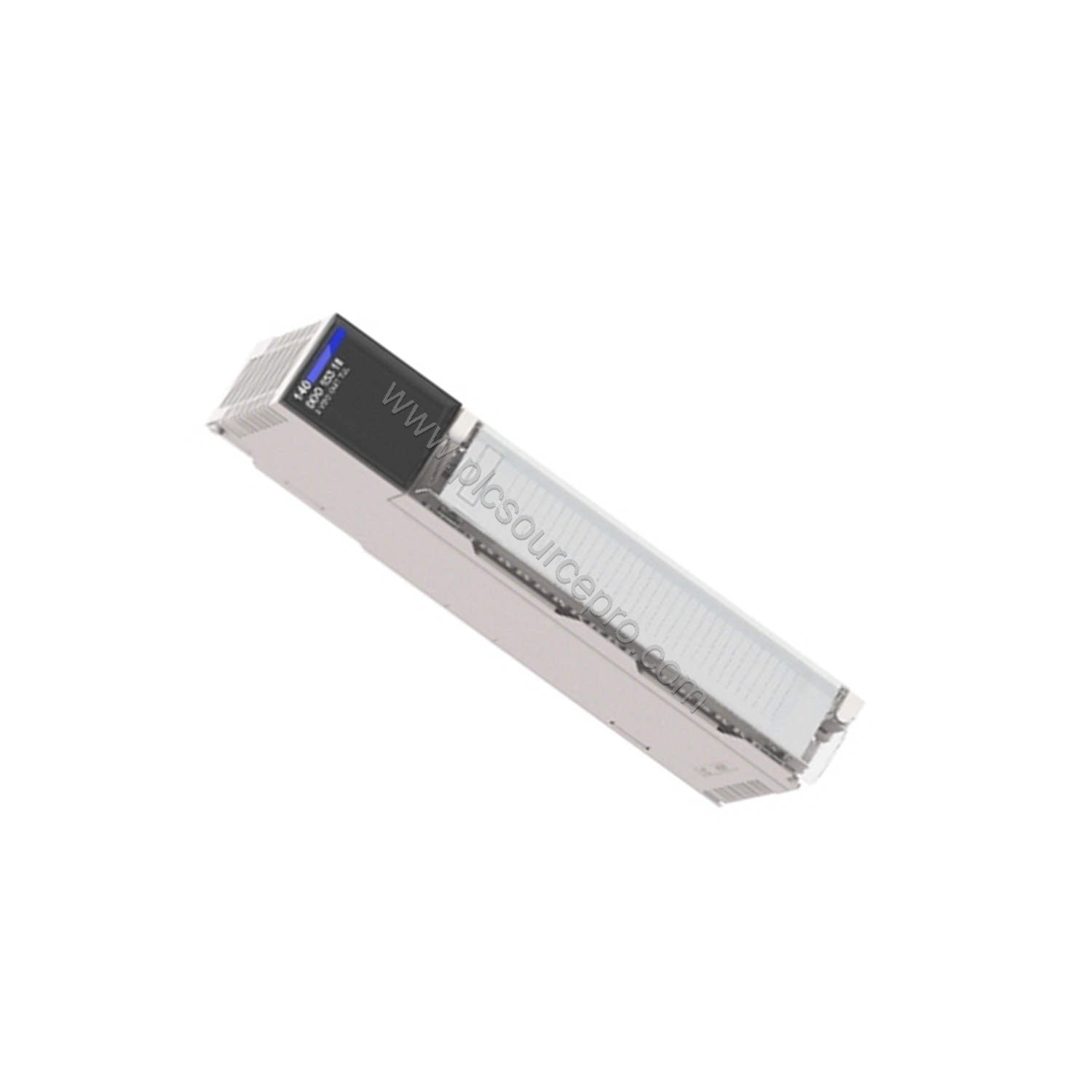

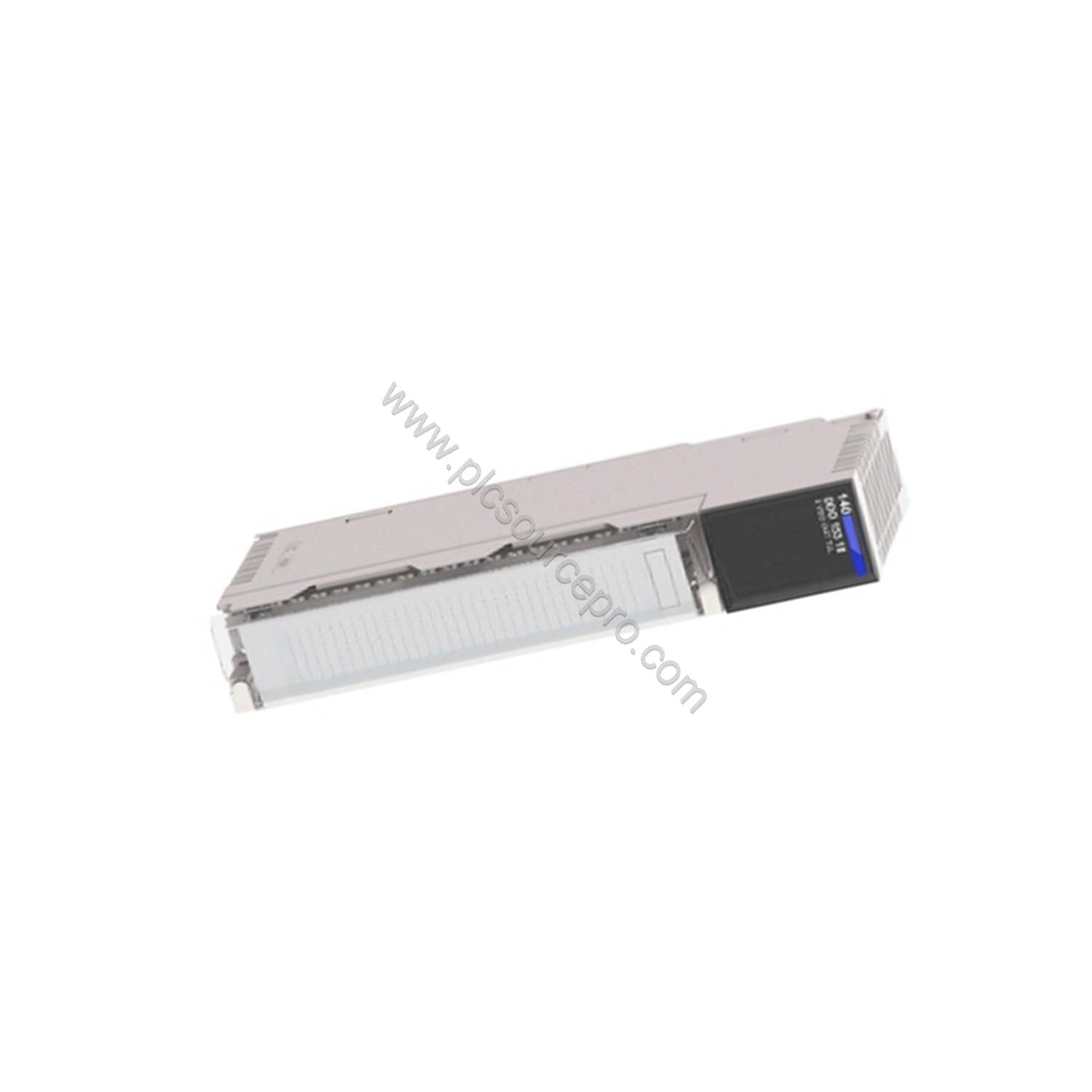

Industrial output modules often face challenges such as transient surges, leakage currents, and environmental degradation. The Schneider 140DDO35310C discrete output module from the Modicon Quantum series is engineered to address these issues. It provides 32 output channels with negative logic (sink) operation at 24 V DC, delivering robust performance in demanding automation environments.
Technical Specifications Breakdown
This module offers key parameters that ensure reliable operation:
-
Output Channels: 32 channels in 4 groups of 8
-
Output Voltage: 24 V DC (limits 19.2...30 V)
-
Surge Current: 5 A for 1 ms – handles transient loads
-
Maximum Leakage Current: 0.4 mA at 30 V – minimizes power loss
-
Power Dissipation: 2.0 W + (0.4 V × total load current) – efficient energy management
-
Protection: Internal 5 A fuse per group; conformal coating for environmental resistance
Industry Applications
The Schneider 140DDO35310C excels in applications where output reliability is critical. In assembly line control, its surge capability prevents damage from inductive loads. In chemical processing, the conformal coating protects against humidity and contaminants. Its CE marking and compliance with UL 508/CSA standards make it suitable for global installations.
Maintenance & Reliability
Regular inspection of the fused groups (5 A per group) can prevent downtime. The conformal coating reduces the need for frequent cleaning, extending service life. Ambient temperature range of 0 to 60 °C supports harsh environments. Verify bus current requirement (330 mA) when adding modules.
Troubleshooting & Common Issues
Common issues include blown fuses from overcurrent or field power loss. The module provides LED indicators for bus communication (green), external fault (red), and per-channel status (green). Check the associated fuse rating (3 A per point, 5 A per group) if outputs fail. Loss of field power triggers the fault LED; ensure stable 24 V DC supply.
Selection Guide & Purchasing Advice
Before purchasing, verify your system's bus current capacity and addressing requirements (2 output words). The module uses a standard format. For reliable supply, consider UBEST Automation (ubest101) for genuine Schneider 140DDO35310C modules with fast delivery.
