Product Overview

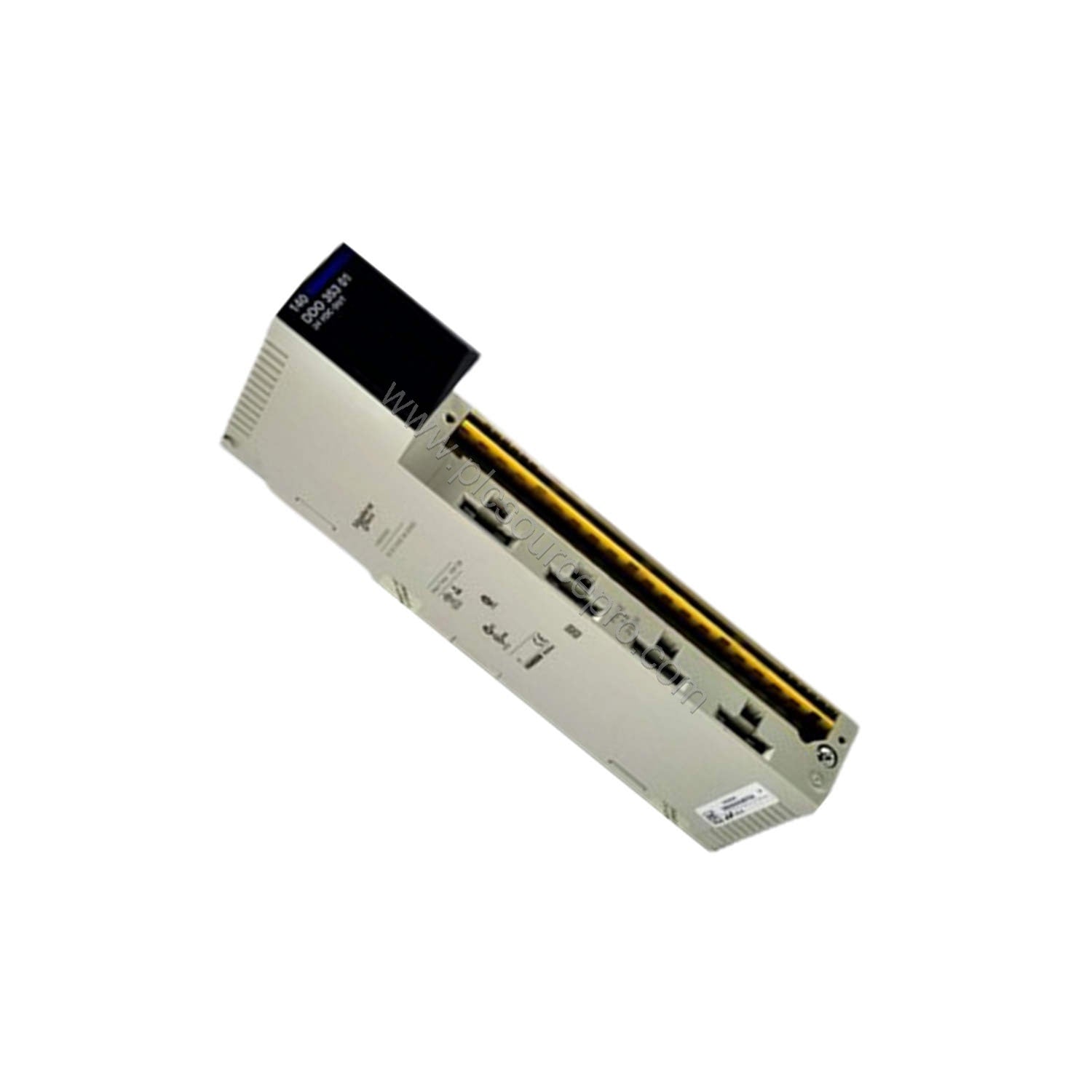

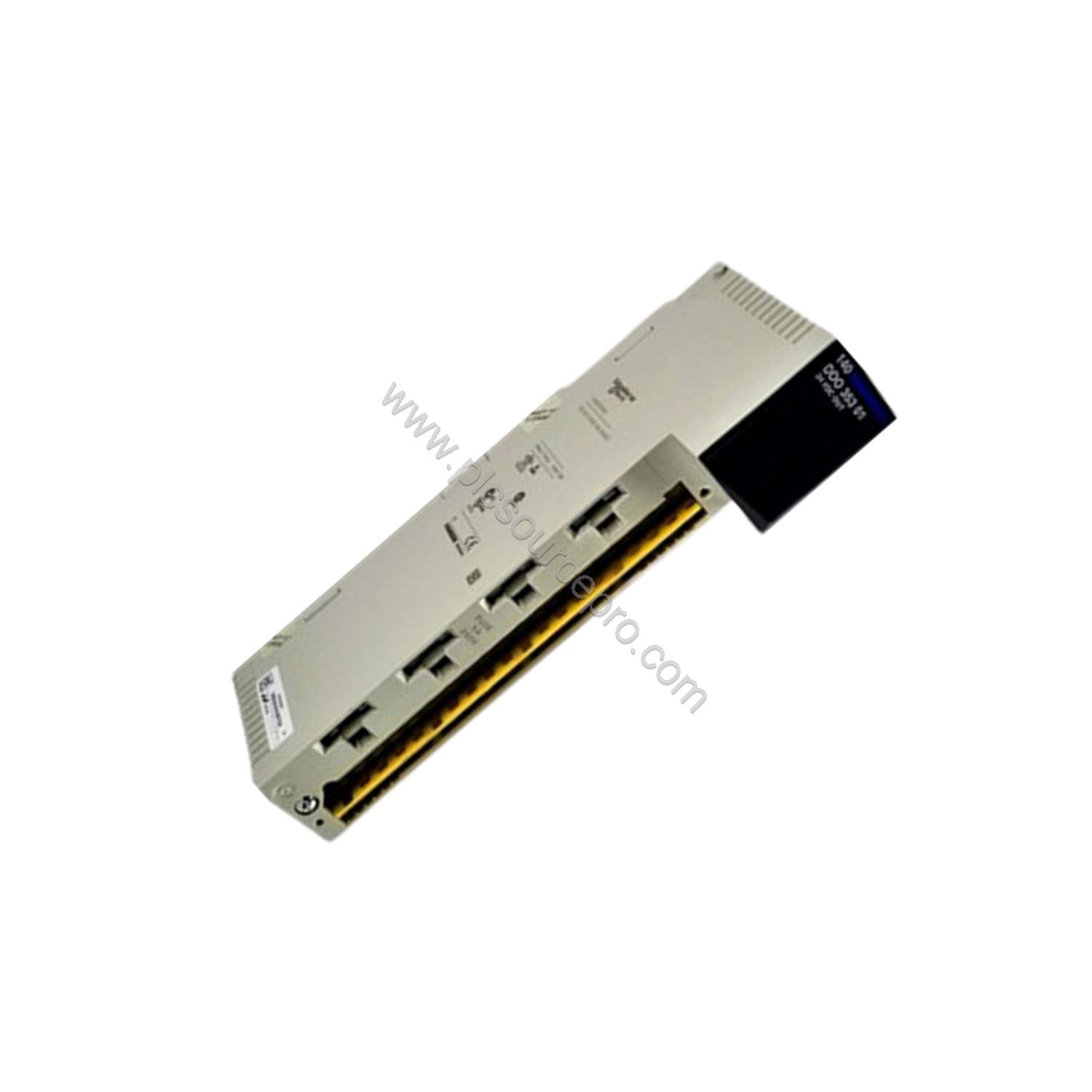

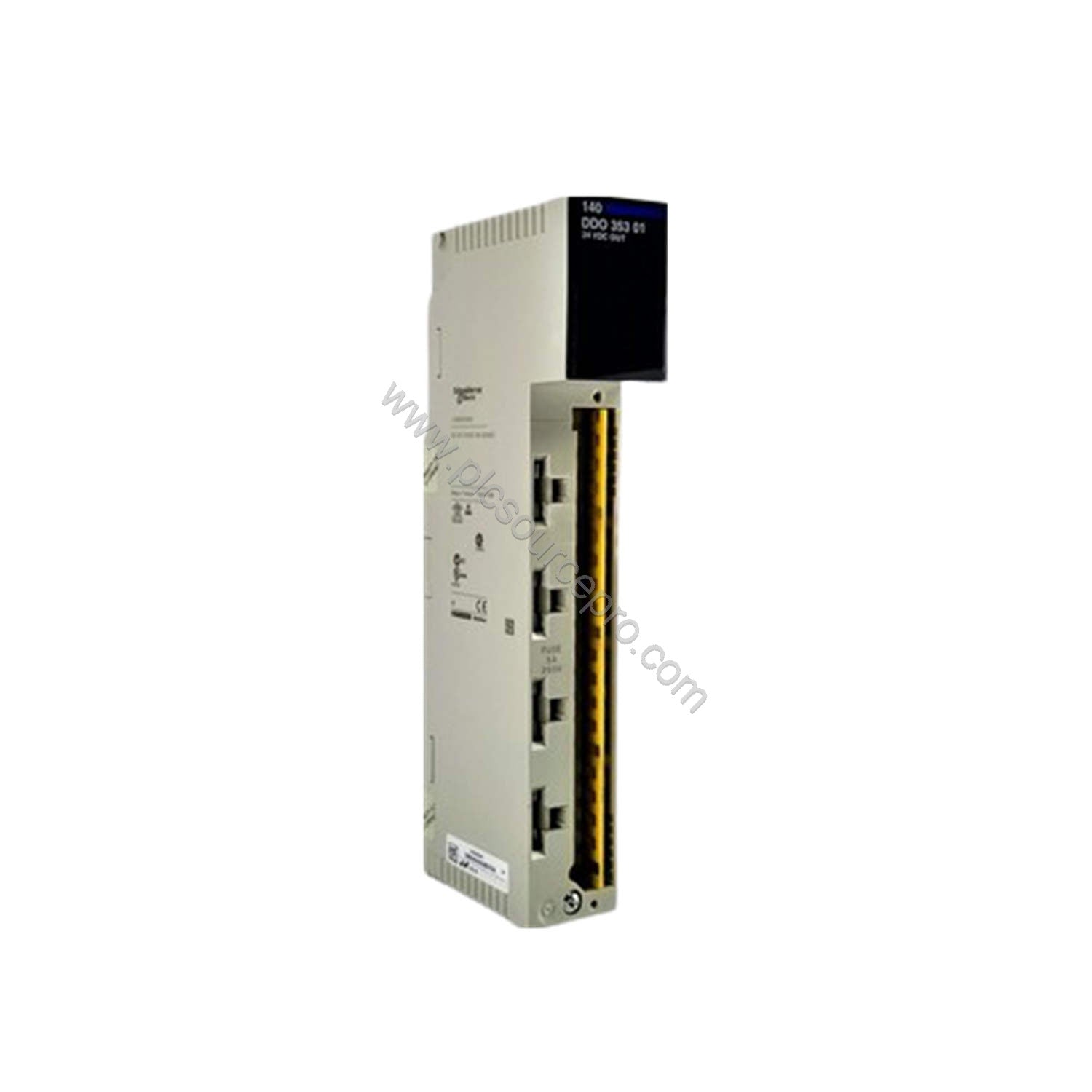

The Schneider 140DDO35301C discrete output module is a key component of the Modicon Quantum automation platform. Designed for industrial control systems, this module delivers 32 positive logic (source) output channels operating at 24 V DC. It provides reliable switching for actuators, solenoids, and indicators, ensuring precise control in demanding environments. The module supports addressing via 2 output words and consumes only 330 mA from the bus, making it a power-efficient choice for your automation network.
Technical Specifications Breakdown
The Schneider 140DDO35301C offers a robust set of electrical characteristics. Each output channel can handle a surge current of up to 2 A, while the maximum leakage current is limited to 1 mA at 24 V. Power dissipation is kept at 5 W, reducing heat buildup in the cabinet. The module features internal protection with a 5 A fuse per group (4 groups of 8 channels). With a response time of ≤0.1 ms (ON to OFF) and ≤1 ms (OFF to ON), it is suitable for high-speed control tasks. The module complies with UL 508 and CSA standards and is CE marked. Additional environmental protection includes a conformal coating (Humiseal 1A33) for resistance to moisture and contaminants.
Real-World Applications
The Schneider 140DDO35301C is ideal for applications requiring reliable digital output control. Typical use cases include:
-
Manufacturing assembly lines – controlling pneumatic valves and solenoid banks with high repeatability.
-
Material handling systems – driving conveyor belt motors and diverters.
-
Process control – switching indicators, alarms, and actuators in chemical or food processing plants.
Its surge current capability and fast response help prevent output failures in inductive load switching.
Installation Setup and Mounting
Mount the Schneider 140DDO35301C module in a standard Modicon Quantum backplane. Ensure proper seating of the module and secure the locking mechanism. Wire the output channels using compatible terminal blocks (not included). Observe polarity for positive logic: the common line must be connected to the appropriate power supply. Use a bus current supply rated for at least 330 mA per module. For group isolation, maintain clearance between group wiring to avoid cross-talk. Refer to the installation manual for detailed torque specifications and cable gauge recommendations.
Maintenance for Longevity
Periodic inspection of the Schneider 140DDO35301C module extends its service life. Check the green LED indicators (one per channel) for output status; a red LED signals an external fault. Verify that fuses (3 A per point, 5 A per group) are intact. Clean the module surface with a dry cloth to prevent dust accumulation. The conformal coating reduces the need for frequent maintenance in harsh environments. Operate the module within the specified temperature range (0 to 60 °C) and avoid exposure to condensation.
Troubleshooting Common Issues
Common problems with discrete output modules often stem from overload or wiring faults. For the Schneider 140DDO35301C, if an output fails to energize, check the group fuse – a blown fuse is indicated by the red LED (F). If multiple channels are unresponsive, verify bus power and addressing. Surge currents exceeding 2 A may damage internal components; ensure external suppression diodes on inductive loads. Use a multimeter to confirm 24 V DC at the output terminals while the module is active. For further assistance, consult the product manual or contact UBEST Automation.
