Product Introduction

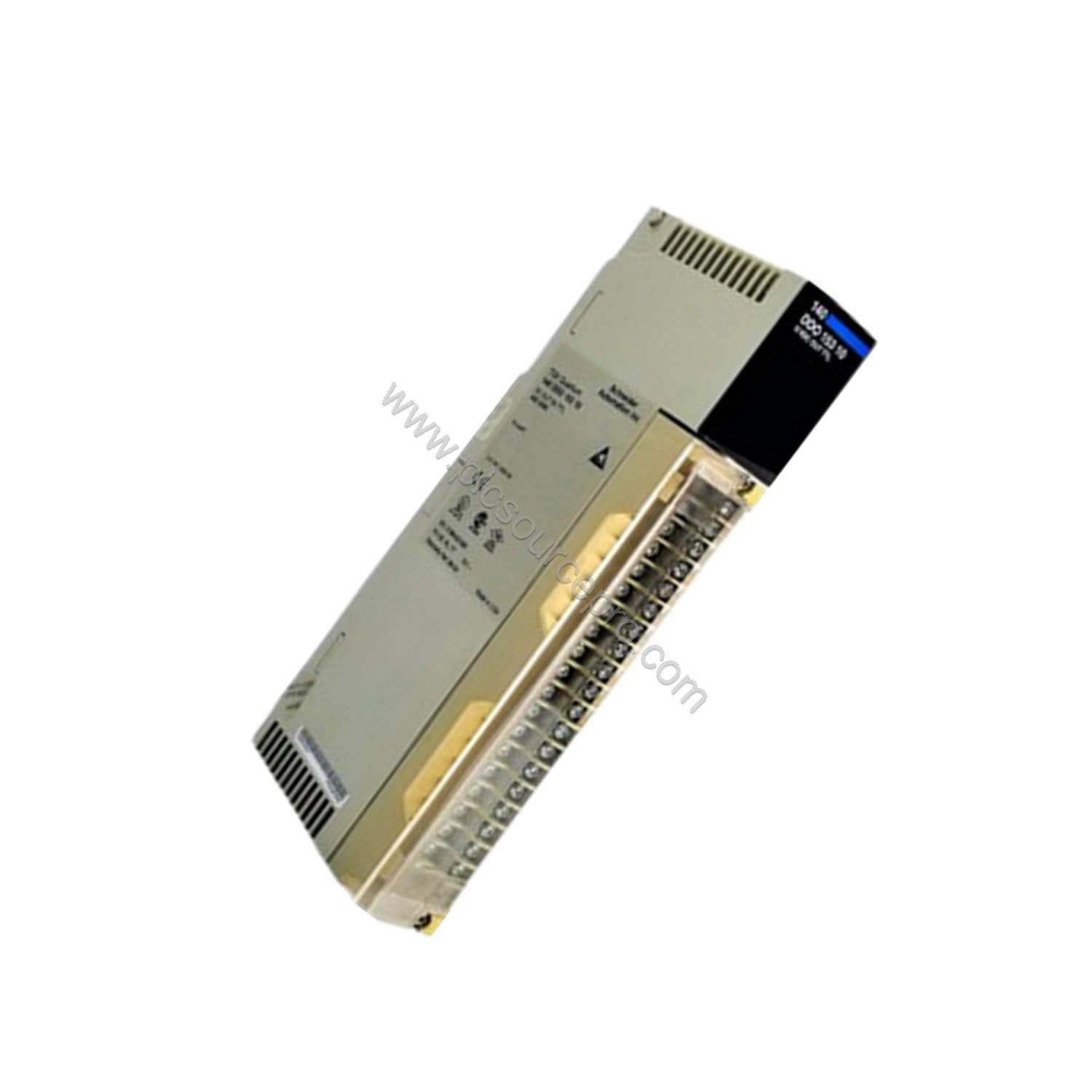

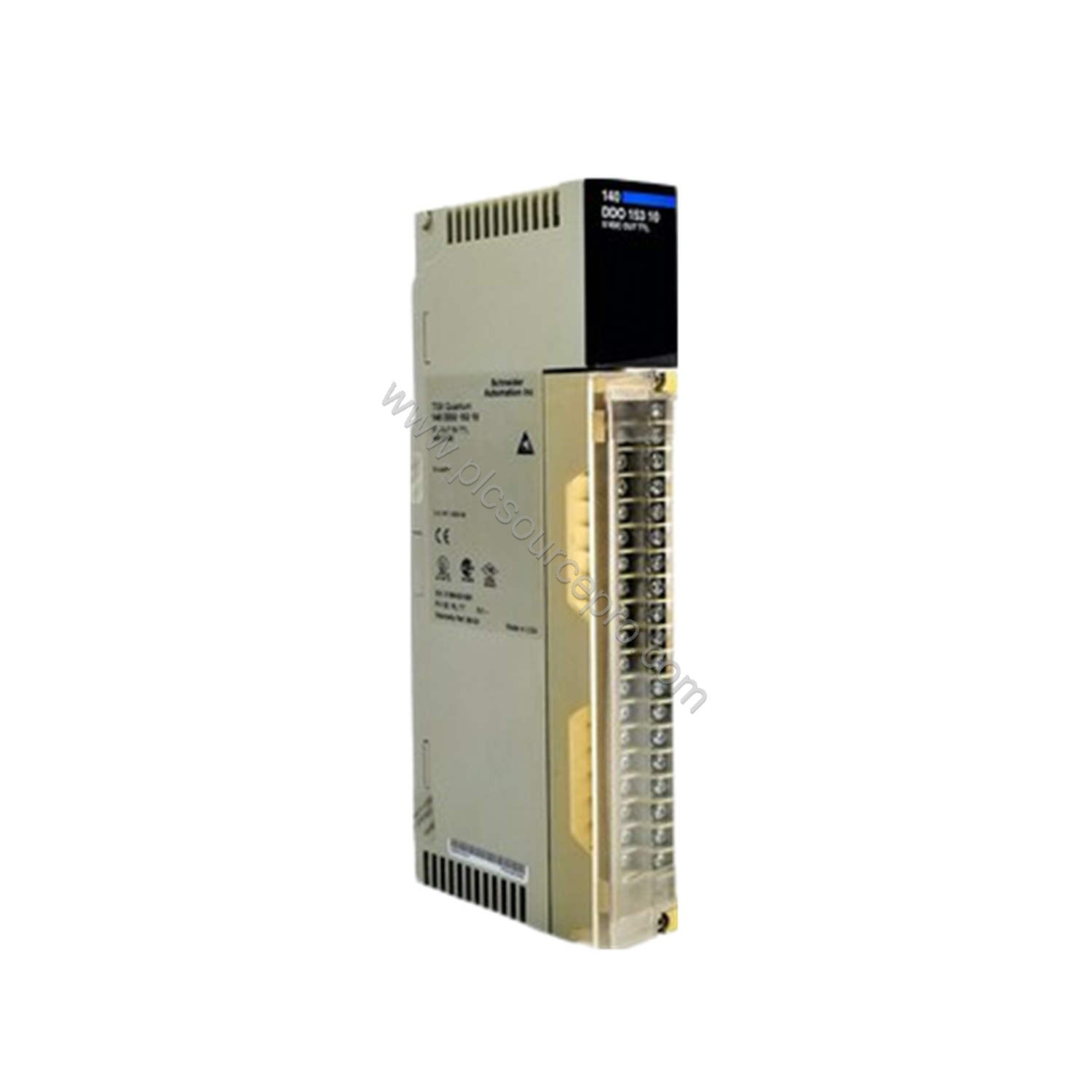

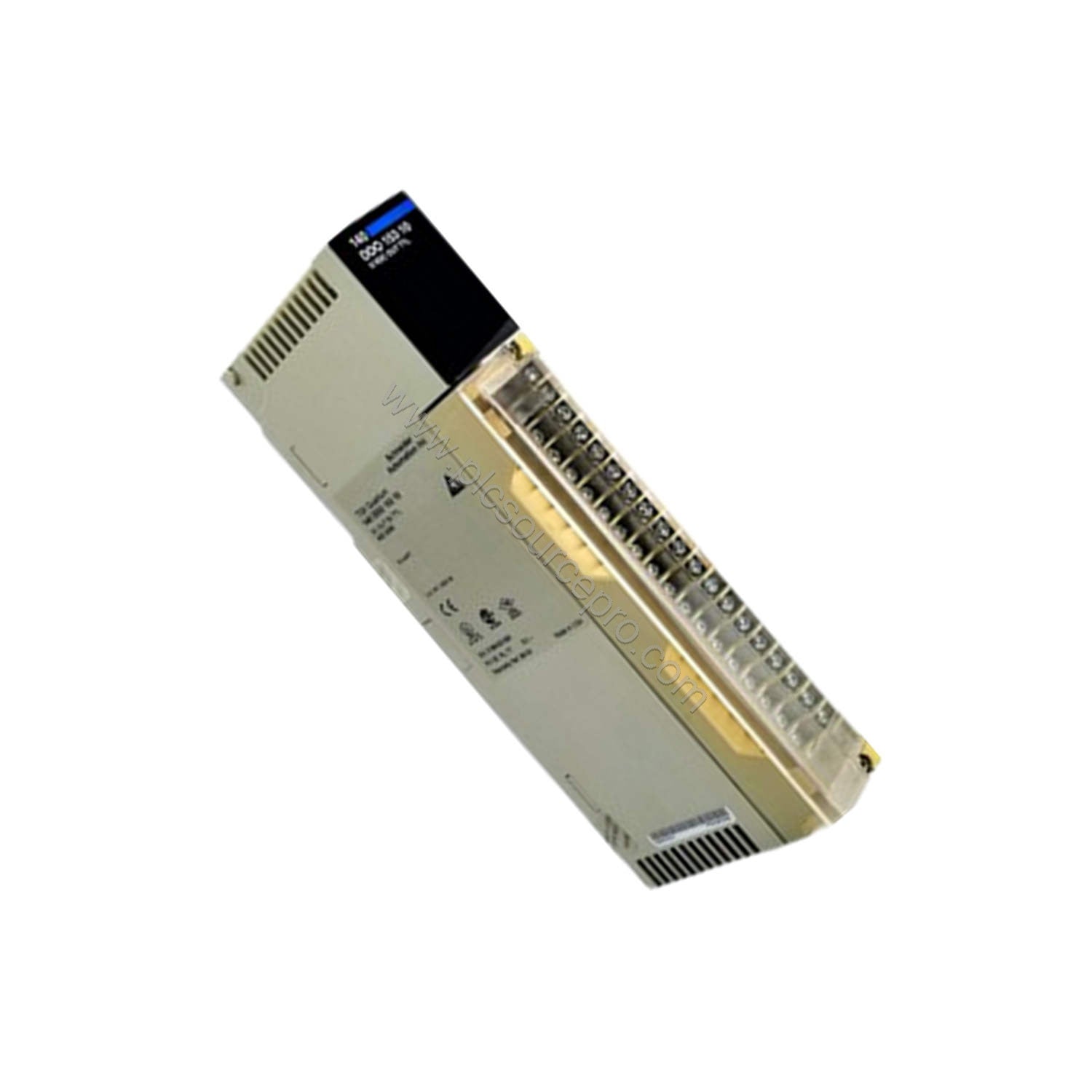

When industrial automation systems face electrical surges or harsh environmental conditions, the Schneider 140DDO15310C TTL Discrete Output Module provides robust protection and reliable performance. This module is part of the Modicon Quantum series and is designed to handle 32 discrete output channels with TTL positive (sink) signals at 5 V DC. Its compact standard format and conformal coating ensure long-term stability in demanding applications.
Technical Specifications Breakdown
Key parameters of the Schneider 140DDO15310C demonstrate its ability to withstand common industrial failure modes:
-
Surge Current: 750 A (0.5 ms per point) – protects against transient overvoltages.
-
Internal Pullup Resistor: 440 Ohm – ensures signal integrity without external components.
-
Power Dissipation: 4 W – energy-efficient operation reduces heat buildup.
-
Conformal Coating: Humiseal 1A33 – guards against moisture, dust, and chemical exposure.
-
Isolation Between Groups: 500 Vrms for 1 minute – prevents fault propagation between channel groups.
These features directly address common drawbacks of generic TTL output modules: susceptibility to electrical noise, surge damage, and environmental degradation.
Real-World Application Scenarios
In a chemical processing plant, the Schneider 140DDO15310C controls solenoid valves in a volatile atmosphere. The conformal coating and robust surge protection prevent failures from incidental spills or voltage spikes, reducing unplanned downtime. In a high-vibration conveyor system, the module's 5 V DC operation and 440 ohm pullup resistor provide consistent logic levels despite mechanical stress. For building automation, the 32-channel density allows for streamlined wiring while maintaining isolation standards (UL 508, CSA) required for safety systems.
Installation & Setup Guidance
Mount the Schneider 140DDO15310C in a standard Quantum backplane. Ensure the bus current requirement of 350 mA is within the power supply's capacity. Connect field wiring to the output terminals, respecting the maximum load of 2.4 A per module (75 mA per point). Verify that the addressing requirement of 2 output words is correctly configured in the control software. For environments with high electromagnetic interference, use shielded cables and proper grounding per IEC 801-3 guidelines (9.1 V/m immunity).
Maintenance & Reliability
The protective conformal coating reduces the need for frequent cleaning; however, inspect connectors and LEDs annually for any signs of corrosion or discoloration. The module operates within 0–60 °C ambient temperature and up to 5000 m altitude. Storage range is -40 to 85 °C. The internal fuse and transient voltage suppression circuits are non-serviceable – replace the entire module if the red fault LED indicates a blown fuse. A spare unit on hand ensures minimal downtime.
Troubleshooting & Common Issues
Symptoms of failure in TTL output modules can include: no response from outputs, erratic state changes, or LED indicators showing a fault. For the Schneider 140DDO15310C, first check the green Active LED – if off, verify backplane power and bus communication. The red Fault LED (F) signals an external fault, such as a short circuit or blown fuse. Use the point-by-point load test: each output should supply ≤75 mA. If the full module draws >2800 mA from 5 V DC, check for output wiring errors or damaged field devices. In extreme cases, the surge current capability (750 A) protects the module, but repeated surges may degrade internal components – replace if faults persist.
