When industrial automation systems demand reliable discrete I/O operation with minimal downtime, the Schneider 140DDM69000 provides a cost-effective solution. As part of the Modicon Quantum series, this discrete I/O module delivers 8 I/O points with solid-state technology, reducing maintenance and extending service life. This module is designed for applications where operational continuity translates directly to bottom-line savings.
Product Overview

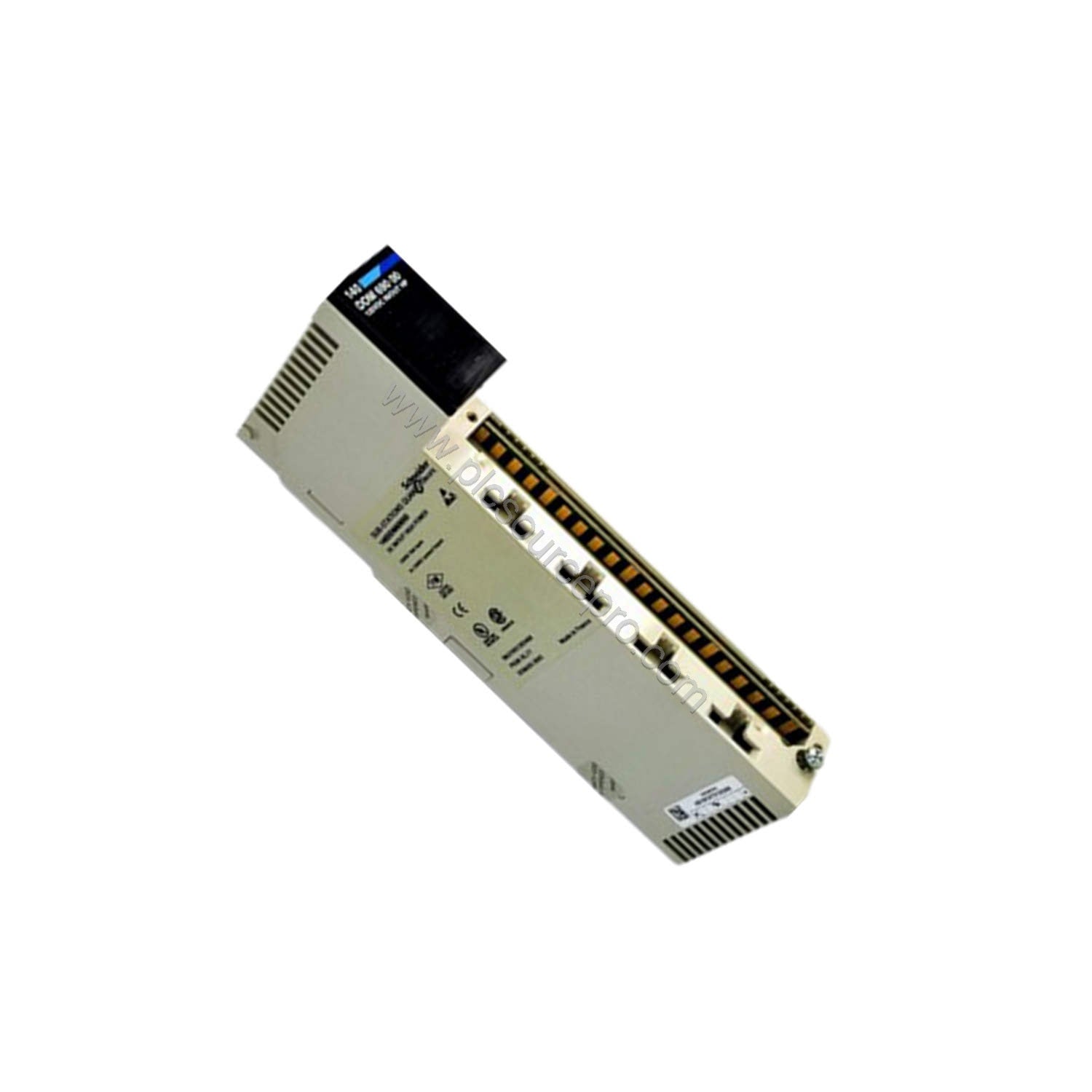

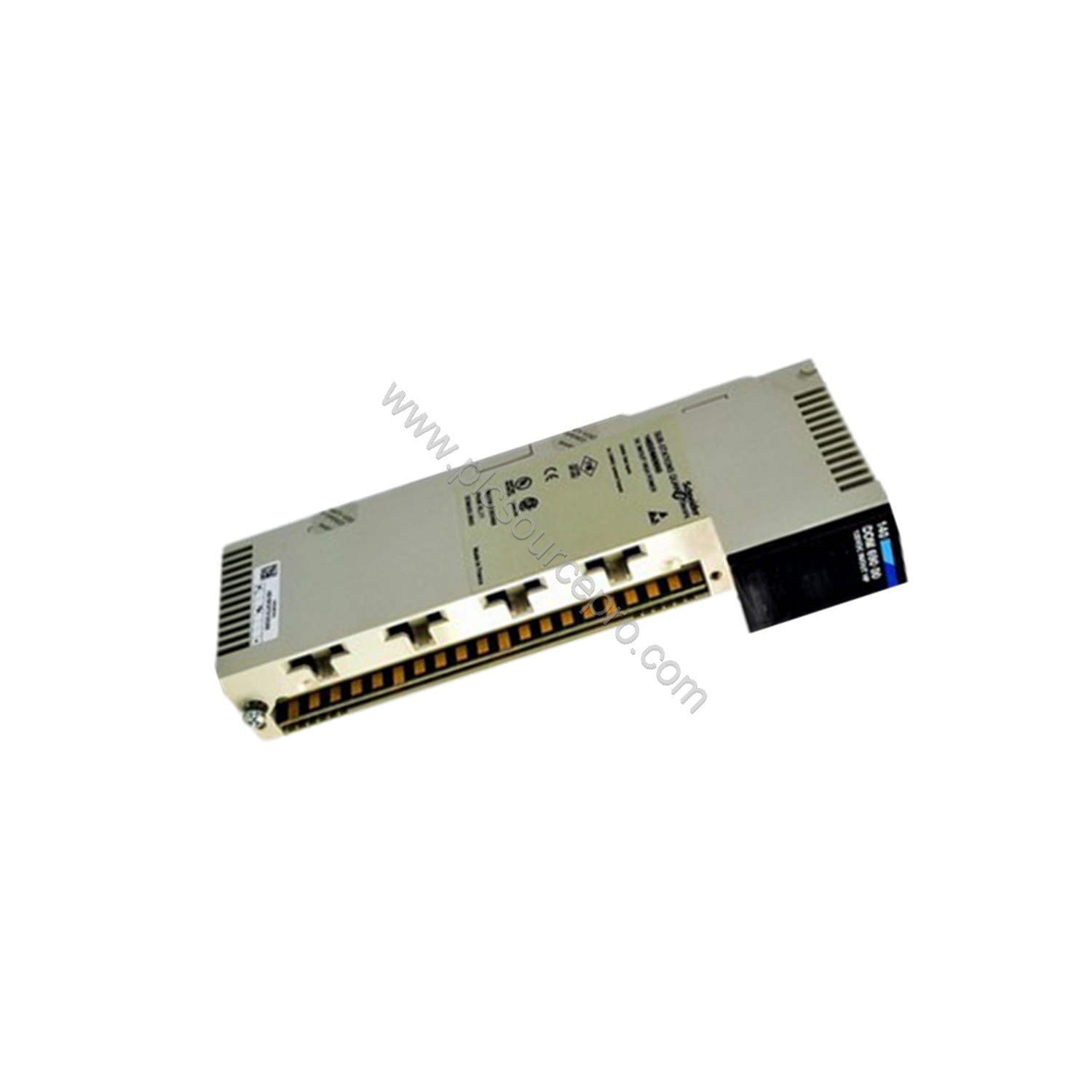

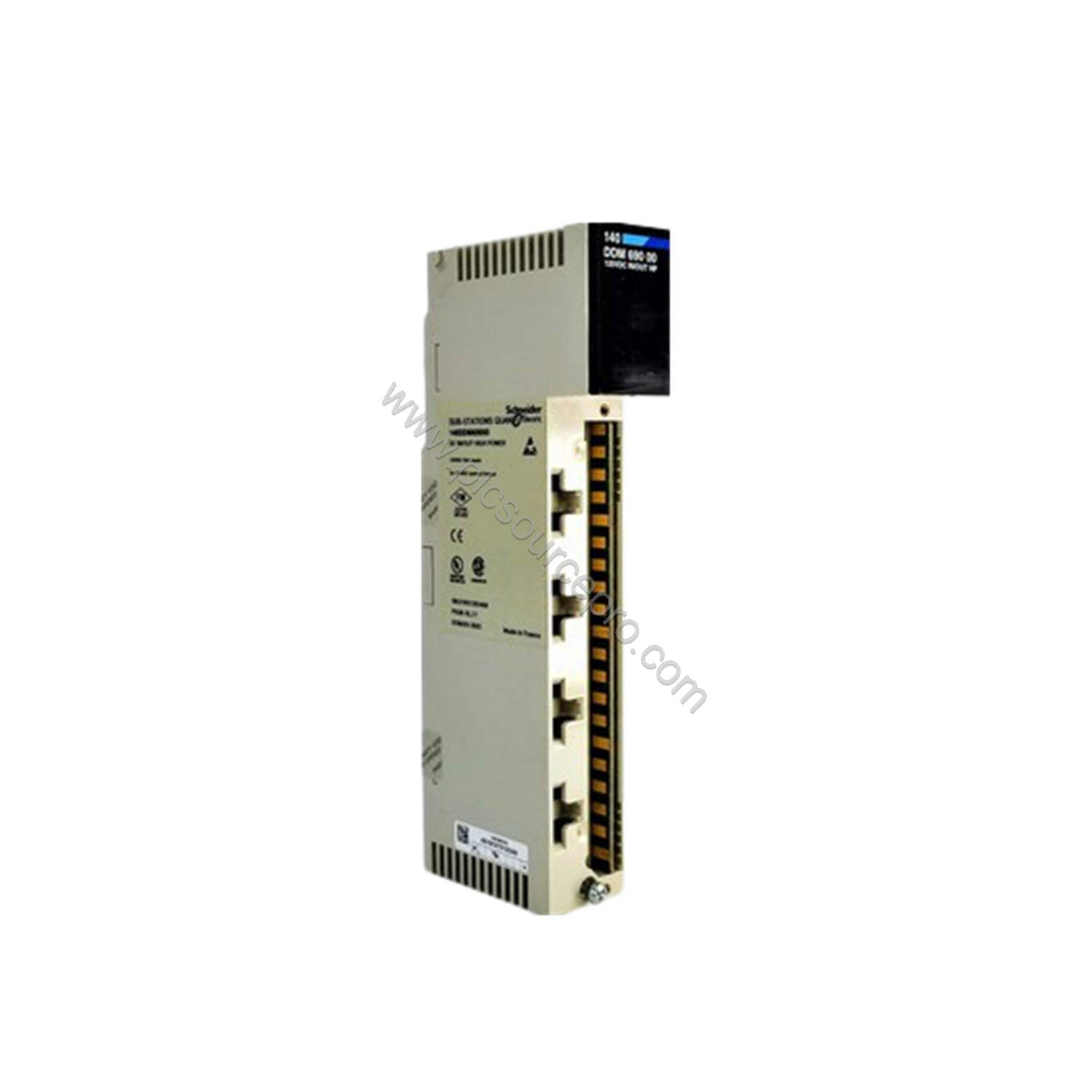

The Schneider 140DDM69000 is an I/O module from the Modicon Quantum line, featuring 4 discrete inputs (sink logic) and 4 discrete outputs (sink or source) with solid-state, isolated technology. It supports a wide voltage range from 19.2 to 156.2 VDC and has a bus current requirement of 350 mA. Weighing 1.50 lbs, it offers compact dimensions of 163 x 45 x 312 mm. This module is built for longevity, making it a wise investment for critical control systems.
Technical Specifications
-
I/O Type: Discrete
-
Total I/O Points: 8 (4 Inputs, 4 Outputs)
-
Input Logic: Sink
-
Output Logic: Sink or Source
-
Output Technology: Solid State, Isolated
-
Voltage Range: 19.2 to 156.2 VDC
-
Max Leakage Current: 1.2 mA at 150 VDC
-
Bus Current Requirement: 350 mA
-
Weight: 1.50 lbs (0.68 kg)
Applications & Use Cases
The Schneider 140DDM69000 excels in environments that demand high uptime. In manufacturing lines, its solid-state outputs eliminate mechanical wear, reducing replacement costs. In process control, the wide voltage range ensures compatibility with various field devices. By choosing this module, facilities reduce spare parts inventory and unplanned downtime, directly improving ROI.
Maintenance & Reliability Benefits
Solid-state outputs in the Schneider 140DDM69000 provide significant cost advantages over relay-based modules. They last longer under heavy cycling and require no contact maintenance. The isolated design protects against transients, further enhancing system reliability. With a low leakage current of 1.2 mA, the module maintains signal integrity even in high-impedance circuits.
Selection Guide & Purchasing Advice
When selecting the Schneider 140DDM69000, ensure your backplane provides adequate bus current (350 mA). This module fits directly into Modicon Quantum racks. For competitive pricing and reliable stock, consider purchasing from UBEST Automation (ubest101). Verify part number compatibility with your existing system before ordering.
