Product Introduction

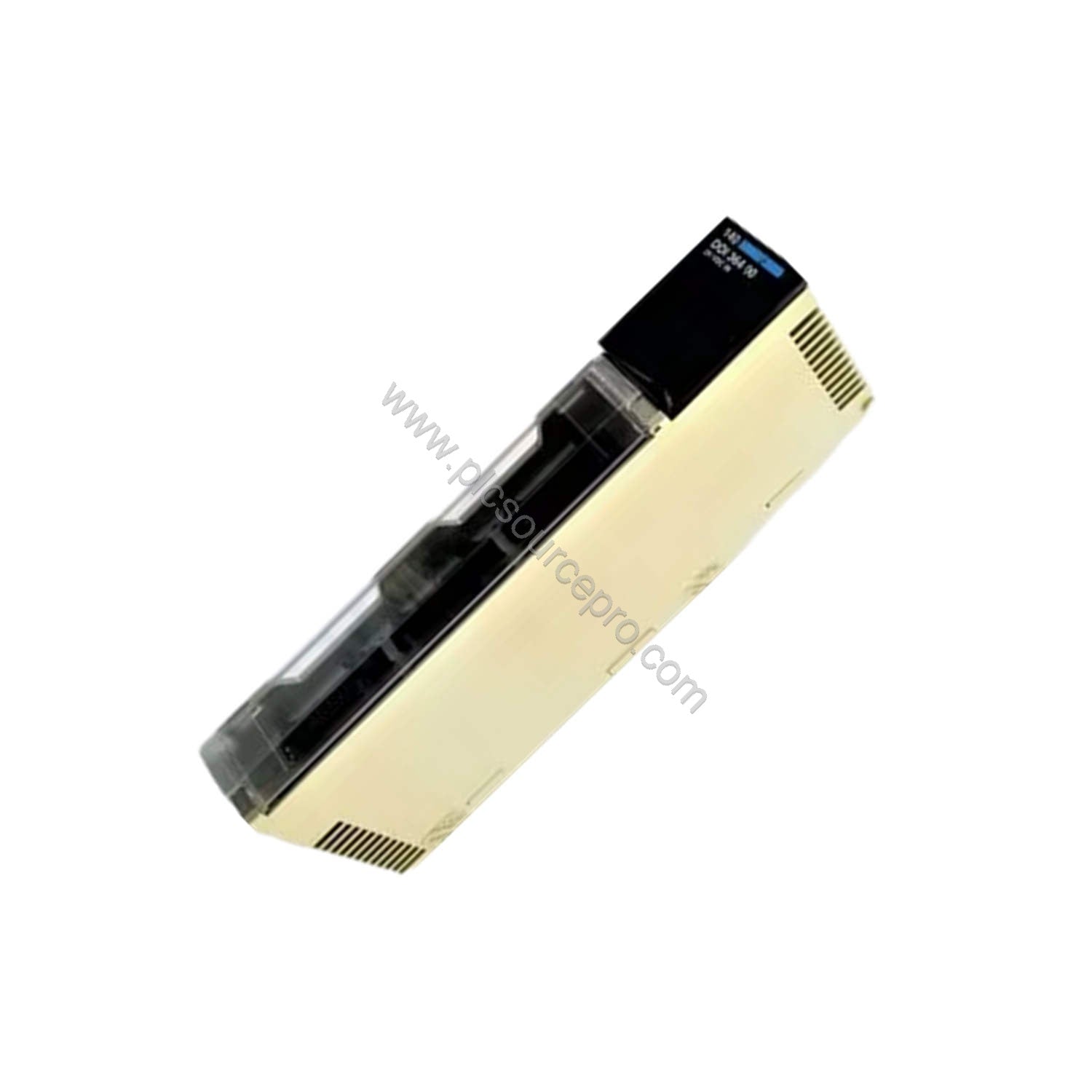

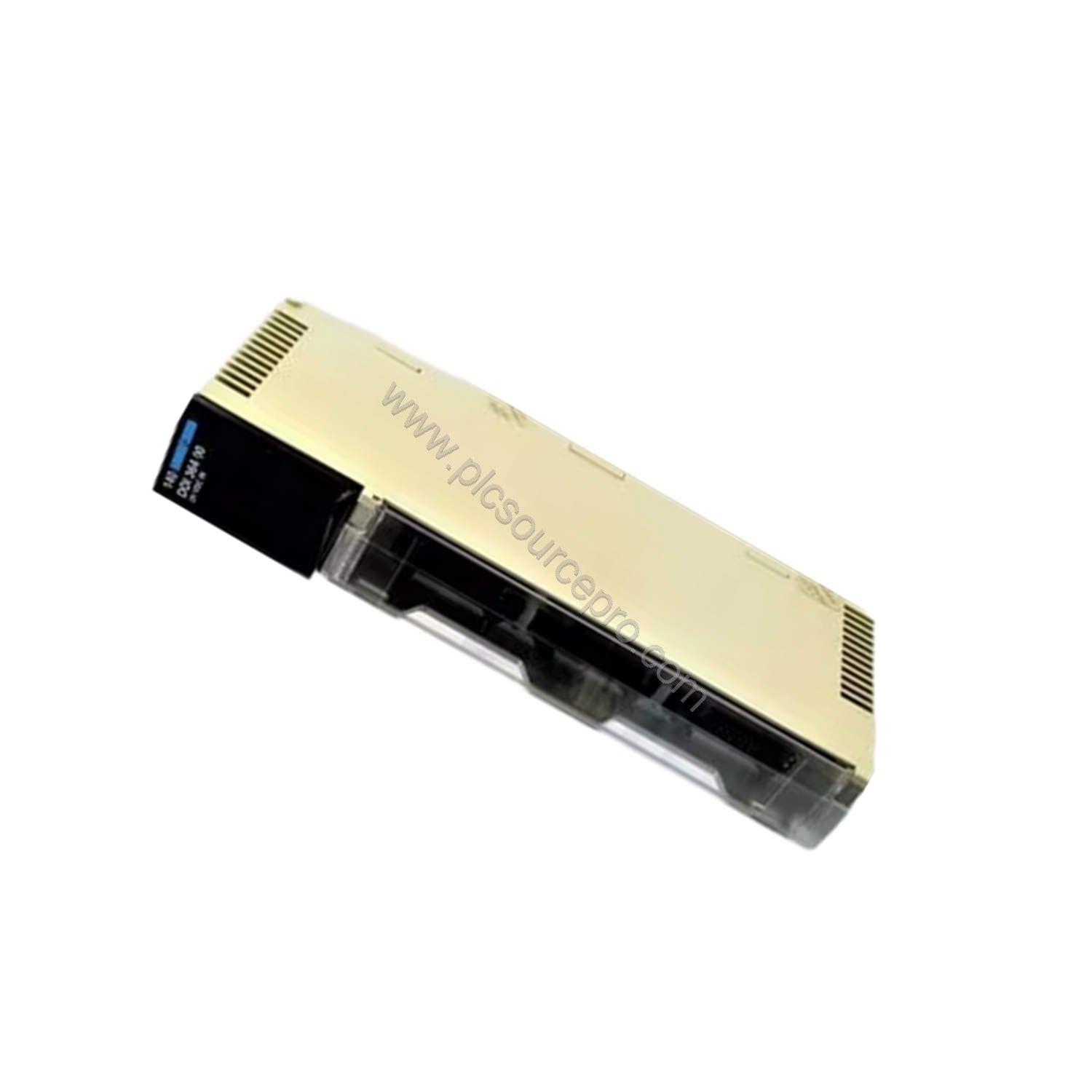

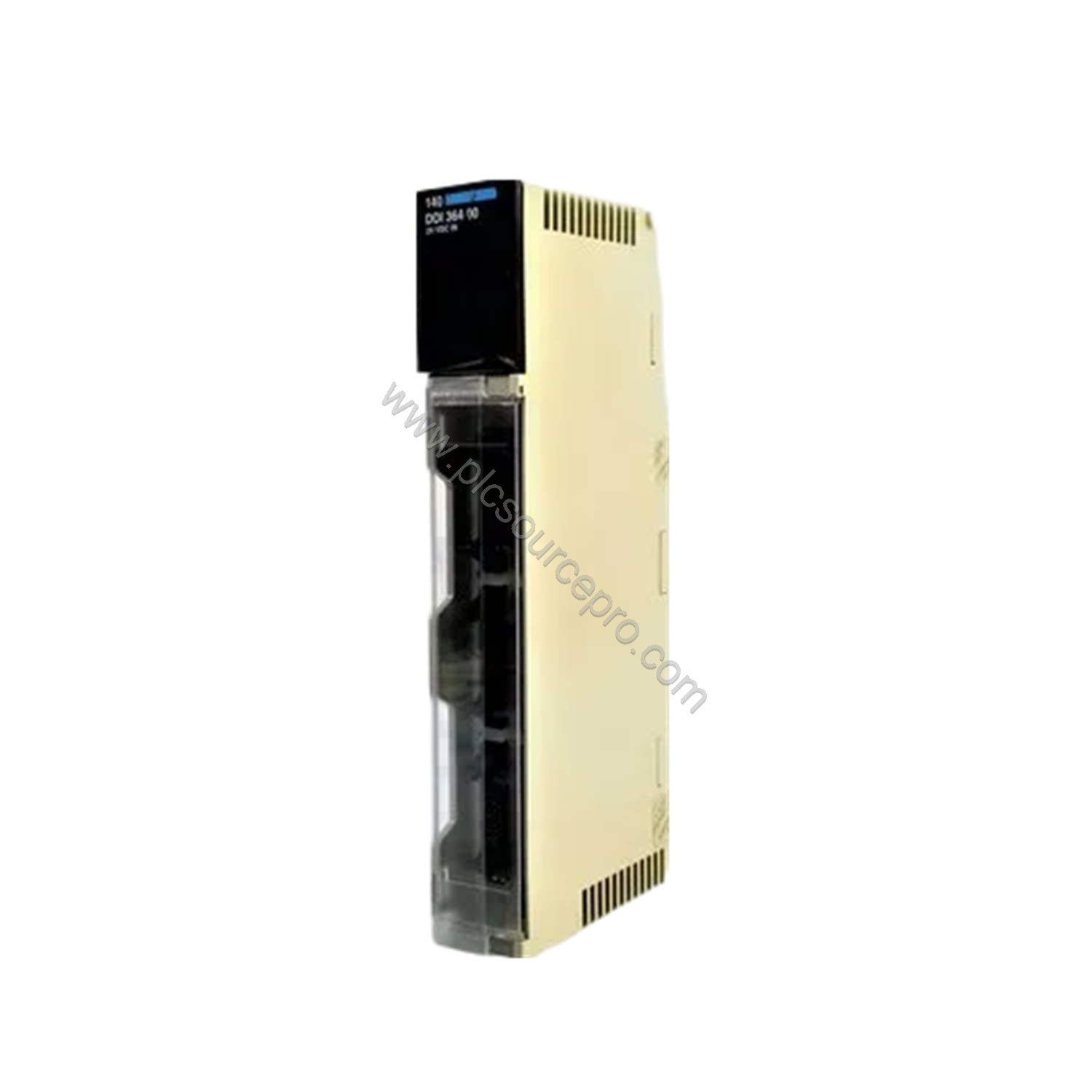

When expanding or upgrading an industrial control system, the Schneider 140DDI36400C input module provides a reliable high-density solution. Part of the Modicon Quantum series, this module handles 96 discrete inputs at 24V DC. It replaces older, lower-density modules while maintaining compatibility with existing Quantum racks. The 140DDI36400C ensures seamless integration into control architectures requiring numerous digital input points for monitoring sensors, limit switches, and push buttons.
With a wide input voltage range (19.2 to 30V DC) and positive logic, the Schneider 140DDI36400C simplifies wiring and reduces system complexity. Upgrade your automation infrastructure with this field-proven component.
Key Technical Specifications
Below are the essential parameters for the 140DDI36400C. All values are taken from the product datasheet.
| Parameter |
Value |
| Number of Inputs |
96 |
| Input Voltage Rating |
24V DC |
| Input Voltage Range |
19.2 to 30V DC |
| Input Impedance |
6700 Ohms |
| Logic Type |
Positive Logic |
| Addressing Requirement |
6 Words |
| Operating Temperature |
0 to 40°C |
| Storage Temperature |
0 to 50°C |
| Max Humidity (operating/storage) |
80% non-condensing |
| Max Altitude (operating/storage) |
1000 m |
These specifications make the 140DDI36400C suitable for clean indoor environments without corrosive chemicals.
Industry Applications
The Schneider 140DDI36400C excels in high-density input applications across manufacturing, water treatment, and material handling systems. For example, in a packaging line, the module can monitor 96 proximity sensors to detect product presence, jams, or conveyor status. Its wide voltage tolerance ensures reliable operation even with fluctuating power supplies common in older plants.
In a water treatment facility, the 96 inputs can track pump run status, valve position, and tank level alarms all from one module, saving rack space and reducing wiring. The 6-word addressing simplifies programming in Modicon Quantum processors. Upgrading from a 32- or 64-input module to the 140DDI36400C consolidates I/O and frees slots for other functions.
Installation & Setup Guidance
Mount the Schneider 140DDI36400C in any standard Quantum backplane slot. Ensure the module is firmly seated and the locking tab engages. Connect field wiring to the detachable terminal blocks following the positive logic wiring diagram: common DC power to the module and individual inputs to the corresponding bit. Verify input voltage is within 19.2–30V DC before powering the rack.
Address the module in the Quantum processor configuration software using 6 words starting at the assigned slot location. No external power supply is needed for the module itself; it draws power from the backplane. For upgrades, simply remove the old module and insert the 140DDI36400C; update the I/O map accordingly.
Maintenance & Reliability
The 140DDI36400C requires minimal maintenance due to its solid-state design. Periodically inspect the terminal block connections for tightness and signs of corrosion. Operating temperature should stay between 0 and 40°C; ensure adequate ventilation inside the control cabinet to prevent overheating. Relative humidity must remain below 80% non-condensing.
In environments with high dust, consider annual cleaning of the module face and connector pins. The module's robust construction typically provides years of trouble-free service. Proactively stocking a spare 140DDI36400C minimizes downtime in critical applications. When upgrading from earlier Quantum modules, the increase in input density reduces the number of modules needed, improving system reliability by decreasing potential failure points.
Selection Guide & Purchasing Advice
Before purchasing a Schneider 140DDI36400C, verify that your system uses Modicon Quantum backplanes and that the existing power supply can handle the additional load (module draws less than 200 mA from backplane). Confirm that your processor supports at least 6 words of input addressing per module. If replacing a different module, check that the terminal blocks match; older Quantum modules use similar connectors.
UBEST Automation offers genuine, new and surplus 140DDI36400C modules with fast shipping. When ordering, provide the exact part number and desired quantity. Our inventory includes other Quantum I/O modules for complete system upgrades. Contact UBEST Automation for bulk pricing or to verify compatibility with your current setup.
