Product Introduction

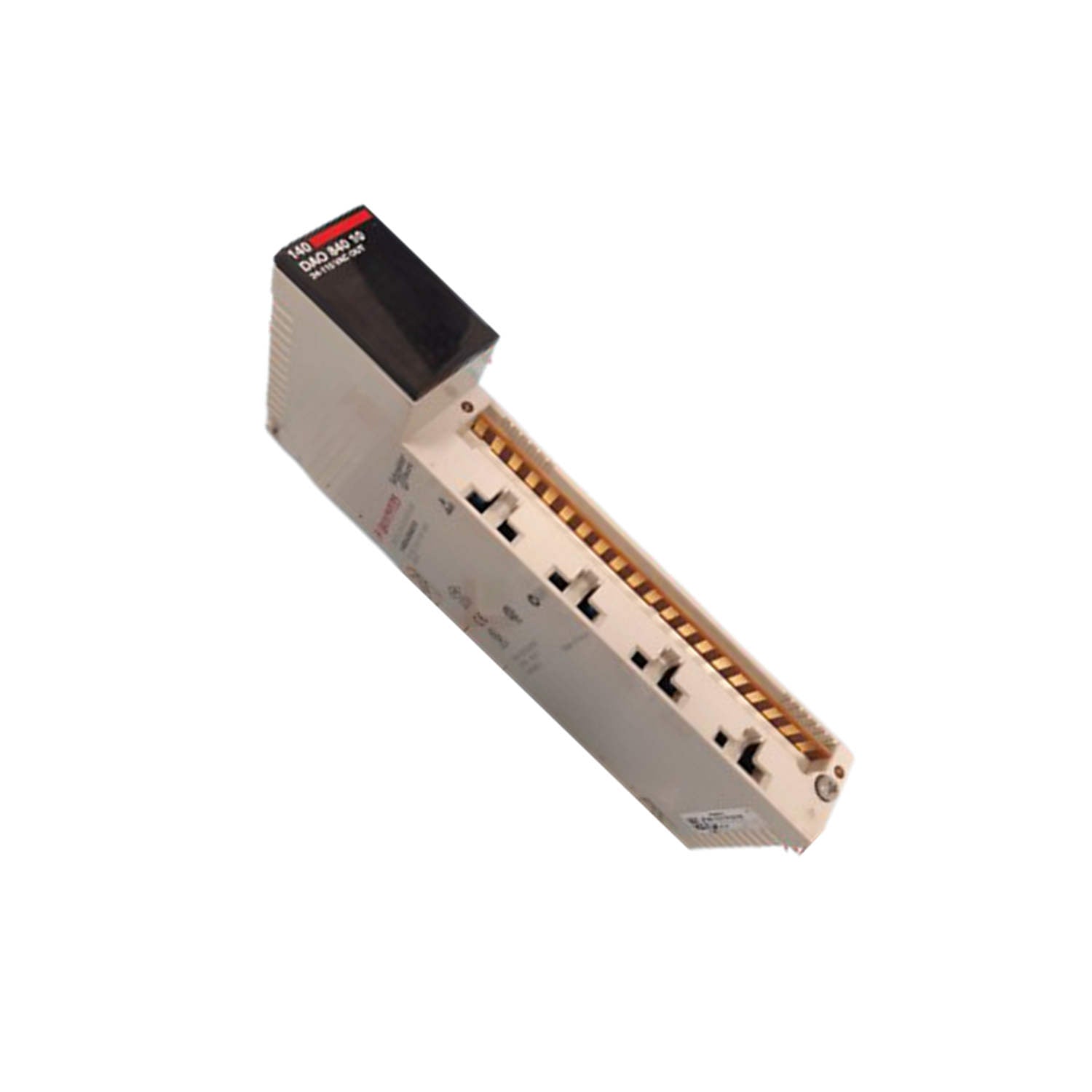

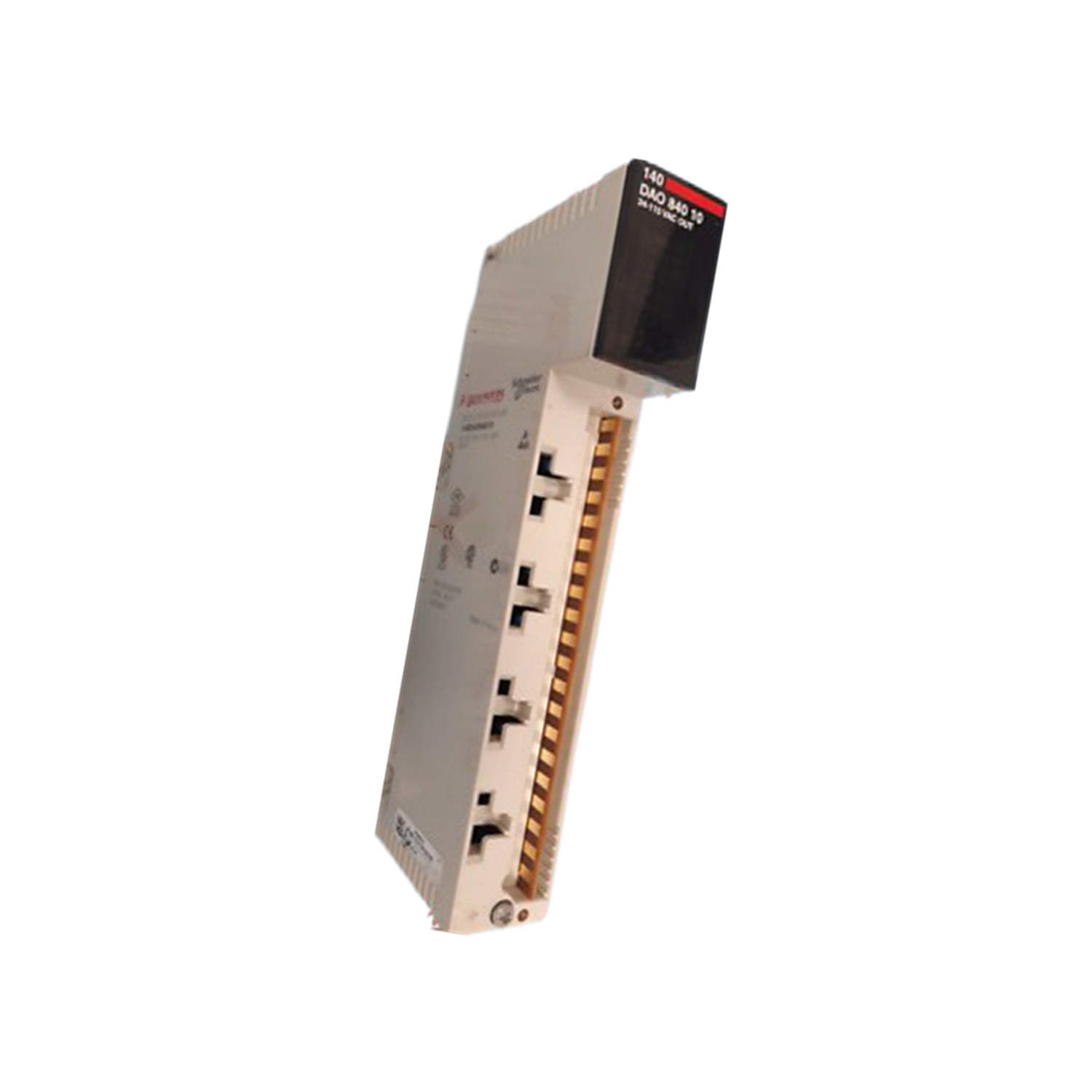

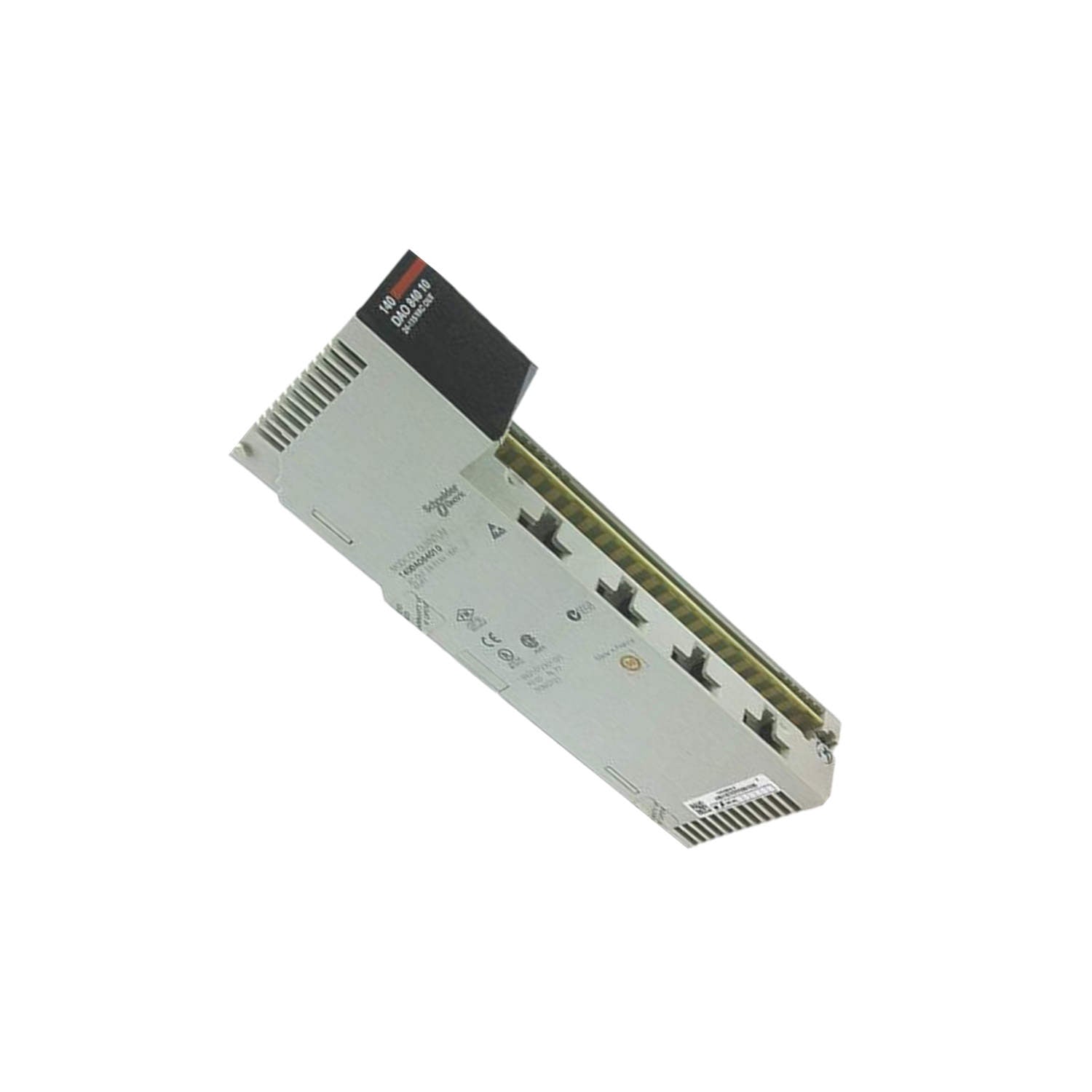

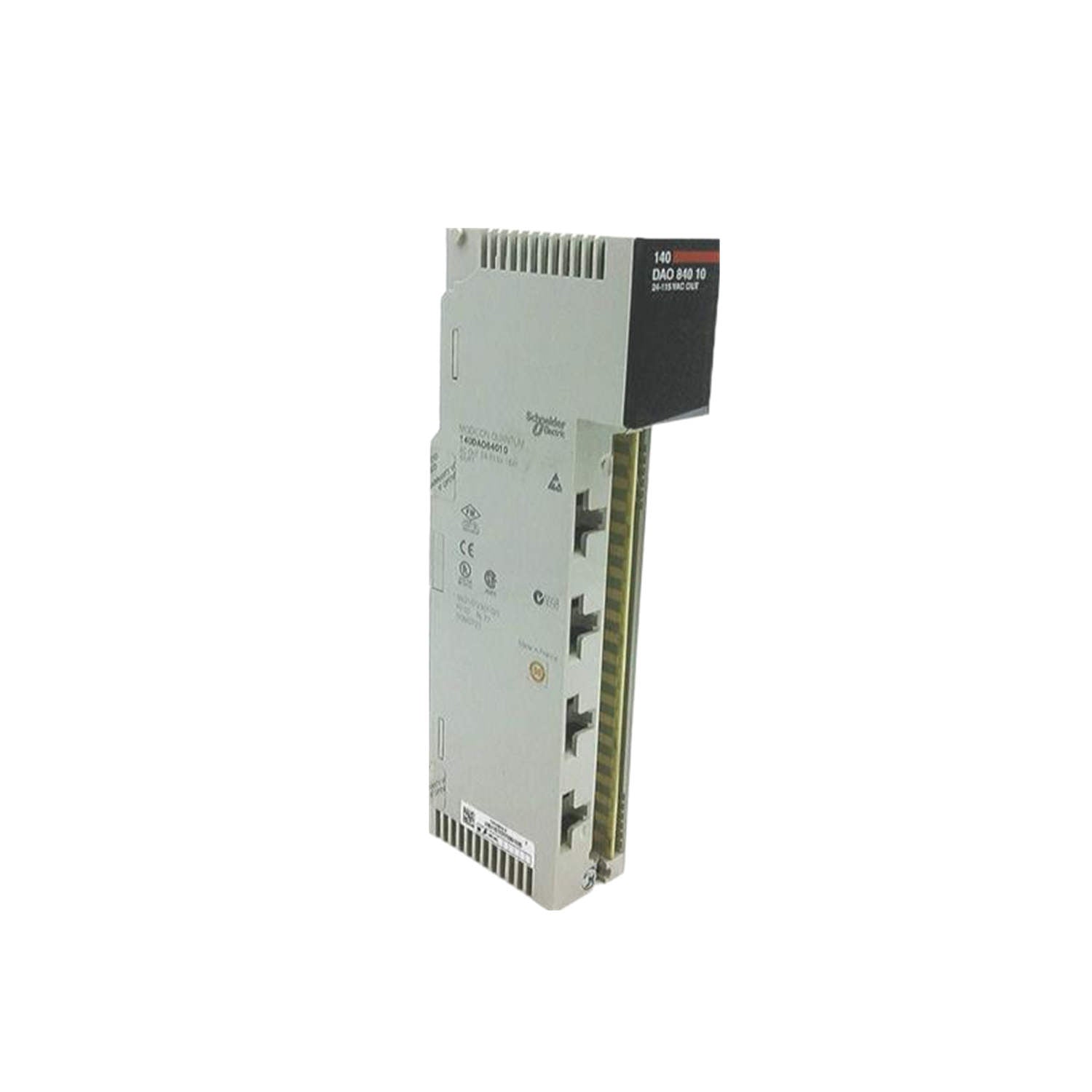

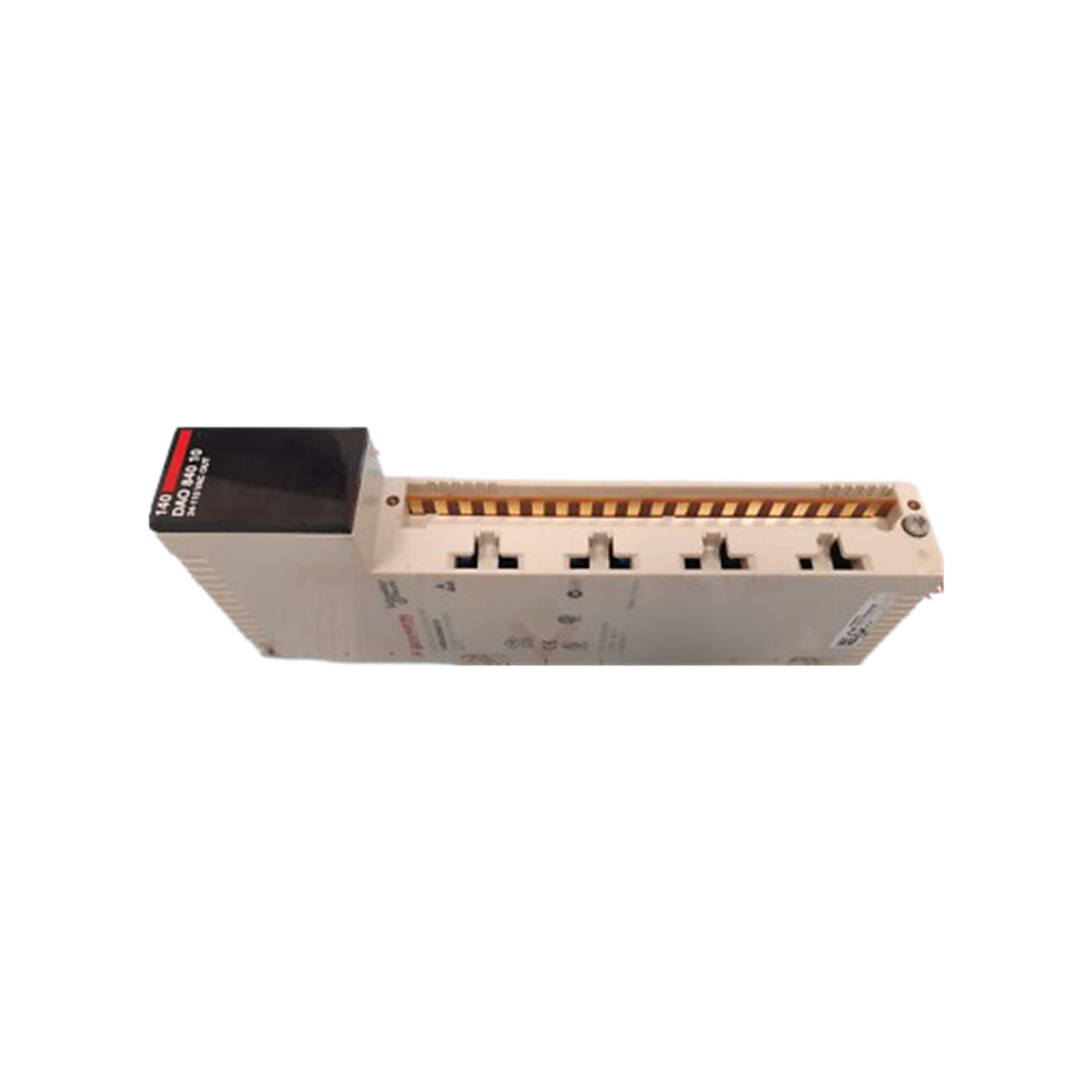

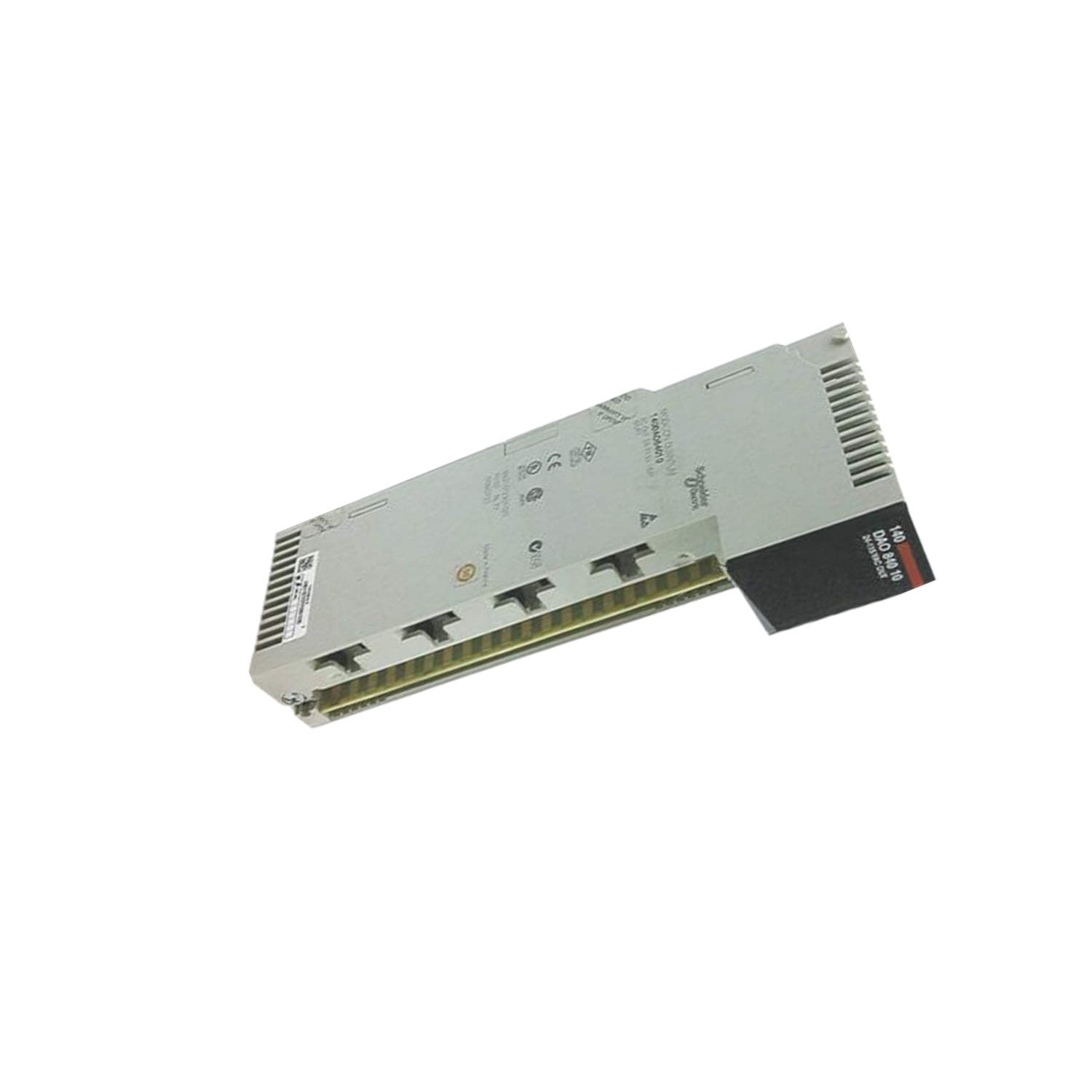

The Schneider Electric 140DAO84010 discrete output module delivers robust performance for demanding industrial automation tasks. Part of the Modicon Quantum series, this module provides 16 isolated channels with an output voltage range of 20 to 132V AC. With isolated outputs and a maximum voltage drop of only 1.5V, the 140DAO84010 ensures reliable switching for your control system.
Technical Specifications Breakdown
Key specifications of the Schneider 140DAO84010 module include:
-
Output Type: Discrete Outputs, 16 Channels
-
Discrete Output Voltage: 20 to 132V AC
-
Isolated Outputs: Yes, 16 groups of 1 channel
-
Supply Frequency: 47-63 Hz
-
Maximum Voltage Drop: 1.5V
-
Absolute Maximum Output: 156V at 10 s AC, 200V at 1 Cycle AC
-
DV/dt Rating: 400V/rms
-
Operating Temperature Range: 0°C to 60°C
-
Storage Temperature Range: -40°C to 85°C
-
Mounting Type: Rack Mountable
-
Maximum Relative Humidity: 95% Without Condensation
-
CE Marking: Yes
These parameters ensure the 140DAO84010 operates reliably in harsh industrial environments, with isolated channels providing protection against ground loops and electrical noise.
Industry Applications
The 140DAO84010 is ideal for applications requiring isolated AC switching. Common use cases include:
-
Motor Control: Switching on/off AC motors in conveyor systems, pumps, and fans.
-
Heater Control: Regulating resistive heating elements in ovens, furnaces, and packaging machines.
-
Valve Actuation: Controlling solenoid valves in process control and fluid handling systems.
Installation & Setup Guidance
The 140DAO84010 module is rack mountable, fitting into a standard Modicon Quantum backplane. For proper installation:
- Ensure the rack is powered off before inserting or removing the module.
- Align the module with the slot guides and push firmly until it clicks into place.
- Secure the module with the retaining screws provided.
- Connect field wiring to the terminal block, observing the polarity and voltage ratings.
Maintenance & Reliability
Inspect the 140DAO84010 module periodically for signs of overheating, such as discoloration or warping. Keep the module free of dust and moisture. The internal RC filter protection helps suppress surges, prolonging module life. Regular checks of the power supply and load connections can prevent intermittent faults.
Compatibility & Integration
The 140DAO84010 integrates seamlessly with the Modicon Quantum automation platform. It requires one output word of addressing. The module communicates via the Quantum backplane with the CPU. For system integration, verify that your Quantum rack has an available slot and that the power supply can handle the bus current requirement of 350 mA.
Selection Guide & Purchasing Advice
When selecting the 140DAO84010, confirm that your system requires 16 isolated AC discrete outputs. Verify the output voltage range (20-132V AC) matches your load requirements. Consider the associated fuse rating of 5 A for overcurrent protection. For reliable supply, choose UBEST Automation for genuine Schneider parts.
