Product Introduction

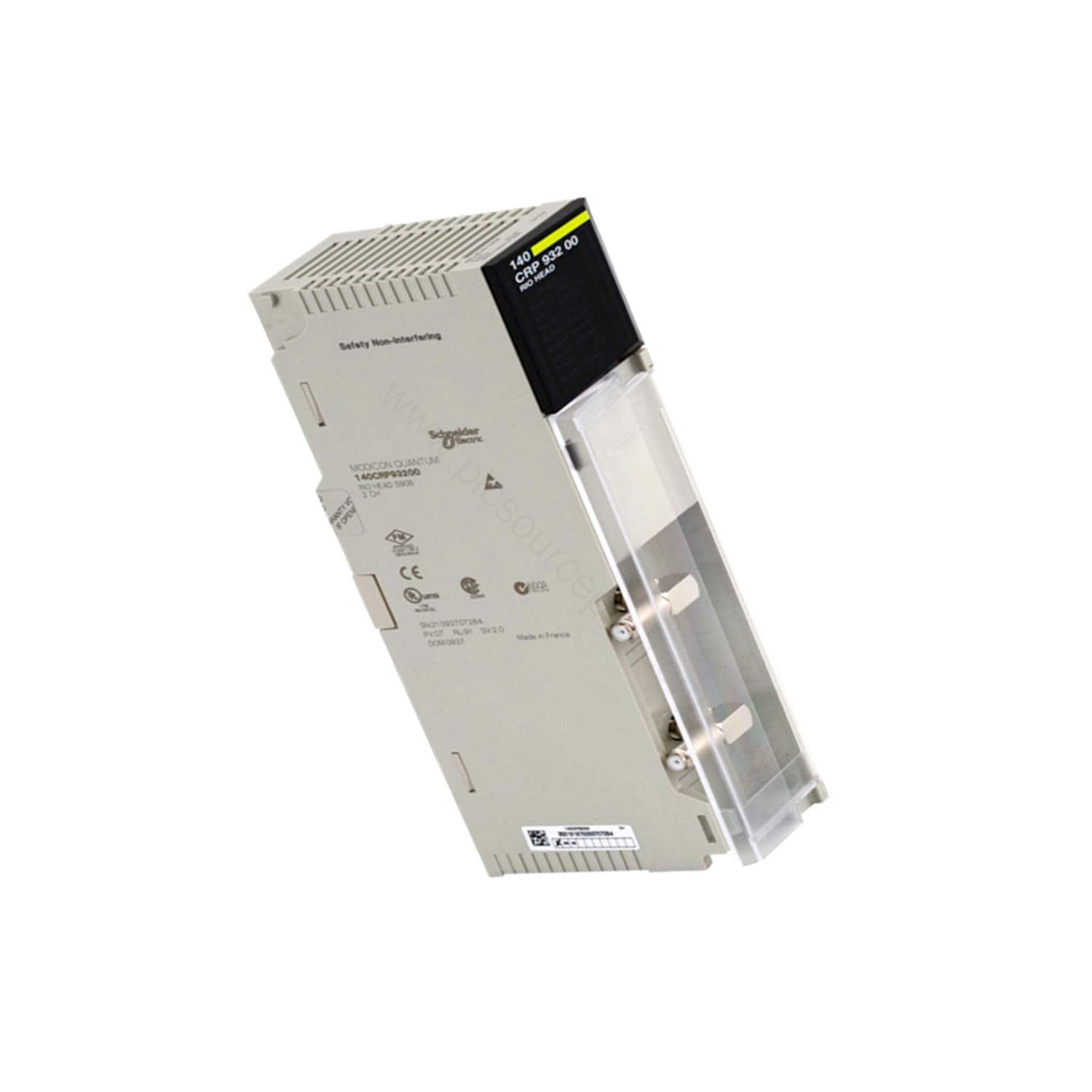

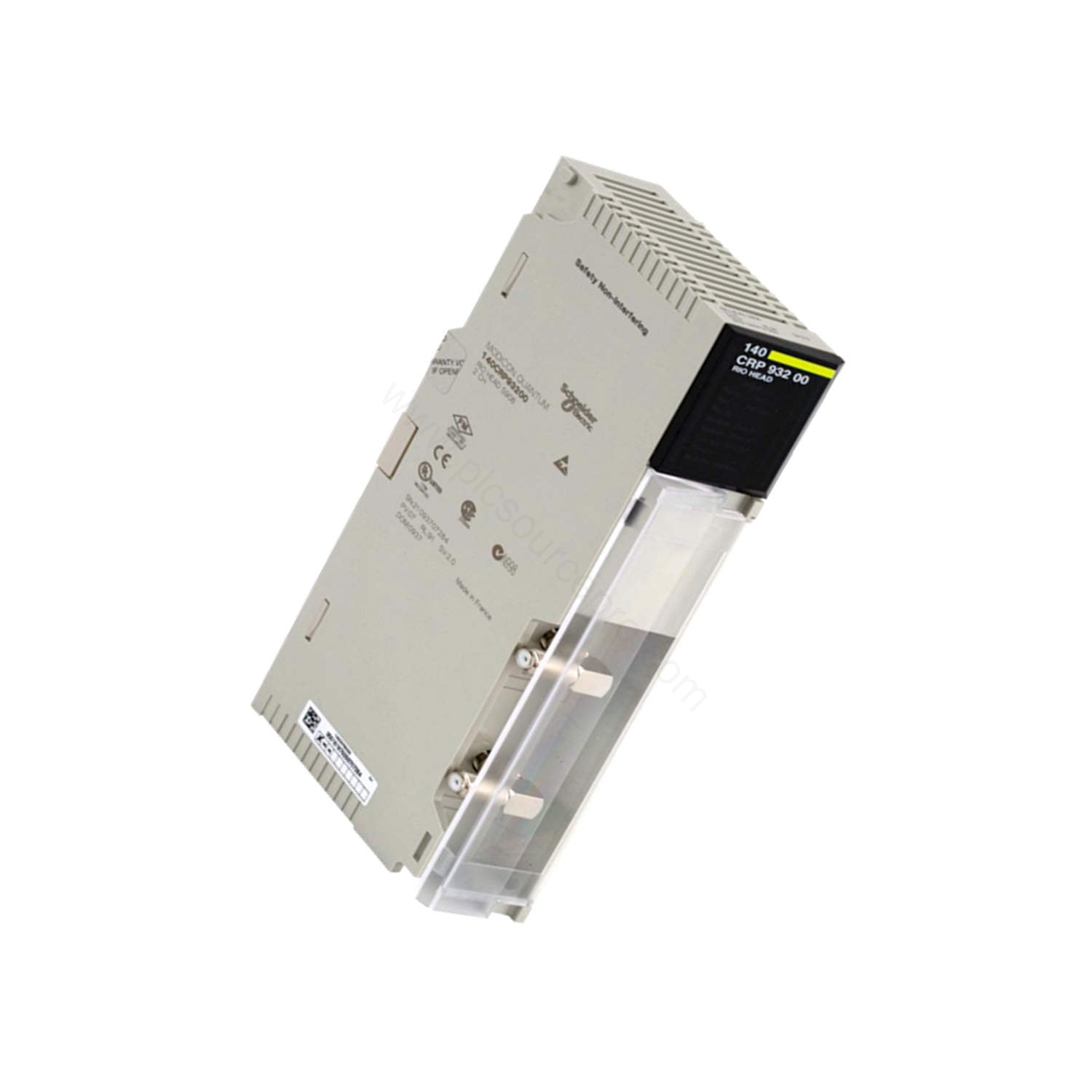

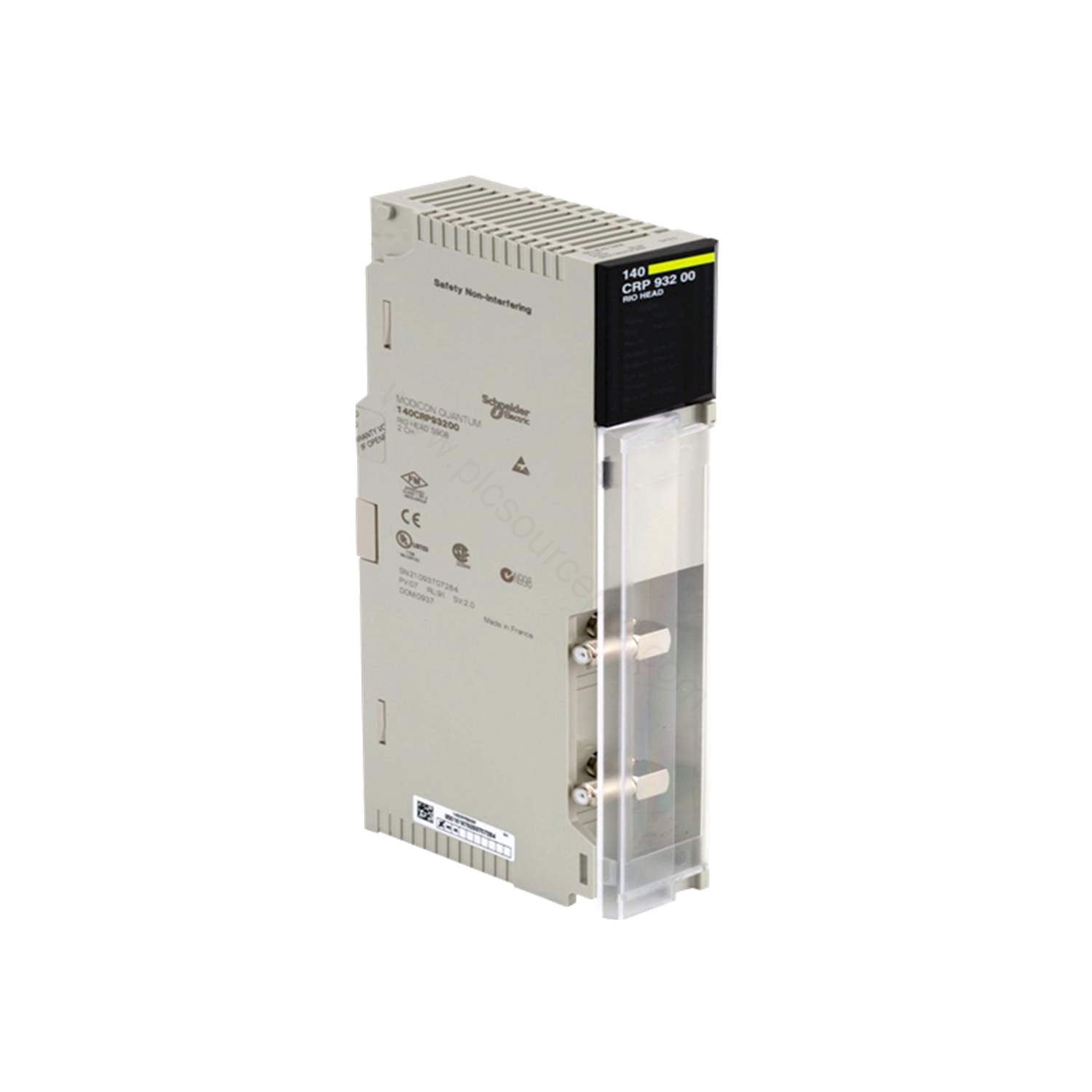

The Schneider 140CRP93200C RIO head-end adaptor module is a key component in the Modicon Quantum automation platform. Designed to upgrade legacy remote I/O networks, this module offers enhanced performance and reliability for demanding industrial environments. Part of the Modicon Quantum series, the 140CRP93200C provides a robust interface between controllers and remote drops.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
RIO head-end adaptor module |
| Maximum Drops/Network |
31 |
| I/O Words/Drop |
64 I/64 O |
| Cable Type |
75 Ohm coaxial |
| Transmission Rate |
1544 Mbit/s |
| Dynamic Range |
35 dB |
| Isolation Voltage |
500 V DC |
| Power Dissipation |
3 W |
| Ambient Temperature |
0 to 60 °C |
| Standards |
UL 508, CUL, CSA |
| Protective Treatment |
Conformal coating |
These specifications ensure reliable operation in harsh conditions. The 140CRP93200C achieves a high transmission rate while maintaining low power consumption.
Real-World Applications
-
Process Control: Integrate remote I/O in chemical plants where the 140CRP93200C communicates over long coaxial cable runs with 35 dB dynamic range.
-
Manufacturing Lines: Upgrade older Quantum 200/500/800 systems with the 140CRP93200C to support 31 drops, reducing wiring complexity.
-
Utilities: Use in water treatment facilities requiring 500 V DC isolation for reliable signal integrity.
Compatibility & Integration
The Schneider 140CRP93200C is compatible with Symax (any mix) and Quantum 200/500/800 series. It uses 75 Ohm coaxial cable with female F connectors for redundant connections. The module requires 750 mA bus current for two channels and supports diagnostics at startup: power up, LAN controller check, and memory check.
Selection Guide & Purchasing Advice
Before purchasing, verify your system's network topology and available bus current. The 140CRP93200C includes conformal coating (Humiseal 1A33) for moisture resistance. For reliable supply, choose UBEST Automation. As an authorized distributor, we ensure genuine Schneider 140CRP93200C modules with fast shipping. Visit ubest101.myshopify.com for current stock and bulk pricing.
