Product Introduction

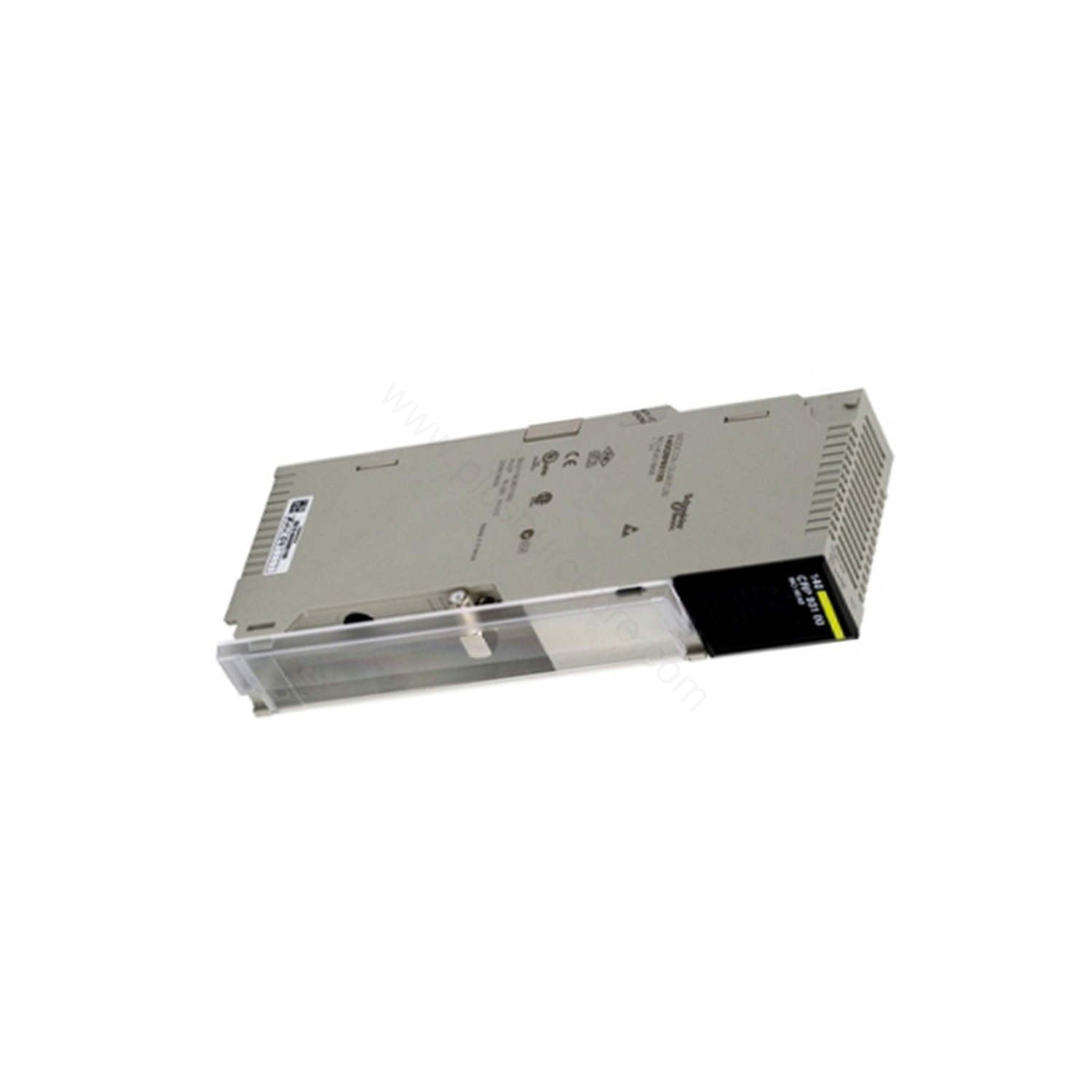

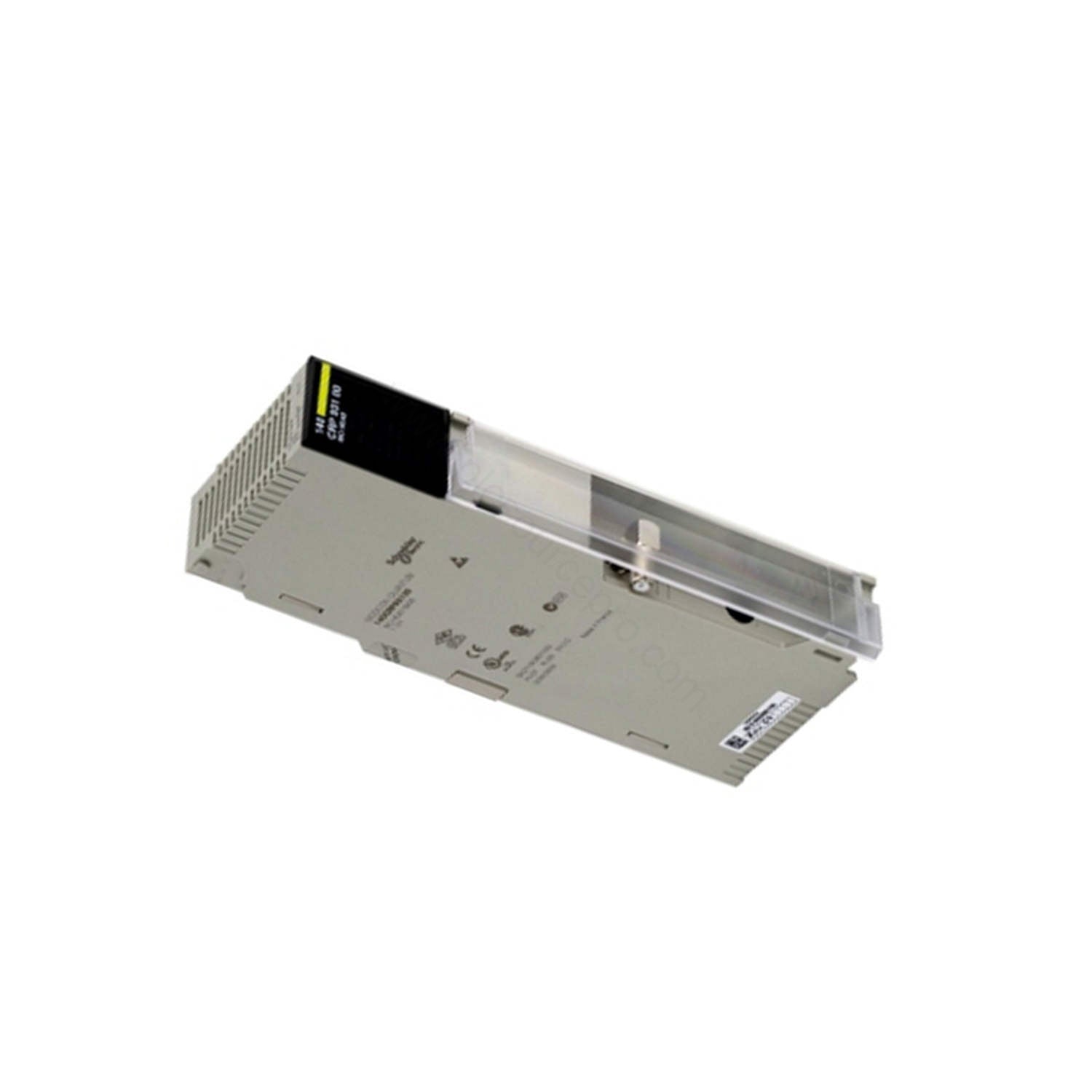

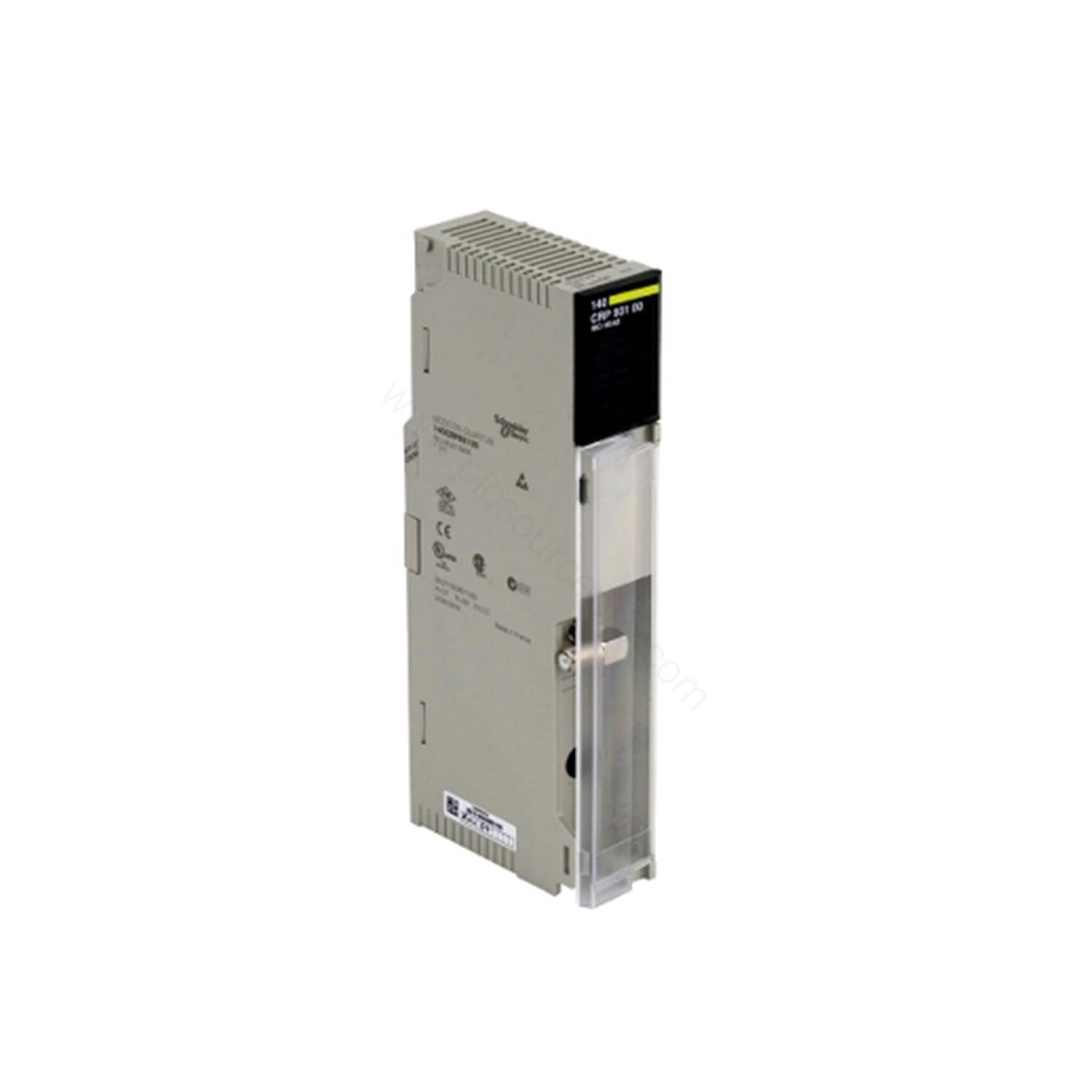

When industrial communication demands reliable long-distance data transfer, the Schneider 140CRP93100C Remote I/O head module delivers consistent performance. Part of the Modicon Quantum series, this module serves as a RIO head-end adaptor, enabling efficient data exchange across fiber optic networks. With a transmission rate of 2.5 Mbps and maximum distance of 500 meters, it supports both daisy chain and star topologies, ensuring flexible installation in demanding environments.
Technical Specifications Breakdown
The Schneider 140CRP93100C is engineered for robust communication. Key specifications include:
| Parameter |
Value |
| Communication Port |
1x Fiber Optic Port |
| Data Transmission Rate |
2.5 Mbps |
| Connection Distance (Fiber Optic) |
500 meters |
| Supported Topology |
Daisy Chain, Star Topology |
| Mounting |
Backplane Slot |
| Power Consumption |
5.4 W |
| Operating Voltage |
5 VDC (via Backplane) |
| Protection Class |
IP20 |
| Operating Temperature |
0 °C to 60 °C |
| Storage Temperature |
-40 °C to 85 °C |
| Relative Humidity |
5% to 95% non-condensing |
These specifications highlight the module's energy efficiency (5.4 W) and wide environmental tolerance, reducing total cost of ownership over time.
Industry Applications
The Schneider 140CRP93100C is ideal for large-scale manufacturing and process automation where long cable runs are necessary. For example, in a distributed control system (DCS) spanning several hundred meters, this module ensures reliable I/O communication without signal degradation. Its fiber optic interface also provides immunity to electromagnetic interference, minimizing downtime and maintenance costs. In applications requiring high-speed data exchange, such as conveyor line control or robotic cell coordination, the 2.5 Mbps rate supports real-time operations.
Installation & Setup Guidance
Mount the Schneider 140CRP93100C directly into an available backplane slot within the Quantum chassis. Ensure the backplane supplies 5 VDC power. Connect the fiber optic cable to the single port, observing proper polarity for duplex cables. Configure the module's address and topology (daisy chain or star) using the Quantum programming software. Verify the connection distance does not exceed 500 meters. For star topology, use a compatible fiber optic hub. No additional wiring is required, as power is drawn from the backplane.
Maintenance & Reliability
Routine inspection of the fiber optic connectors for dust or damage preserves signal integrity. The module's IP20 rating requires a clean, indoor environment; avoid exposure to excessive moisture or conductive contaminants. With low power consumption and conformal coating (Humiseal 1A33), the electronic components resist humidity and vibration, extending service life. Statistics show that proactive maintenance of optical links reduces unplanned downtime by up to 30%, directly improving ROI. The storage temperature range (-40°C to 85°C) allows safe storage in non-climate-controlled warehouses.
Selection Guide & Purchasing Advice
Before purchasing a Schneider 140CRP93100C, verify compatibility with your existing Quantum backplane and I/O drops (supports up to 31 drops and 64 I/O words per drop). Ensure your system uses the required 75 ohm coaxial cable for non-fiber segments. For replacement or upgrade projects, this module provides a direct drop-in solution for older RIO head modules. When sourcing from UBEST Automation (ubest101), each unit is inspected for full functionality. Consider ordering a spare to minimize potential downtime in critical applications.
