Product Introduction

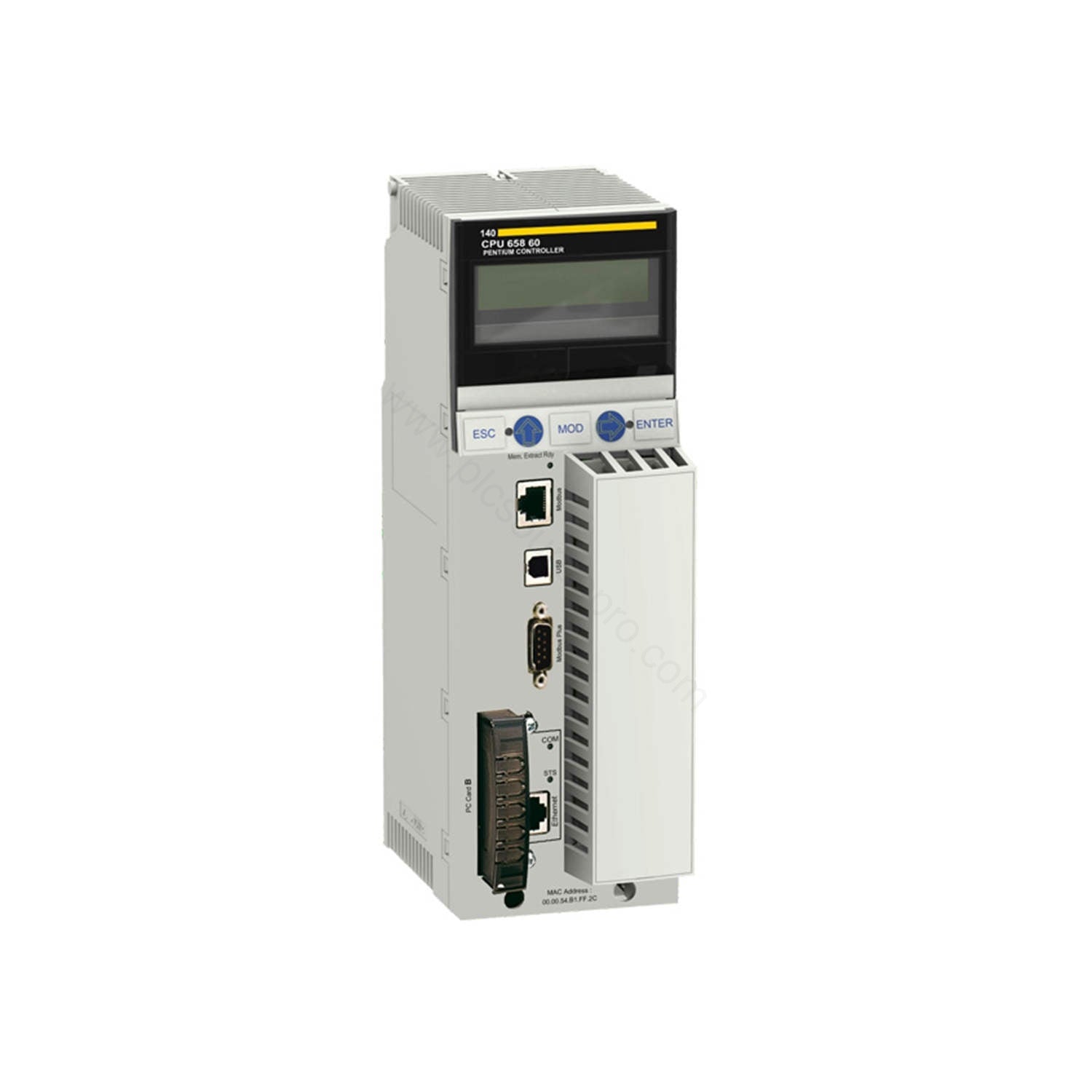

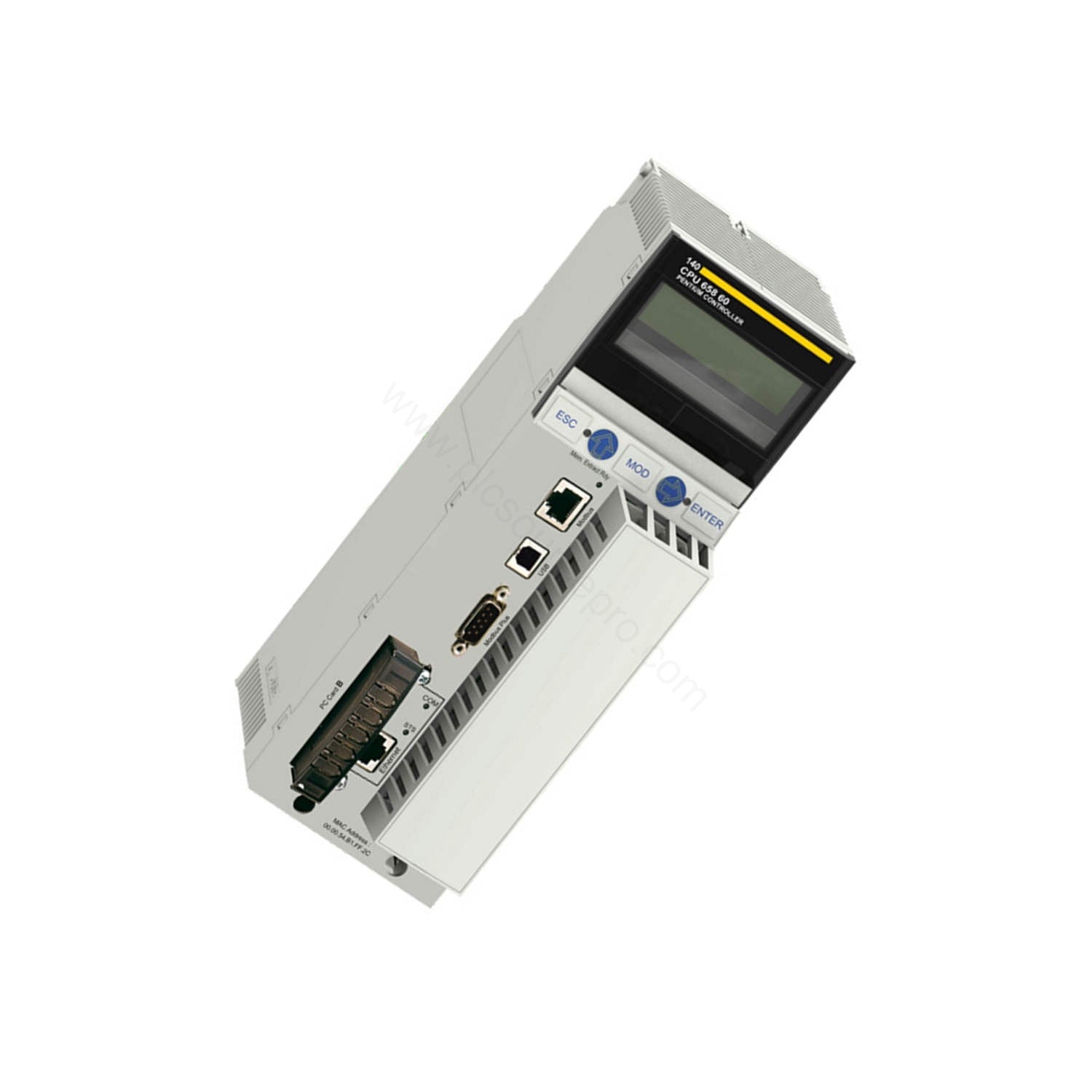

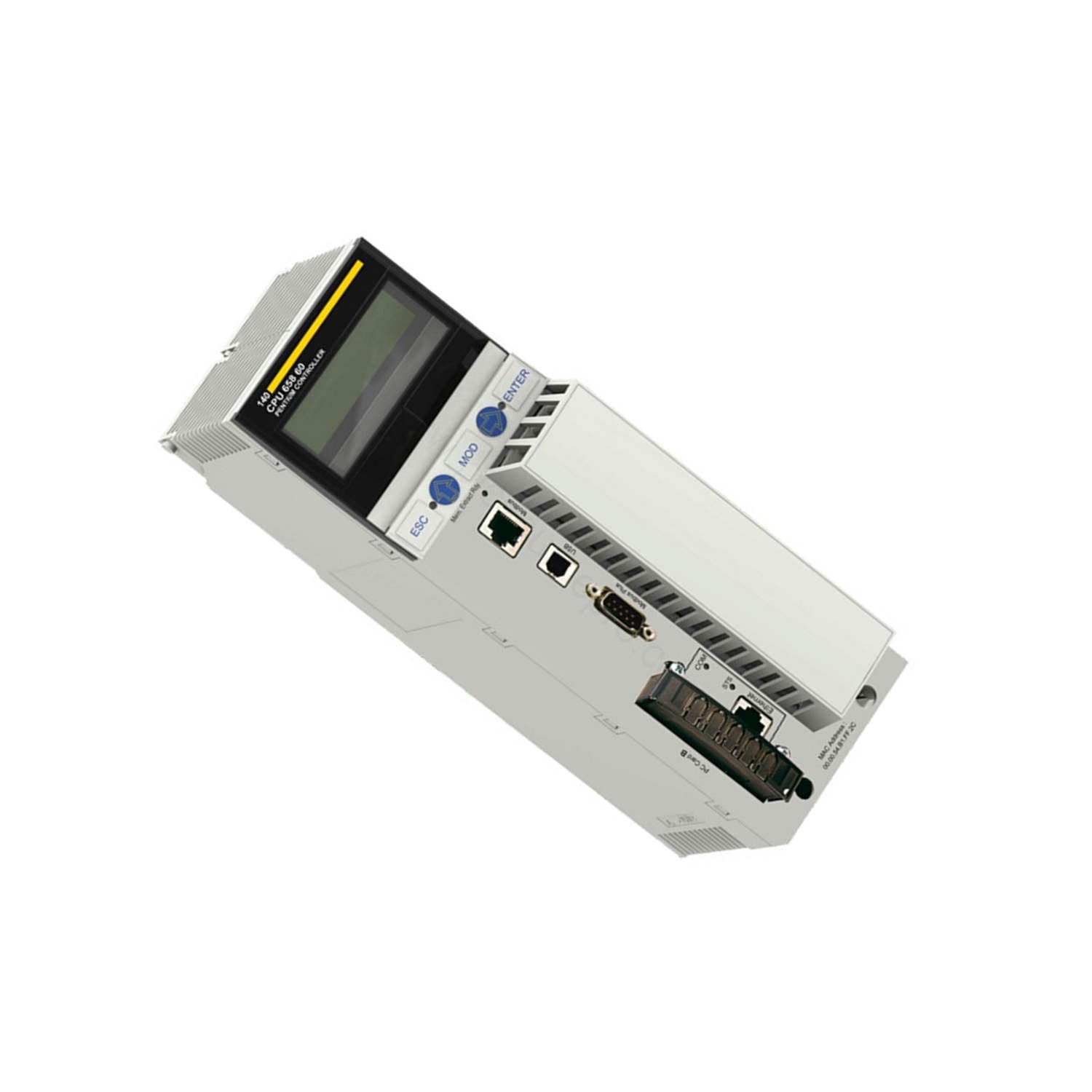

When complex automation processes demand high performance and reliability, upgrading to the Schneider Electric 140CPU65860 Unity processor ensures seamless operation and enhanced control. Part of the Modicon Quantum automation platform, this module is designed to replace older controllers or upgrade existing systems, providing a robust foundation for demanding applications. The Schneider 140CPU65860 operates at a clock speed of 266 MHz and features 1024 KB of built-in RAM, with a program execution speed of 30 K instructions per millisecond, making it ideal for handling intricate control tasks efficiently.
Technical Specifications Breakdown
The Schneider 140CPU65860 offers a rich set of specifications that directly impact performance and integration:
-
Processor Clock Speed: 266 MHz ensures fast logic execution and reduced scan cycles.
-
Memory: 1024 KB built-in RAM plus 704 KB user logic memory, expandable via PCMCIA card for file storage.
-
Program Execution Speed: 30 K instructions/ms allows handling of complex algorithms without lag.
-
Communication Ports: 1 Ethernet (RJ45), 1 Modbus (RS232), and 1 Modbus Plus (DB9) enable versatile connectivity.
-
I/O Capacity: Supports up to 16 slots per rack and up to 64 racks with 3,072 discrete I/O per rack, scalable for large-scale systems.
-
Power Consumption: 7.2 W at 24V DC via backplane, ensuring energy efficiency.
Industry Applications
The Schneider 140CPU65860 excels in sectors requiring precise control and high throughput:
-
Manufacturing: Upgrade legacy lines with faster logic execution for real-time quality monitoring and robotic coordination.
-
Process Control: Manage complex batch operations with integrated real-time clock and battery-backed SRAM for data retention during power loss.
-
Energy & Utilities: Reliable operation in harsh environments with operating temperature range 0°C to +60°C and conformal coating for humidity resistance.
Integration & Compatibility
The Unity processor 140CPU65860 integrates seamlessly with Modicon Quantum racks and supports multiple communication protocols including Modbus, TCP/IP, and Modbus Plus. It can control up to 64 distributed racks and remote I/O stations via Ethernet or Modbus Plus. Compatible with programming software like Unity Pro, this module ensures a smooth transition from older 984 or 140 series processors.
Maintenance & Reliability
Designed for continuous operation, the Schneider 140CPU65860 includes built-in self-diagnostics and system monitoring. The battery-backed SRAM preserves user logic and data during power interruptions. Routine inspection of the backup battery and PCMCIA card (if used) is recommended every two years. The conformal coating protects against moisture and contaminants, enhancing longevity in industrial environments.
Selection Guide
When selecting the 140CPU65860, verify your existing rack configuration as it supports up to 16 slots. Ensure your backplane provides 24V DC and 2760 mA bus current. For new installations, consider adding a PCMCIA memory card for expanded storage. UBEST Automation (visit ubest101.myshopify.com) offers this module with immediate availability and expert support to ensure a successful upgrade.
