Product Overview

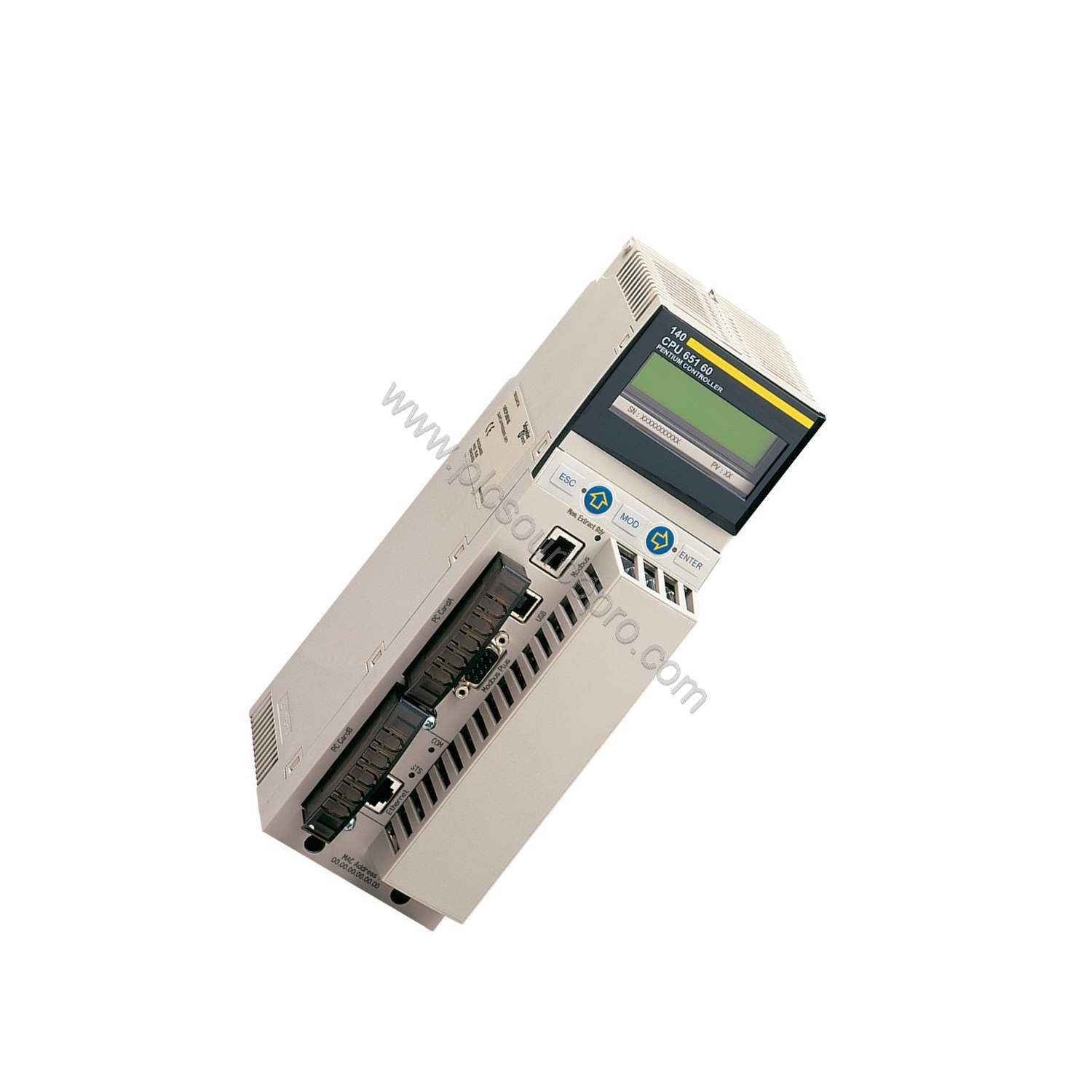

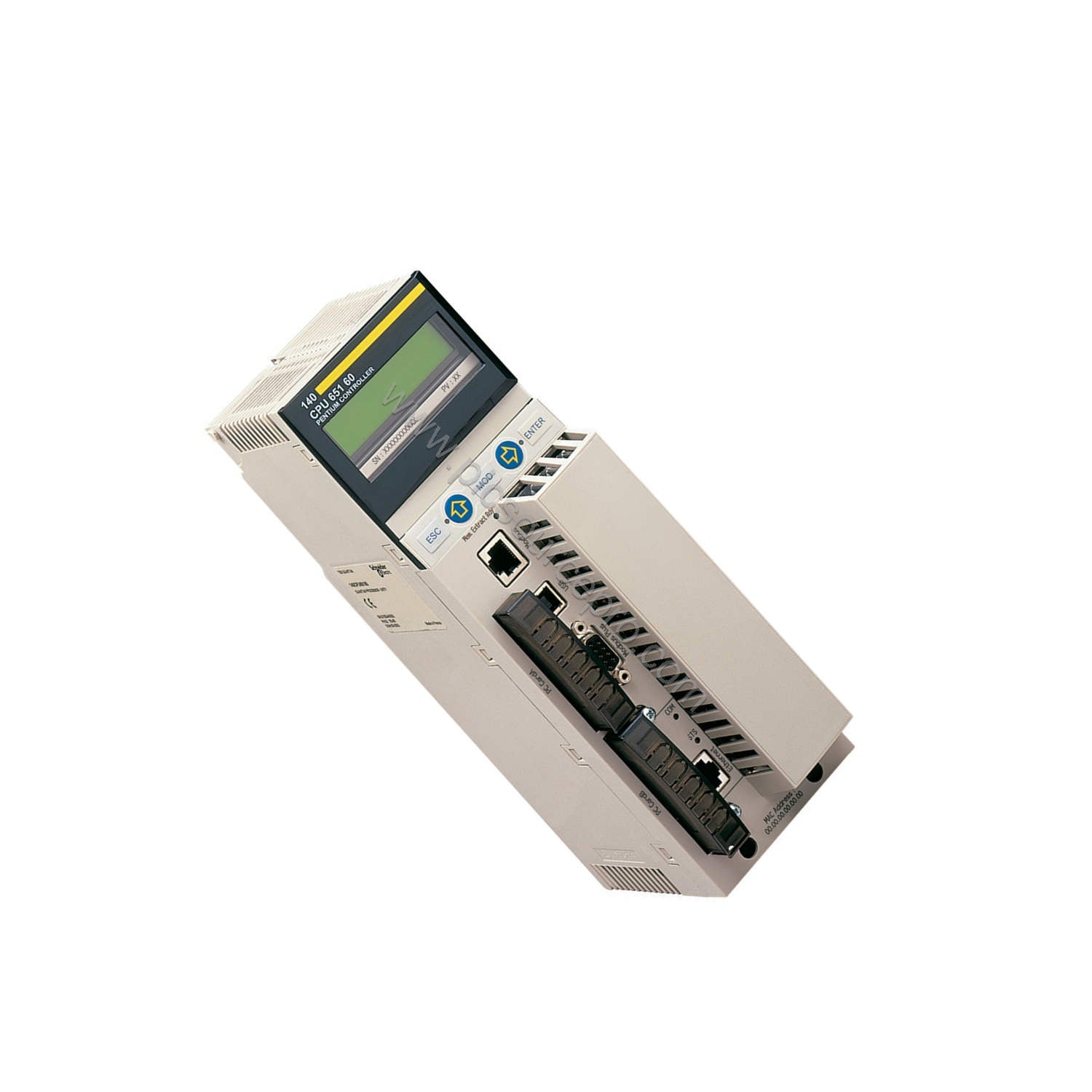

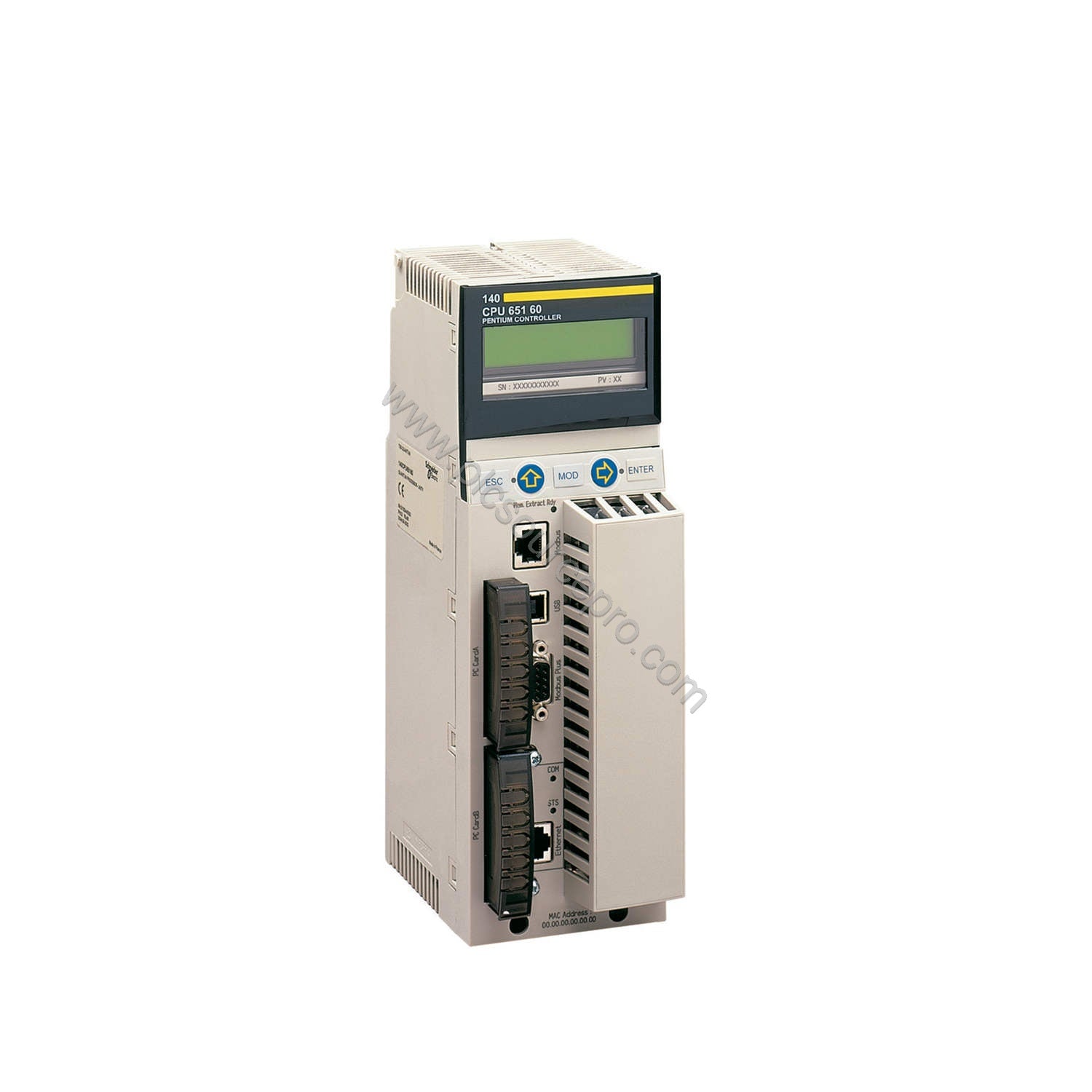

When your existing Modicon Quantum processor no longer meets the demands of modern process control, the Schneider 140CPU65260C Unity Processor provides a direct upgrade path. Designed by Schneider 140CPU65260C to replace earlier units, this processor delivers enhanced performance with a 266 MHz clock frequency and support for up to two local racks. Ideal for plant upgrades, it integrates seamlessly into existing Quantum backplanes while offering expanded capabilities.
Technical Specifications Breakdown
The Schneider 140CPU65260C offers critical performance metrics derived from its datasheet:
-
Clock Frequency: 266 MHz – ensures rapid execution of control logic and data processing.
-
Local Racks: 2 – supports modular expansion without complex reconfiguration.
-
Distributed I/O Stations: 63 – allows extensive field device integration over Modbus Plus.
-
Bus Current: 2760 mA – provides ample power for backplane modules.
-
Standards: HazLoc – certified for use in hazardous locations, enhancing safety.
These specifications make the 140CPU65260C a robust choice for upgrading control systems that require higher throughput and reliability.
Application Scenarios
This processor excels in upgrading legacy oil and gas compressor stations, where timing-critical loop control demands deterministic performance. In water treatment facilities, replacing an older Quantum processor with the Schneider 140CPU65260C reduces scan cycle times and supports more I/O points. Automated assembly lines benefit from the integrated Ethernet router for real-time data exchange between PLCs and SCADA.
Compatibility & Integration
The 140CPU65260C is part of the Modicon Quantum automation platform, ensuring backward compatibility with existing Quantum I/O modules and rack configurations. It supports multiple communication protocols including Modbus Plus, Ethernet TCP/IP, and USB. The processor can manage up to 63 distributed I/O stations via Modbus Plus and 31 remote I/O stations over S908 or Ethernet. For system upgrades, it replaces older processors without requiring new cabling or backplane changes.
Selection Guide & Purchasing Advice
Before purchasing a Schneider 140CPU65260C, verify that your current Quantum rack has an empty slot for the processor and that your power supply can provide the required 2760 mA bus current. The unit comes with conformal coating for harsh environments. For reliable supply of genuine parts, visit ubest101. Ensure firmware compatibility if integrating with existing Unity Pro software.
