Product Introduction

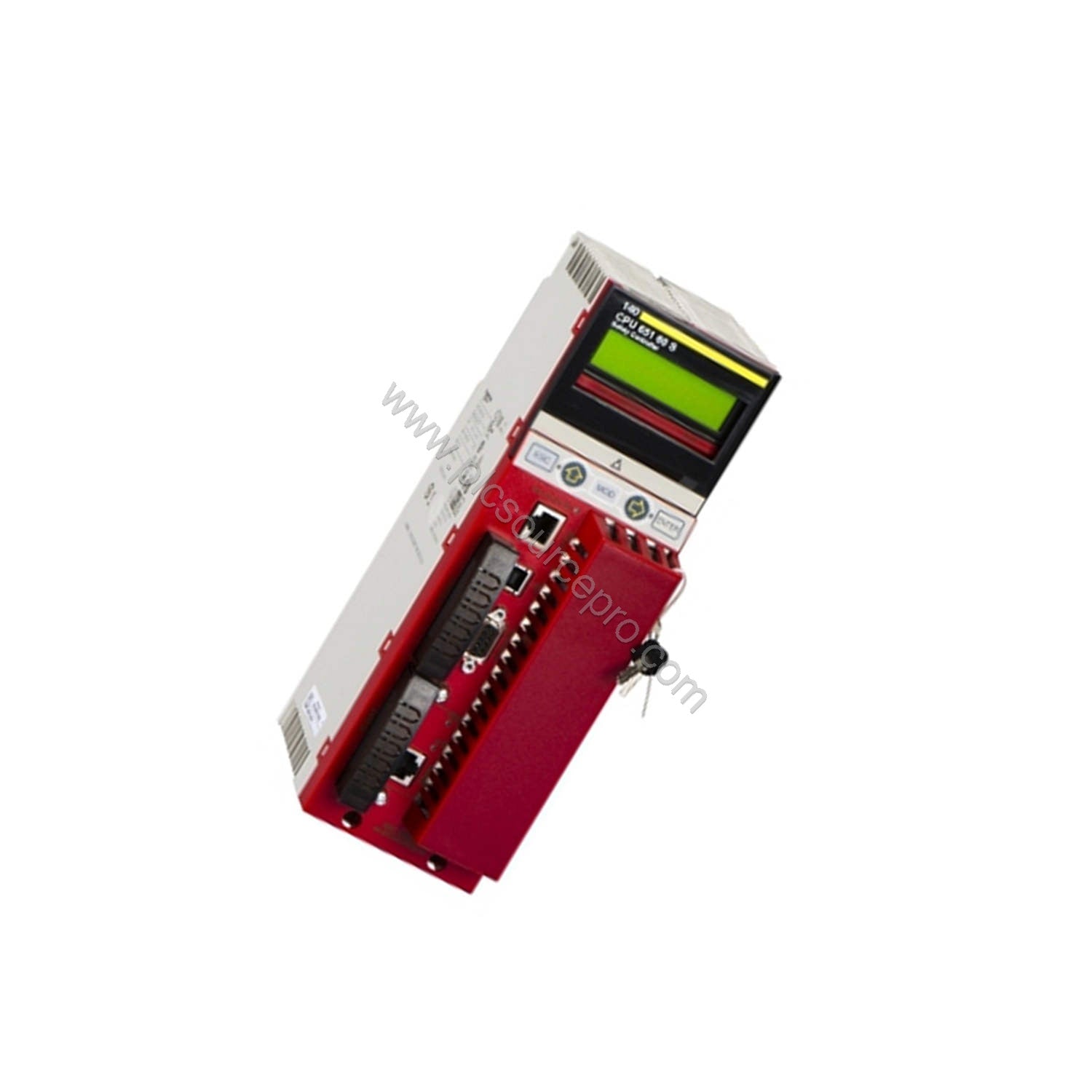

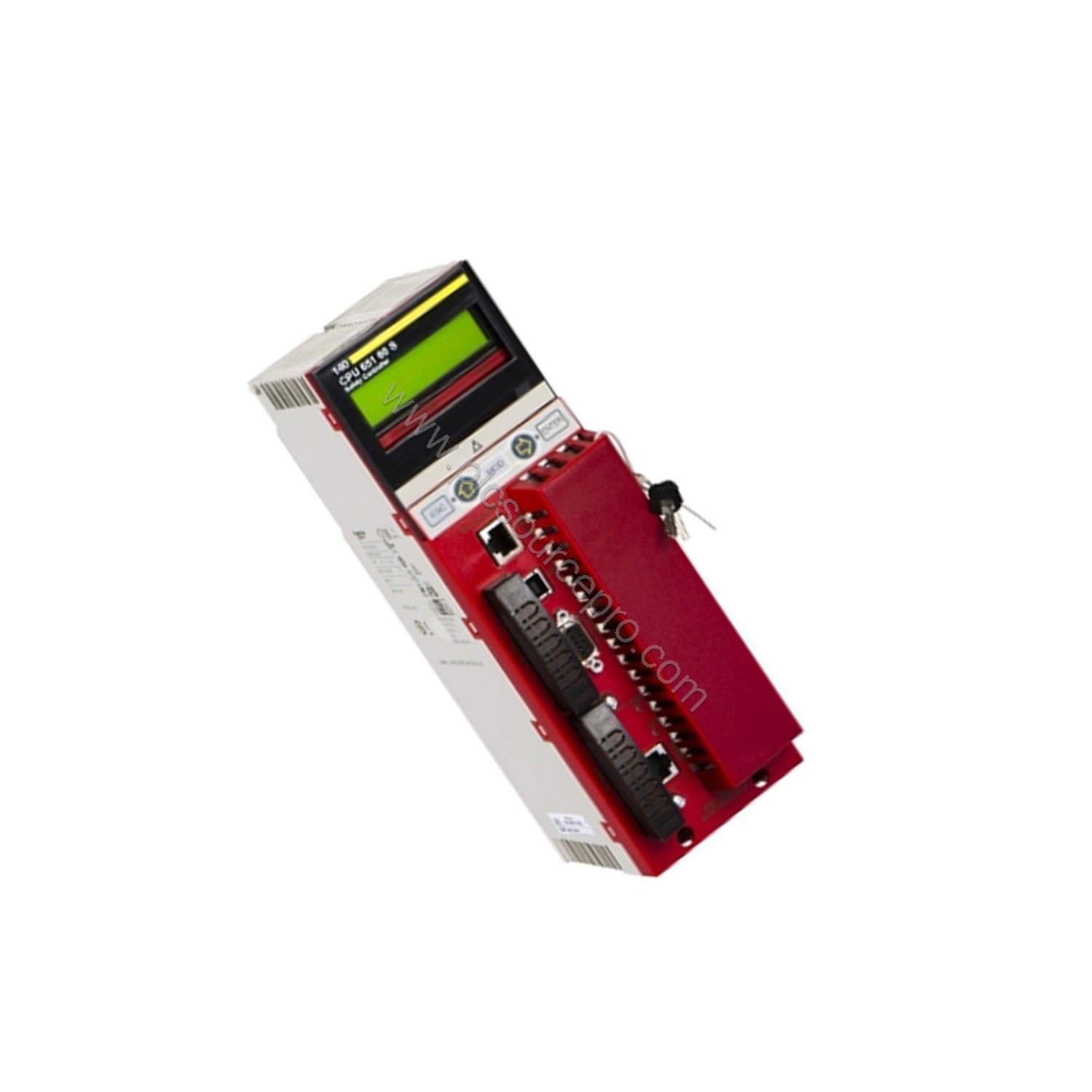

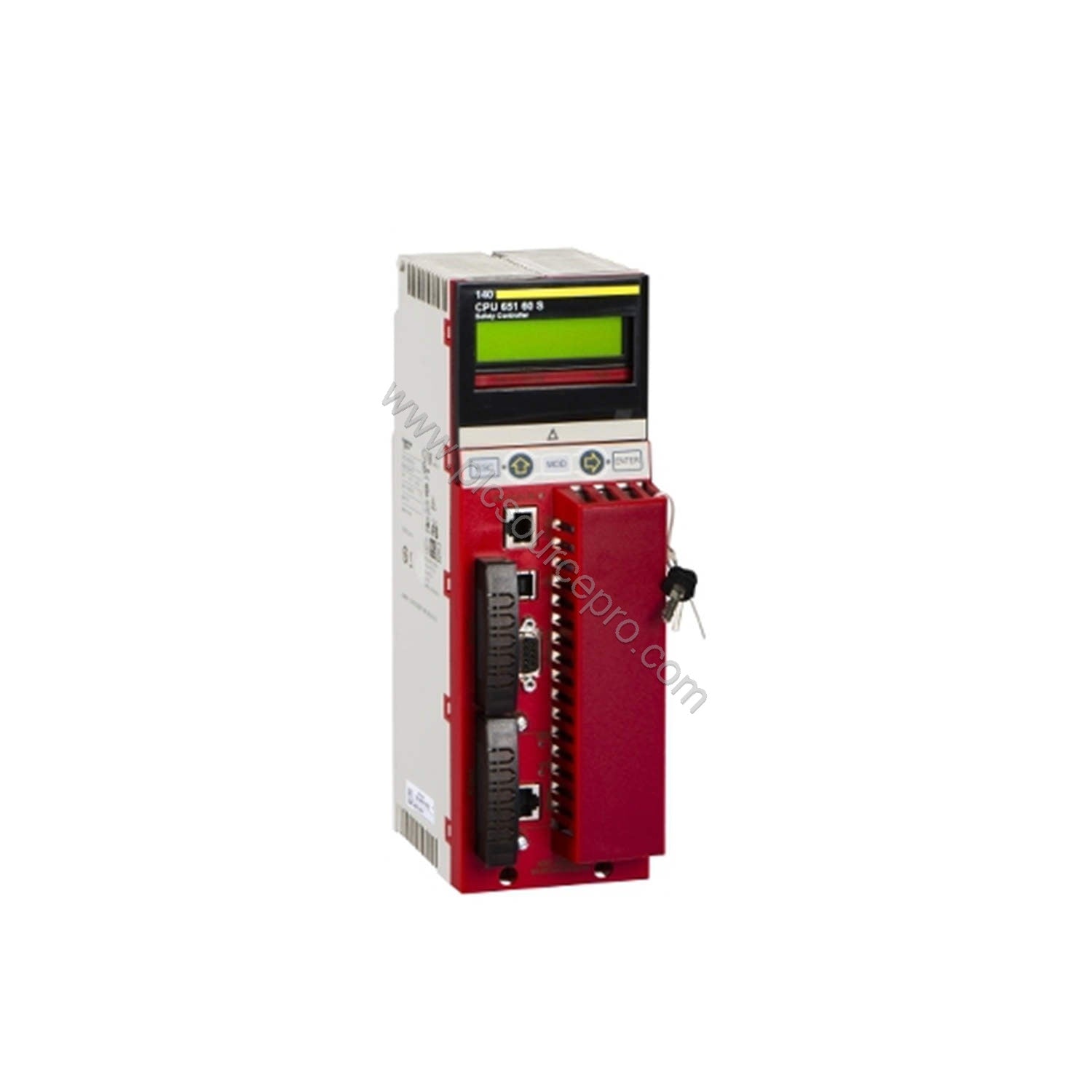

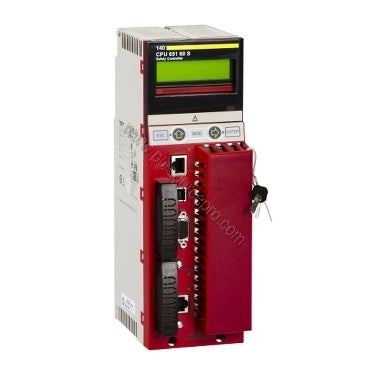

When industrial processes demand both high performance and certified safety, the Schneider 140CPU65160S Unity safety processor delivers. As a core component of the Modicon Quantum automation platform, this processor combines a 266 MHz clock frequency with 1024 kB internal RAM, enabling fast and deterministic control for critical applications. Its Unity Pro XL safety software environment ensures seamless integration into SIL3-rated systems, making it a trusted choice for process and manufacturing industries.
The 140CPU65160S supports up to 31 remote I/O stations and handles unlimited discrete I/O with 31744 inputs and 31744 outputs in remote configurations. With a memory expandable via PCMCIA card up to 7168 kB for programs and 8 MB for file storage, it offers flexibility for growing automation needs. The integrated communication ports – including Ethernet TCP/IP, Modbus, Modbus Plus, and USB – simplify connectivity to supervisory systems and field devices.
Technical Specifications
Below are the key parameters of the Schneider 140CPU65160S as extracted from official documentation. Every value is verified for accuracy.
| Parameter |
Value |
| Clock Frequency |
266 MHz |
| Internal RAM |
1024 kB |
| Program Memory (expandable) |
7168 kB via PCMCIA card |
| File Storage (expandable) |
8 MB via PCMCIA card |
| Bus Current Requirement |
2760 mA |
| Rated Supply Voltage (battery) |
3 V DC |
| Battery Capacity |
1200 Ah |
| Battery Life |
10 years |
| Execution Time per Instruction (Boolean) |
0.105…0.15 µs |
| Execution Time per Instruction (word) |
0.09…0.12 µs |
| Discrete I/O (remote) |
31744 inputs, 31744 outputs |
| Analogue I/O (remote) |
1984 inputs, 1984 outputs |
| Number of Remote I/O Stations |
31 (1 remote) |
| Integrated Connections |
1 Ethernet TCP/IP, 1 Modbus, 1 Modbus Plus, 1 USB |
| Product Certifications |
CSA, C-tick, TÜV Rheinland (SIL3), CSA HazLoc, CE |
| Weight |
1.39 kg (3.06 lb) |
The 0.105–0.15 µs Boolean execution time ensures rapid logic solving, critical for safety interlocks and emergency shutdowns. The lithium battery backup (990XCP98000) provides 10-year data retention, reducing maintenance intervals and total cost of ownership.
Industry Applications
The Schneider 140CPU65160S excels in environments requiring fail-safe control. Common uses include:
-
Oil & Gas: Emergency shutdown systems (ESD) and fire & gas detection, where SIL3 certification and fast reaction times prevent catastrophic events.
-
Chemical Processing: Batch control and safety instrumented functions (SIF) that demand deterministic execution and secure communication over Modbus Plus or Ethernet TCP/IP.
-
Power Generation: Turbine control, boiler management, and grid interconnection protection, leveraging the processor's ability to handle unlimited discrete and analogue I/O.
By choosing the 140CPU65160S, operators gain a reliable safety platform that minimizes downtime and complies with stringent industry standards, delivering a strong return on investment through extended asset life and reduced safety incidents.
Maintenance & Reliability
Routine checks for the Schneider 140CPU65160S focus on the lithium battery status and key switch settings. The battery, rated for 10 years, should be monitored via the LCD display (2 lines of 16 characters) for any low-voltage alarms. The key switch memory port on/off function prevents unauthorized program changes, enhancing security. Environmental conditions should remain within specified limits; the processor is rated for operation at 140 °F (60 °C) for the battery circuit. Periodic cleaning of connectors – the SUB-D 9, USB type B, and RJ45 ports – ensures reliable communication. With proper care, this Unity safety processor delivers decades of service, reducing the need for costly replacements.
Compatibility & Integration
The 140CPU65160S integrates seamlessly into Modicon Quantum racks, supporting local racks with 2, 3, 4, 6, 10, or 16 slots. It works with optional modules such as the 140NOE77111 Ethernet module. The processor supports up to 6 Ethernet TCP/IP connections locally, plus Modbus and Modbus Plus networks. For programming and diagnostics, use the USB port to connect a PC running Unity Pro XL safety software. The processor is designed for use in Hot Standby applications, though discrete I/O is forbidden in that mode. Its compatibility with existing Quantum I/O modules and remote I/O stations (up to 31) makes it a straightforward upgrade for legacy systems or new installations.
Selection Guide
When ordering the Schneider 140CPU65160S, verify that your system requires a SIL3 Unity safety processor with the specified memory and I/O capacities. Ensure you have a compatible backup battery (990XCP98000) and a PCMCIA card if expanded memory is needed. For replacement projects, confirm the firmware version and network topology. UBEST Automation stocks genuine 140CPU65160S units with full traceability. For detailed integration support or to request a quotation, visit the ubest101 store page. We recommend confirming your exact system configuration before purchase to guarantee a seamless fit.
