Product Introduction

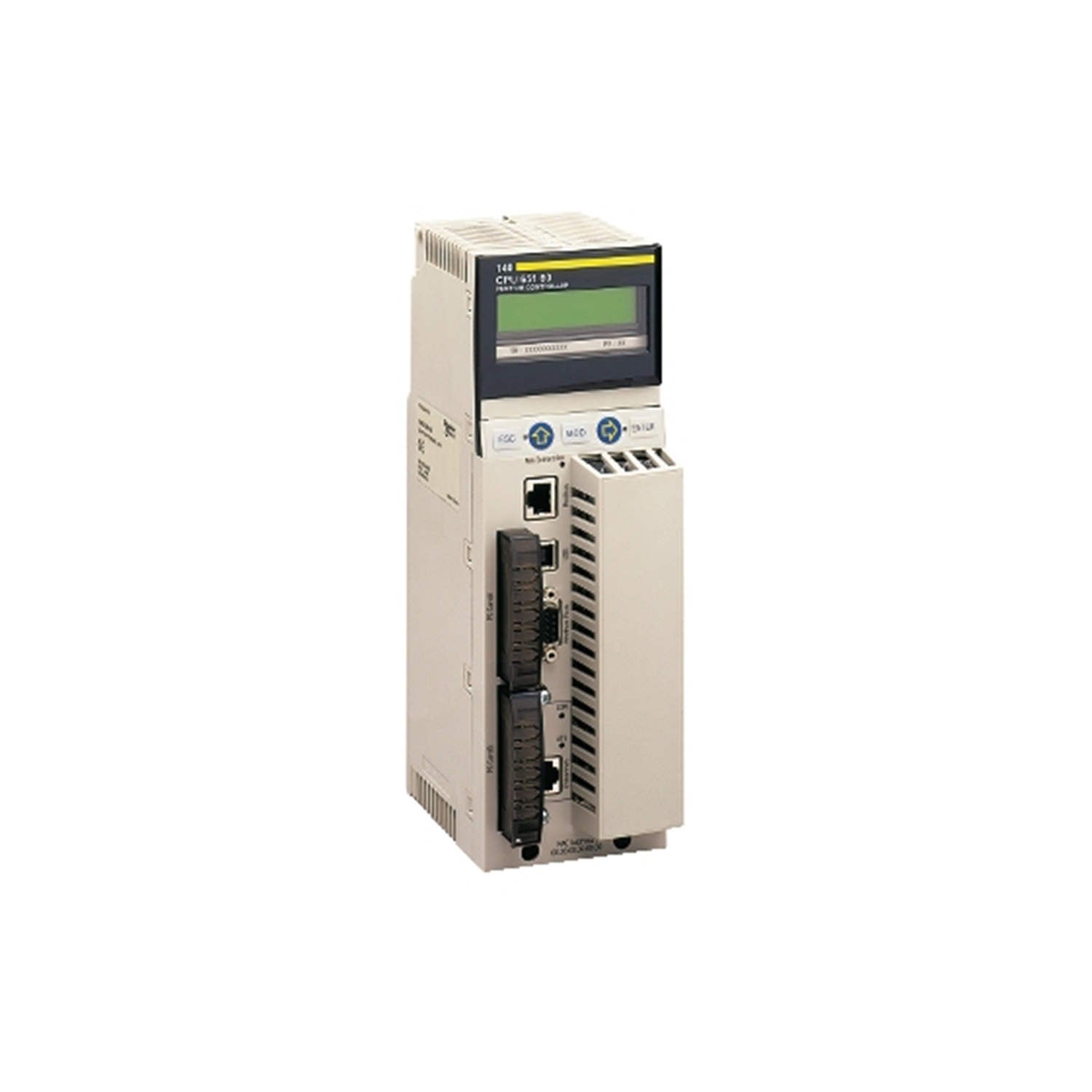

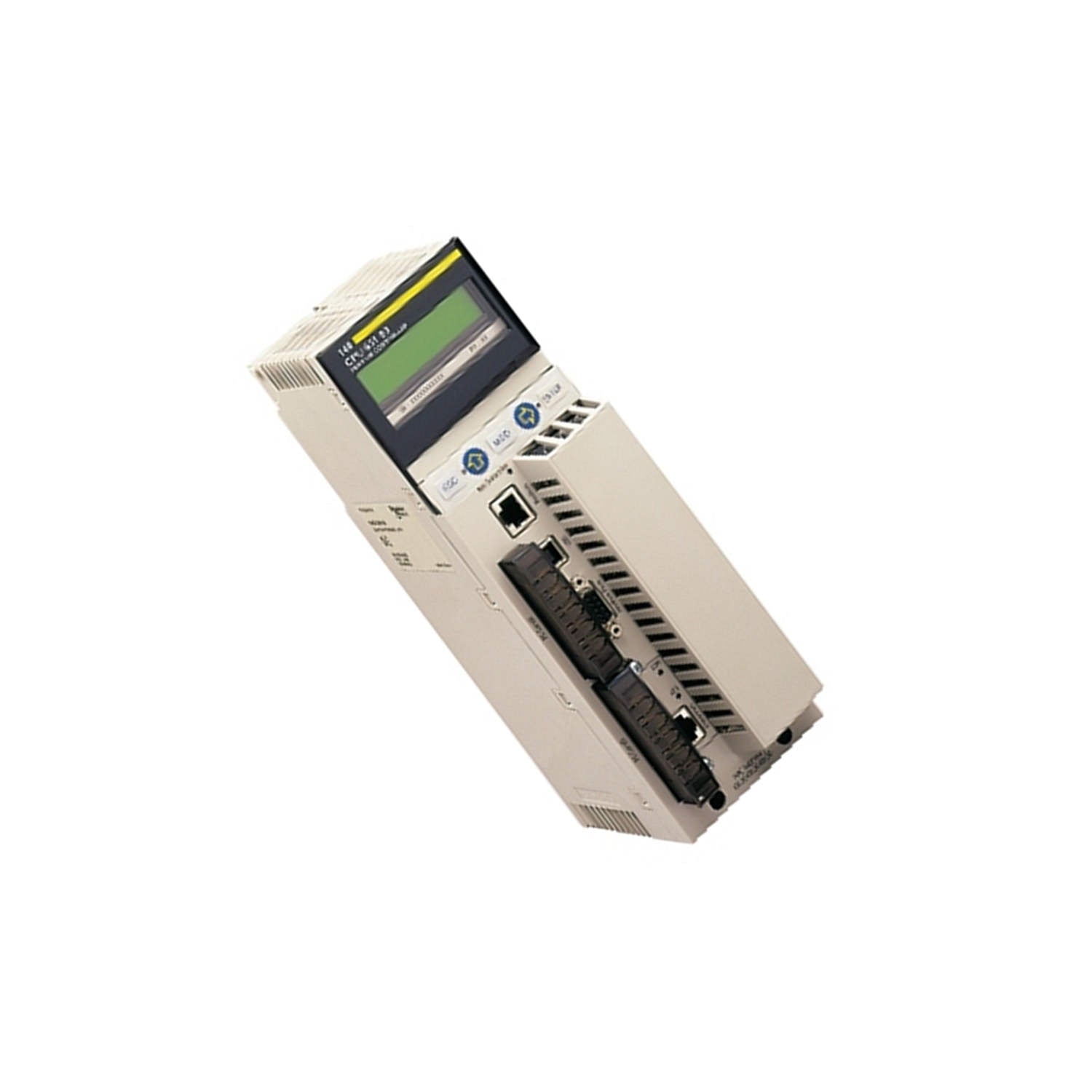

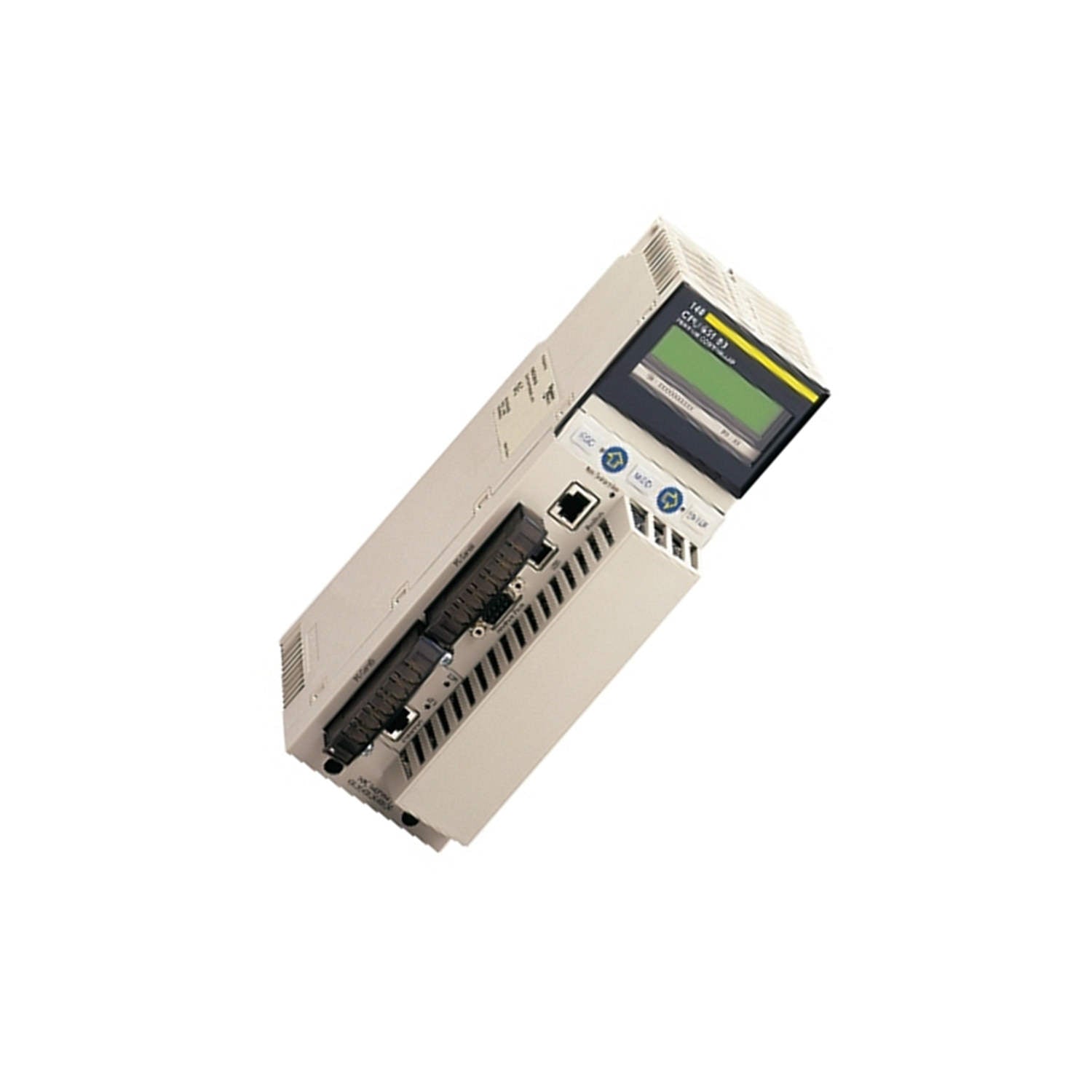

When your automation system demands reliable and efficient control, the Schneider 140CPU65160C Unity Processor steps in as a robust solution. Part of the Modicon Quantum series, this processor operates at a clock frequency of 266 MHz and is equipped with 1024 kB of internal RAM. It supports expandable RAM up to 7168 kB for programs and an additional 8 MB for file storage, ensuring ample capacity for complex control tasks.
Technical Specifications
-
Manufacturer: Schneider Electric
-
Product Line: Modicon Quantum
-
Part Number: 140CPU65160C
-
Product: Unity Processor
-
Clock Frequency: 266 MHz
-
Internal RAM: 1024 kB
-
Expandable RAM: 7168 kB (program), 8 MB (file storage)
-
Number of Slots: 10
-
Number of Racks: 2 (local)
-
Distributed I/O Stations: 63 (1 rack, 3 Modbus Plus networks)
-
Remote I/O Stations: 31 (2 S908 remote I/O racks)
-
Communication Services: Ethernet router
-
Number of Optional Modules: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
-
Maximum Number of Connections: 1 (USB), 2 (AS-Interface distributed), 4 (AS-Interface remote), 6 (Ethernet TCP/IP local), 6 (Modbus Plus local), 6 (Profibus DP local), 1 (Modbus RS232/485 Modbus/ASCII)
-
Integrated Connection Types: 1 Modbus Plus, 1 Ethernet TCP/IP, 1 Modbus, 1 USB
-
Execution Time per Instruction: 0.4–0.5 µs (floating point), 0.0525–0.075 µs (Boolean)
Industry Applications
The 140CPU65160C excels in manufacturing, process control, and material handling environments. Its 266 MHz clock speed and efficient instruction execution (0.4–0.5 µs for floating point) make it ideal for high-speed assembly lines and packaging machines. The processor’s ability to manage up to 63 distributed I/O stations and 31 remote I/O stations allows seamless integration across large factory floors.
Installation & Setup Guidance
Install the 140CPU65160C into a Modicon Quantum backplane using the designated slot. Ensure proper grounding and follow Schneider Electric’s wiring guidelines for power and I/O connections. The processor supports up to 10 slots and 2 local racks, so plan your module layout accordingly. No special tools are required for mounting.
Maintenance & Reliability
To maximize the lifespan of the 140CPU65160C, keep the enclosure free of dust and ensure adequate ventilation. Periodically check the LED indicators on the front panel for status. The processor’s robust design and 0.85 kg weight contribute to its reliability in industrial environments. Schedule annual firmware updates to maintain compatibility with newer modules.
Compatibility & Integration
The 140CPU65160C integrates seamlessly with Modicon Quantum I/O modules and supports multiple networks: Ethernet TCP/IP, Modbus Plus, Modbus RS232/485, and Profibus DP. It can also connect to AS-Interface and Sy/Max networks via optional modules. This wide compatibility simplifies system expansion and upgrades.
Selection Guide & Purchasing Advice
Before purchasing the 140CPU65160C, verify that your existing backplane and power supply are compatible. For new installations, consider ordering a matching power supply and I/O modules. UBEST Automation offers this processor with fast shipping and dedicated support. Contact us for bulk pricing or technical questions.
