Product Introduction

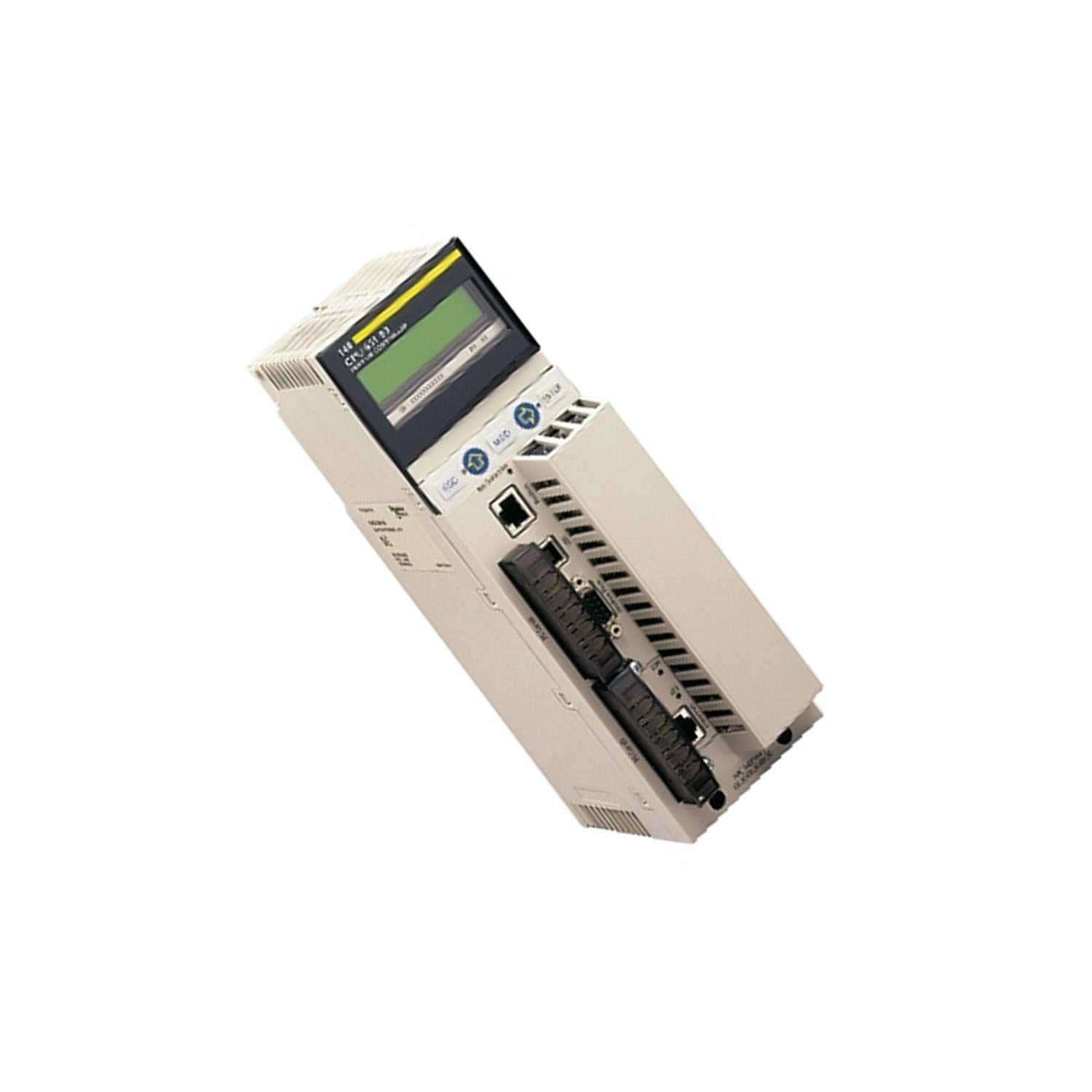

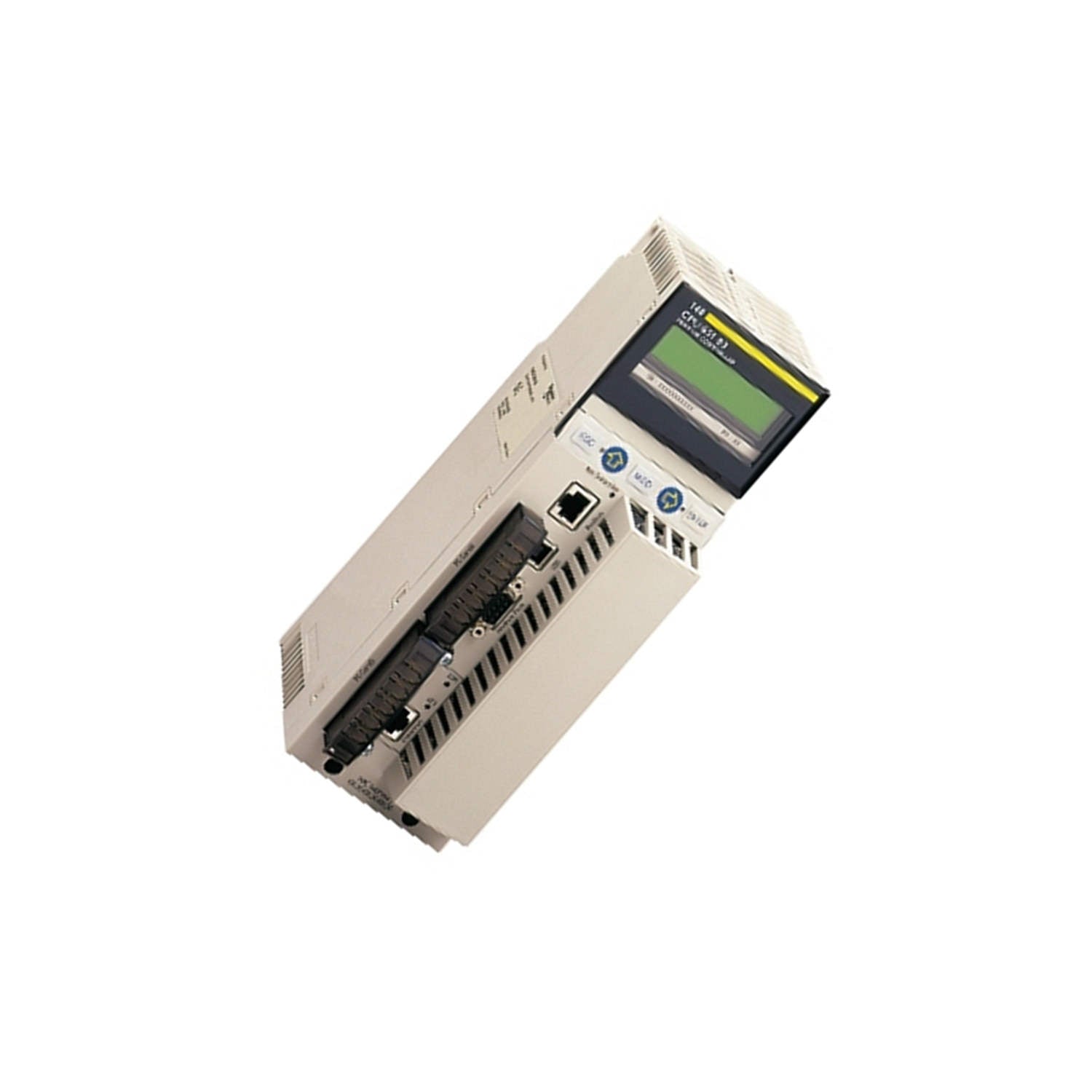

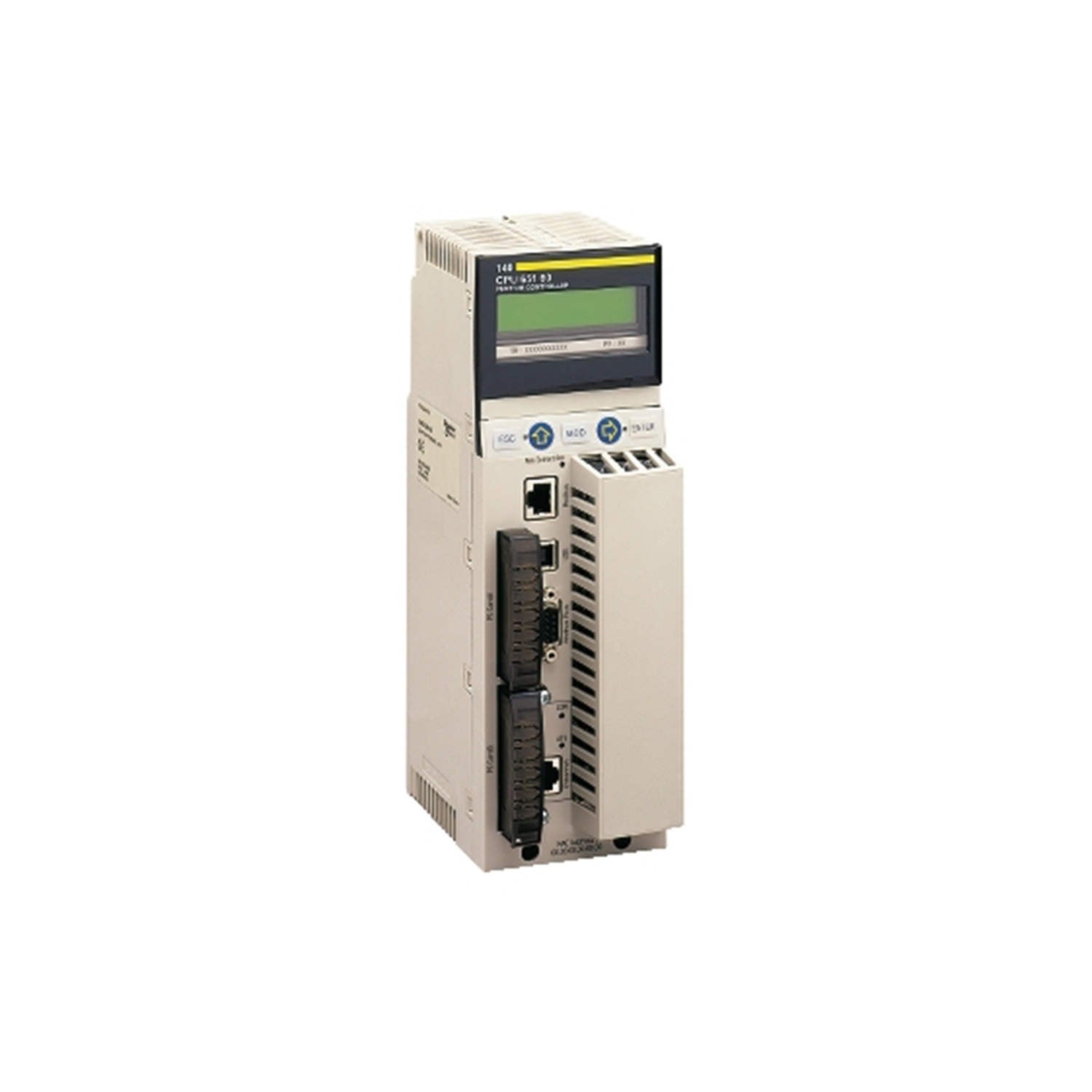

When industrial control systems demand reliable and powerful processing, the Schneider 140CPU65160C Unity Processor delivers. Part of the Modicon Quantum series, this processor operates at a clock frequency of 266 MHz and provides efficient handling of complex automation tasks. With 1024 kB of internal RAM, it supports expandable memory up to 7168 kB for programs and 8 MB for file storage, ensuring ample capacity for demanding applications.
Technical Specifications Breakdown
The Schneider 140CPU65160C excels with a balanced set of features tailored for industrial environments. Key specifications include:
-
Clock Frequency: 266 MHz – ensures fast processing of control logic.
-
Internal RAM: 1024 kB – provides sufficient memory for core operations.
-
Expandable RAM: 7168 kB for programs, 8 MB for file storage – allows flexible scaling.
-
Number of Slots: 10 – accommodates a wide range of I/O modules.
-
Number of Racks: 2 (local) – supports system expansion.
-
Distributed I/O Stations: 63 (1 rack, 3 Modbus Plus networks) – enables extensive remote I/O.
-
Remote I/O Stations: 31 (2 S908 remote I/O racks) – enhances network flexibility.
-
Execution Time: 0.4–0.5 µs (floating point), 0.0525–0.075 µs (Boolean) – delivers rapid instruction execution.
These parameters make the Schneider 140CPU65160C suitable for high-speed control loops and complex logic.
Industry Applications
The Schneider 140CPU65160C Unity Processor finds use in discrete manufacturing, process control, and infrastructure management. For example, in a bottling line, its fast Boolean execution (0.0525–0.075 µs) ensures precise timing for conveyor synchronization. In water treatment plants, the distributed I/O capability (63 stations) allows monitoring of remote sensors and actuators. The processor's expandable memory supports data logging and recipe management, critical for batch processing industries.
Installation & Setup Guidance
Mount the Schneider 140CPU65160C in a suitable Modicon Quantum rack, ensuring proper grounding and ventilation. Connect the power supply and verify voltage requirements per the system design. Use the integrated USB and Modbus ports for initial configuration. Install optional modules (Ethernet, Modbus Plus, Profibus DP) in available slots as needed. Follow standard ESD precautions during handling.
Maintenance & Reliability
Regularly inspect the Schneider 140CPU65160C for dust accumulation and ensure cooling fans operate correctly. Monitor system logs for error codes and replace the battery backup (if applicable) every 3-5 years. The processor's robust construction supports continuous operation in temperatures from 0 to 60 °C. Periodic firmware updates can enhance performance and security.
Compatibility & Integration
The Schneider 140CPU65160C integrates seamlessly with Modicon Quantum I/O modules and supports multiple communication protocols: Ethernet TCP/IP, Modbus Plus, Modbus, Profibus DP, AS-Interface, and Sy/Max. It works with Unity Pro software for programming and diagnostics. For distributed architectures, it connects via S908 remote I/O racks and Modbus Plus networks, enabling scalable control systems.
Buying Guide & Selection Advice
Before purchasing the Schneider 140CPU65160C, verify compatibility with your existing Quantum rack and power supply. Confirm the required number of slots and communication modules for your application. At ubest Automation, you can find genuine spare parts and expert support. Ensure the part number matches exactly: 140CPU65160C. We recommend ordering from trusted suppliers to guarantee authenticity.
