Product Introduction

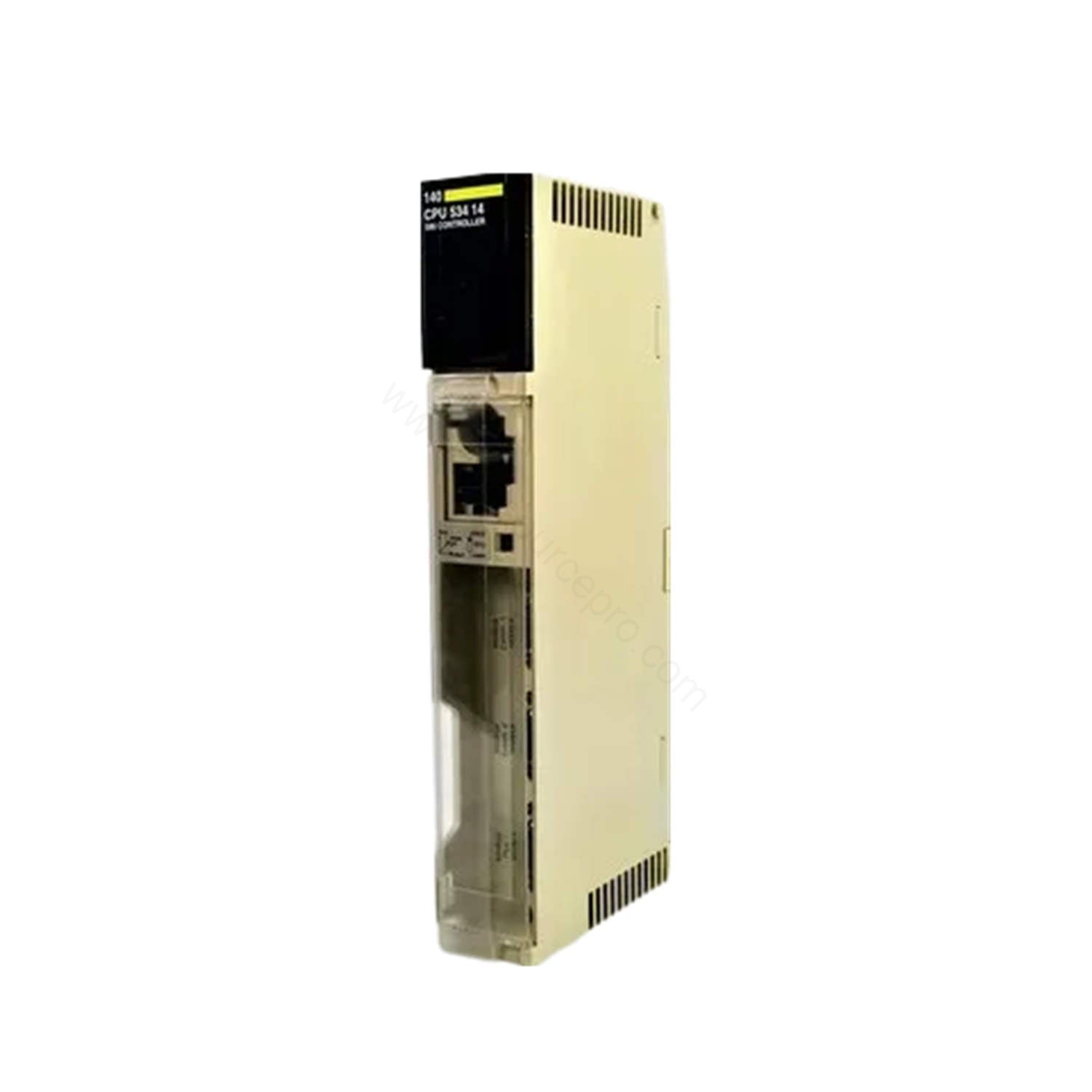

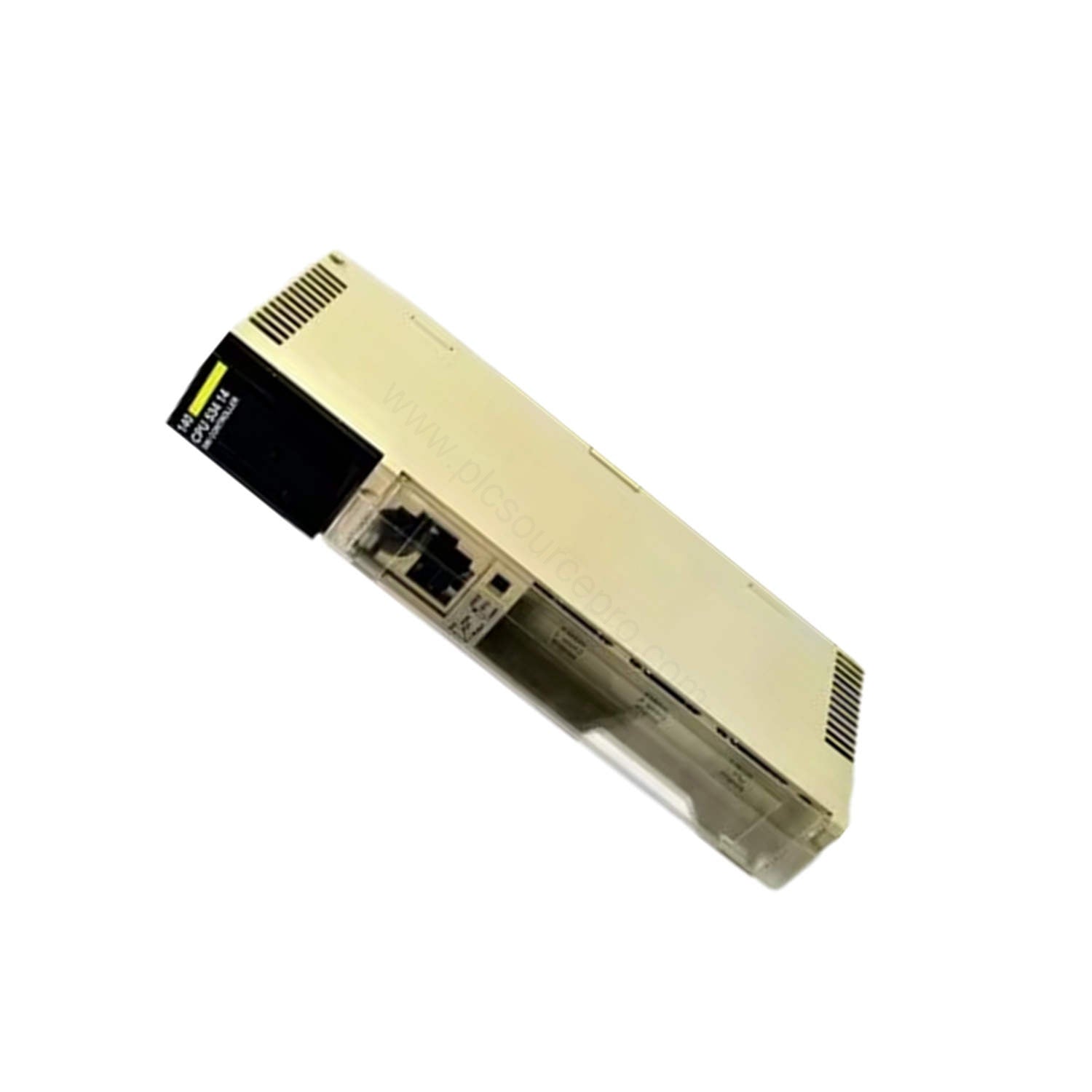

With 586 KB of RAM and 4 MB of program memory, the Schneider 140CPU53414UC CPU Module delivers exceptional performance for demanding automation tasks. As a core component of the Modicon Quantum series, this processor module leverages the Quantum Unity architecture to handle complex control logic with efficiency and reliability. Designed for industrial environments, it supports two local racks and offers robust communication via Modbus RS232/Plus ports, making it a cost-effective solution for reducing downtime and improving system longevity.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
CPU Module |
| Product Line |
Modicon Quantum |
| Part Number |
140CPU53414UC |
| Processor Type |
Quantum Unity |
| Number of Racks |
2 local racks |
| RAM |
586 KB |
| Instruction Rate |
1.86–2.49 Kinst/ms |
| Memory Type |
Internal RAM |
| Communication Ports |
Modbus RS232/Plus |
| Program Memory |
4 MB |
| Operating Temperature |
32…140 °F (0…60 °C) |
| Power Supply |
5 V DC |
| Execution Time (Boolean) |
0.1–0.27 µs |
| Communication Memory |
1 MB + CC |
| Protective Coating |
Yes (CC) |
| LED Indicators |
Status and Error LEDs |
Industrial Applications
The Schneider 140CPU53414UC excels in discrete manufacturing and process control environments. For example, in a packaging line, its fast Boolean execution (0.1–0.27 µs) enables rapid logic processing, reducing cycle times and increasing throughput. In a water treatment facility, the large program memory (4 MB) accommodates complex control algorithms, while the two-local-rack support allows for expanded I/O without additional chassis. These capabilities translate into lower total cost of ownership by minimizing hardware requirements and maintenance intervals.
Maintenance and Reliability
Built for continuous operation, the 140CPU53414UC includes a protective coating (CC) that shields components from dust, moisture, and corrosive gases. The LED status and error indicators provide immediate visual feedback, allowing technicians to diagnose faults quickly and reduce unplanned downtime. By integrating this module, facilities can achieve higher equipment availability, directly contributing to a positive return on investment through reduced repair costs and extended service life.
Compatibility and Integration
The Schneider 140CPU53414UC integrates seamlessly with Modicon Quantum automation platforms. It supports Modbus RS232/Plus for communication with drives, HMIs, and other controllers. The processor can manage up to 64 distributed I/O words per network and up to 63 drops, making it suitable for mid-sized distributed control systems. Its compatibility with ProWORX32 and Concept software simplifies programming and system integration, further lowering engineering costs.
Selection Guide
When selecting the Schneider 140CPU53414UC, verify that your power supply provides 5 V DC with at least 1250 mA bus current. The module weighs 0.85 kg and operates in temperatures from 0 to 60 °C. For detailed specifications or assistance with system configuration, contact UBEST Automation at ubest101.myshopify.com. Our team ensures you receive genuine parts that match your control system requirements.
