Product Overview

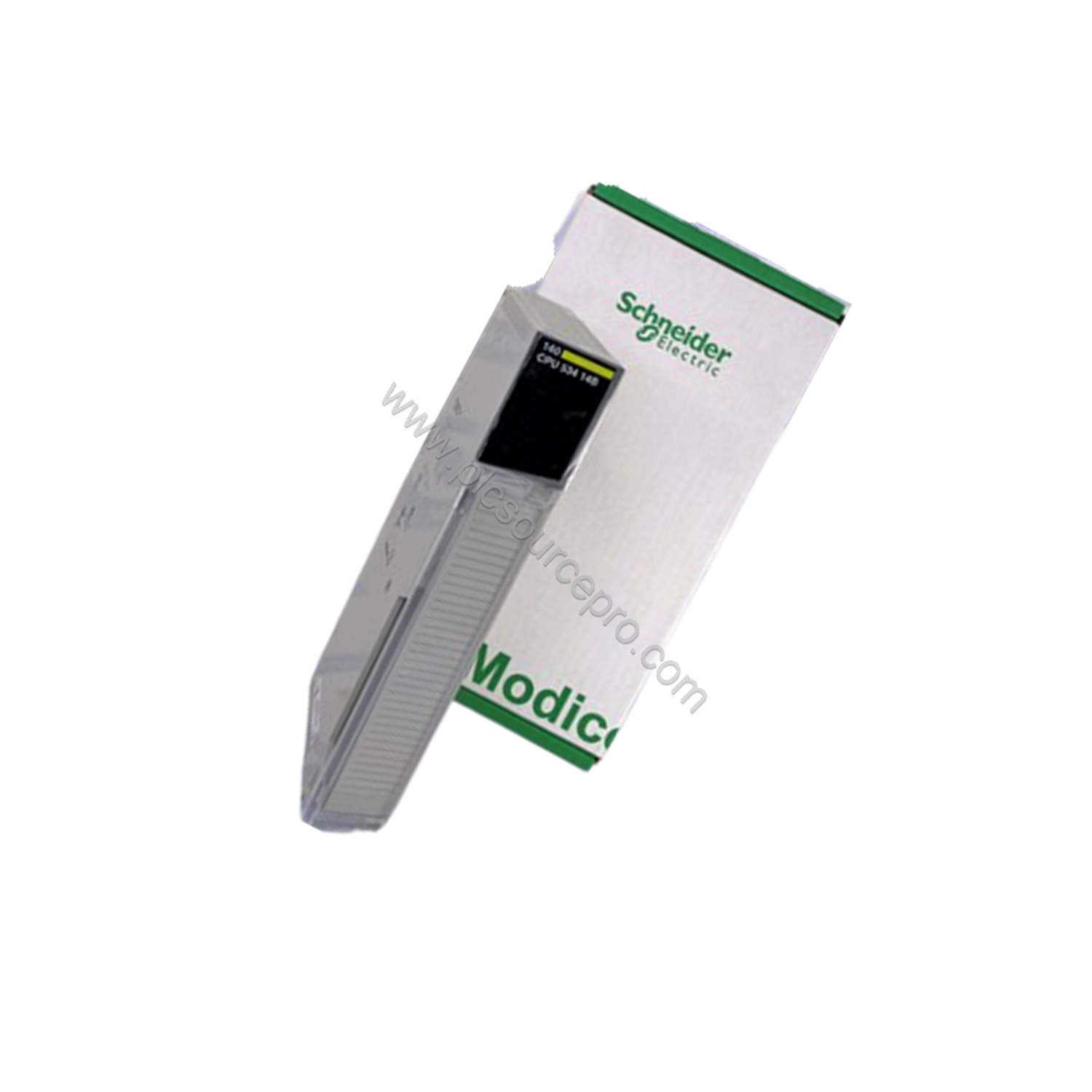

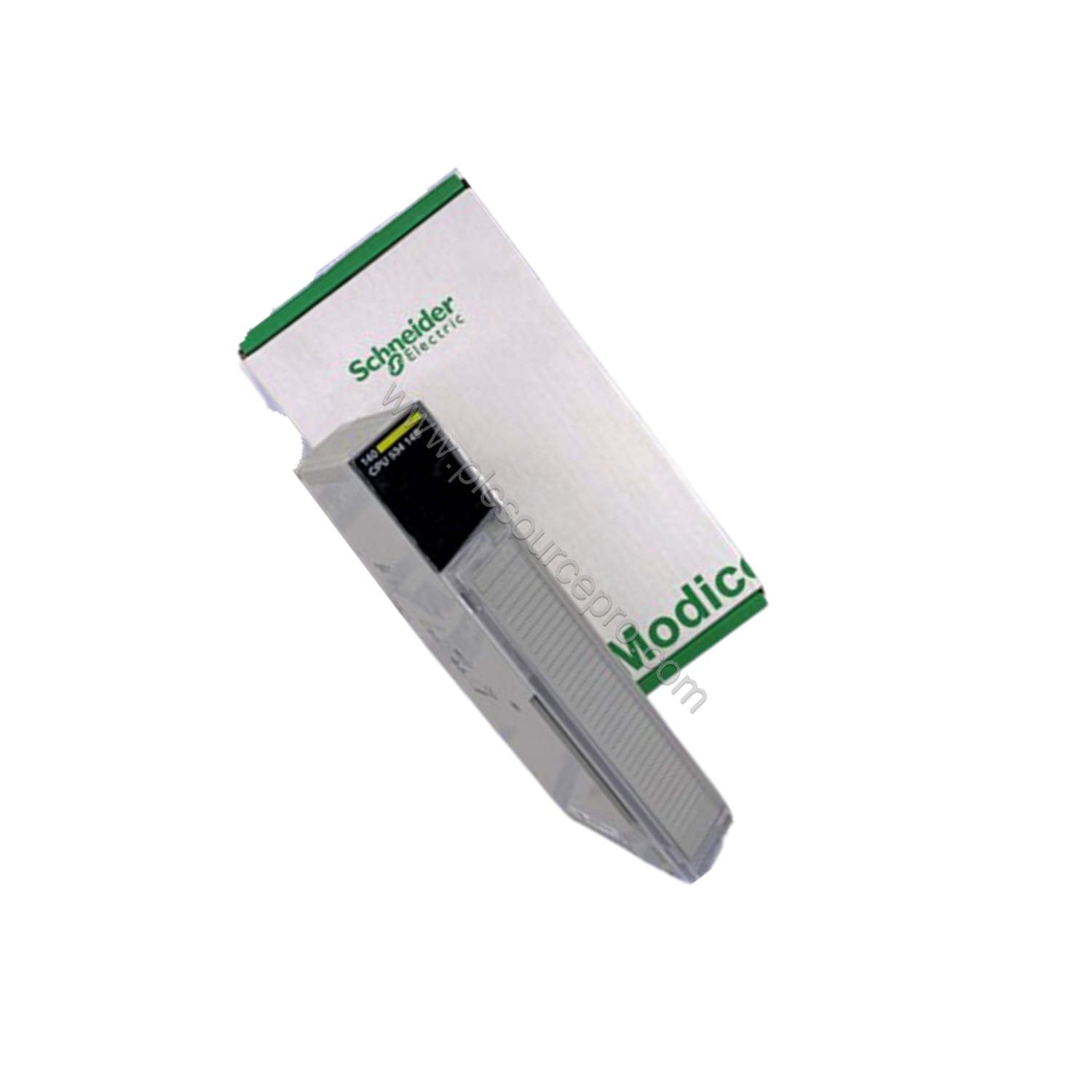

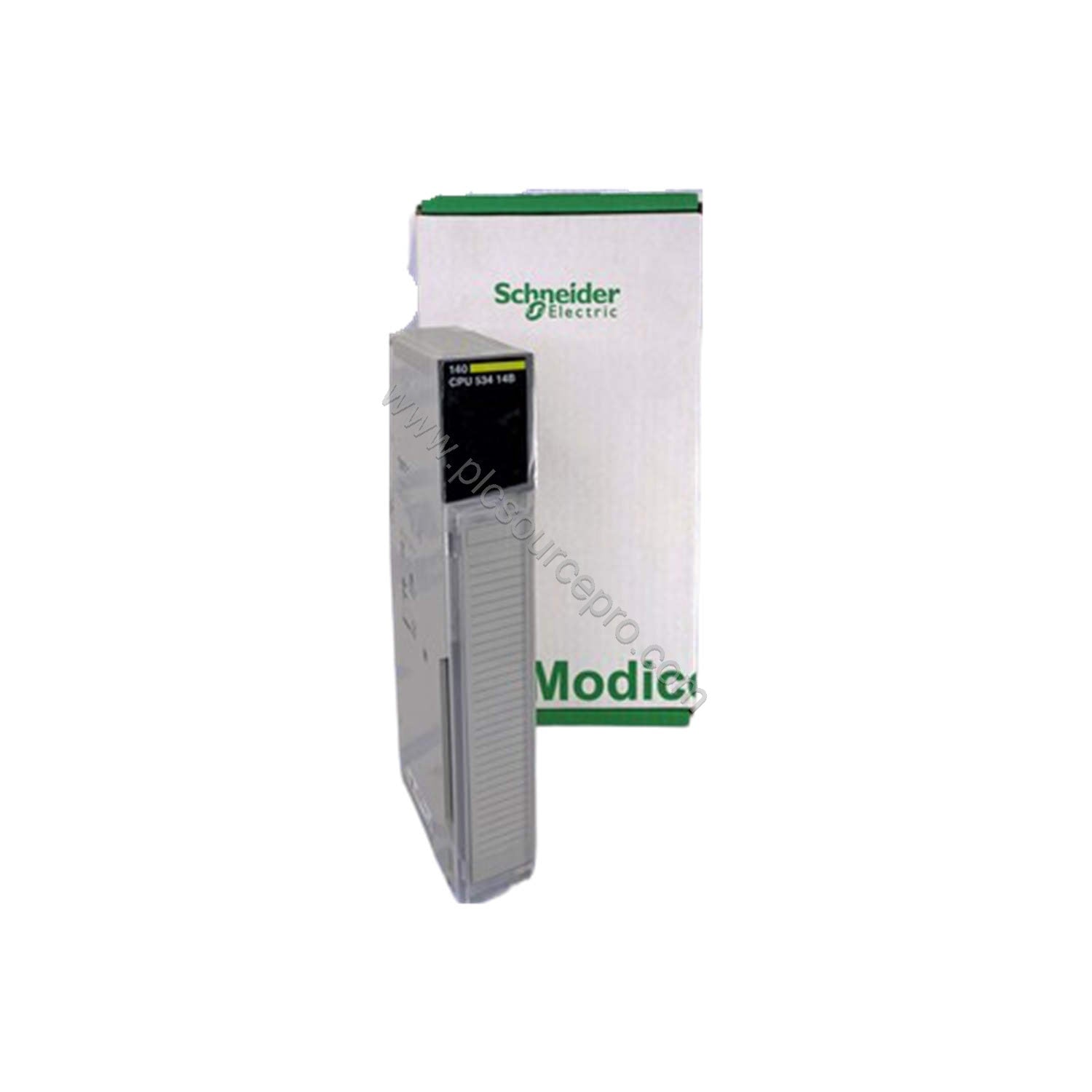

In demanding industrial automation environments, the Schneider 140CPU53414BC from the Modicon Quantum series delivers dependable processing power with a 100 MHz clock and 2972 kB internal RAM. Designed for efficient control, this processor handles logic, communication, and I/O management to keep your systems running smoothly.
Key Technical Specifications
-
Clock Frequency: 100 MHz
-
Internal RAM: 2972 kB
-
Watchdog Timer: 250 ms
-
I/O Words per Network: 500 Input / 500 Output distributed
-
Bus Current Requirement: 1250 mA
-
Battery Type: Lithium, 10 µA to 420 µA, 1.2 Ah capacity
-
Battery Life: 10 years
-
Operating Temperature: 0…60 °C (32…140 °F)
-
Electrostatic Discharge Resistance: 4 kV contact, 8 kV on air
-
Electromagnetic Field Resistance: 10 V/m
-
Weight: 0.85 kg (1.87 lb)
Real-World Applications
The Schneider 140CPU53414BC excels in manufacturing lines, water treatment plants, and energy management systems. With support for up to 63 distributed drops and 31 remote drops, it scales easily across large installations. The long 10-year lithium battery reduces replacement frequency, lowering total cost of ownership—ideal for continuous 24/7 operations.
Integration and Compatibility
This processor works with ProWORX 32 and Concept software, and integrates with the Modicon Quantum automation platform. It supports remote and distributed I/O networks, with up to 500 input and output words per network. The key switch function enhances operational security.
Selection Guide and Purchasing Advice
Before purchasing, verify your existing system’s bus current capability (1250 mA required). Ensure compatibility with your network configuration. For a reliable source, choose UBEST Automation—we stock genuine 140CPU53414BC units with full traceability.
Maintenance and Reliability
The Schneider 140CPU53414BC features conformal coating for protection and a watchdog timer at 250 ms to catch faults. Operate within 0…60 °C to maximize lifespan. The 10-year lithium battery minimizes maintenance interruptions, supporting long-term ROI.
