Product Introduction

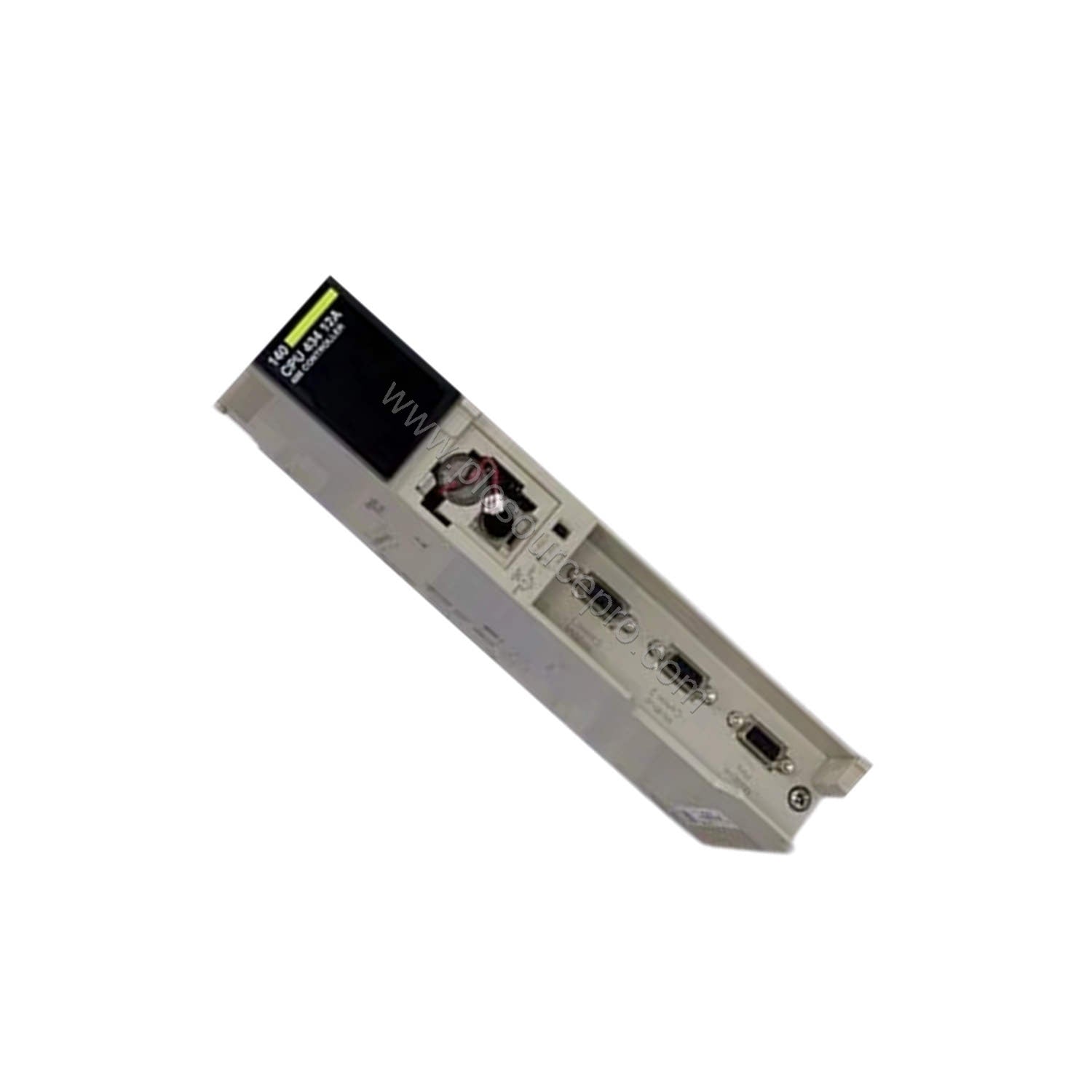

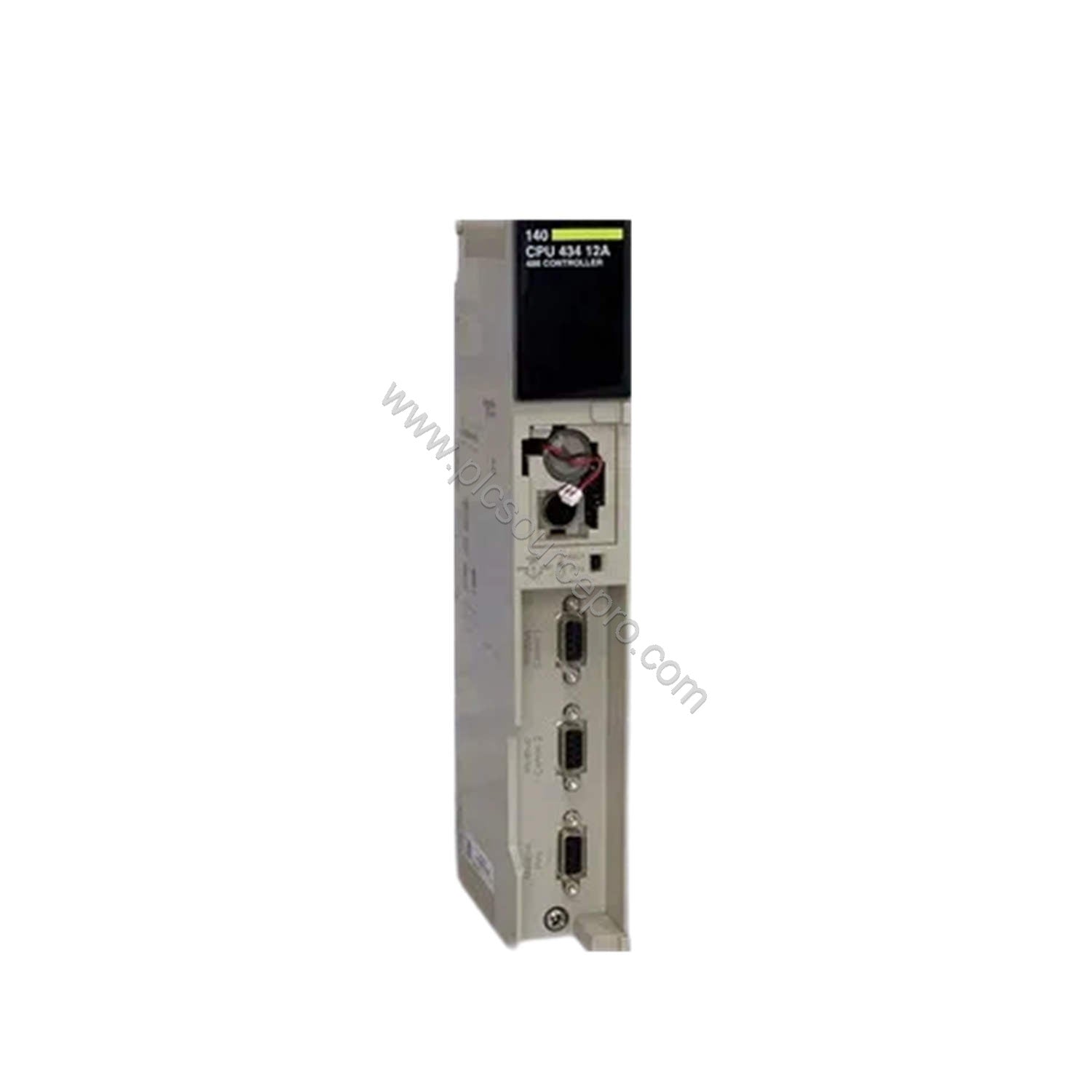

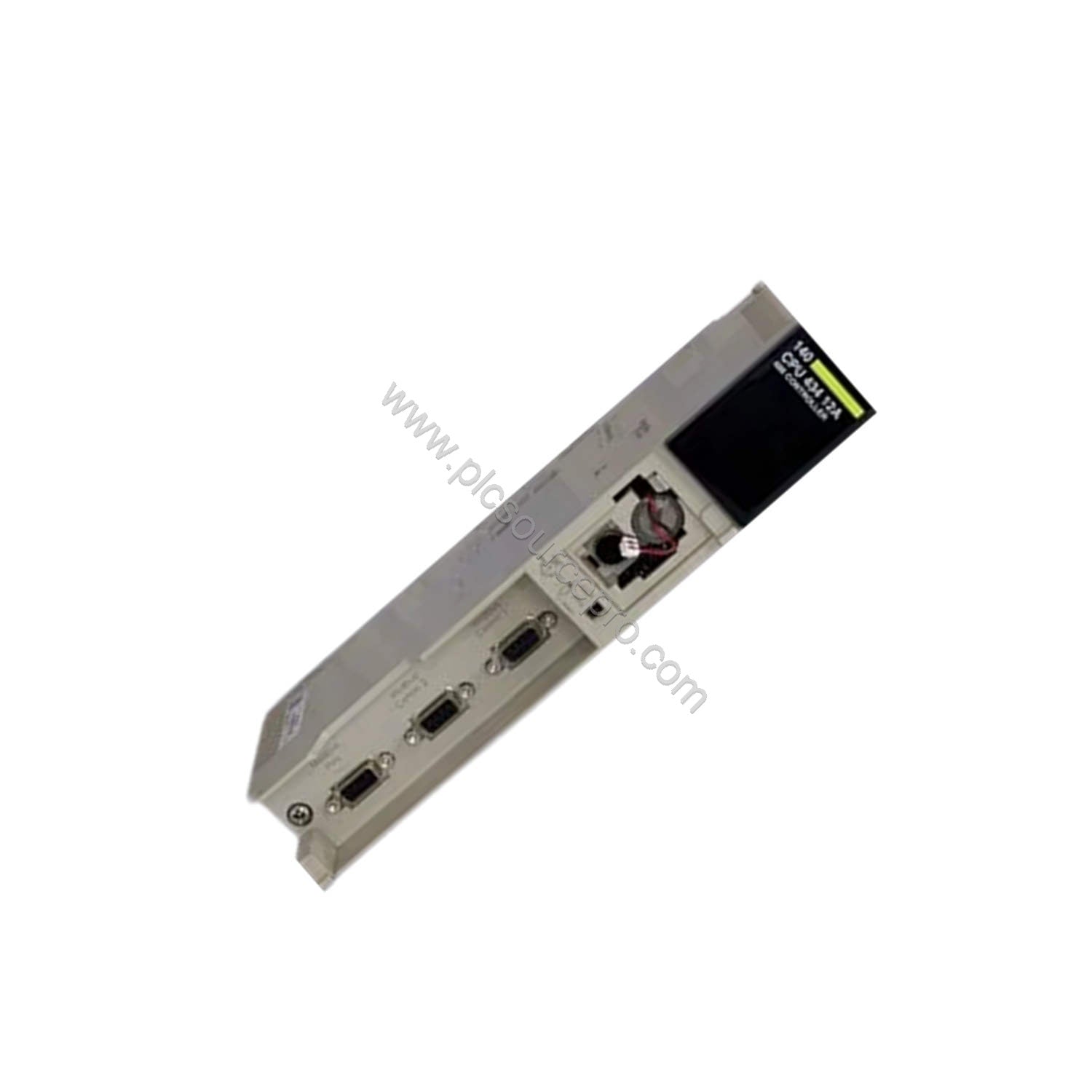

The Schneider 140CPU43412UC is a powerful CPU module from the Modicon Quantum series, designed to serve as the core of industrial automation systems. With a clock frequency of 66 MHz and support for up to two racks, this processor handles demanding control tasks while providing extensive I/O capabilities. Whether you are upgrading an existing Quantum system or building a new distributed control network, the 140CPU43412UC offers the performance and reliability required for continuous operation.
Technical Specifications Breakdown
Key specifications of the 140CPU43412UC are derived from the product datasheet and confirm its suitability for medium to large-scale applications. The module operates at 66 MHz and includes 1056 KB of internal RAM, ensuring fast execution of logic and data handling. It supports 31 remote I/O stations with up to 31,700 discrete inputs and 31,700 discrete outputs, plus an additional 8,000 distributed I/O points per Modbus Plus network. Execution time for Boolean operations ranges from 0.12 to 0.585 µs, and the module can execute 2.49 K instructions per ms (65% Boolean, 35% numerical). Power requirement is 1800 mA at 5 V.
Installation and Setup Guidance
Installing the Schneider 140CPU43412UC follows standard Quantum backplane procedures. Insert the module into any available slot on the local rack. Ensure the power supply is disconnected during installation to avoid damage. Configure the slide switch to select ASCII, RTU, or Memory mode as needed. Use the key switch to lock memory protection after loading the program. For communication, connect the Modbus Plus port via the 9-pin SUB-D connector and the two Modbus ports similarly. Verify LED indicators (RUN, READY, BAT LOW, ERROR A) after power-up to confirm proper startup.
Compatibility and Integration
The 140CPU43412UC is fully compatible with the Modicon Quantum automation platform. It integrates seamlessly with Quantum backplanes, power supplies, and I/O modules. For distributed I/O, it supports up to 63 Modbus Plus nodes. Optional modules for Ethernet, Profibus DP, or AS-Interface can be added to extend connectivity. The unit also communicates with legacy Modbus devices through its two built-in Modbus ports. This makes the 140CPU43412UC an excellent choice for upgrading older Quantum systems or expanding existing networks.
Selection Guide and Purchasing Advice
Before purchasing the Schneider 140CPU43412UC, verify that your system requires a 5 V power supply capable of delivering 1800 mA. Check the available slots on your Quantum backplane, as the module occupies one slot and supports up to six optional modules. If you are replacing an older CPU, confirm the program compatibility and I/O mapping. For reliable sourcing, UBEST Automation (ubest101) offers this module with full traceability and fast shipping. Contact us for assistance if you need to match the exact configuration for your application.
