Product Introduction

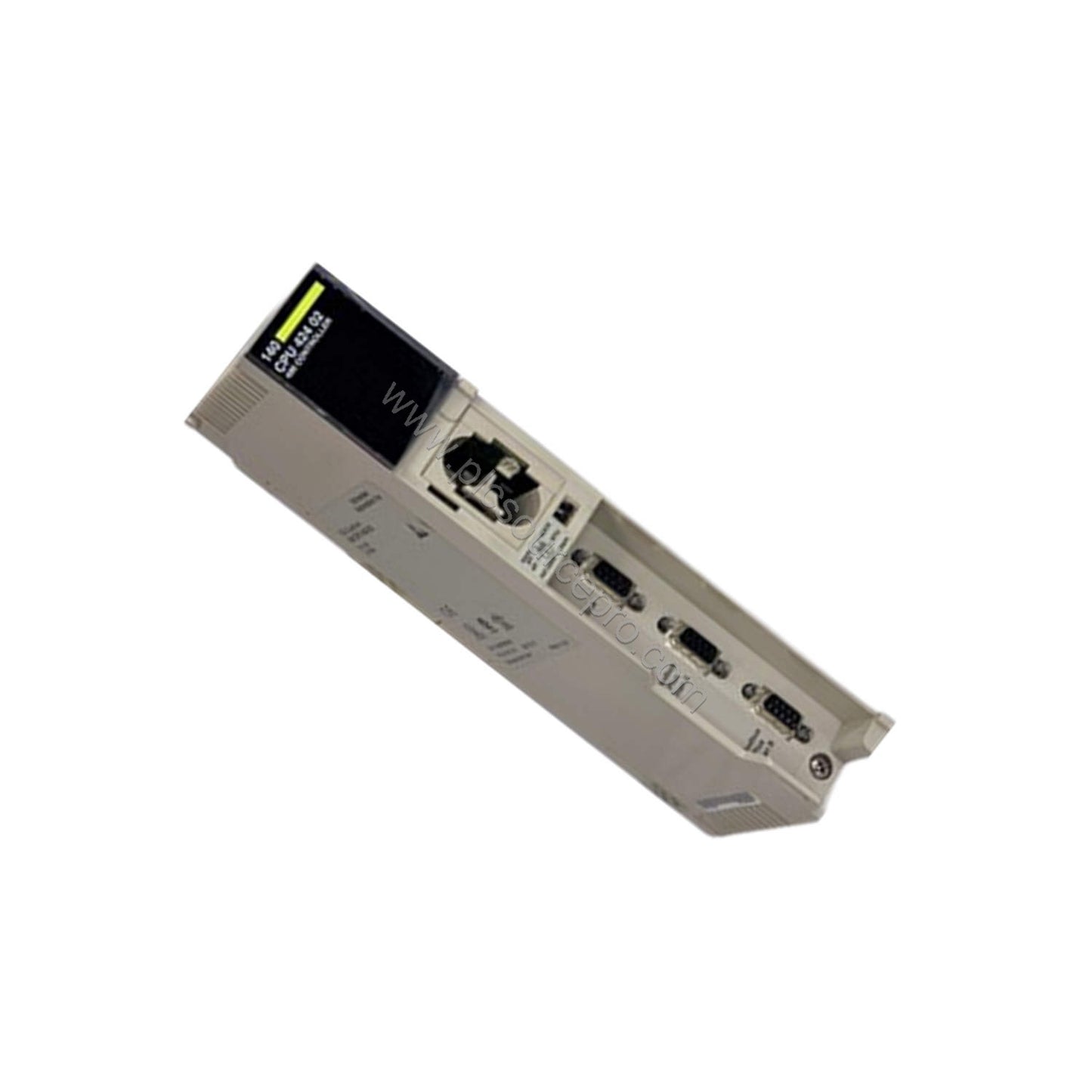

The Schneider 140CPU42401C is a high-performance CPU module within the Modicon Quantum series, designed to handle complex control tasks in industrial automation. This module integrates 1 MB of RAM and provides versatile communication through RS232 and Modbus Plus ports, operating reliably at a 5 V DC supply. Build for demanding environments, it combines processing power with durability, thanks to conformal coating and an integrated watchdog timer.
Technical Specifications Breakdown
The Schneider 140CPU42401C delivers key specifications that ensure robust performance:
-
Memory: 1 MB RAM supports efficient data handling and program execution.
-
Communication Ports: 1 x RS232 and 1 x Modbus Plus enable flexible connectivity with various devices and networks.
-
Power Supply: Operates at 5 V DC, typical for rack-mounted PLC modules.
-
Watchdog Timer: Integrated for system health monitoring, enhancing uptime and reliability.
-
Conformal Coating: Protects against moisture, dust, and chemical exposure, extending service life in harsh settings.
-
Execution Time: Boolean instructions processed in ~0.3 µs, enabling fast logic operations.
Application & Use Cases
The Schneider 140CPU42401C excels in sectors requiring dependable control. Examples include:
-
Manufacturing Assembly Lines: The fast Boolean execution and extensive I/O compatibility support rapid sequencing and machine coordination.
-
Process Control: With its conformal coating and wide temperature range (0…60°C), the module suits chemical plants or food processing areas where exposure to contaminants is common.
-
Water Treatment Systems: Modbus Plus communication allows seamless integration with remote sensors and pumps, while the watchdog timer prevents costly downtime.
Maintenance & Reliability
To maximize the lifespan of the Schneider 140CPU42401C, follow these practices:
-
Environmental Checklist: Ensure the operating temperature stays within 0–60°C and that the rack is free from excessive dust. The conformal coating adds an extra barrier but periodic cleaning is recommended.
-
Watchdog Testing: Regularly verify that the integrated watchdog timer functions properly; simulate a fault condition to confirm automatic reset.
-
Communication Checks: Inspect RS232 and Modbus Plus connectors for tension or corrosion, especially in humid conditions. Prompt replacement of damaged cables prevents intermittent errors.
Selection Guide & Purchasing Advice
Before ordering the Schneider 140CPU42401C, confirm compatibility with your existing Modicon Quantum rack and power supply (5 V DC required). This module supports local and remote I/O, making it a versatile upgrade for distributed control architectures. For a reliable sourcing partner, UBEST Automation offers genuine parts with verified specifications. Visit ubest101 for more product details and support.
