Product Introduction

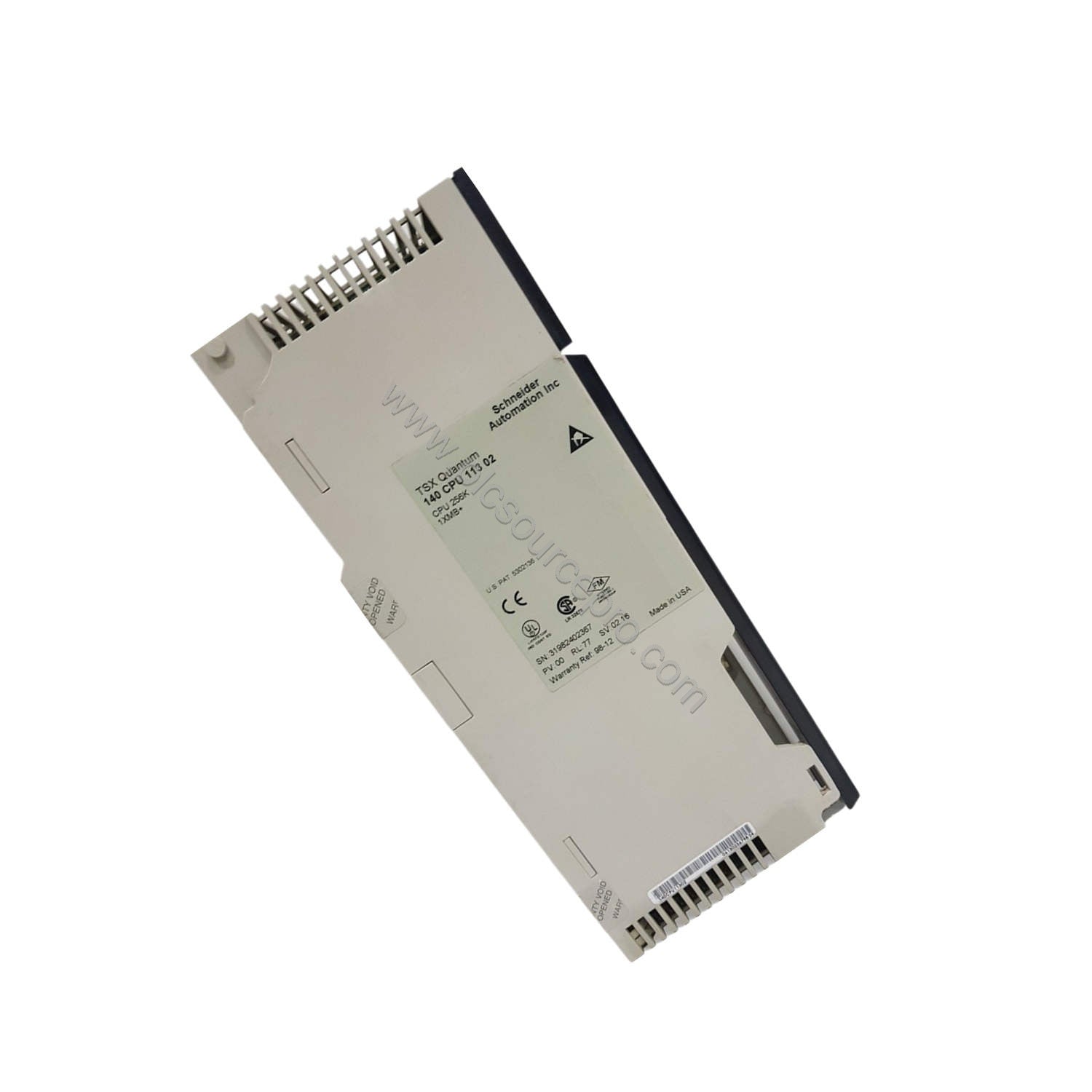

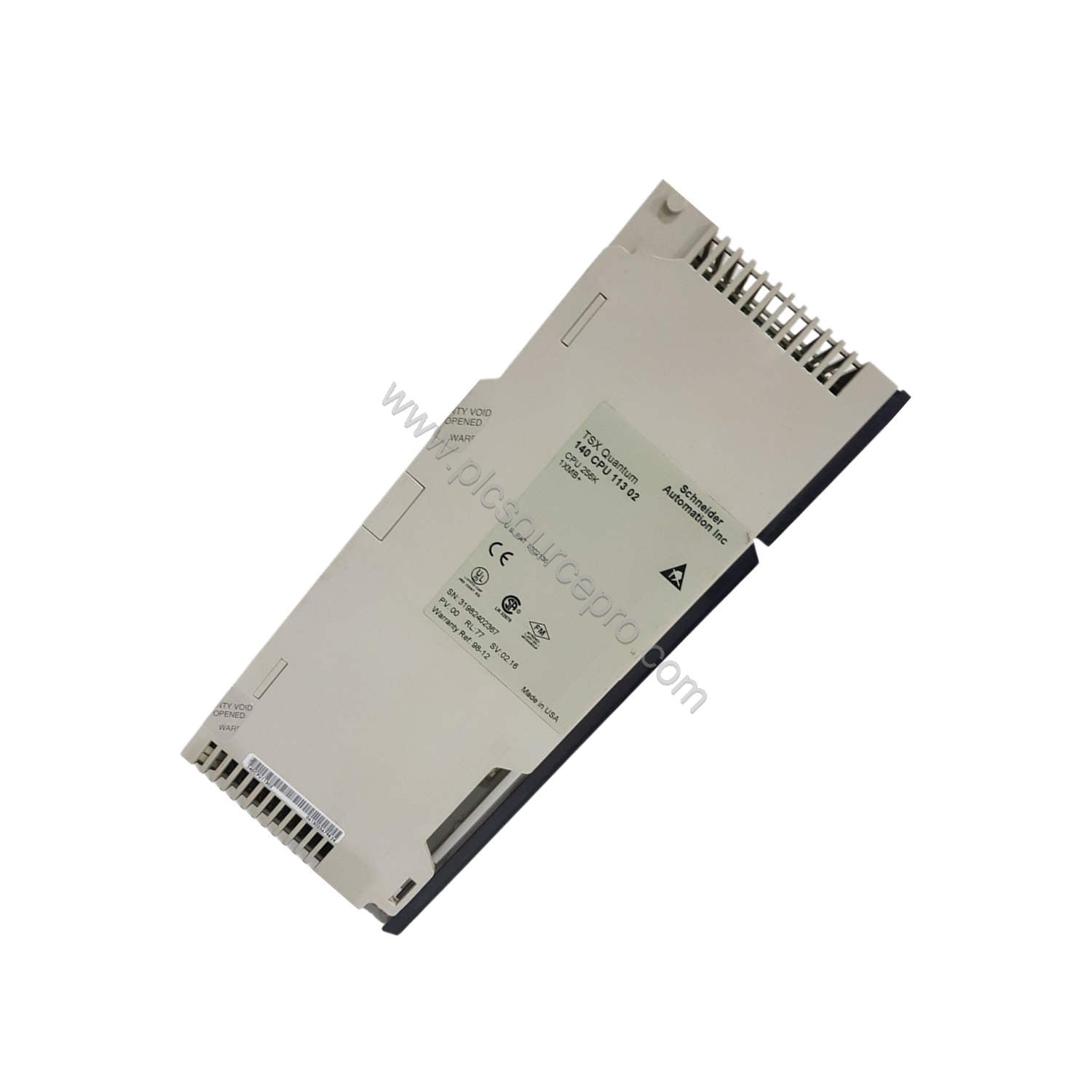

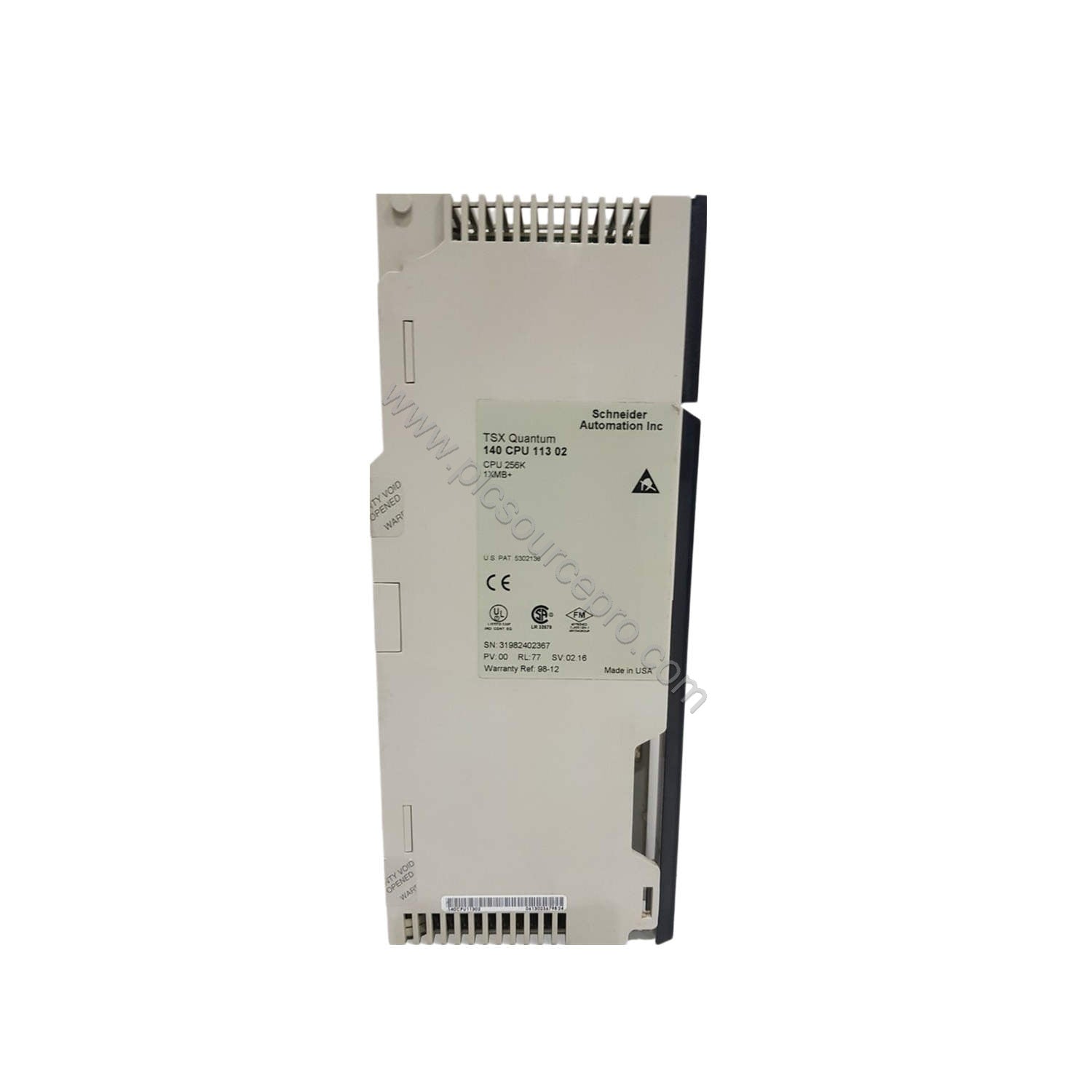

In demanding industrial automation environments, the Schneider 140CPU11304C CPU Module delivers robust performance as part of the Modicon Quantum series. Designed for control applications requiring reliable logic execution and communication, this rack-mounted unit provides extended memory and high-speed operation to keep your processes running smoothly. Whether upgrading an existing Quantum system or building a new one, the 140CPU11304C offers a proven platform for critical tasks.
Technical Specifications Breakdown
The following table summarizes key parameters of the Schneider 140CPU11304C, based on official documentation. For detailed engineering data, consult your system integrator or contact UBEST Automation.
| Parameter |
Value |
| Extended Memory |
1 x MB+ |
| RAM |
768 KB |
| Program Capacity |
16 K steps |
| Mounting Type |
Rack-mounted |
| User Logic Memory |
16 KB |
| Communication Port |
1 x Modbus Plus |
| Battery-backed RAM |
Yes |
| Serial Ports |
1 x RS232 |
| Watchdog Function |
Integrated |
| Communication Speed |
Up to 1 Mbps |
| Local Rack Support |
Yes |
| Status LEDs |
Run, Fault, I/O, Comm |
| Execution Time (Boolean) |
~0.3 µs |
These specifications enable the 140CPU11304C to handle moderately complex logic sequences while maintaining deterministic response times. The integrated watchdog enhances fault detection, and the battery-backed RAM preserves program data during power cycles.
Application Scenarios
The Schneider 140CPU11304C excels in upgrade projects where older Quantum CPUs are replaced to gain additional memory and faster execution. Two common use cases include:
-
Process Control: In chemical or water treatment plants, the CPU manages sequential logic and communicates over Modbus Plus to remote I/O and SCADA systems.
-
Manufacturing Assembly: With 0.3 µs Boolean execution, the module handles high-speed pick-and-place operations and conveyor tracking without latency.
In both scenarios, the 140CPU11304C’s local rack support and RS232 serial port allow flexible integration with existing field devices.
Compatibility & Integration
This CPU module is designed for Modicon Quantum backplanes and works seamlessly with Quantum power supplies, I/O modules, and communication processors. The dedicated Modbus Plus port enables peer-to-peer networking with other Quantum controllers or third-party devices supporting the protocol. For programming, use Schneider Electric’s Concept, ProWORX 32, or Unity Pro software (version dependent). The RS232 serial port can be used for local programming or connection to an operator terminal. Verify firmware revisions before commissioning to ensure compatibility with your system configuration.
Selection Guide & Purchasing Advice
Before ordering a Schneider 140CPU11304C, confirm your existing chassis size, power supply capacity, and software version. This module occupies one slot in a Quantum rack. If you are replacing a 140CPU11302 or similar, review memory requirements—the 140CPU11304C offers 768 KB RAM versus older models’ lower capacities. Purchase from a trusted supplier like UBEST Automation to guarantee genuine parts and reliable support. Visit ubest101.myshopify.com for current stock and competitive pricing.
Troubleshooting & Common Issues
Users may encounter communication faults if the Modbus Plus network is improperly terminated. Verify termination resistors and cable length. If the CPU fails to start, check the battery-backed RAM status: a low battery can cause memory loss. The integrated watchdog will trigger a fault if the logic execution halts; refer to the LED indicators (Run, Fault, I/O, Comm) for immediate diagnosis. For persistent issues, consult the Modicon Quantum hardware manual or contact UBEST Automation’s technical support.
