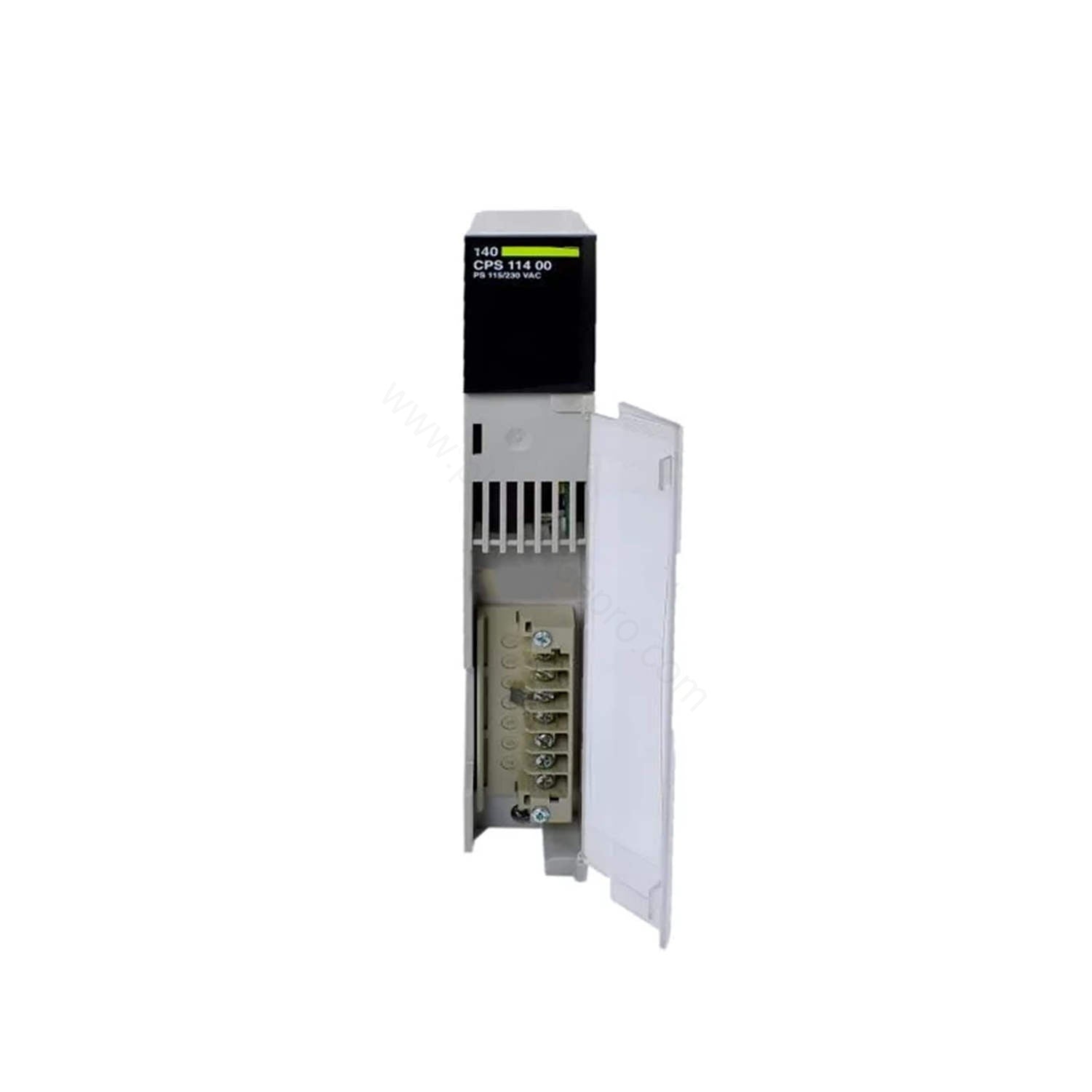

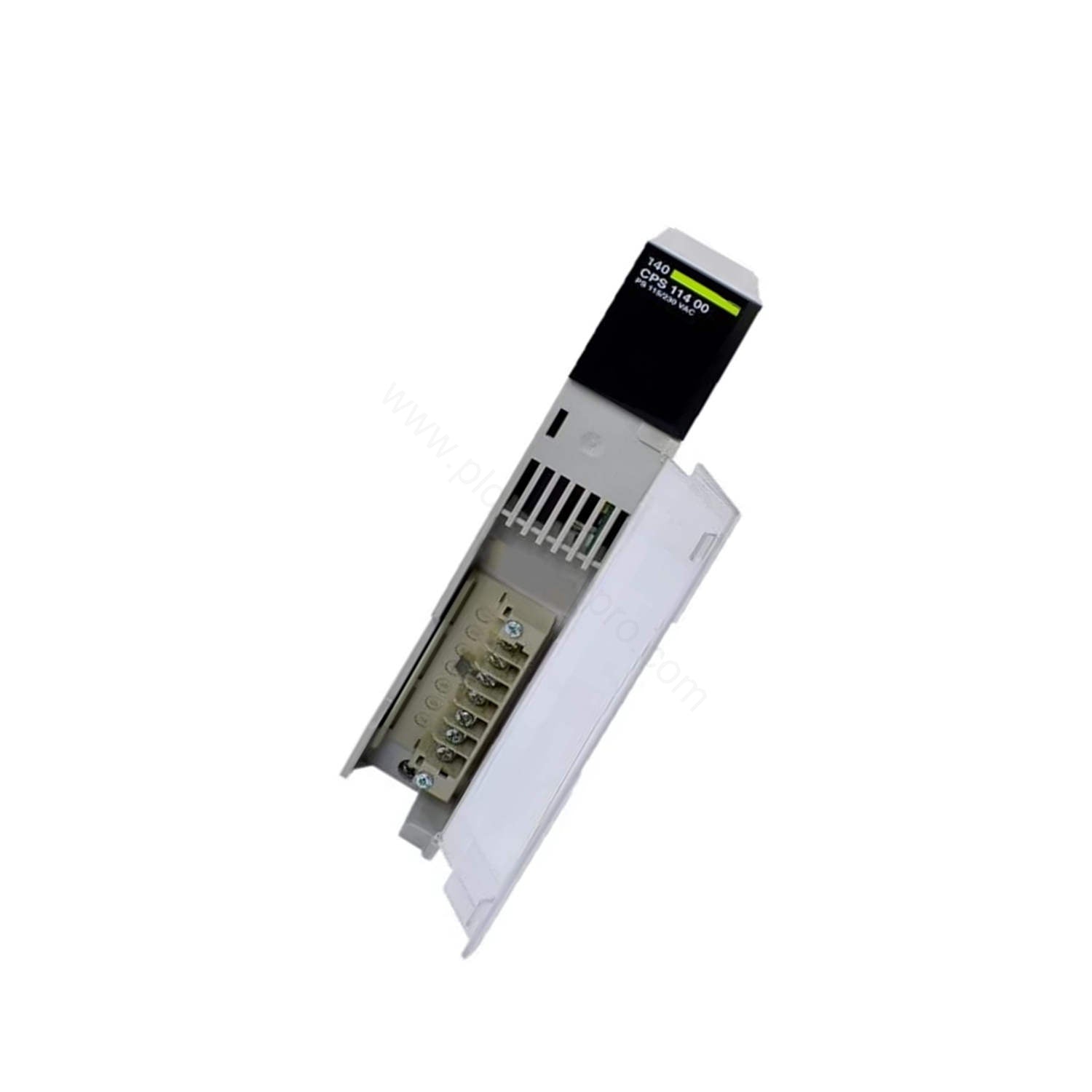

Introduction to the Schneider 140CPS11400 Power Supply Module
When electrical anomalies threaten your control system, the Schneider 140CPS11400 provides robust protection. Part of the Modicon Quantum series, this power supply module delivers a rated 8A current at 24V DC output. It accepts 115/230 VAC input and operates across 0°C to 60°C. Built-in short circuit, overload, and overvoltage protection safeguard your equipment. Certifications from UL, CE, and CSA ensure reliability.
Technical Specifications Breakdown
The Schneider 140CPS11400 offers critical parameters for industrial automation:
| Parameter |
Value |
| Input Voltage |
115/230 VAC |
| Output Voltage |
24 V DC (typical) |
| Rated Current |
8A |
| Frequency |
50/60 Hz |
| Operating Temperature |
0°C to 60°C |
| Mounting Type |
DIN Rail |
| Protection |
Short Circuit, Overload, Overvoltage |
| Weight |
1.63 lbs (0.74 kg) |
| Cooling |
Natural convection |
These specs ensure stable power delivery in demanding environments. The dual input voltage allows global use, while the protection features prevent damage from common faults.
Industry Applications for the 140CPS11400
This power supply module suits various industrial settings:
- Manufacturing plants: Powers PLC racks and I/O modules reliably.
- Process control: Delivers consistent 24V DC to field instruments.
- Building automation: Supports control panels in HVAC systems.
Thanks to its wide temperature range and protection features, the 140CPS11400 ensures uptime even in harsh environments.
Installation & Setup Guidance
Mount the Schneider 140CPS11400 on a standard DIN rail in a clean, indoor panel. Ensure adequate ventilation for natural convection cooling. Connect 115 or 230 VAC input to appropriate terminals. Verify polarity for 24V DC output. Test for proper voltage before connecting loads. The IP20 rating means dust protection but no water protection.
Maintenance & Reliability
To maximize service life, periodically inspect the 140CPS11400 for dust buildup and ensure ambient temperature remains within 0-60°C. Check input voltage stability and verify output voltage within tolerance. The unit's natural convection cooling requires unobstructed airflow. With proper care, this module provides years of reliable operation.
Troubleshooting Common Issues
If the 140CPS11400 fails to power up, check input voltage and fuse. Overload tripping indicates excessive current draw – reduce load. Overvoltage protection activates if output exceeds safe levels; verify input line condition. For replacement units, contact UBEST Automation for genuine Schneider spares.
