Product Overview

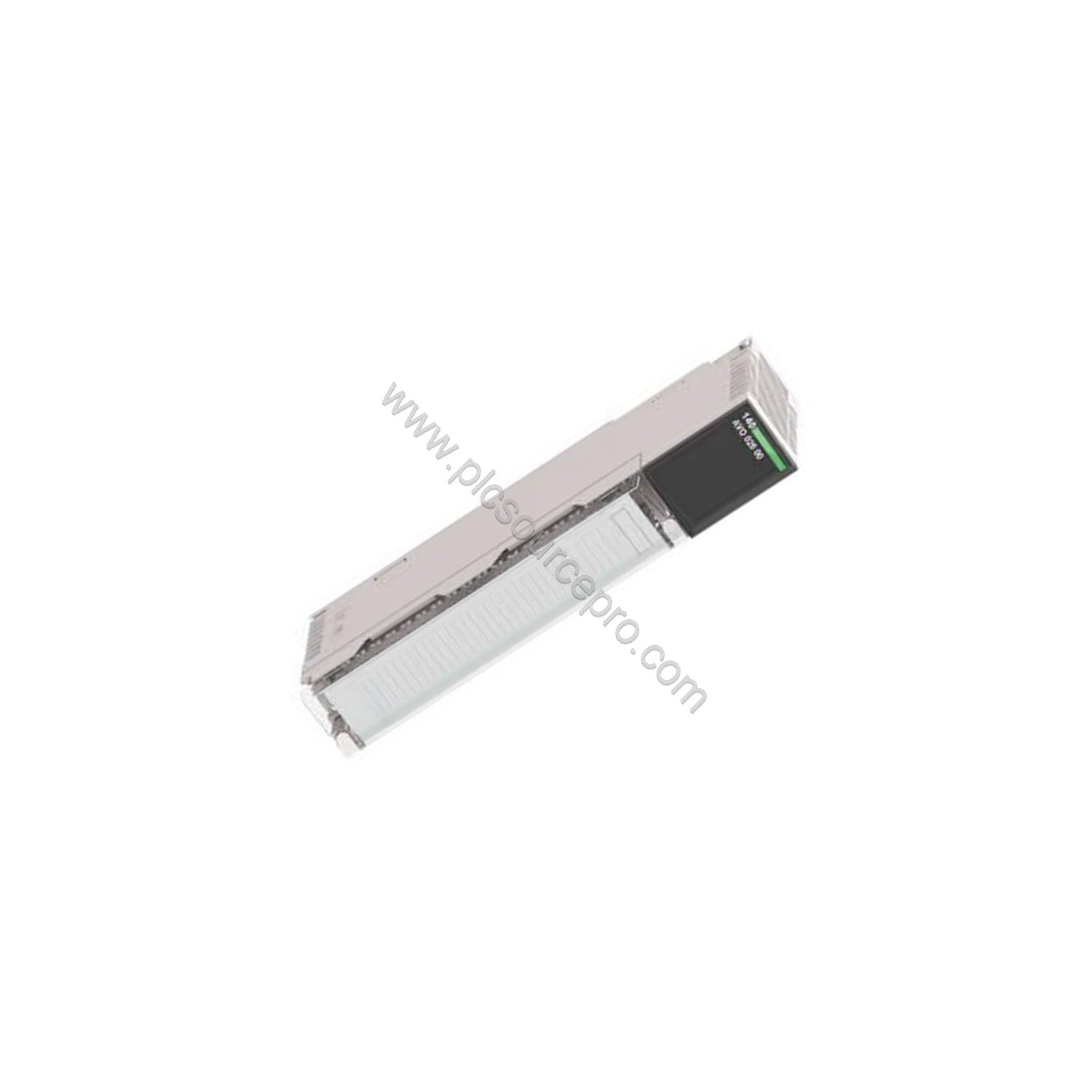

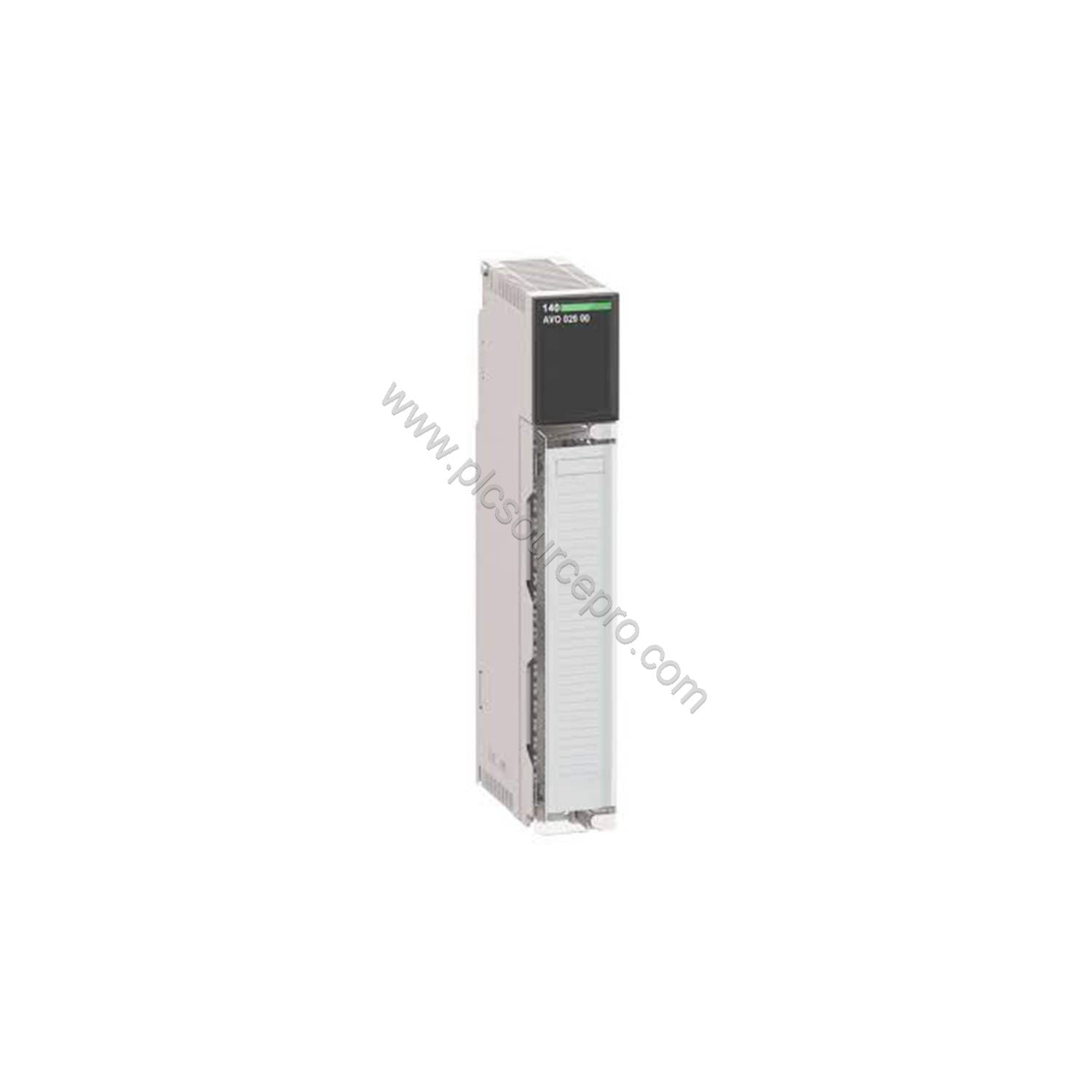

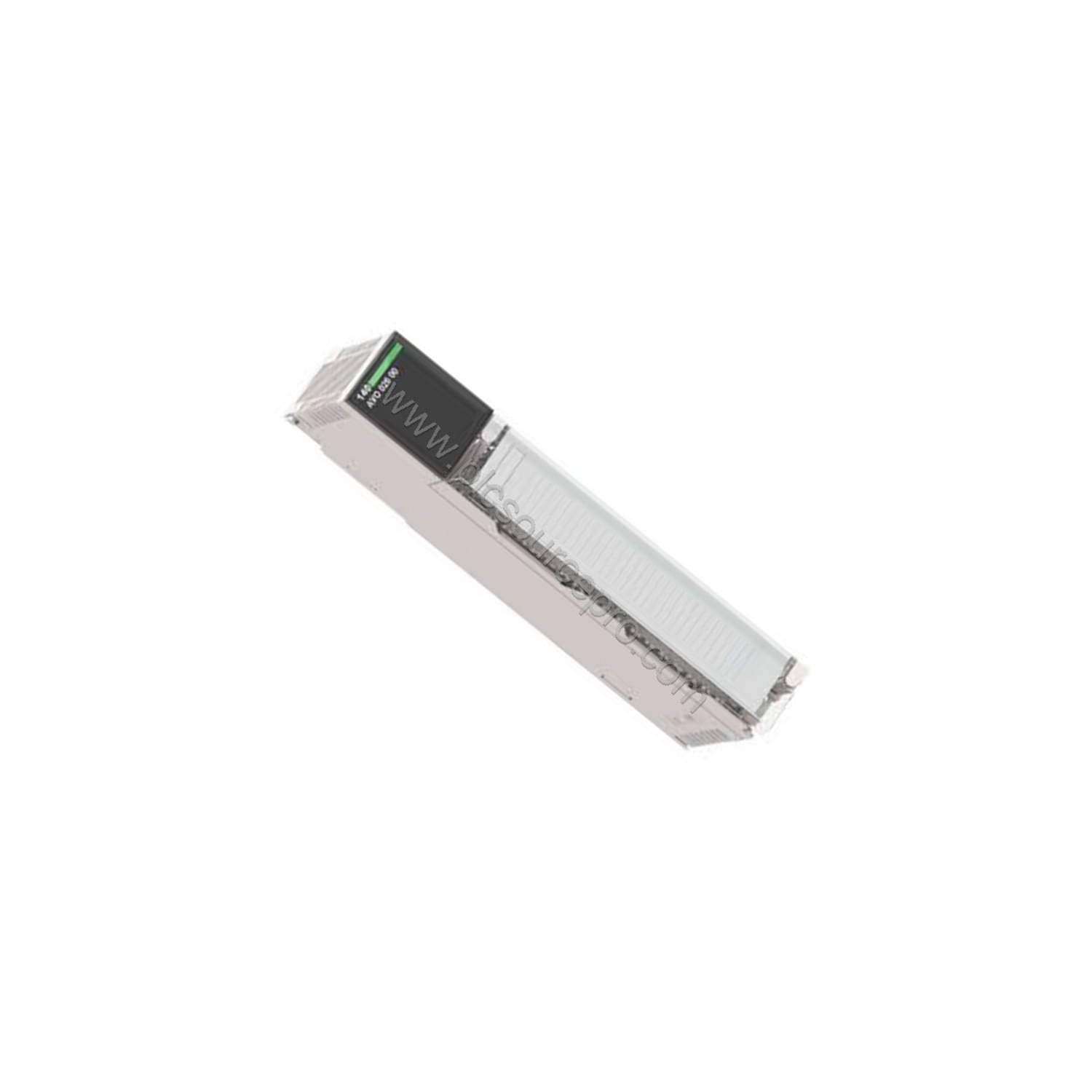

When signal accuracy and channel isolation are critical in industrial control, the Schneider 140AVO02000C analog output module delivers reliable performance. Part of the Modicon Quantum series, this module features four output channels with 12-bit resolution and current outputs from -10 to 10 mA. It ensures precise control with a linearity of ±1 LSB, reducing the risk of signal distortion common in harsh environments.
Key Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Line |
Modicon Quantum |
| Channels |
4 |
| Addressing Requirement |
4 output words |
| Output Resolution |
12 bits |
| Output Current |
-10…10 mA |
| Source Resistance |
0.1 Ohm |
| Max Cable Distance |
400 m |
| Linearity |
1 LSB (+/-) |
| Update Time |
3 ms |
| Max Power Dissipation |
4.5 W |
| Isolation Between Channels |
500 V for 1 minute |
| Bus Current Requirement |
700 mA |
| Fuse Rating |
0.063 mA |
| Marking |
CE |
Industry Applications
The Schneider 140AVO02000C is ideal for process control systems requiring stable analog output signals over long distances—up to 400 meters. Its per-channel isolation (500 V) prevents ground loops and cross-talk failures, common culprits in motor speed control and valve positioning. In chemical plants or water treatment facilities, this module maintains signal integrity despite electrical noise.
Installation and Setup
Mount the Schneider 140AVO02000C in any Quantum chassis slot. It requires four output words of addressing—easily configured via the system's backplane. For best performance, use shielded twisted-pair cables and keep cable lengths within 400 m. The module draws 700 mA from the bus; verify your power supply capacity. No field wiring beyond the output terminals is necessary.
Compatibility and Integration
This module integrates seamlessly with the Modicon Quantum automation platform, including the 140CPU series controllers. It works with standard Quantum backplanes and supports the bus current requirements of 700 mA. The -10 to 10 mA output range is compatible with many analog actuators and I/O modules.
Selection Guide
Before purchasing the Schneider 140AVO02000C, verify your controller's backplane compatibility and available bus current. This module replaces older analog output modules with equivalent channel counts and isolation. For bulk orders or technical support, contact UBEST Automation (ubest101) for competitive pricing and quick delivery.
